1400 degree Silicon Carbide Rods heater SiC heating elements for muffle oven

Product Overview

Description

1400 degree Silicon Carbide Rods heater SiC heating elements for muffle oven



Detailed Product Description

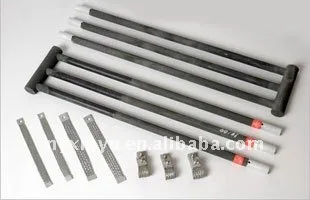

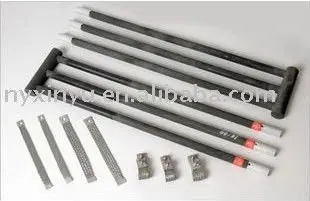

Sic heater M--Type
Professional manufacturer of the silicon carbide heater,Top quality and lower price!

Sic heater M--Type

Professional manufacturer of the silicon carbide rod,Top quality and lower price,Perfect after-sales service,Inquiry it now !
our SiC heating elements adopt special technics and can save you energy. General speaking, our SiC heating elements have the following characters: low resistance at both end, can general high temperature, with long service life, save you 10% energy compare with others SiC heating elements.

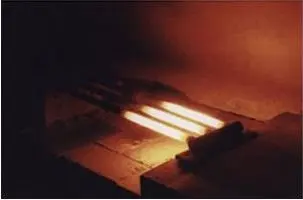

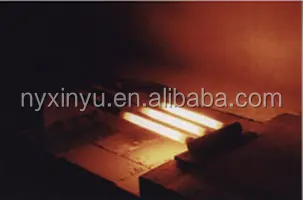

It is mainly apply to produce float glass tin trough, optical glass melting, pricision process of glass, atmosphere adjusting furnace and so on.

the rated power of the area of hot zone 1500C

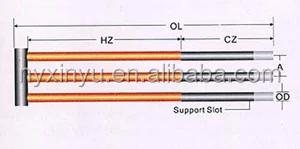

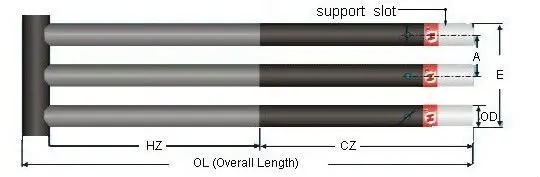

the ways of mark the dimension  M—Type D/OL/HZ/CZ/E/A

OD= Outer diameter  OL= Overall length  HZ= Hot zone length CZ= Cold end length  A= Shank Spacing



Order sample:

D=20mm, HZ=250mm, CZ=350mm, OL=625mm, A=60mm, Resistance=0.9ohms.

Please specify as: dia20x250x625x60mmx0.9ohms



Information request for SIC Element Quotation, Please Specify:

Note: types and sizes list in this table are common ones. We also provide other special types.
