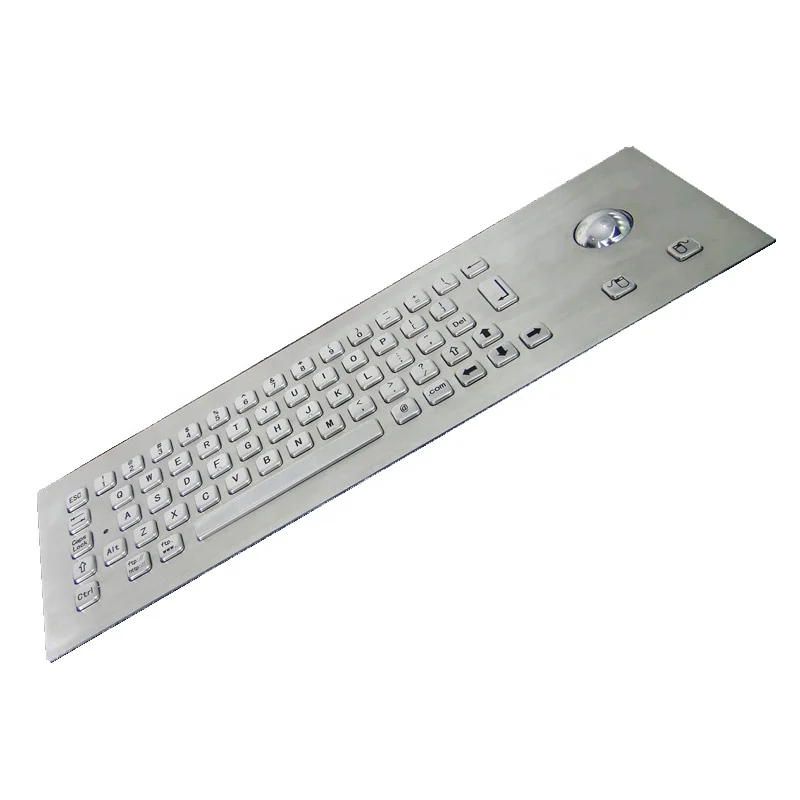

Metal kiosk keyboard with trackball and USB/PS2 interface

Product Description

- Rugged stainless steel, water-proof, vandal-proof, panel mount keyboard with 65 customizable, full travel keys and integrated OPTICAL trackball

Key Features

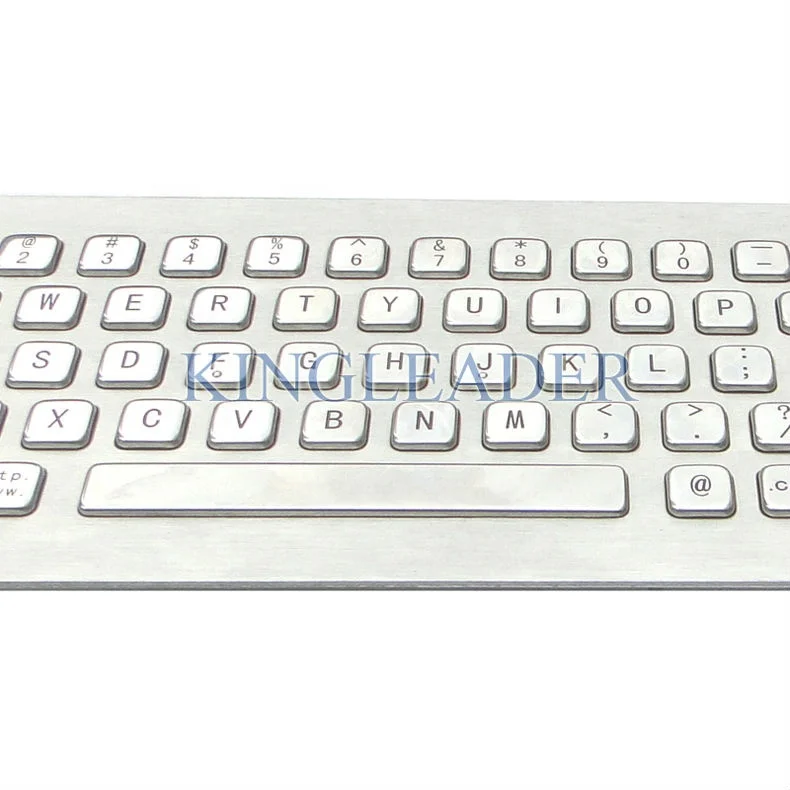

- 65 stainless steel keys

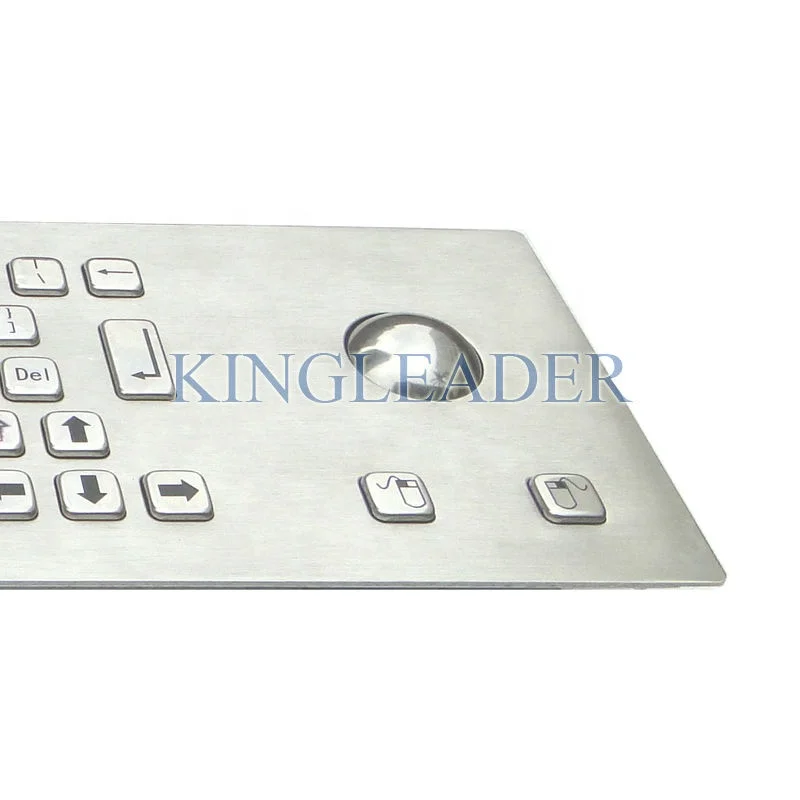

- Integrated optical trackball delivers excellent pointing performance that conventional mechanical trackball cannot surpass

- Protrudent full travel keys with etched graphics, excellent tactile feedback
- Panel mount from the front
- Designed to operate in harsh environments, making it ideal for demanding applications in public space or industrial environments
- Built from stainless steel, high resistance against vandalism
- Dust-proof and liquid-proof, meet IP65 requirement
- PS/2 or USB interface for option

- Customizable layout

Material

- Front panel & Keys: 304 stainless steel

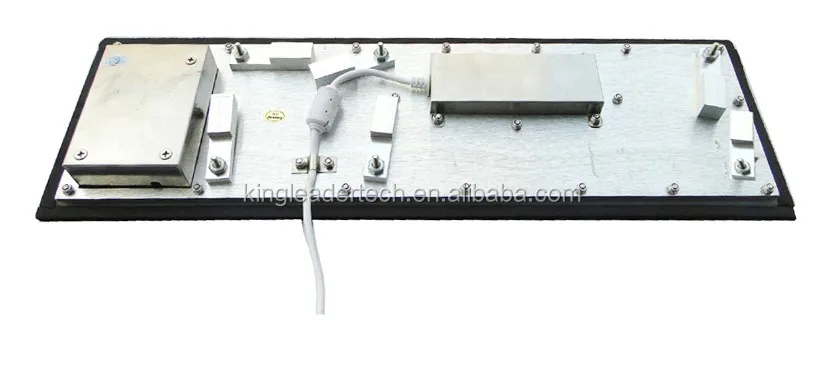

- Back panel: Aluminum alloy
- Trackball: Stainless steel(Dia: 38mm)

Electrical Data

- Power supply voltage: DC 5 V ± 5%
- Current rating: 20 mA
- Interface: USB or PS2
- EMC compliant.
  Emission: EN 50081-1
  Immunity: EN 50082-1
- FCC: Part 15, class B
- Safety: EN 60950, CE compliant

Environmental Characteristics

- Operating temperature: -30º C to + 70º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6

Mechanical Data

- Actuation force for key:120±15g
- Key travel: 2.0mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4

Compatible Operation System

- PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10

Reliability

-MTBF:>20,000 hours

-MTTR:<30 minutes

Certification

-          FCC,CE,RoHS

Dimension

-          412.00 x 130.00 x 35.15mm (L x W x T)

Weight

-          1.80 kgs
