Laboratory Chocolate Sugar Peanut Tablet Coating Machine
US $1550-$1650
BYC 400 автоматическая машина для нанесения пленки машины
- Category: Film Coating Machines >>>
- Supplier: Shanghai Flight Pharmaceutical Machinery Co. Ltd.
Share on (481579953):
Product Overview
Description
Product Description
BYC-400 Automatic film coating machine
———Descriptions———
The machine is used to carry out sugarcoating and so on to the core of Chinese traditional medicine
and western medicine tablets, it integrates strong power, weak power and hydraulic pressure with
pneumatic operation, it is new type equipment improved on the basis of original common type
sugarcoating machine.
The machine is composed of the mainframe (original sugarcoating machine), controllable
normal-temperature hot air system, automatic liquid supply and air supply spraying system, exhaust
unit etc. The main motor has function of frequency speed control, it sprays the coating purposed
auxiliary materials to the tablet surface with high atomized spray gun automatically, meanwhile, the
tablets make continuous and complex track movement in the coating pan, let the coating liquid cover
the tablet core evenly, the controllable normal-temperature hot air in the pan will dry the tablets at the
same time,
Exhaust fan discharges the waste gas and aqueous vapor, let the tablet surface form a firm, fine,
complete and smooth surface film rapidly.
———Technical Parameters———
Model | BYC-300 | BYC-400 | |
Diameter of pan | 300 mm | 400 mm | |
Production capacity | 1-2 kg/time | 2-5 kg/time | |
Temperature range | Normal temperature- 80℃ | ||
Rotary speed | 0- 46 r/min | ||
Motor power | 0.55 KW | ||
Power of blower fan | 40 W | ||
Spray gun | RA-C1 | ||
Fluid barrel | Made in Flight | ||
Air compressor | Self-prepare | ||
Heating power | 1.5 KW | ||
Solenoid valve | G1/8’’ | ||
Net weight | 71 kg | 76 kg | |
Gross weigh | 90 kg | 95 kg | |
Packing size | 930x530x1040 mm | 940x530x1040 mm | |

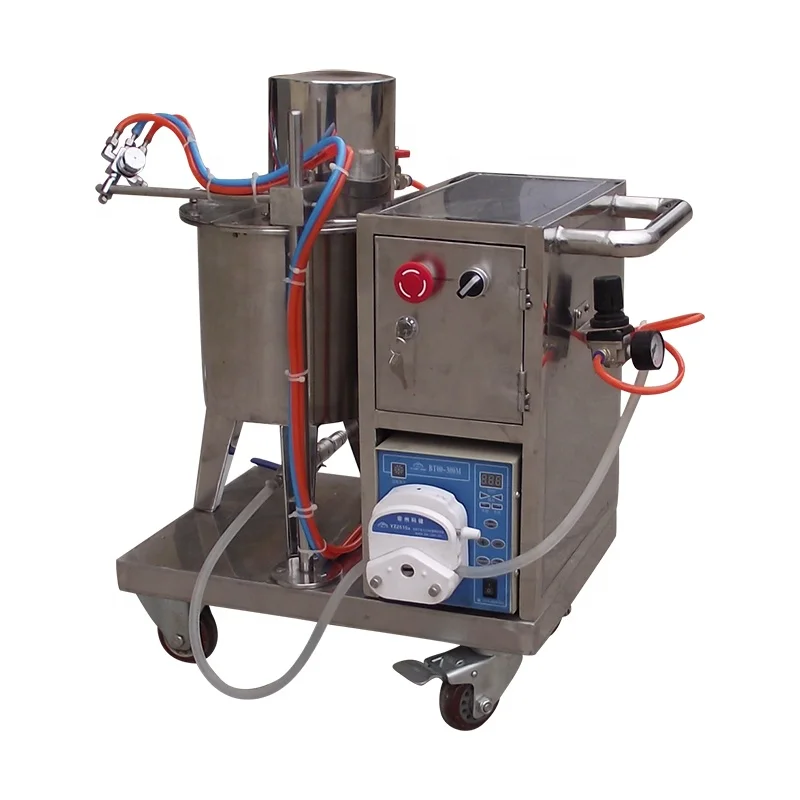

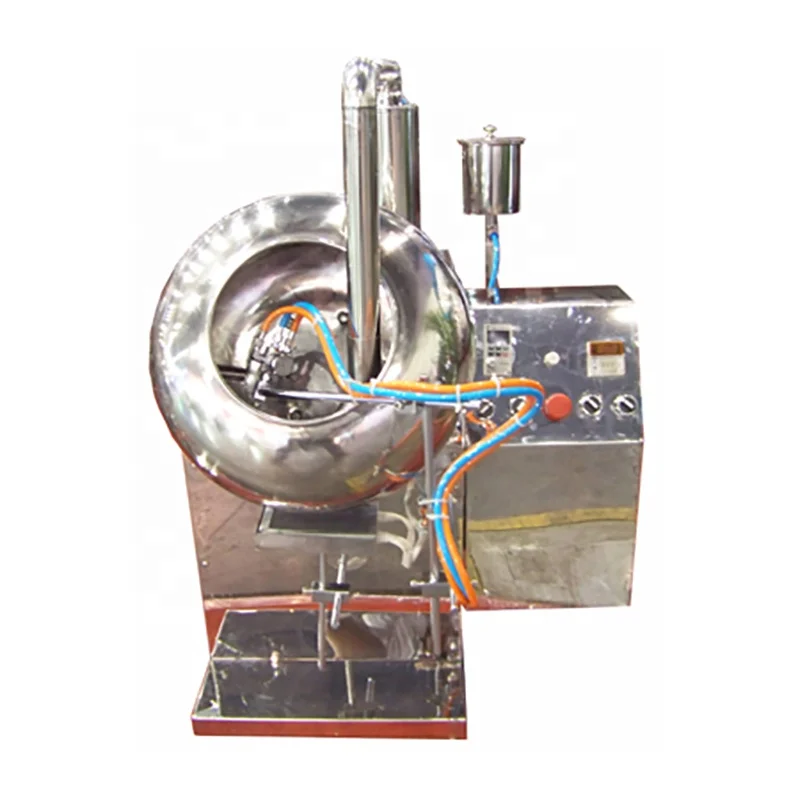

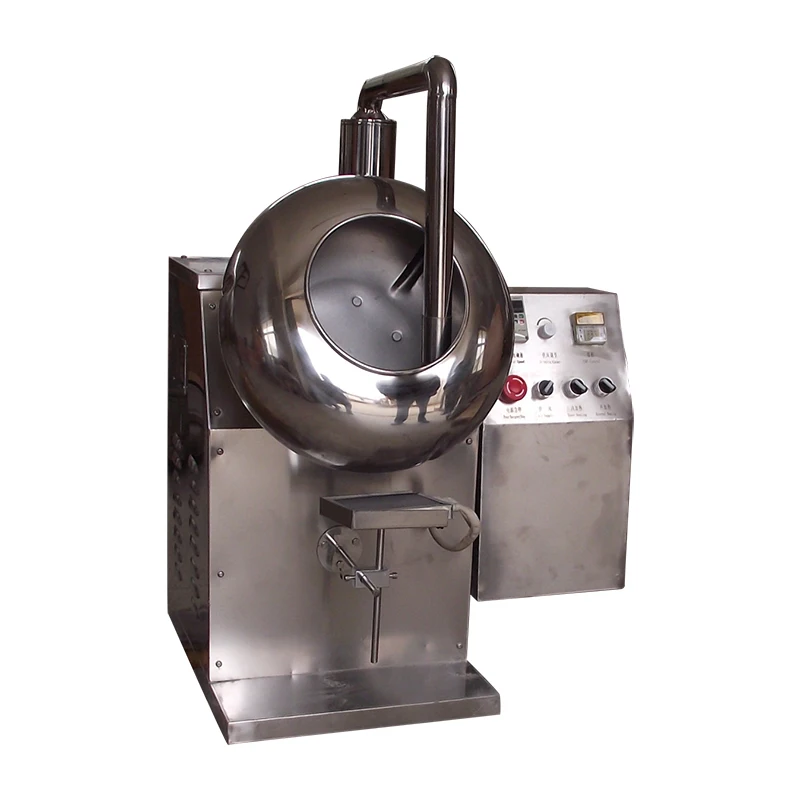

———Product image———
Features
——Features——
Feature 1 | The machine has advantages of simplified structure, easy operation, less dust, smooth and fine tablet surface, saving auxiliary materials and convenient maintenance. It is the ideal equipment for tests in laboratory. |
Feature 2 | Operating reliably, low noise. |
Feature 3 | Pollution free, convenient to wash and maintain. |
Feature 4 | Fabrication cost low |
Feature 5 | Operate with electrical control, the rotational speed of the pot is adjusted by frequency Converter, the wind temperature, the tablet temperature all are adjustable and controllable. |
——Hot Sale Products——
Our Advantages
——Our advantages——
Products advantages | 1. We always give top priority to quality 2. Strictly guarantee the precision of parts error 3. Reasonable processing technology coupled with advanced processing equipment |
Trade advantages | 1.Our company is a Gold Supplier on Alibaba. So we can provide Escrow Service on Alibaba. 2.Our company can do Trade Assurance Order for customers on Alibaba. |
Custom made advantages | 1.The company independent research and development, custom design exclusive for the series of products. 2. Mutual benefit with the best quality and service, and sincerely hope that friends from various circles at home and abroad sincere cooperation and mutual benefit and win-win situation. |
Company Introduction
——Our Company——
Flight Pharmaceutical Machinery CO., Ltd is the professional manufacturer and export of
various pharmaceutical machineries in China. Our company has profuse designs with series
quality grade, and expressly, our price is very competitive, because we are manufactory.
Our factory developed about forty types of machines in over ten varieties. By ISO9001:2000
quality system attestation, accord with GMP attestation request. All tasks from casting to
metal machining, and general assembly are accomplished ourselves.
We produce and export various pharmaceutical machineries, relevant medicament detecting
instruments and packing machinery, such as Rotary tablet press, Single punch tablet
press, Pulverizer, Mixer,Coating machine, Granulator, Labeling machine, Liquid filling
machine, Capsule filing machine, Blister packing machine, and so on.
We have professional export office, with an experienced and professional team, they will
service in whole business. By excellent quality, reasonable price and perfect after-service,our
products have been sold in many countries and regions all over the world, Such as United
States, Canada, Australia, United Kingdom, Bulgaria, Russia, Indonesia, Pakistan, Thailand
and Vietnam etc, these products are very popular with the customers there.
Try to do everything, let customer satisfaction, this is our company’s service tenet.
<<Welcome new and old customers come to discuss business>>
——Certificate——
Packaging & Shipping
——Packing & Shipping——
Delivery time | Within 7 days after receiving the payment. |
Payment methods | T/T or Western Union payment, and full payment before shipping |
Guarantee | One year quality guarantees and free with spare parts for one year. |
After sales service | The English user manual Circuit diagram |
