Deliver Liquid Hydraulic oil Hose 4SH/4SP

Product Overview

Description

  Deliver Liquid Hydraulic oil Hose 4SH/4SP







------------------------------------------------------------------------------------------------------------------------------------------------------------

Inner tube:	oil resistant synthetic rubber
Reinforcement:	steel wire spiral
Cover:	synthetic rubber
Skive:	Non-Skive cover
Temperature range:	-40 to +100oC with petroleum base hydraulic fluids







 ------------------------------------------------------------------------------------------------------------------------------------------------------------

SIMILAR PRODUCTS:



1.

Spiral hoses correspond to EN 856/SAE 100:

4SP type - hydraulic hose with four reinforced layers for medium pressure;

4SH type - hydraulic hose with four enhanced reinforced layers for high pressure;

R12 type - hydraulic hose with four reinforced layers is used in conditions of long lasting work cycle, high temperature and medium pressure;

R13, R15 types- multi-spirals (the most common is six spirals) hydraulic hose for extremely heavy conditions, with high durability in conditions of high pressure and heavy impulse loads.



2.

Braided hoses - the most popular type of hydraulic high-pressure hoses

The production is regulated in Europe by the special European standards EN 853, EN 854, EN 857.

Designed for use with hydraulic fluids corresponding to ISO 6743-4 in range from    -40 to +100 C, as well as oil and water emulsions in the range from -40 to +70 C

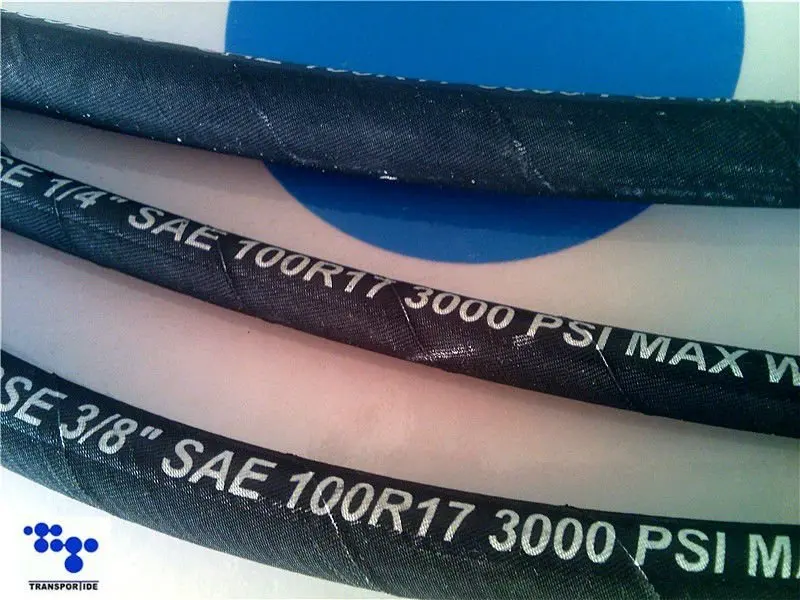

Types: 1SN, 2SN, 1ST, 2ST, 1SC, 2SC, SAE 100 R17, SAE 100 R16.

 ------------------------------------------------------------------------------------------------------------------------------------------------------------

Usual Specification:



1/4″, 5/16″, 3/8″, 1/2″, 5/8″, 3/4″, 1″,1-1/4″, 1-1/2″,2″.



Best rubber mixing center:





Product Description:

____________________________________________________________________________________

Tube : Oil resistant synthetic rubber
Reinforceent : 1&2&4&6 high tensile steel wire layers
Cover Compound : Abrasion and weather resistant synthetic rubber
Temperature range : -40 °C to +100 °C

____________________________________________________________________________________

All kinds of high quality hoses for your purchasing:

DIN-2SC, DIN-1SC, 2ST/R2, 2SN/R2AT, 1ST/R1, 1SN/R1AT,SAE-R17, SAE-R16, SAE-R13, SAE-R12, DIN-4SP, DIN-4SH,

SAE-R6, SAE-R5, SAE-R3,

SAE-R7/R8,

______________________________________________________

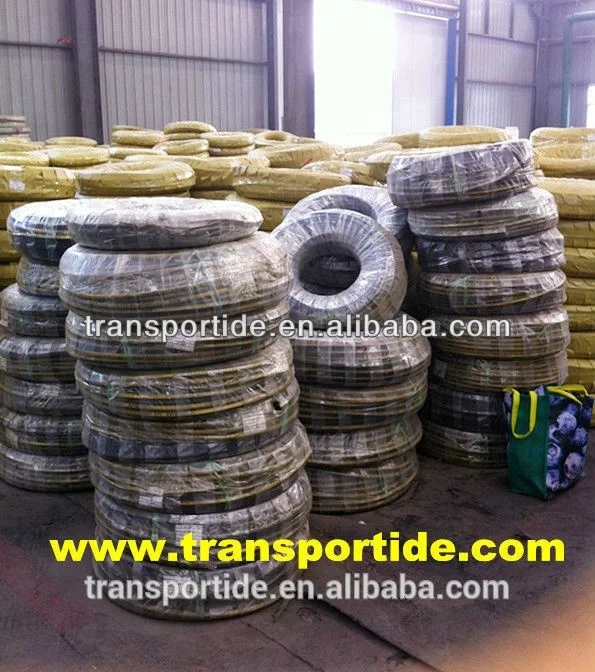

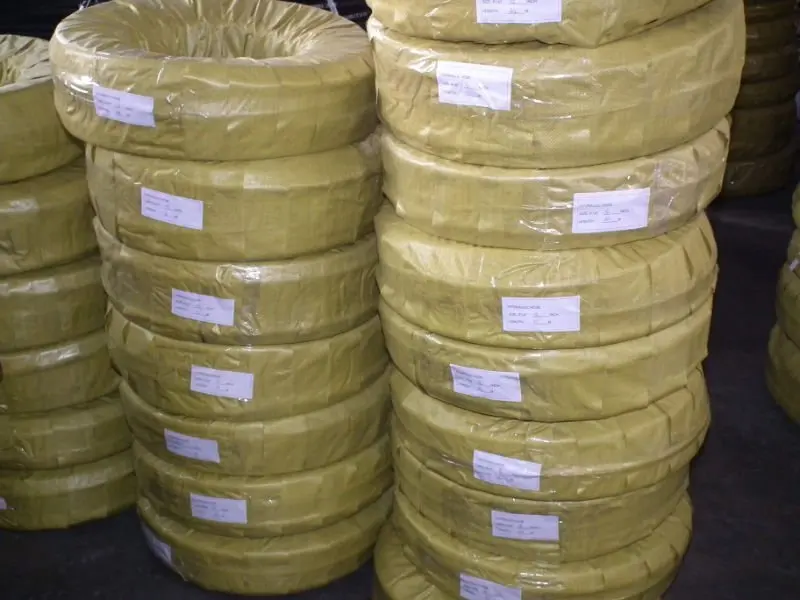

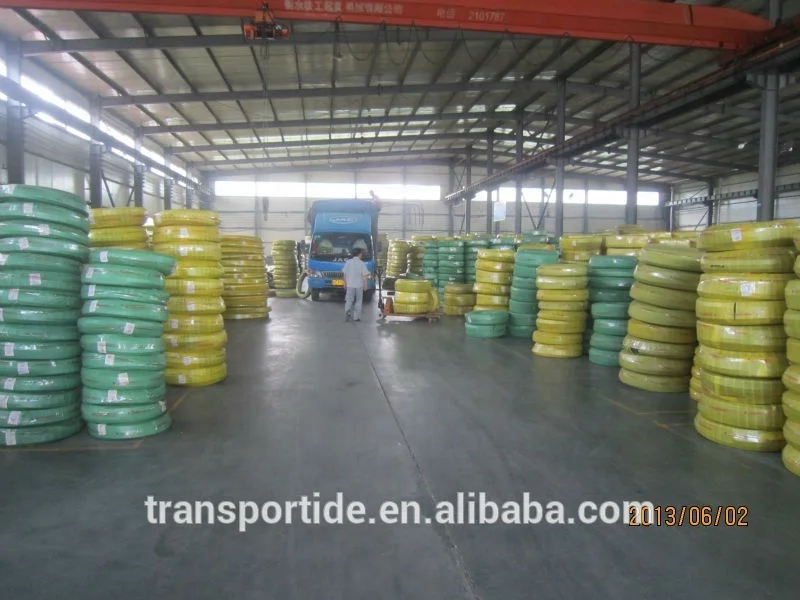

Packing & shipping



Certificate:



We are professional manufacturer of all kinds of hydraulic hoses, any other request and questions please feel freel to contact me:

Mobile: 0086 185 6155 9008

Wechat: Lvxiaohui530
