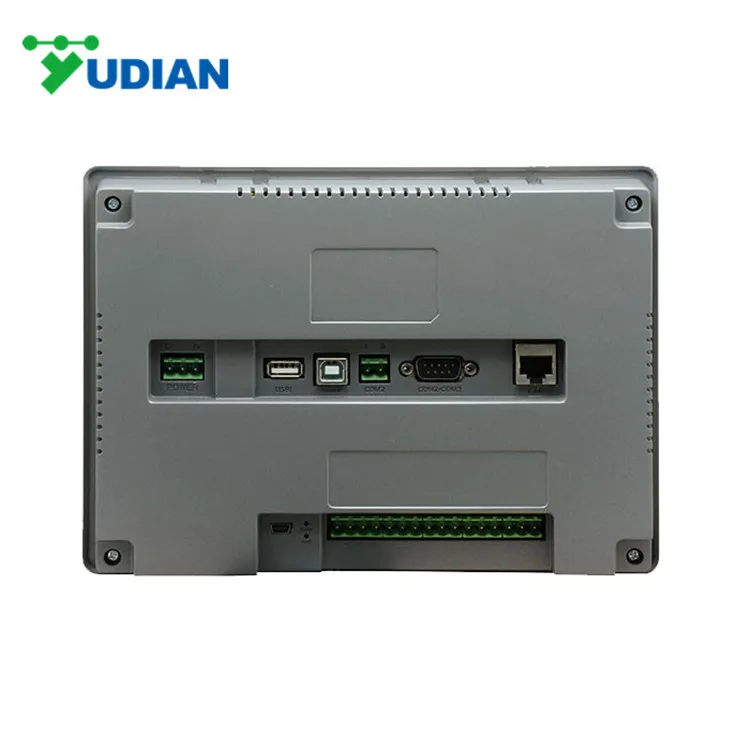

12 channels multi point temperature recorder
12 channels multi point temperature recorder
12 channels multi point temperature recorder

12 channels multi point temperature recorder

Share on (481845405):


Price:RUB 6,615.12 - RUB 11,520.71

Quantity:


Product Overview

Description

eva



01

AI-3170 PAPERLESS temperature humidity recorder Multipoint Temperature recoder

Function:
Data record function

Data encryption function

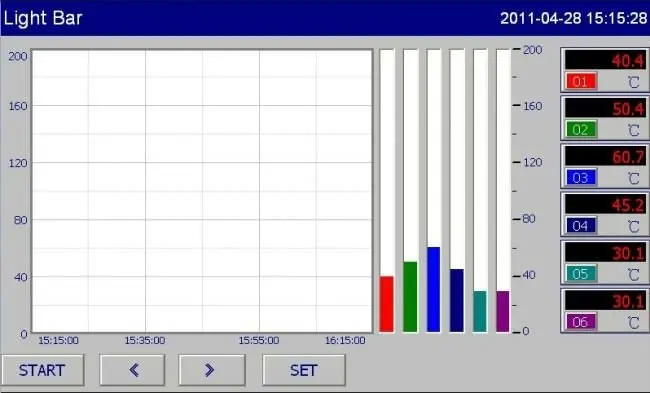

Flow sheet display function

Power measurement function

Flow totalizer function



12 channels multi point temp. recorder 7-inch Paperless Recorder. Up to monitoring, recording and controlling 32 channel.

Technical Specification



Display :                     7 inch ,Color STN LCD
Screen Resolution :           800 x 480
Dimension :                  226.5 W x 163 H x 36.4D mm
Supply Voltage :              DC24V
Supply Voltage Range :       DC19.2V ~ DC28.8V
Recording time :             1~60 Sec.per period
Protection Level :            Equivalent to IP65 (Surface)
Communication :            RS485, RS232
Operating Ambient :         Temp.-20<60 ºC; humidity d90%RH

Memory Storage:            90MB internal, external 2GB USB thumbdrive included

 recorder
