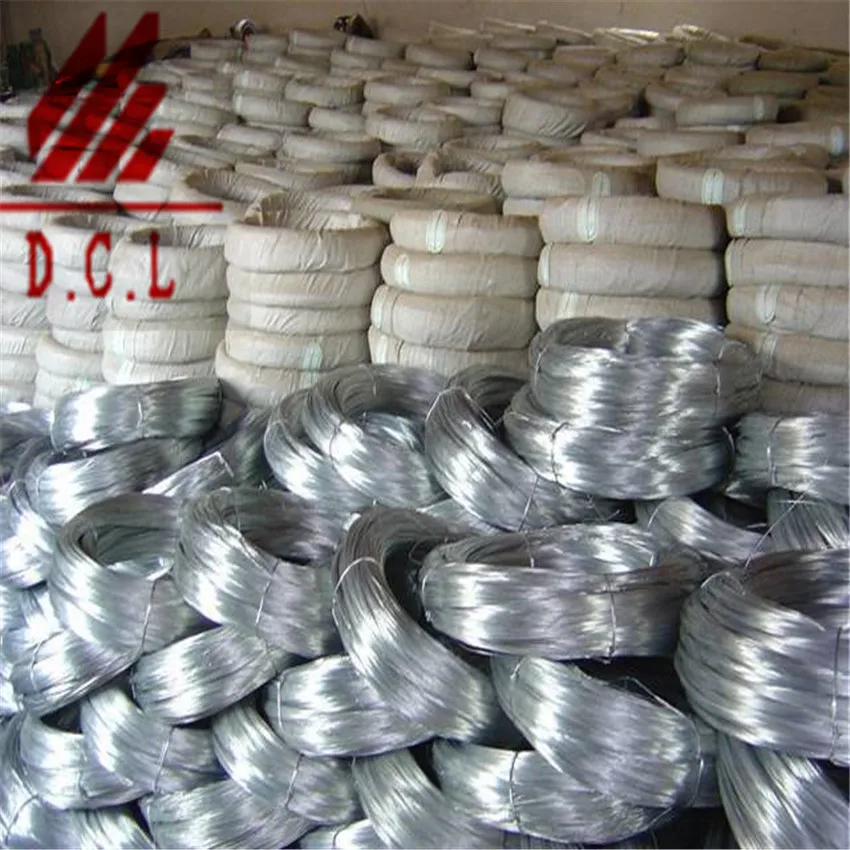

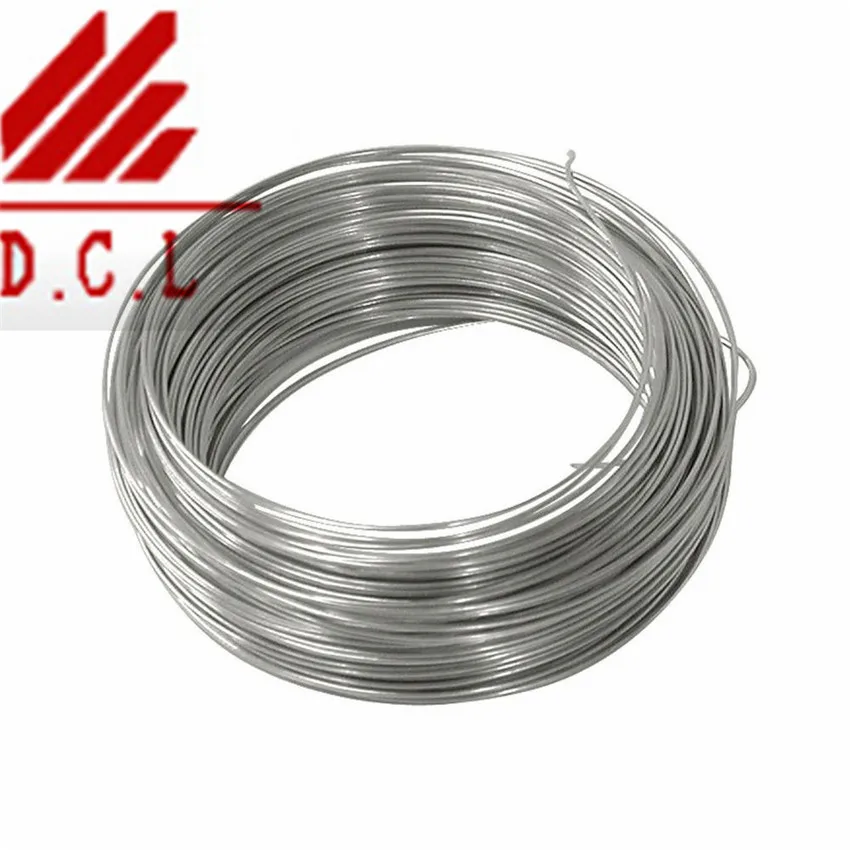

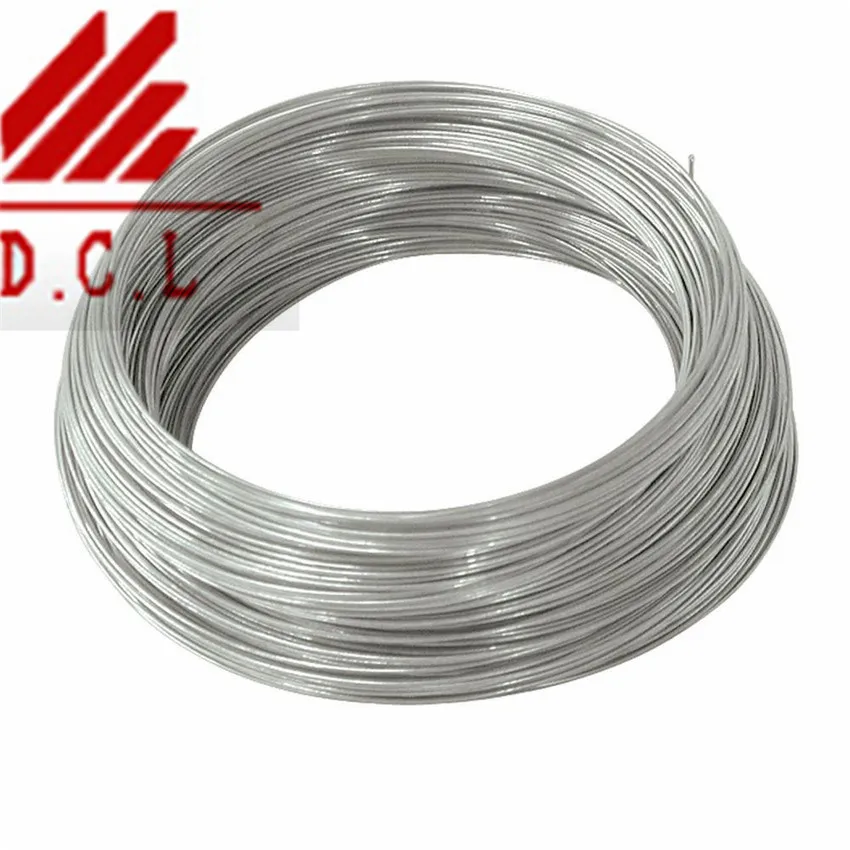

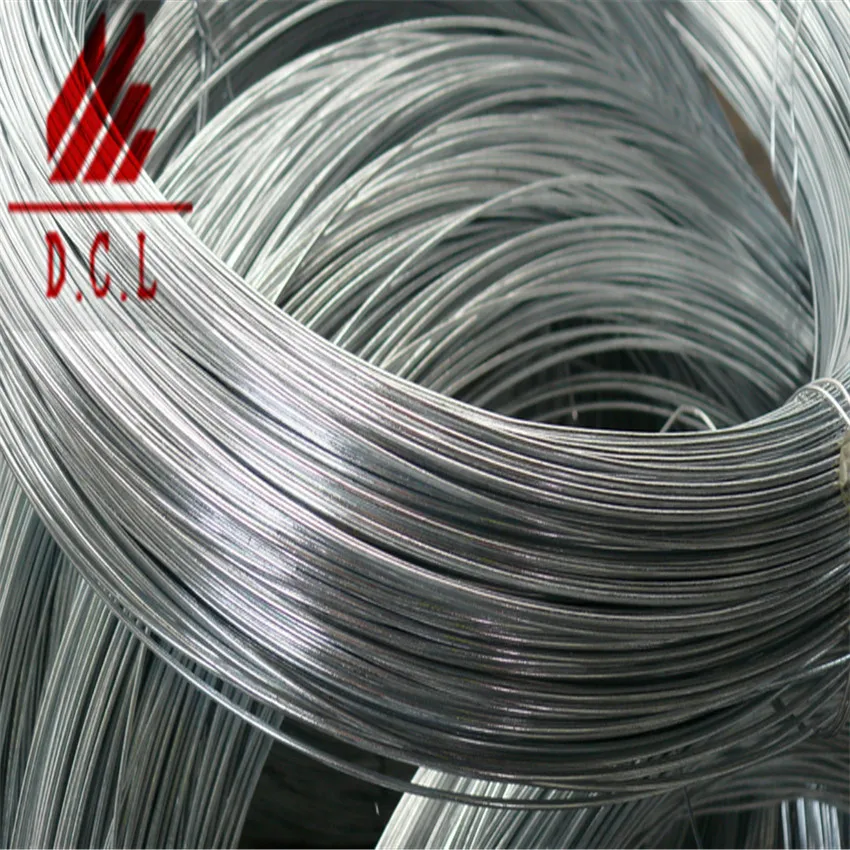

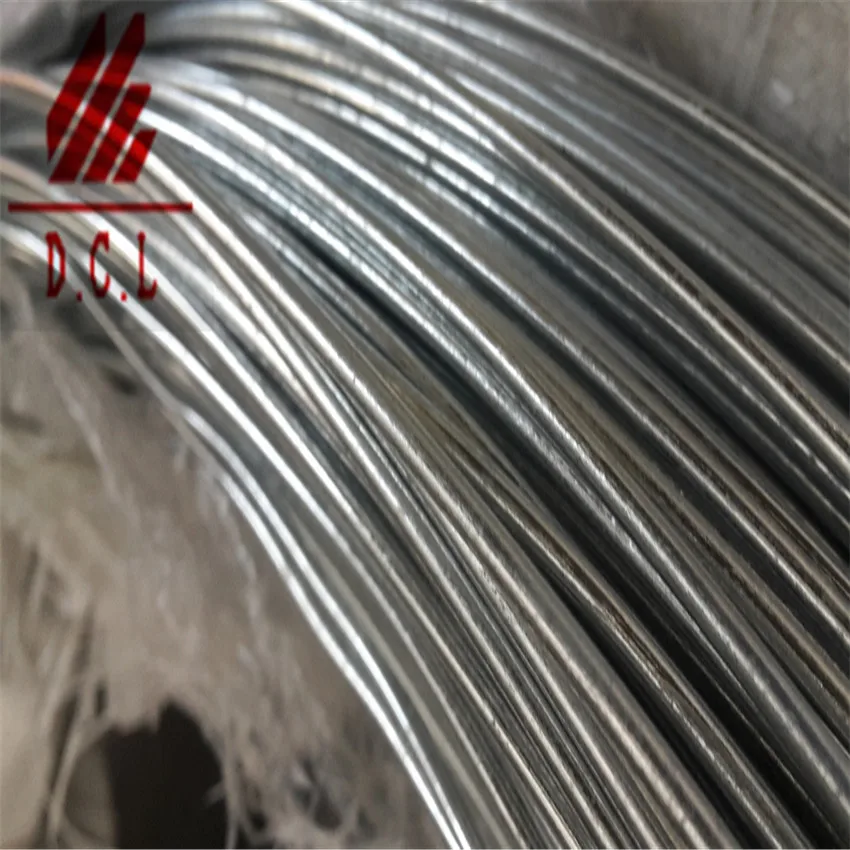

10 gauge galvanized steel wire

Product Overview

Description

10 Gauge Hot dipped galvanized wire
D.C.L can supply good hot-dip galvanized wire for customers.
Dia of wire :0.2-5mm
Tensile strength:300-450MPA
Elongation:≥15%
Zinc Coated:20-50g/m2

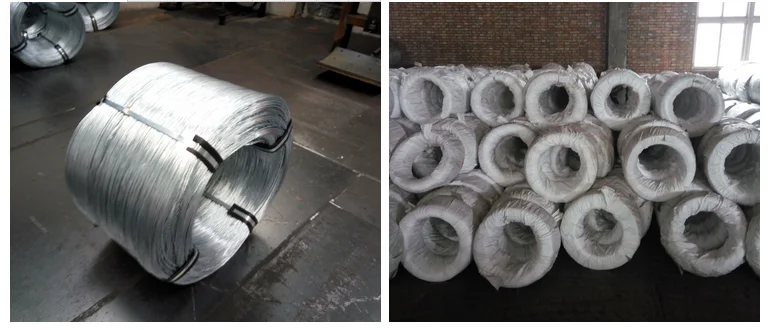

Heavy zinc coated: 300g/m2 Packaging: both spindle-type and roll-type are available and we can make products in the range from 2KG to 25KG. And the big coil wire with 300-800kg/coil.



  Specification





Electro Galvanized Wire
Wire Gauge	SWG(mm)	BWG(mm)	Metric(mm)
8	4.05	4.19	4.00
9	3.66	3.76	4.00
10	3.25	3.40	3.50
11	2.95	3.05	3.00
12	2.64	2.77	2.80
13	2.34	2.41	2.50
14	2.03	2.11	2.50
15	1.83	1.83	1.80
16	1.63	1.65	1.65
17	1.42	1.47	1.40
18	1.22	1.25	1.20
19	1.02	1.07	1.00
20	0.91	0.84	0.90
21	0.81	0.81	0.80
22	0.71	0.71	0.70





Features :



1. Excellent flexibility and softness



2. Suitable usage : Net making , winding , baling , hanging and so on .

FAQ

Q1: Are you a manufacturer?

A1: Yes, we have been in providing the professional products in this field since 1997.

Q2: Is customized available ?

A2: Yes, according to your detailed drawings you provide

Q3:How many days will the samples be finished?And how about the mass production?

A3: Generally the samples will be sent immediately by the air express in 3-5 days if the goods are in stock. Normally within 30days or according to your order.

Q4: What is the payment terms?

A4: Usually 30% as deposit, 70% before shipment by T/T, Western union acceptable for small account and L/C acceptable for large amount

Q5 :How you pack the products ?

A5: Normally as the export standard packaging or as you required

Q6:How many methods for surface treatment?

A6: Galvanizing
