HSS M2 Hole/Shank Type Worm Wheel Hob Cutter PA20

Product Overview

Description

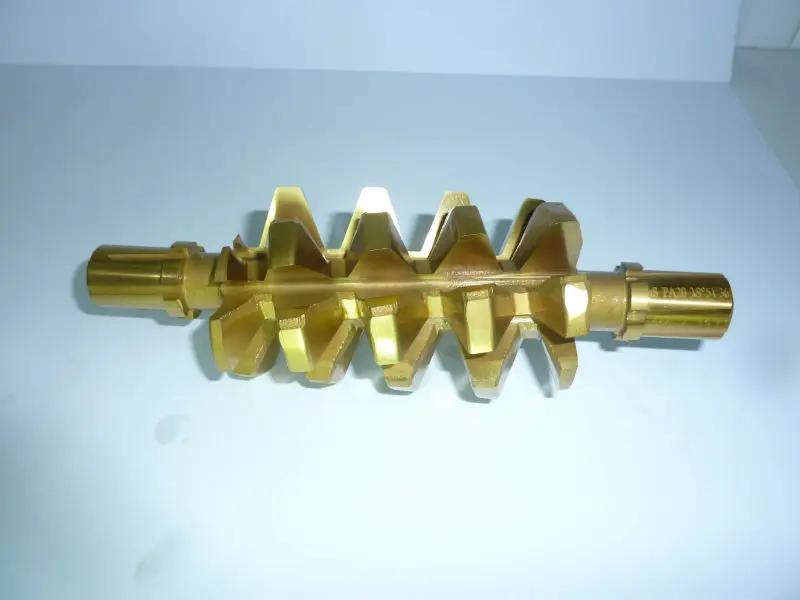

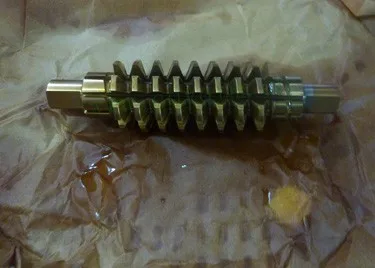

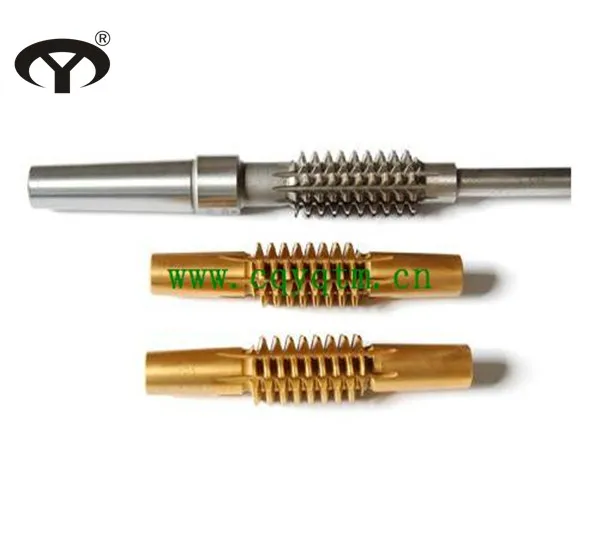

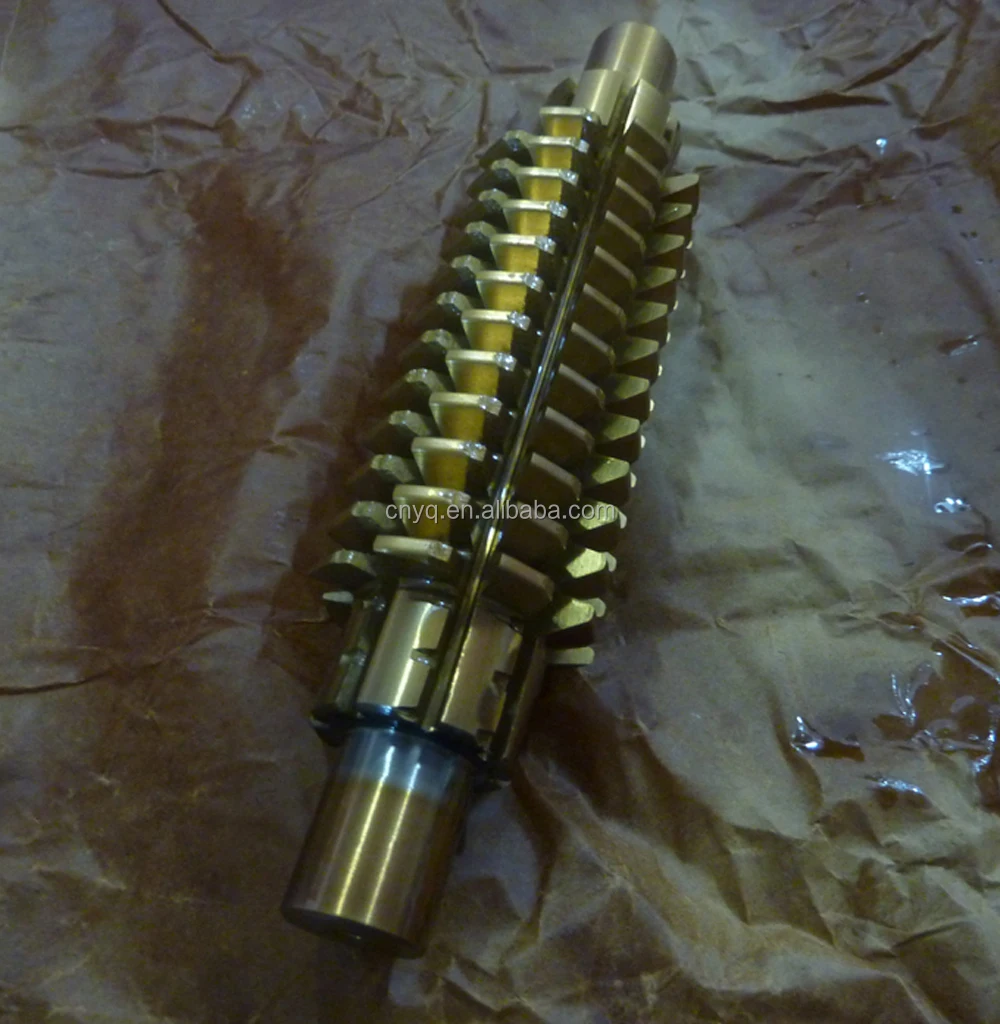

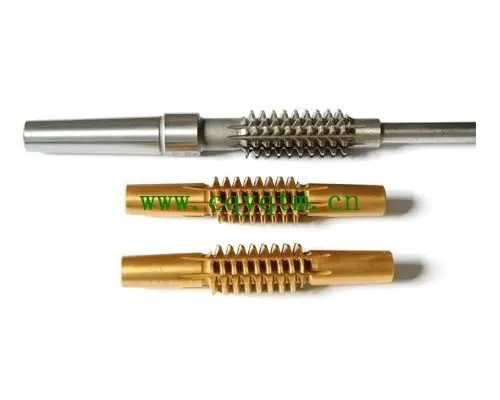

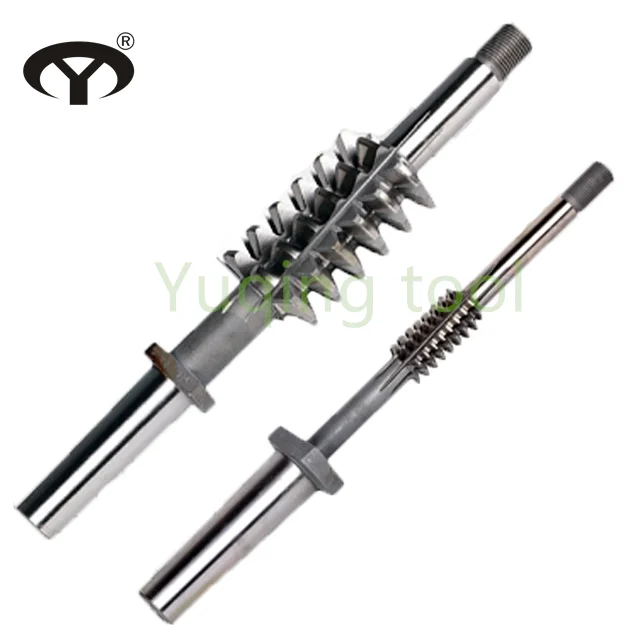

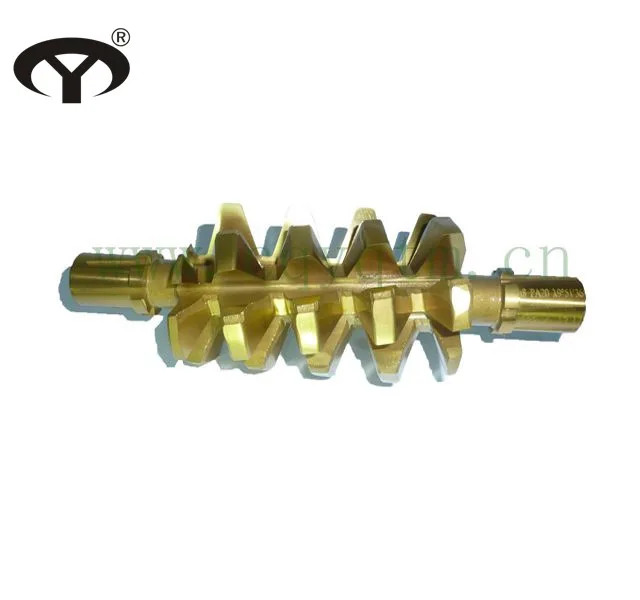

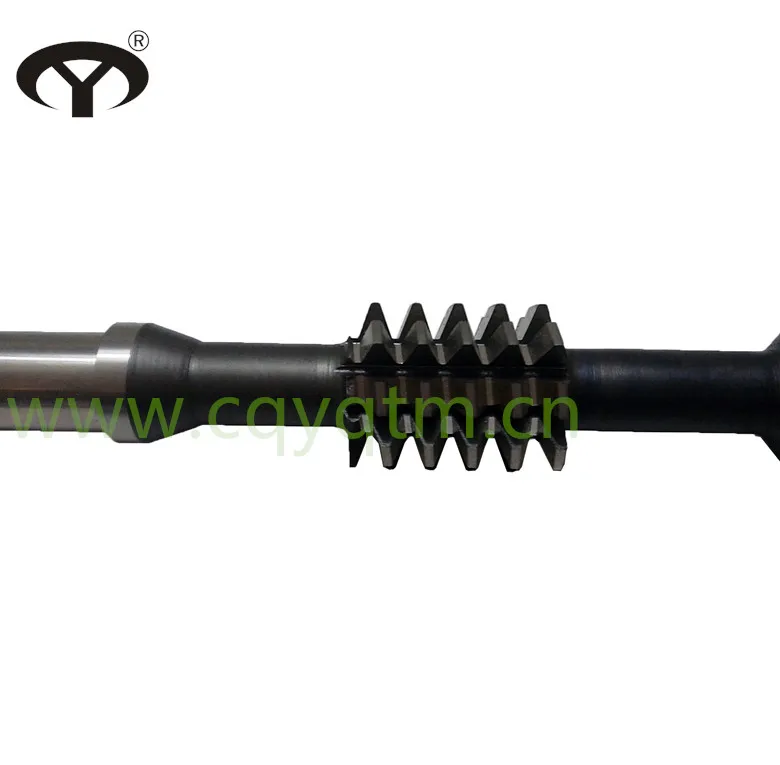

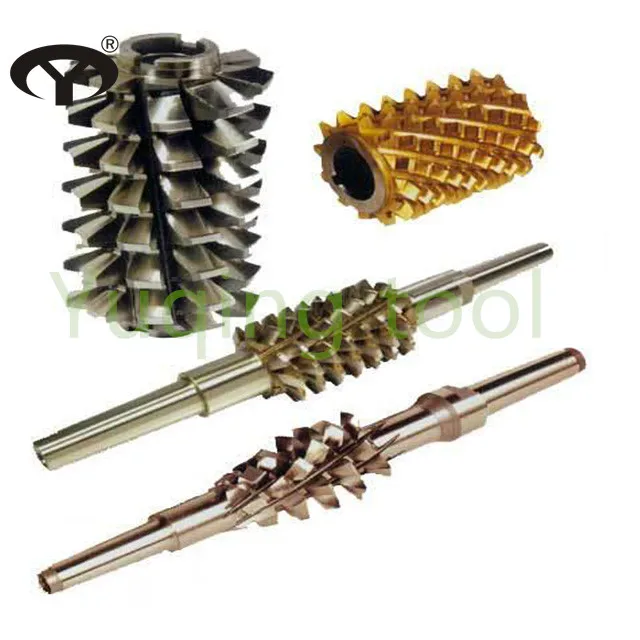

HSS Hole/Shank Type Worm Wheel Hob Cutter PA20



Accuracy: ClassAA, ClassA and ClassB



Module	Pitch Circle Dia.	Working Length	Overall length	Morse taper
2	26	45	390	4
2.5	30	55
3	36	65
3.5	42	70
4	44	80
4.5	49.5	85
5	50	95
6	54	115









Module	Pitch Circle Dia.	Overall length	Hole dia.
5	60	105	22
6	66	125	27
7	63	110	22
7	77	130	27
8	64	120	22
8	88	150	32



Special worm gear hob with circular tooth, double pitch and involute etc. can also be ordered.



























Material Introduction:



A. W6Mo5Cr4V2 (GB)  M2( ASTM), S6-5-2(DIN), SKH51(JIS)
   chemical composition:C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030,  Cr 4.10, W 6.00, Mo 4.80 V 1.85
   main application:It is widely used for making all kinds of cutters and durability cold-work die



B. W6Mo5Cr4V2Co5 (GB), M35( ASTM), 1.3243(DIN), SKH55(JIS)
   chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
   main application:It is often used for making blades with  high-speed and great cutting difficulty as it’s good abrasive resistance





W6Mo5Cr4V2(M2),W9Mo3Cr4V(W9),W18Cr4V(W18),W6Mo5Cr4V2Al(M2Al),W6Mo5Cr4V2Co5(M35),W2Mo9Cr4VCo8(M42),W4Mo3Cr4VSi(4341),W4Mo2Cr4VSi(4241)
