Product Overview

Description

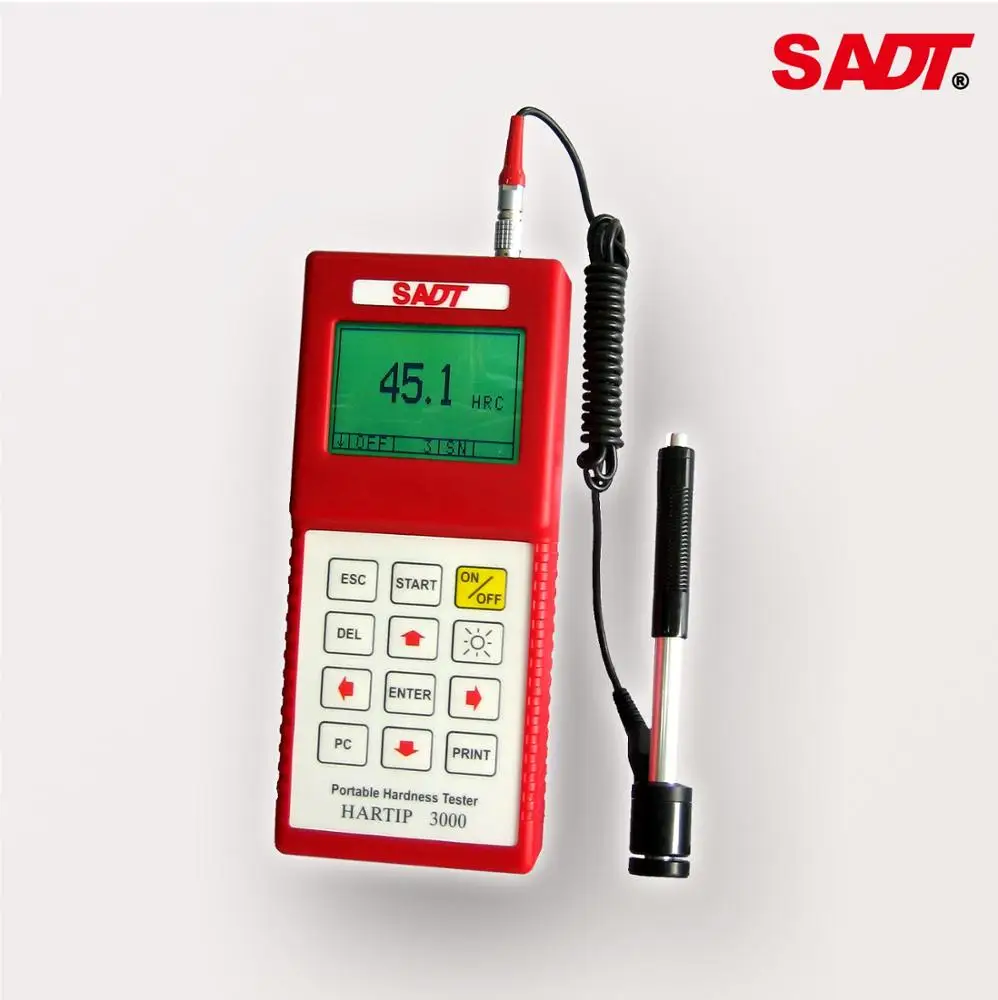

HARTIP 3000 metal Hardness Tester



Introduction:



HARTIP 3000 is an advanced hand-held digital metal hardness tester with characters of high accuracy, wide measuring range and easy operation. It is suitable for testing the hardness of all metals especially on site for large structure/assembled components. Which is widely used in the industry of power, petrochemistry, air space, vehicle, machine and so on.





The measuring principle of HARTIP series hardness testers is defined as "the quotient of the impact body's rebound and impact velocity, multiplied by 1000." An impact body with a Tungsten Carbide test tip is propelled by spring force against the test surface and then rebounds back. A permanent magnet is contained within the impact body. When it passes through the coil on impact device, it induces an electric voltage which is proportional to the velocity of the impact body.



Key Features:



•High accuracy



•Light weight



•For all metallic materials



•Wide measuring range: Rockwell B&C, Brinell, Vickers, Shore and HL



•Automatic conversion to Brinell, Rockwell, Vicker and Shore



•Test in any directions



•Impact devices: D, DC, DL, C, D+15, E, G



•All impact devices interchangeable



•Menu operation



•Large LCD display with backlight



•RS232/USB interface to PC and micro-printer



•Automatic mean, max., min. value display



•Data management software



•Comply to standard ASTM A956



Specification:



Model	HARTIP 3000
Principle	Leeb hardness measurement
Accuracy	+/-0.5%@HL=800
Display	Large graphic LCD with EL backlight
Hardness scale	HL/HRC/HRB/HB/HV/HS
Measuring range	HL200-960 / HRC19-70 / HRB13-109 / HB20-655 / HV80-1027 / HS31.9-102.8
Impact device	D (standard) DC/DL/C/D+15/E/G (optional)
Materials	9 common metal materials
Memory	960 data in 8 blocks
Statistics function	Average / Max. / Min. / value
Interface	RS232 to PC / Micro-printer
Indicator	Low battery
Power off	Auto
Power supply	1.5v AA battery x 4
Working environment	-40~+80°C (main unit) -20~+120°C (impact device)
Standard	ASTM A956
Dimension (mm)	195x84x38
Net weight (g)	550



Standard Package:

Standard package

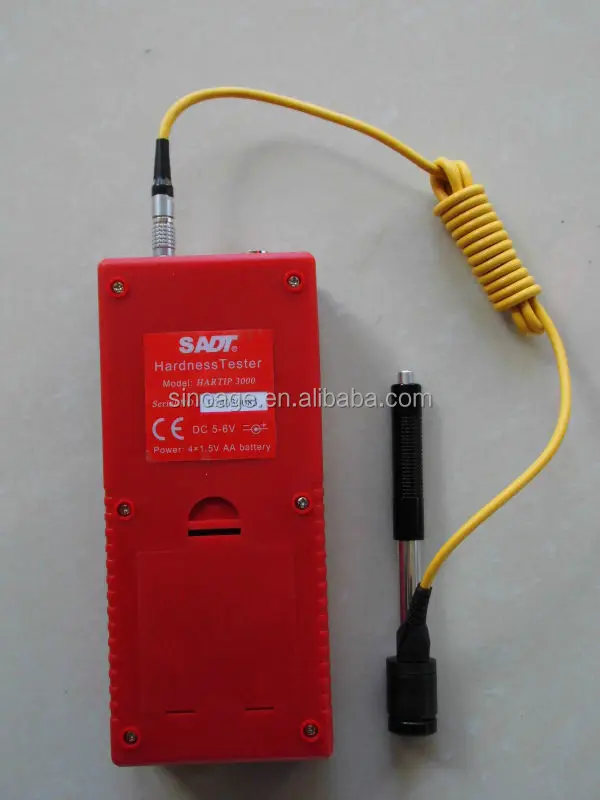

HARTIP 3000 main unit 1

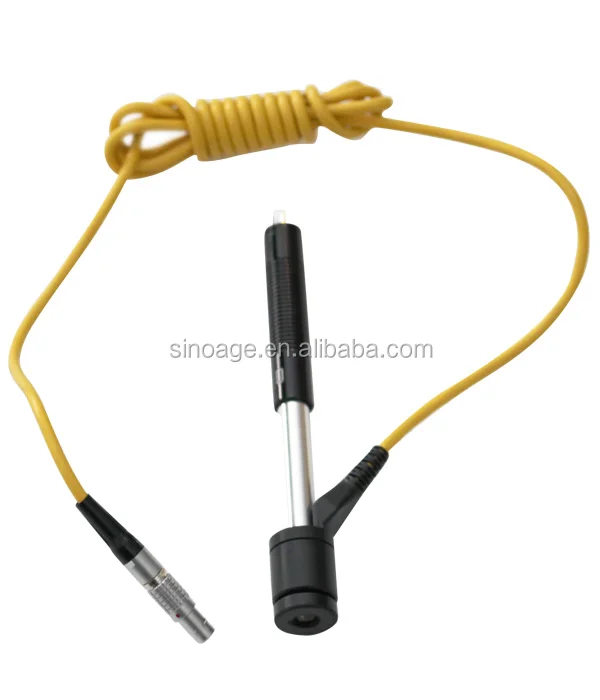

Probe type D 1
Small support ring 1
Test block D 1
Cleaning brush 1
Operation manual 1
Test Certificate 1
Carrying case 1
