Truck load cell /harsh condition weight sensor
- Category: >>>
- Supplier: Hanzhong Quan Yuan Electronic Co. Ltd.
Share on (482966991):
Product Overview
Description
Product Description
Truck load cell /harsh condition weight sensor
QH-45A load cells are available in the capacities from 5klb to 100klb
Alloy steel or stainless steel construction with double shear beam type.
Silicon adhesive sealed inside,anti-corrosion,suitable for multiform environments.
Suitable for truck scales, railway scales,steam lines and other electronic weighing devices.
Features:
1.Capacity: 5klb to 100klb
2.Defend grade:IP66
3.High accuracy,reliable performance.
4.Integral structure,easy installation.
Suitable for truck scales, railway scales,steam lines and other electronic weighing devices.
Features:
1.Capacity: 5klb to 100klb
2.Defend grade:IP66
3.High accuracy,reliable performance.
4.Integral structure,easy installation.
Technical Specifications
| Specifications: | |||
capacity | klb | 5,10,15,20,30,60,75,100 | |
safe overload | %FS | 150 | |
ultimate overload | %FS | 200 | |
rated output | mV/V | 3.0 ± 0.03 | |
excitation voltage | Vdc | 10 ~ 15 | |
combined error | %FS | ± 0.03 | |
zero unbalance | %FS | ± 1 | |
non-linearity | %FS | ± 0.03 | |
hysteresis | %FS | ± 0.03 | |
repeatability | %FS | ± 0.03 | |
creep | %FS/30min | ± 0.03 | |
input resistance | Ω | 700 ± 10 | |
output resistance | Ω | 700 ± 5 | |
insulation resistance | M Ω | ≥ 5000 @ 50 Vdc | |
operating temperature range | °C | -20 ~ +55 | |
compensated temperature range | °C | -10 ~ +40 | |
temperature coefficient of SPAN | %FS/10°C | ± 0.03 | |
temperature coefficient of ZERO | %FS/10°C | ± 0.03 | |

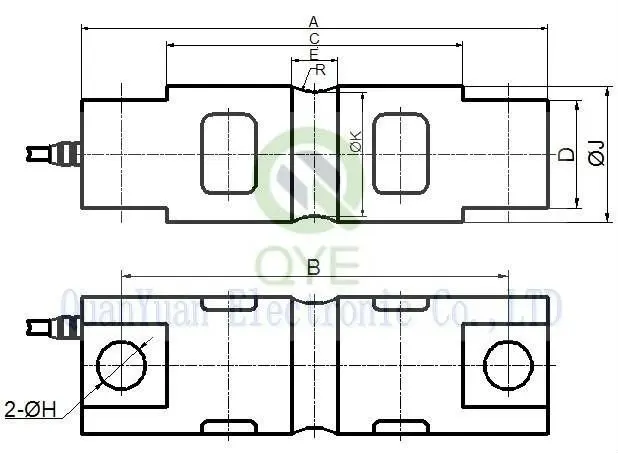

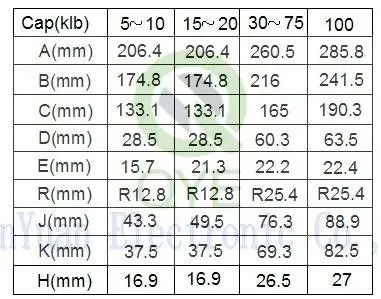

Electrical connection and Dimensions:(dimension unit:mm)
Electrical connection:
Excitation+ red Excitation- black Signal+ green Signal- white
Four-core shielded cable with polyethylene.
Cable diameter : 5mm
Cable length : 9m
Four-core shielded cable with polyethylene.
Cable diameter : 5mm
Cable length : 9m
The cable length could be chose by customer's application.
Ordering code: model(QH-alloy steel,QB-stainless steel)-range-rated output-accuracy-defend grade- the length of cable
Example:QH-45A-50Klb-3.0mV/V-0.03%FS-IP66-9m
Truck load cell:
Packaging & Shipping
- Standard exporting package: each unit has individual box and packed in paper box. Waterproof protect.
- According to the clients requirement
Our Services
- We are committed to providing a high quality,and responsive services to all clients
- Detailed informations, specific and price of products will be provided quickly after receiving your inquiry.
- Quality assurance: All products will be make sure the quality in a year, and replace new product with any quality problems. All products will be checked by our quality-control and enclose with testing data.
- Packageing: well box packed and provide optimal freight for you refrence.
- All products OEM available
Company Information
Han Zhong Quan Yuan Electronic Co., LTD. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.
QuanYuan are certified according to ISO 9001:2000 and produce strictly in accordance withR60
