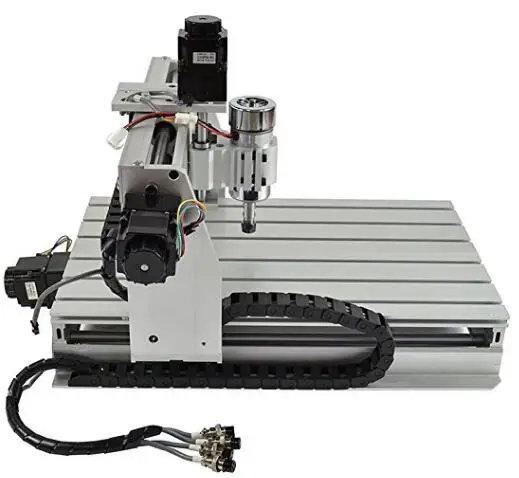

YANDIAO DIY Mini Desktop PCB Wood Stone Engraving CNC Router

This 3040 engraver is a user-friendly desktop engraving machine for those with limited space and /or a limited budget.The Computerized CNC Engraving and Cutting Machine is suitable for various materials,such as WOOD,PMMA or other plastic,MDF board,native wood,PVC,Acrylic,wood,composite board plywood,It can be used widely to process or make advertising signs,PCB,nameplates,badges,seals,bronzing plate,aluminium alloy,acryplates,ABS resin double color plate,PVC foaming board,indentation plates,signs,construction models,instrument panels,wooden products,etc.

Parameter:

Effective working travel: 275(X)mm*385(Y)mm*60(Z)mm

Shape dimension: 610x480*400mm

Max.workpiece dimension: 70mm

Work table dimension: 320mm*530mm

Carving deepth: 55mm

Frame materials: Aluminum alloy 6063 and 6061

Leadscrew: 1204 double thread Trapezoidal screws

Driving units X Y Z axis: 1204 trapezoidal screws

Sliding units X Y axis: Dia.16mm chrome plate shafts

Sliding units Z axis: Dia.12mm chrome plate shafts

Stepping motor type: 57 two-phase 1.8A

Spindle motor: 230w dc motor 500~8000PRM/Min

Principal axis collet: ER11 /3.175 mm

Repeat accuracy: 0.05mm

Spindle precision: Radial beat acuities 0.03 mm

Control unit: Triaxial one-piece drive + ring variable power + PWM speed

Carving Instructions: G-code/.tab /.nc / .ncc/.txt

Communication interface: Through parallel connection with computer

Software environment: Windows 2000 / xp

Maximum speed: 0-4000mm/min

Carving speed: 300-2500mm/min (different materials differ)

Samples

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	50(L) * 60 (W) * 50 (D)CM
Weight	50 kgs

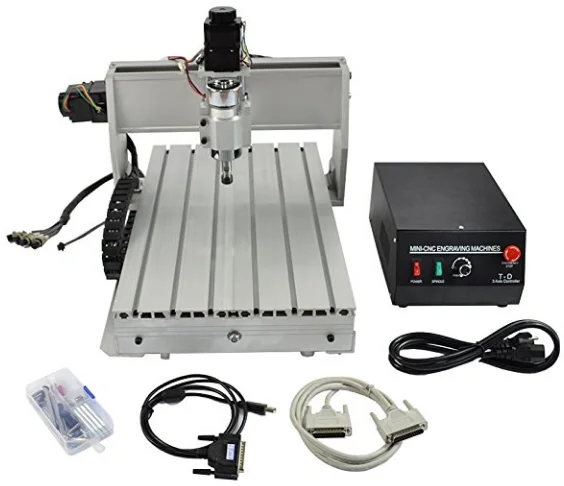

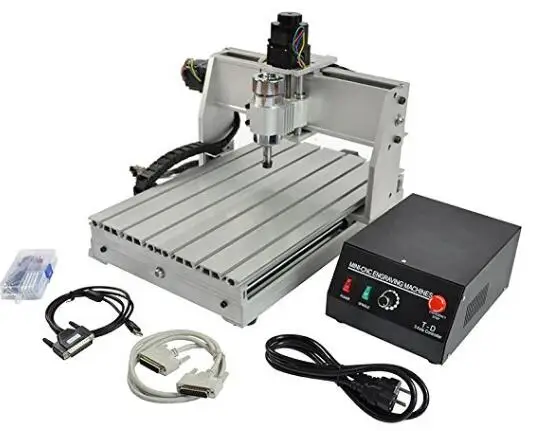

Packaging Details	1× Engraving machine W/USB 1× Control box 1× Parallel cable 1× Power cable 1× Tool box and tools 3× Axis motors
