liquid vibrating level sensor

Product Overview

Description

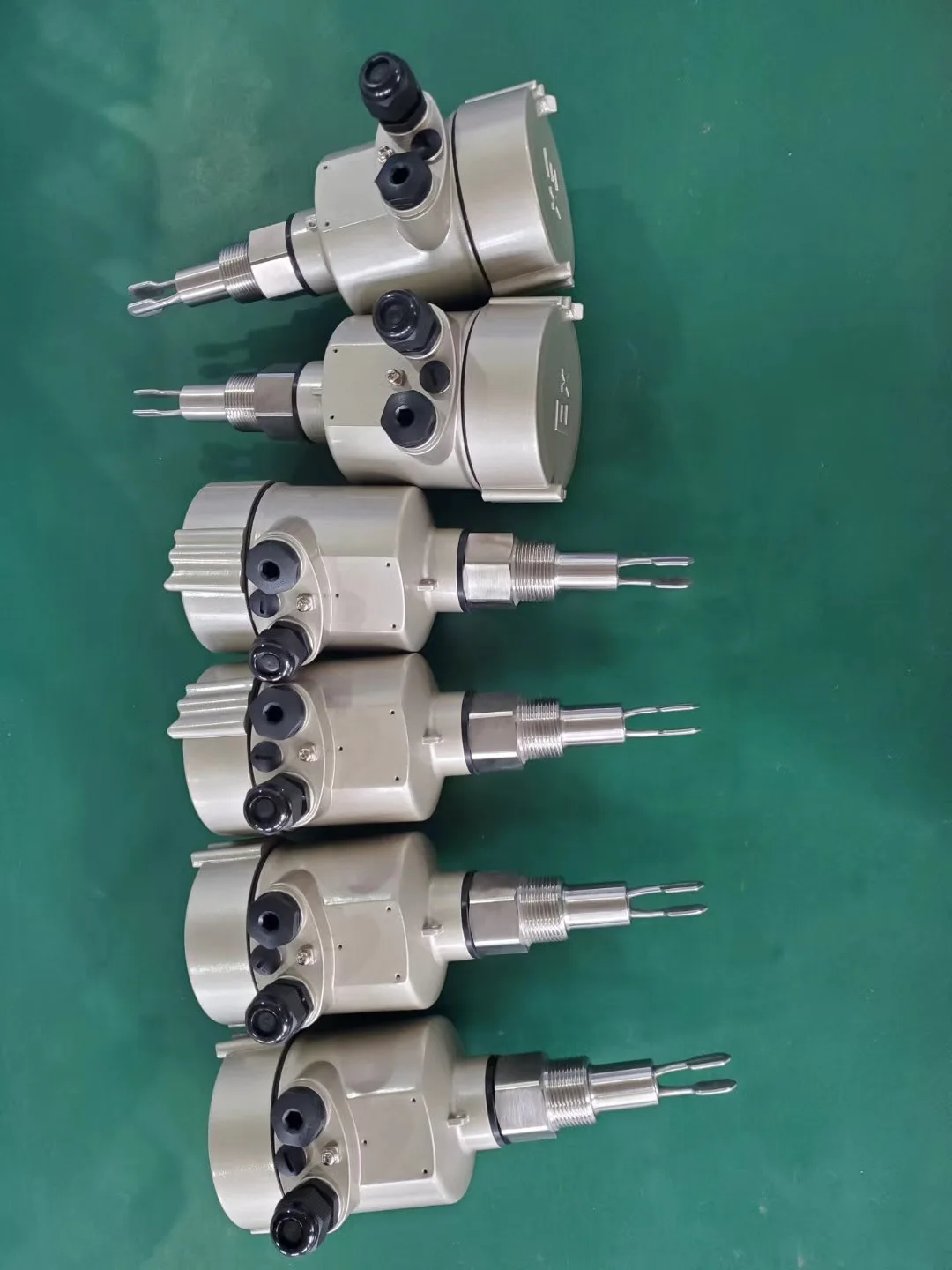

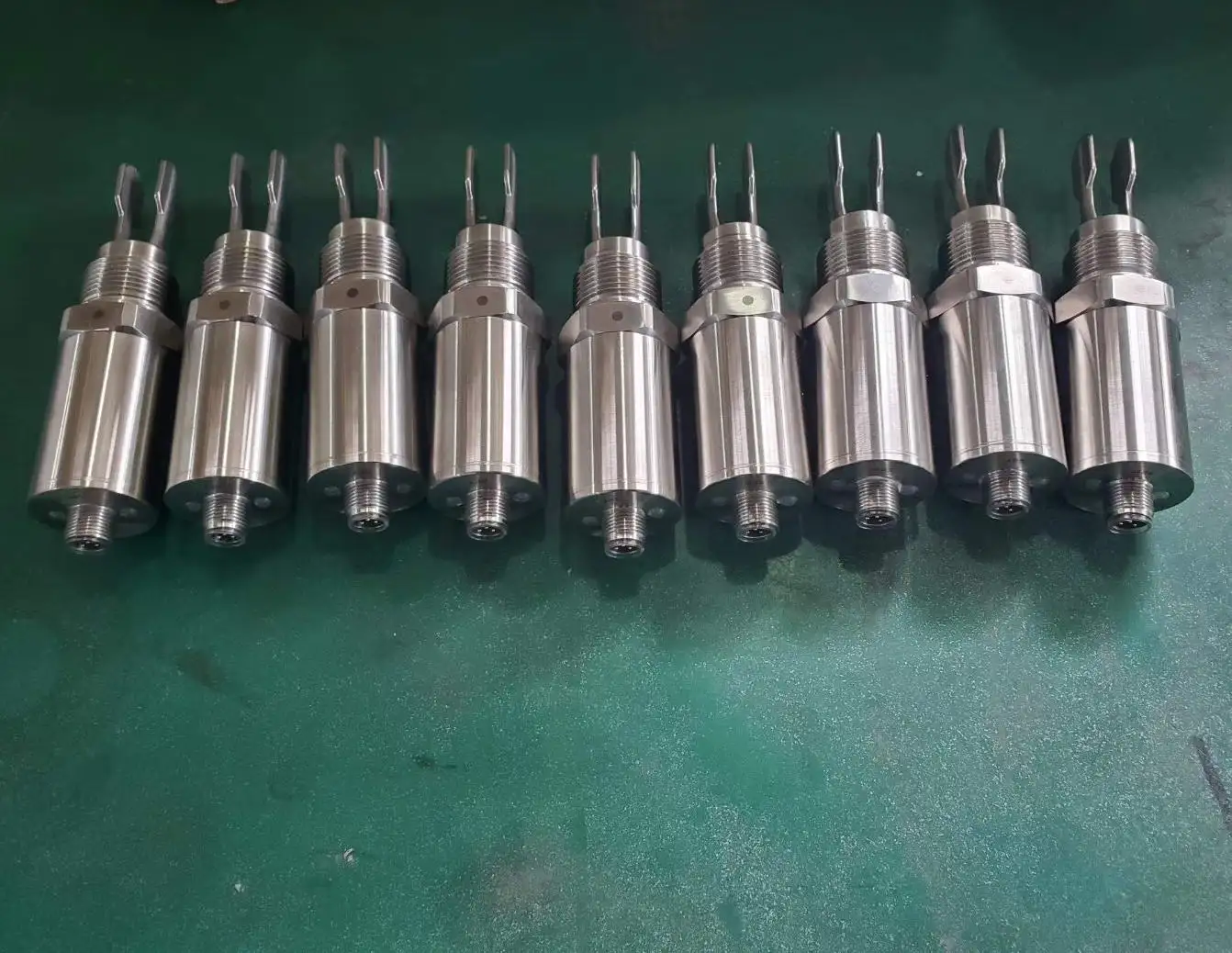

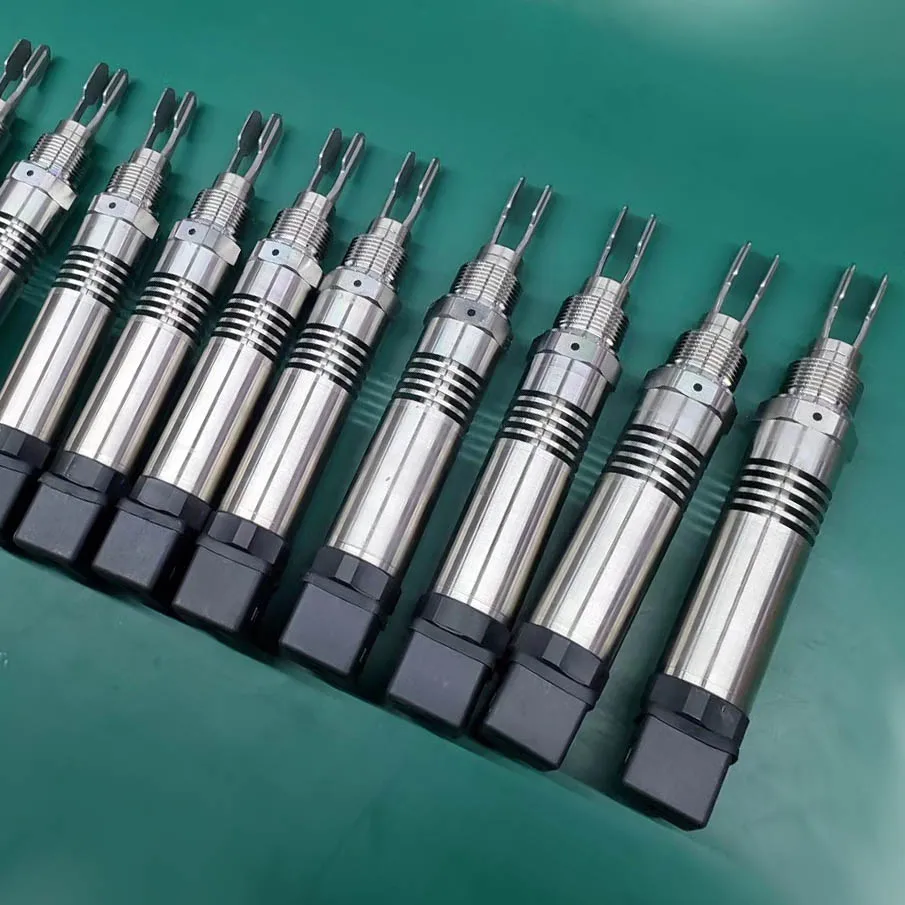

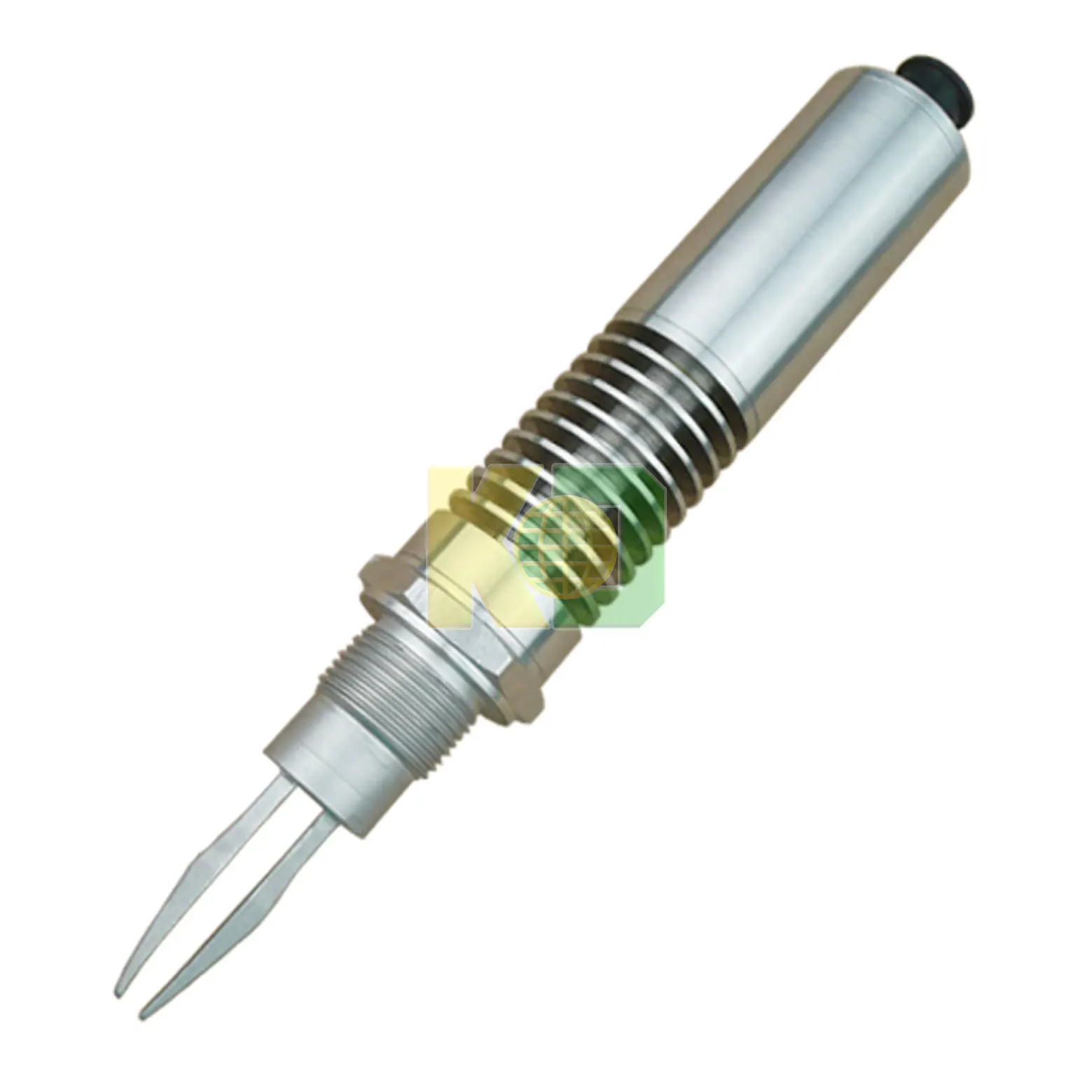

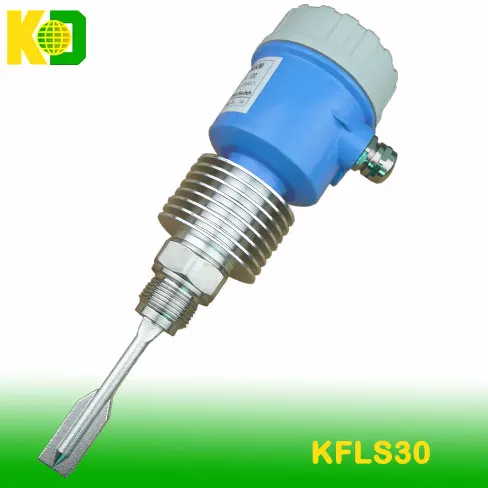

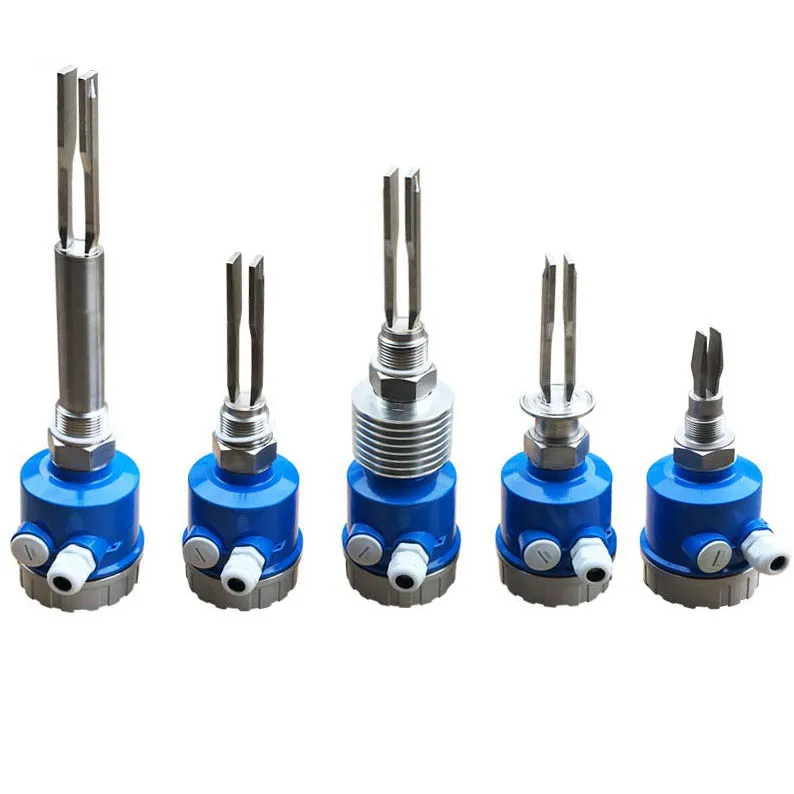

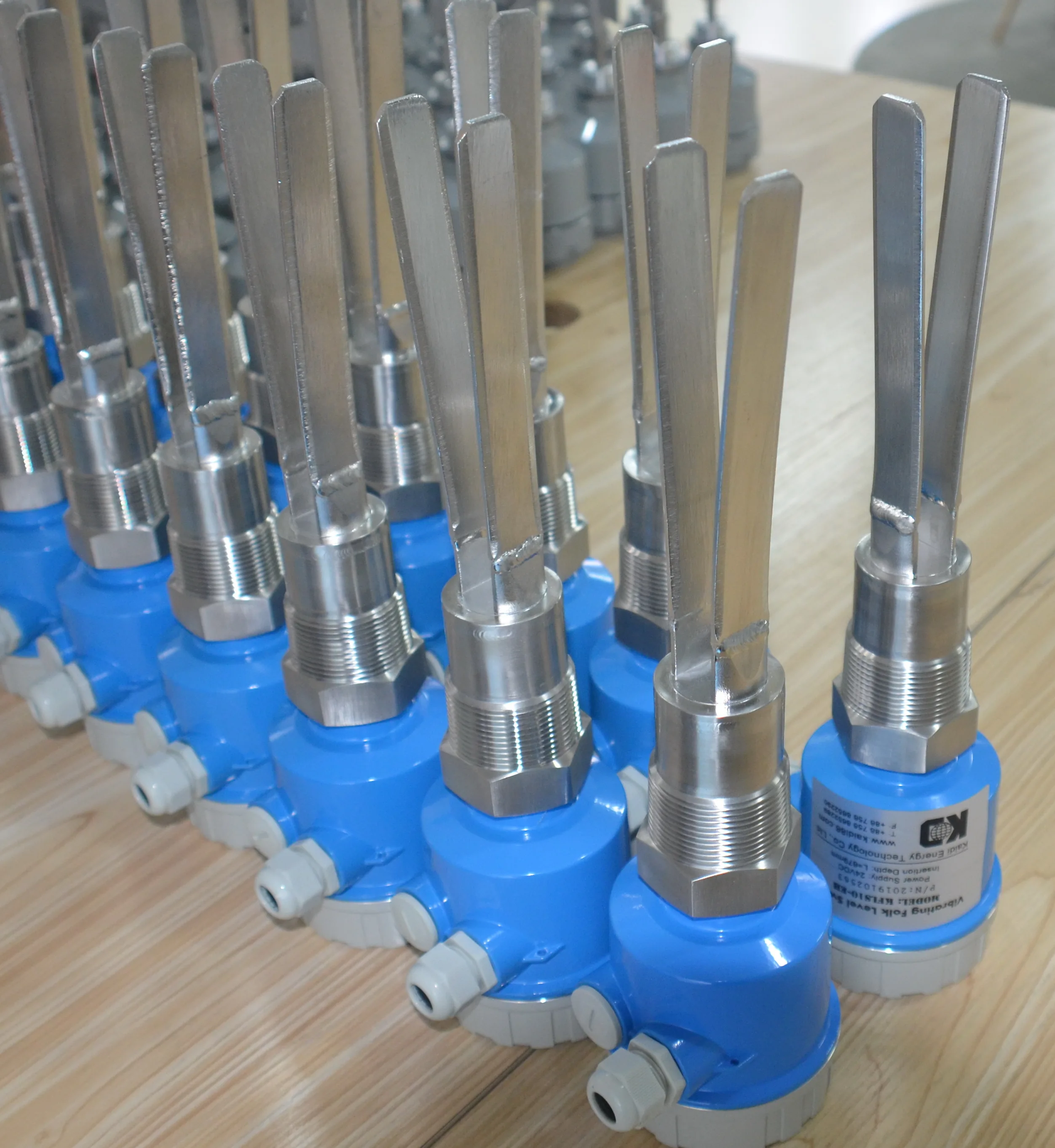

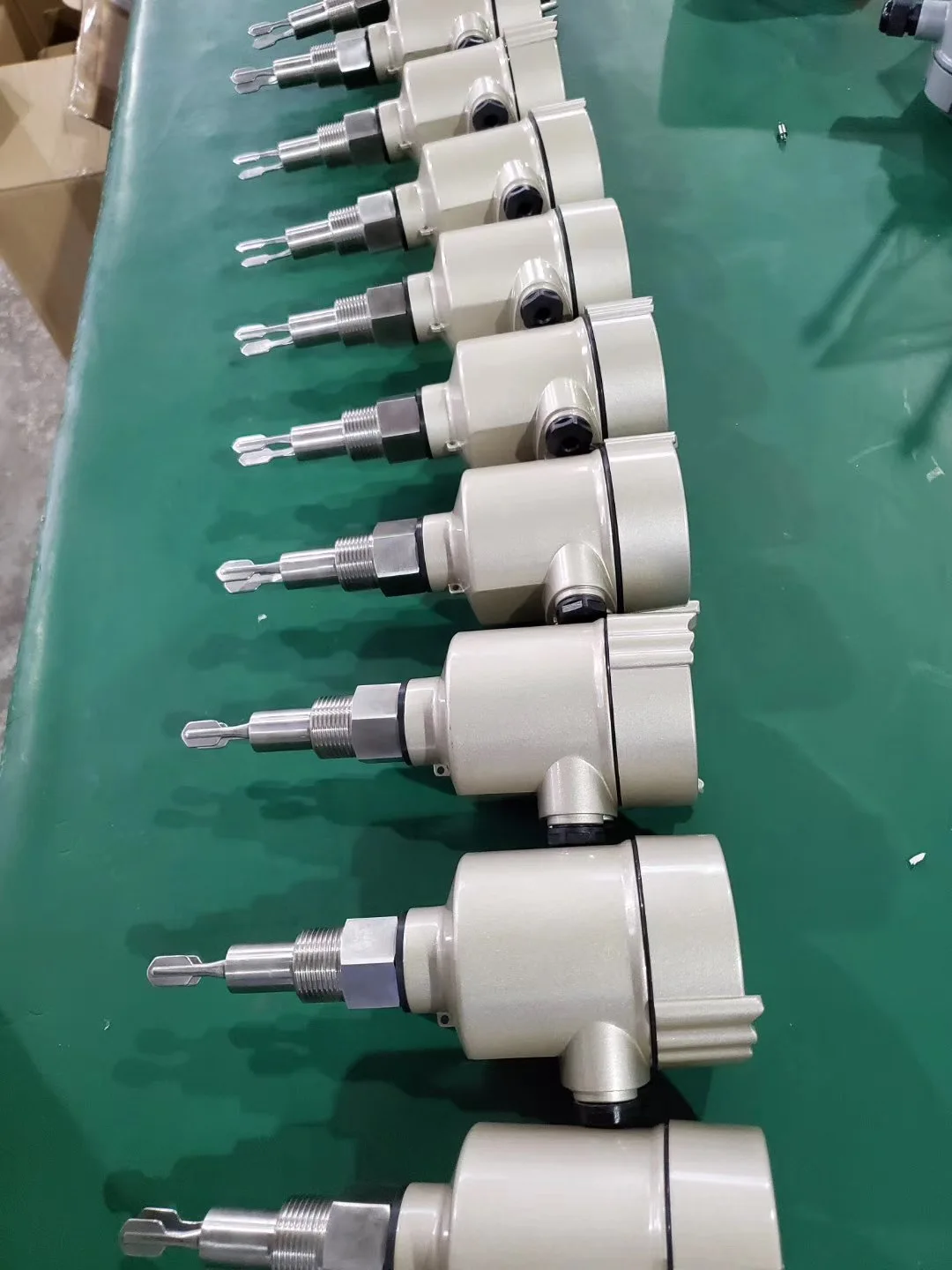

Liquid vibrating level sensor









• Vibrating fork level switch is based on the intelligent technology of computer and analog circuit.
• Compared with traditional instruments, this new instrument overcomes false actions due to environment factors and dramatically improves anti-vibration, reliability and sensitivity.
• Fine grained free flowing solids including very low density and pneumatically conveyed media, powders, plastic chips, cement, sand, sugar, food grains
• For detecting level of granular solid material submerged in liquids of low viscosity, like sand, gravel, plastic chips under water.
• For applications requiring the processing of different type of material in the same vessel.



Power supply:	AC 220V 50Hz or DC 24V
Output:	SPDT. or PNP.NPN.
Temp:	fork -30°C~150°C, the meter -30°C~70°C
Pressure:	<2Mpa
Power:	<1W
Density:	>0.6g/cm³
Action point:	Dip vertically 25mm into water
Vibrating time:	~3secs.response time.~1 sec
Output:	1a1b.AC 220V/3A,DC 30V/3A
Backlash:	~3mm Delay: 1.50S
Connection:	Customized
Cable:	M12X1.5. OD.6.8mm.
Material:	Aluminum Alloy/SUS304.SUS316L
Weather Proof:	IP65
