Coal(Coke) powder briquetting press

Product Overview

Description

This series briquetting press machine is used in industrial gas briquettes and boiler briquette, cold pressure formed coke, ignition coal briquettes and so on. This machine can be used in molding materials in the field of metallurgical, refractory and medicine industries.

Working Principle:



By belts,to gear reducer,gear reducer through coupling,to drive shaft by a pair of open gear again,ensure that two roller synchronous(constant speed reverse)material storage bin by quatitative

machine into the hopper evenly,units of the molding pressure maximum,material after the line,the molding pressure decrease quickly to take off the material into the ball state,to take off the ball.

Features of the briquetting press machine:

1 The roller is made by hard materials with good wear resistance and long life time

2 The service life of wearing parts is up to 4000 hours

3 The machines electricity coal reduce by 60%

4 The machine is easy to operate and maintain

5 The molding materials are energy saving, easy to transport

6 The final products are smokeless, non-toxic, none peculiar



7The end outlet shape of products can be all shapes





Coal(coke) briquetting press technical specification:

Model Performance		HXXM 360	HXXM 400	HXXM500	HXXM 650	HXXM 750	HXXM 850	HXXM 1250
Capacity	t/h	4	8	11	18	25	35	70
	t/year	10000	20000	30000	50000	70000	100000	200000
Width(mm)		250	280	300	336	400	500	650
Diameter(mm)		360	400	500	650	750	850	1250
Motorpower(kw)		7.5	11-15	18.5	22	20-30	45	75
Shaft speed(turn/min)		18	15	13	13	13	10	10
Reduction gear		ZQ 350 ZQ 400	ZQ400 ZQ500	ZQ500 ZQ650	ZQ650 ZQ750	ZQ750	ZQ850	ZQ1250
Material quality		65Mn	65Mn	65Mn 9cr2Mn	65Mn 9cr2Mn	65Mn 9cr2Mn	65Mn 9cr2Mn	65Mn 9cr2Mn

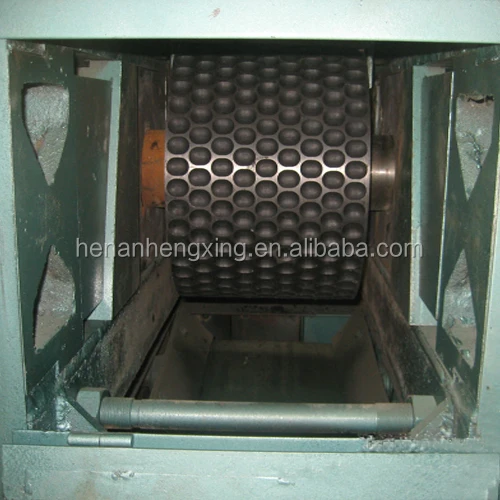

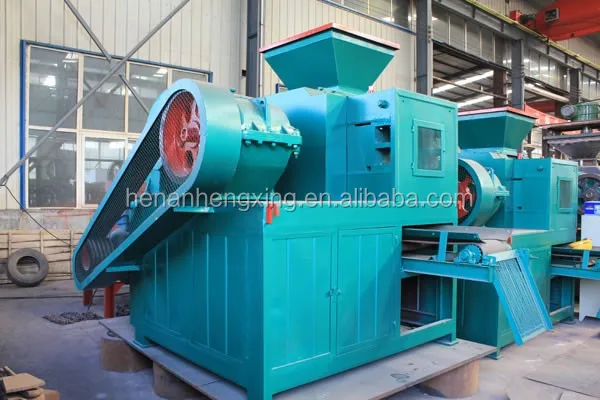

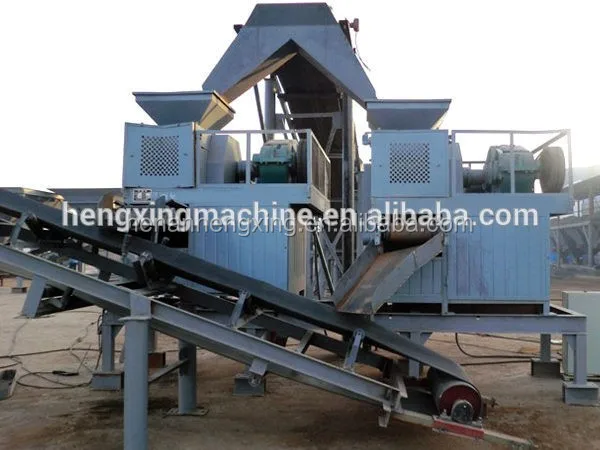

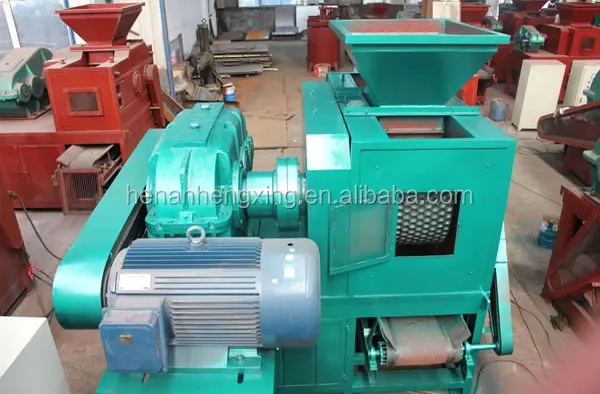

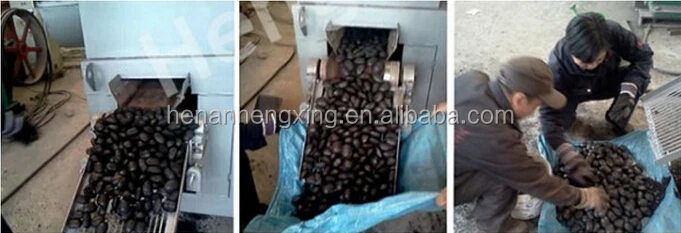

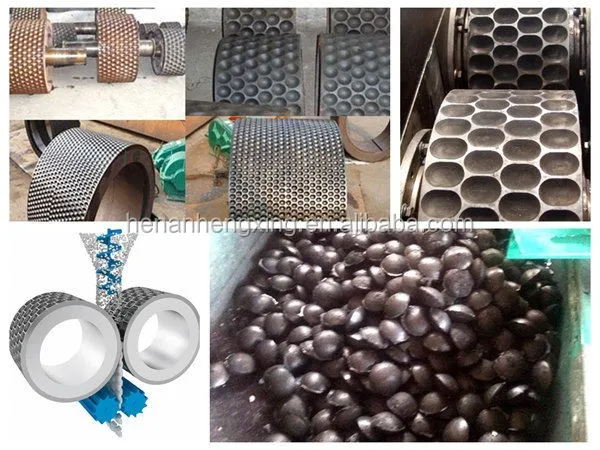

Briquetting press photos:
