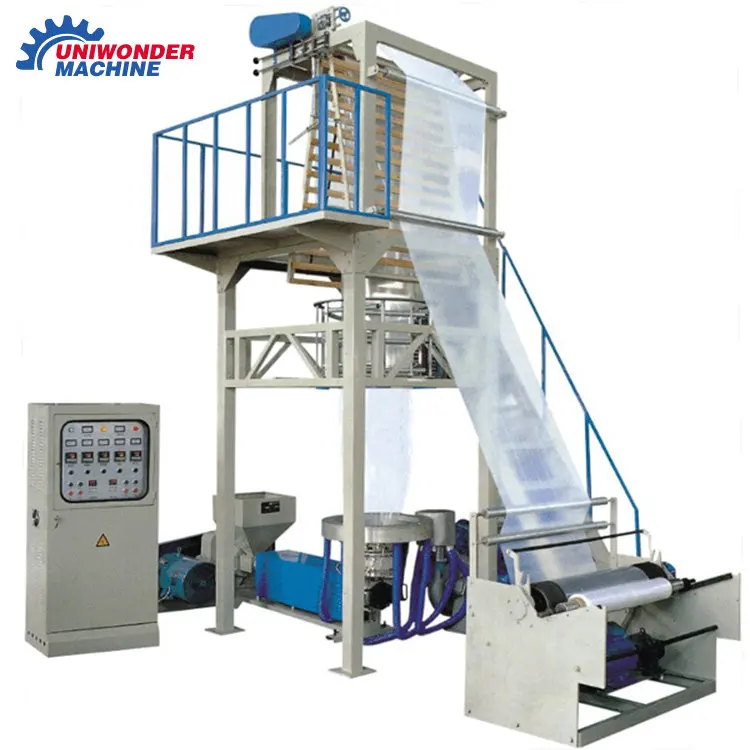

2018 New products high quality speed hdpe LDPE film blowing machine

Product Overview

Description

Characteristics:

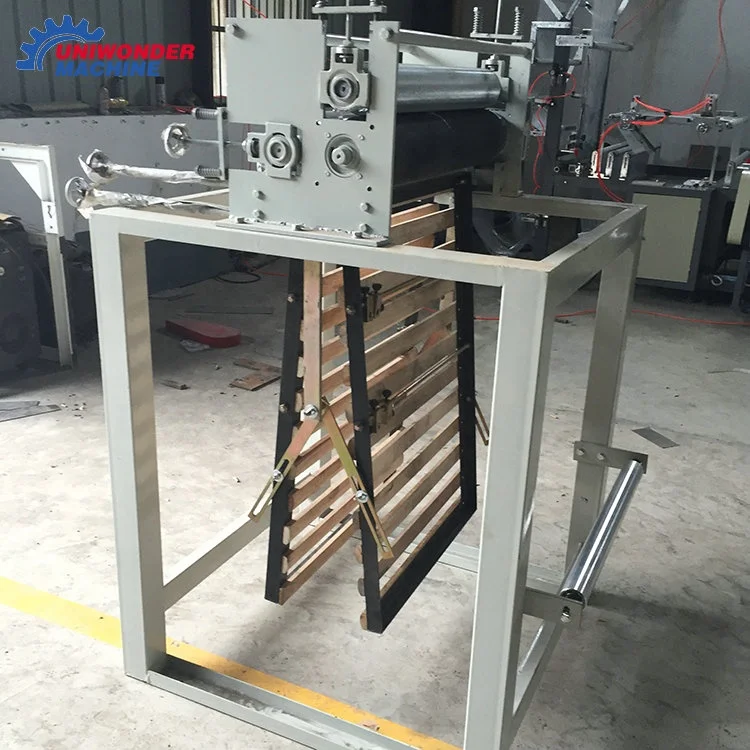

The Machine the cylinders and the screw of the above extruders are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment. The auxiliary machine has a platform working table for making operation easy. The winding unit adopts torque motor to keep proper tension and make winding even and roll-changing easy.

Uses:

It is used for blowing various plastic film of Low Density Polyethylene (LDPE), High Density Polyethylene (HDPE) and Linear Low Density Polyethylene (LLDPE) etc, which are widely used for packing industrial products, garments and food and for covering farmland.



Model	SJ-50/FM600	SJ-55/ FM800	SJ-60/ FM1000
Screw Diameter	Φ50mm	Φ55mm	Φ60mm
Screw L/D	L/D30:1	L/D30:1	L/D30:1
Screw Speed	10-120r/min	10-120r/min	10-120r/min
Power of Main Motor	18.5kw	22kw	30kw
Max. Extrusion Output	30-60kg/h	40-80kg/h	50-100kg/h
Max. Folding Width of Film	600mm	800mm	1000mm
Single-face Thickness of Film	0.008-0.10mm	0.008-0.10mm	0.008-0.10mm
Total Power	28kw	36kw	42kw
Machine Weight	2600kg	3000kg	3500kg
Overall Dimension(L×W×H)	4600×2600×4000mm	4800×2800×4300mm	5000×3000×4800mm
