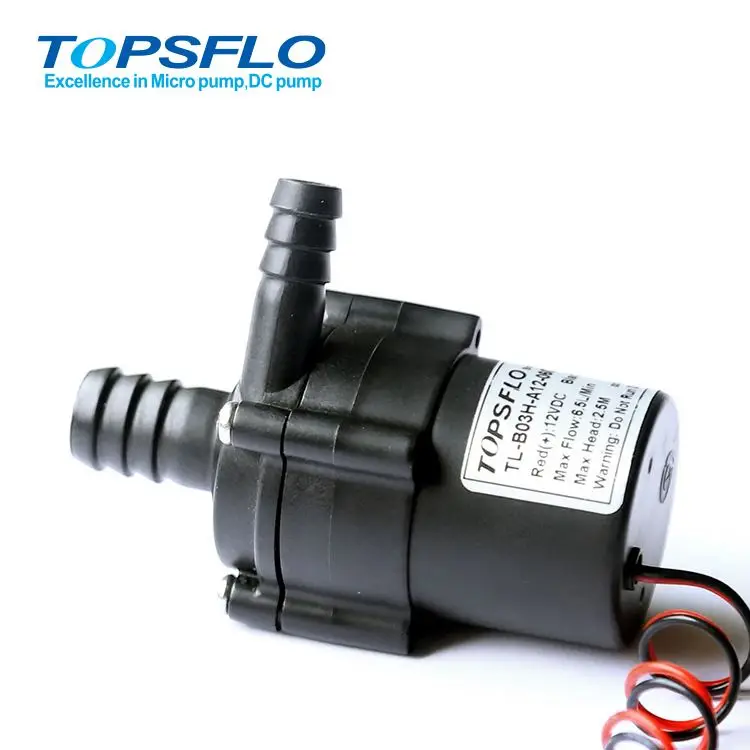

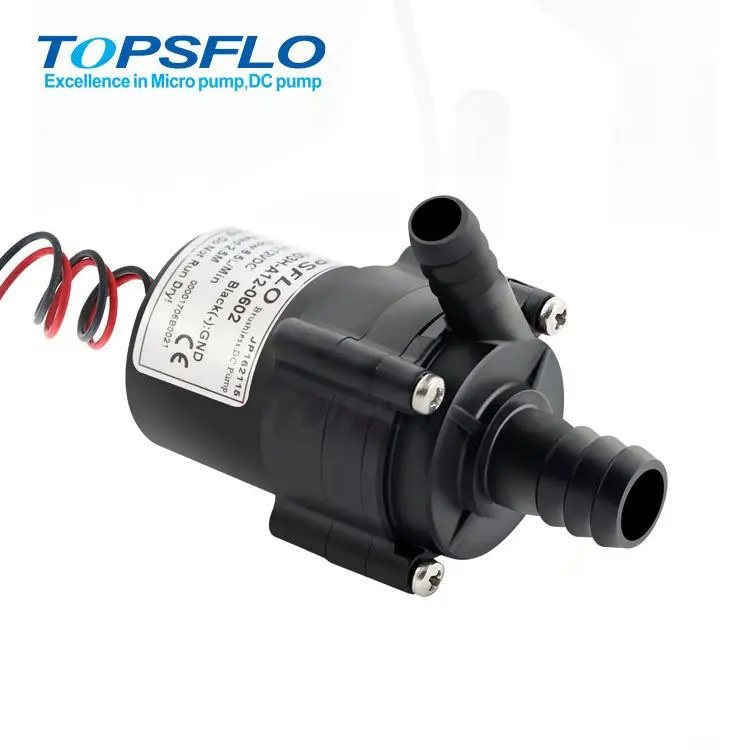

Silent Water Pumps High Temperature Electric Hot Water Dispenser Pump Coffee drinking dispenser juice machine 12V DC

Product Overview

Description

Silent Water Pumps High Temperature Electric Hot Water Dispenser Pump Coffee drinking dispenser juice machine 12V DC



HUGE PRODUCTION CAPACITY	R&D,OBM,ODM	SUPER QUALITY

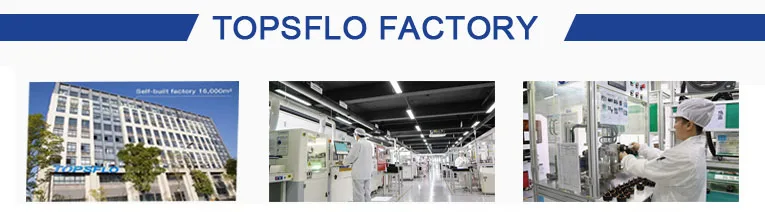

Self-built factory 16,000square meter ;       ESD antistatic control digital        workshop, automatic electronic        production lines,annual production        capacity of more than 3 million pcs.	CNAS standard national laboratory,  over 20 years of industry   experience R&D engineers,  more than 50 national patents.	More than 80% of our products  are exported to America and Europe;  CQC quality certification,REACH,         RoHS,EU CE certifications.

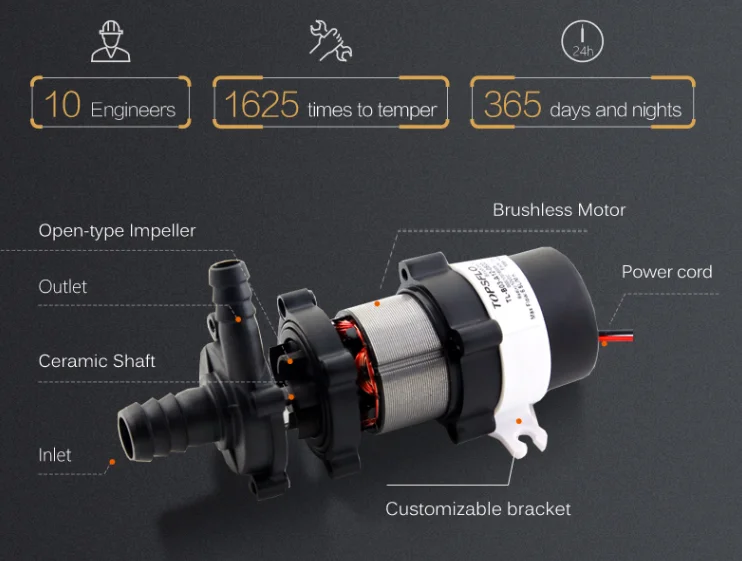

Product Features:

•.High efficiency brushless DC motor with long lifetime 20,000hours
•.Heavy duty work,can sustain continuous 24hours work
•.Special designed high efficiency closed-impeller for low power consumption
•.Motor widely voltage designed suitable for battery,Power supplying with peak-low voltage damply
•.All wetted materials Food grade approved to be safety usage
•.Durable permanent magnetic rotor/impeller and fine ceramic shaft
•.Low or no maintenance
•.IP protection level: IP68
•.Blocked protection





Product Specification:

Model	Product Code	Max Water Flow (L/Min)	Rated Voltage(DC)	Rated Current (A)	Max Water Head(M)	Rated Power(W)
B03	TL-B03-A12-0602	6.5	12	0.43	2.5	5.16
	TL-B03-A24-0602	6	24	0.22	2	5.28
	Customization: 1. /S Submersible, liquid ≤50°C 2. /FG (RPM) signal wire 3. /PWM or /5V speed control





Product Characteristics:



Max Flow Rate	6.5L/MIN
Max Water Head	2.5 M
Rated Voltage	12V/24V
Working Voltage Range	6V-18V /12V-28V
Motor Type	Brushless DC motor
Liquid Temperature	-40-105°C

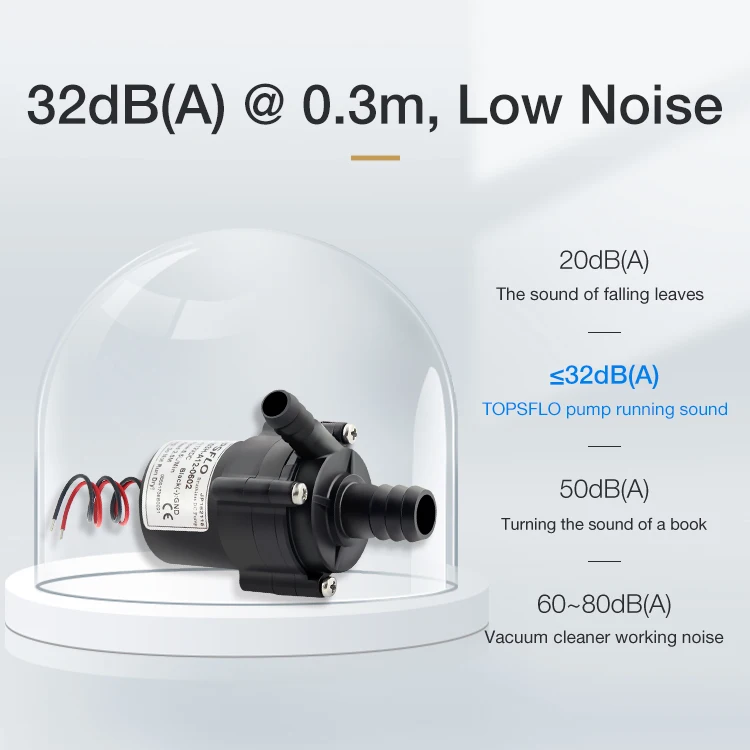

Noise Class form 0.3M	37dB /Max
Ideal Life Time	20000 Hours
Working Mode	Continuous

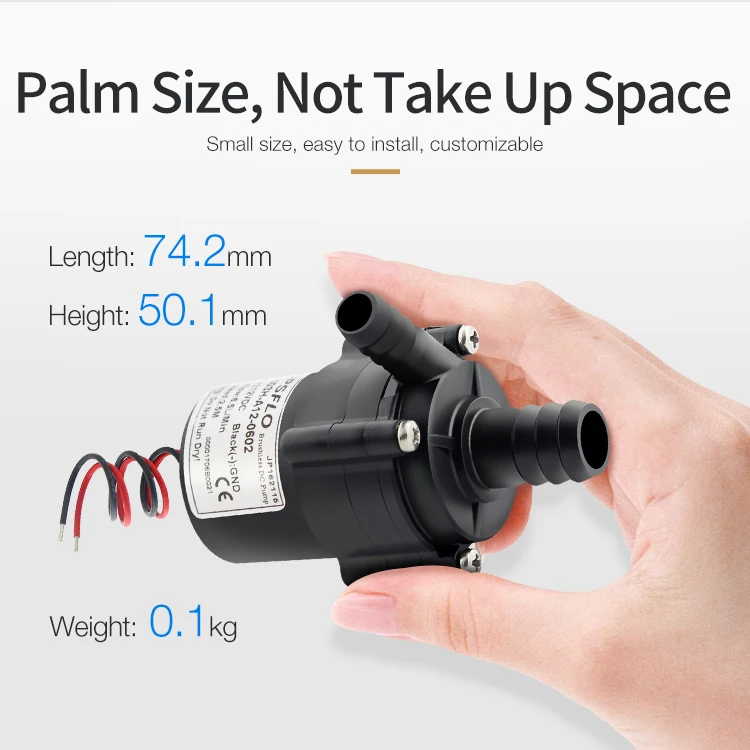

OD of Inlet/Outlet	14 mm/9.4mm
Max pressure / Continue work Pressure	1.8Mpa / 0.5Mpa
Working liquid	Pure Water,antifreeze,etc
Power Supply	DC power supply, battery
Remarks	Can’t dry-running, not Self-priming





Usage Note:
Dry-running is prohibited.
Reverse polarity is not allowed (except customized).
The pump if dropped or with heavy vibration do not use.
Liquid contain impurities or magnetic particles are not allowed.
Liquid temperature over 80°C is not allowed (except high temperature models).
Acidic or alkaline liquid is prohibited (except customized).
