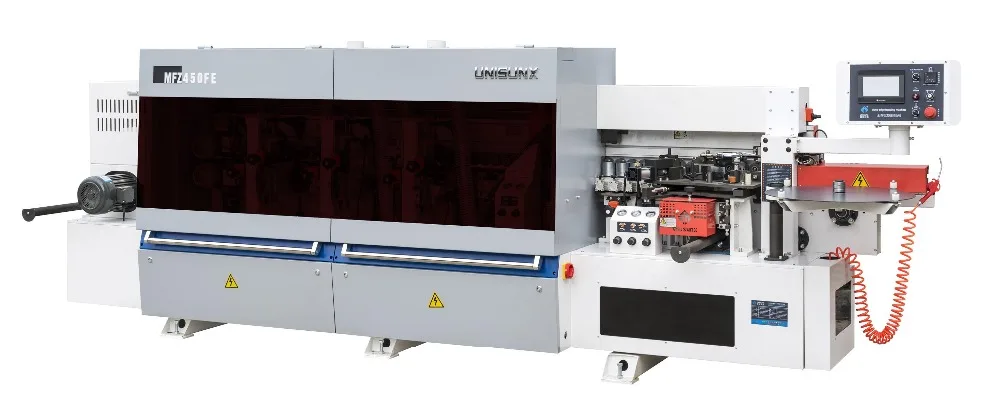

Unisunx MFZ450F Auto Edge Banding Woodworking Machinery

Product Overview

Description

Unisunx MFZ450F Auto Edge Banding Woodworking Machinery





Functions

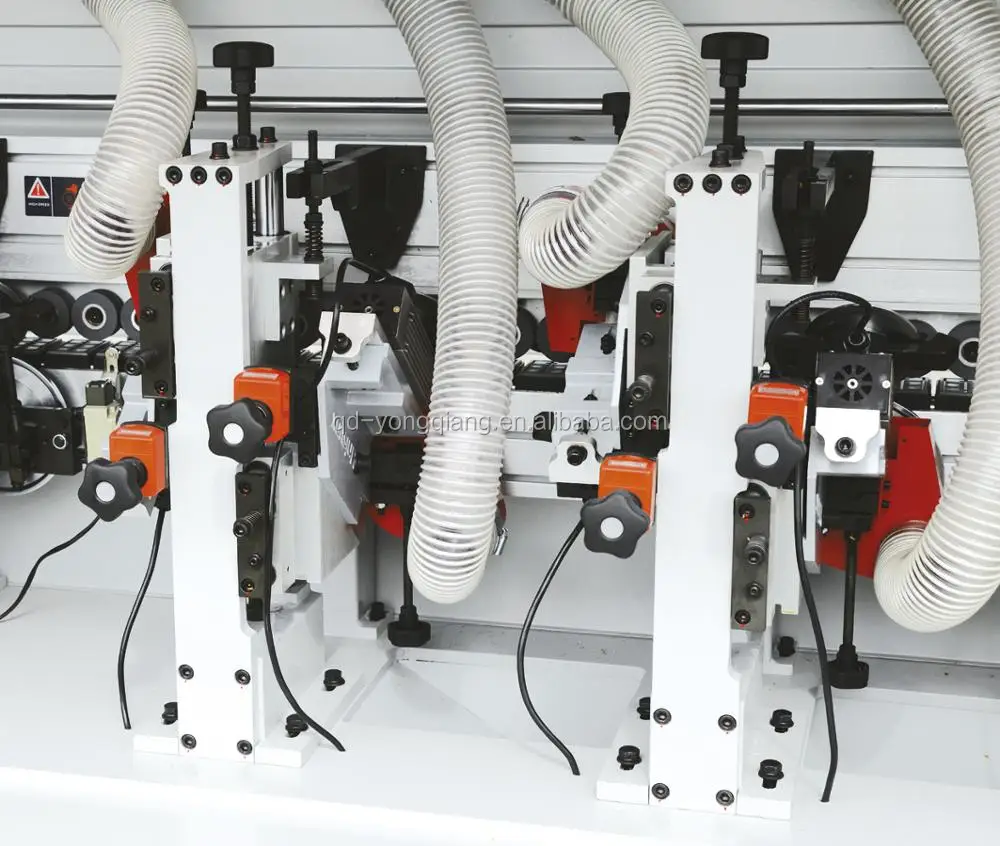

1). Gluing 2). End cutting 3)Rough Trimming 4). Fine Trimming 5). Scrapping 6).Buffing



Key Advantage of MFZ450F (CE Norm)



• Heavey duty machine body structure - aluminum

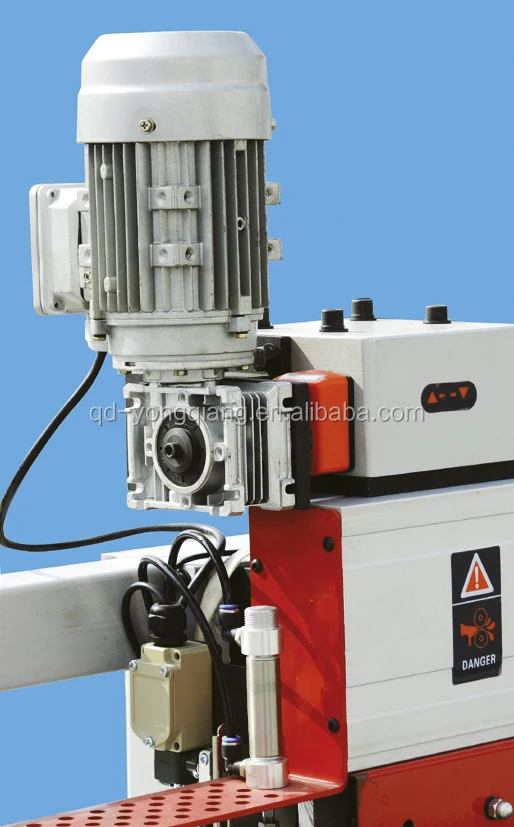

• High speed motor - imported from Italy

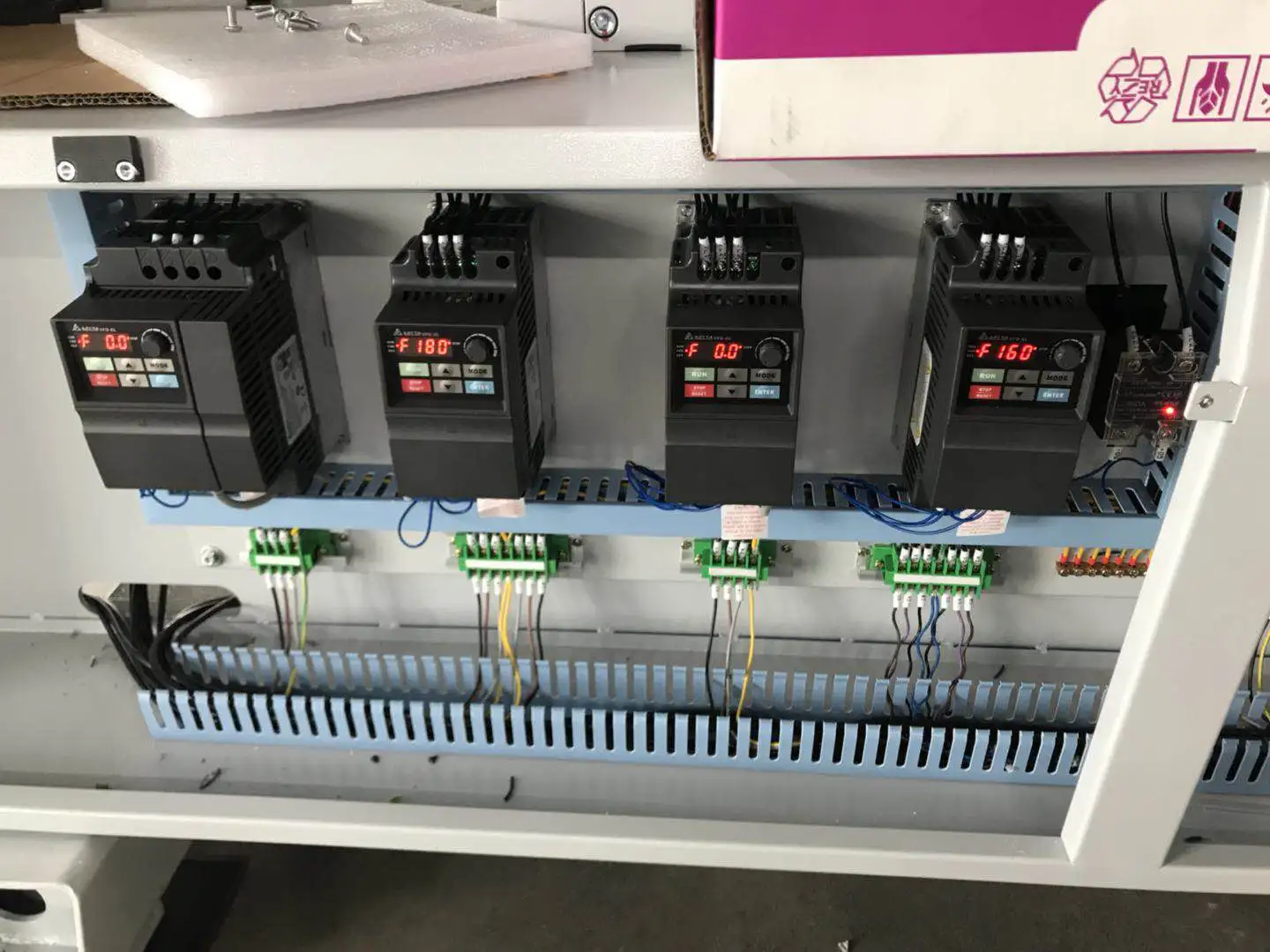

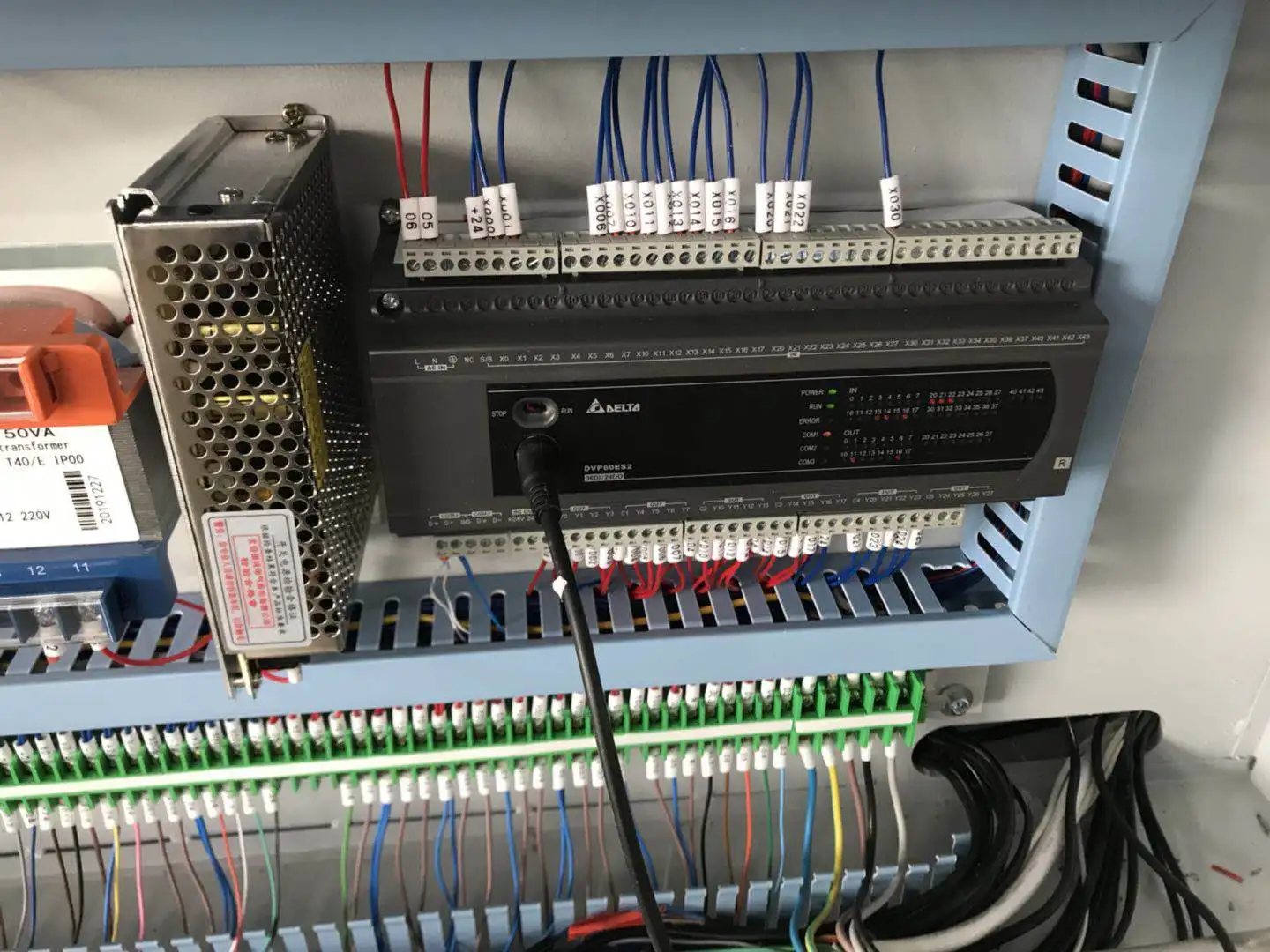

• PCL control plus frequency converter system (LG brand)
• Electricity parts - Airtec, Paker (USA), Omron
• Stable working quality
• Touch control screen is optional



Main tec. Data



Motor  power	10.19kw
Overall Size	5250*1100*1600
Feed speed	12-20m/min
Panel thickness	10-60mm
Edge thickness	0.4-3mm
Panel Width	>80mm
Working Pressure	6kg
weight	2300kg





UNISUNX is:

·       One of the leading companies in woodworking machinery industry, and is highly recognized for its panel saw and edge banding machines;

·       The biggest panel saw / edge banding machine manufacturer in whole China.

·       Possesses two factories - Qingdao Yongqiang and Qingdao Unisunx Burt.  Total production scale is over 30,000 square meters;

·       Has got ISO9001 international system certificate and its main products have CE;

·       "The Highly Recommended Brand by CNFMA". (China National Forest Machinery Association);

·       Sells to over 60 countries (EU, North America, Russia, Australia, etc);
