Double drum spiral freezer is a high efficient freezing system which can freeze large quantity of products in limited space. Freezing capacity is between 300kg/h to 4000kg/h. Main features of spiral freezer: 1. Stainless steel insulation panel is filled with PU foam, 120mm thickness. Both sides cover 0.6mm stainless steel plate. The insulation floor, 225mm thickness is welded seamlessly. No leaking and sinking. 2. Conveyor belt is made up with special high strength SUS304 spiral mesh. High frequency induction heater is used for rod header forming.Running smoother and lasting longer. 3. Aluminum alloy evaporator. Aluminum pipes and fins are densely designed for good heat exchange. 4. SUS304 electric control panel. It can be controlled by relay, PLC or touch screen. 5. Safety device: conveyor belt turn over inductor, belt induction regulator, emergency switch.

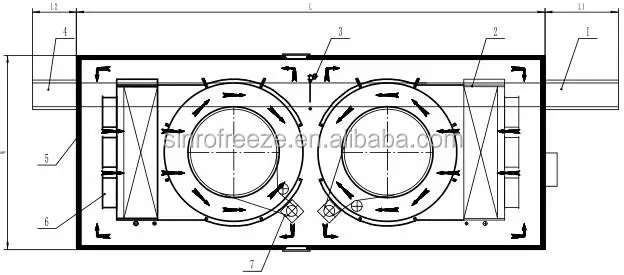

Structure drawing
1. Inlet frame
2. Mesh belt 3. Electric control panel 4. Axial fan 5. Evaporator 6. Protective structure 7. Drum
Direction for use
使用说明

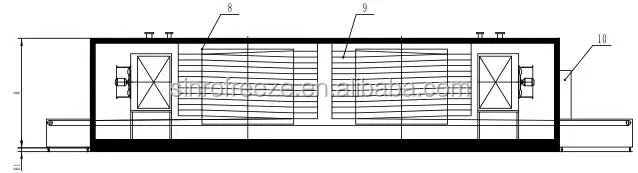

8. Outlet frame
9. Driving device 10. Cleaning device

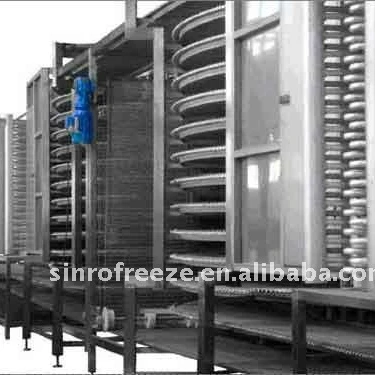

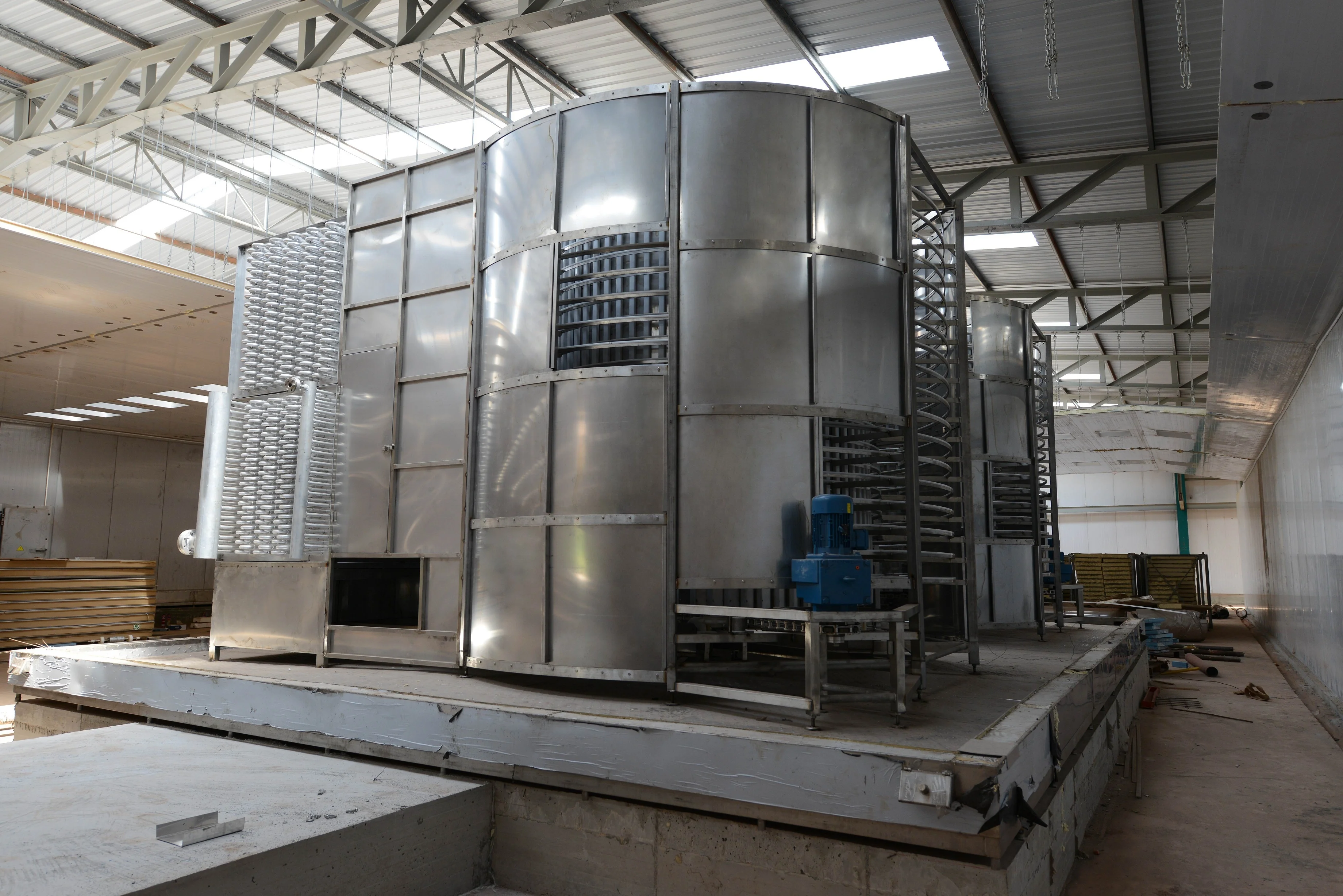

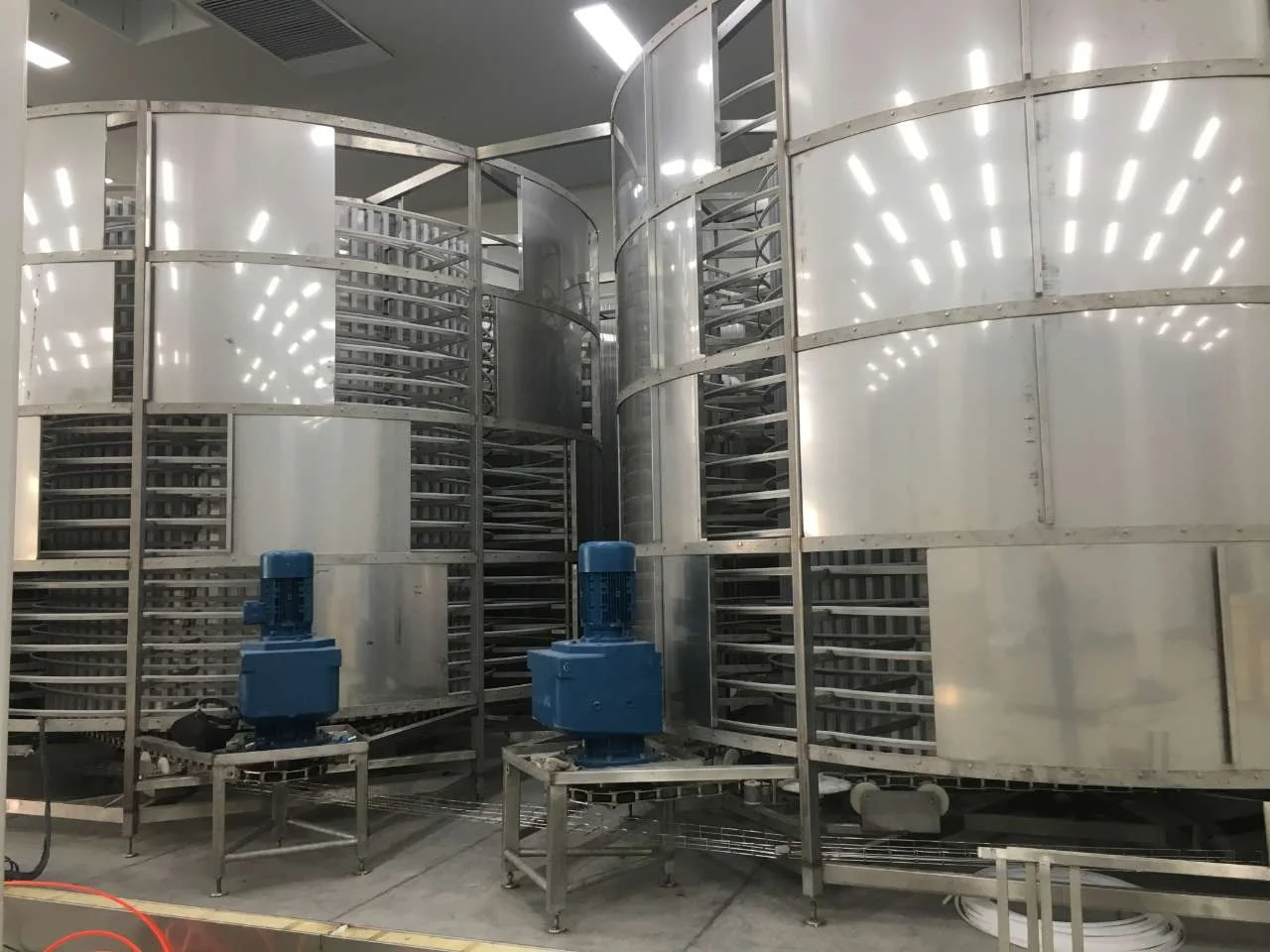

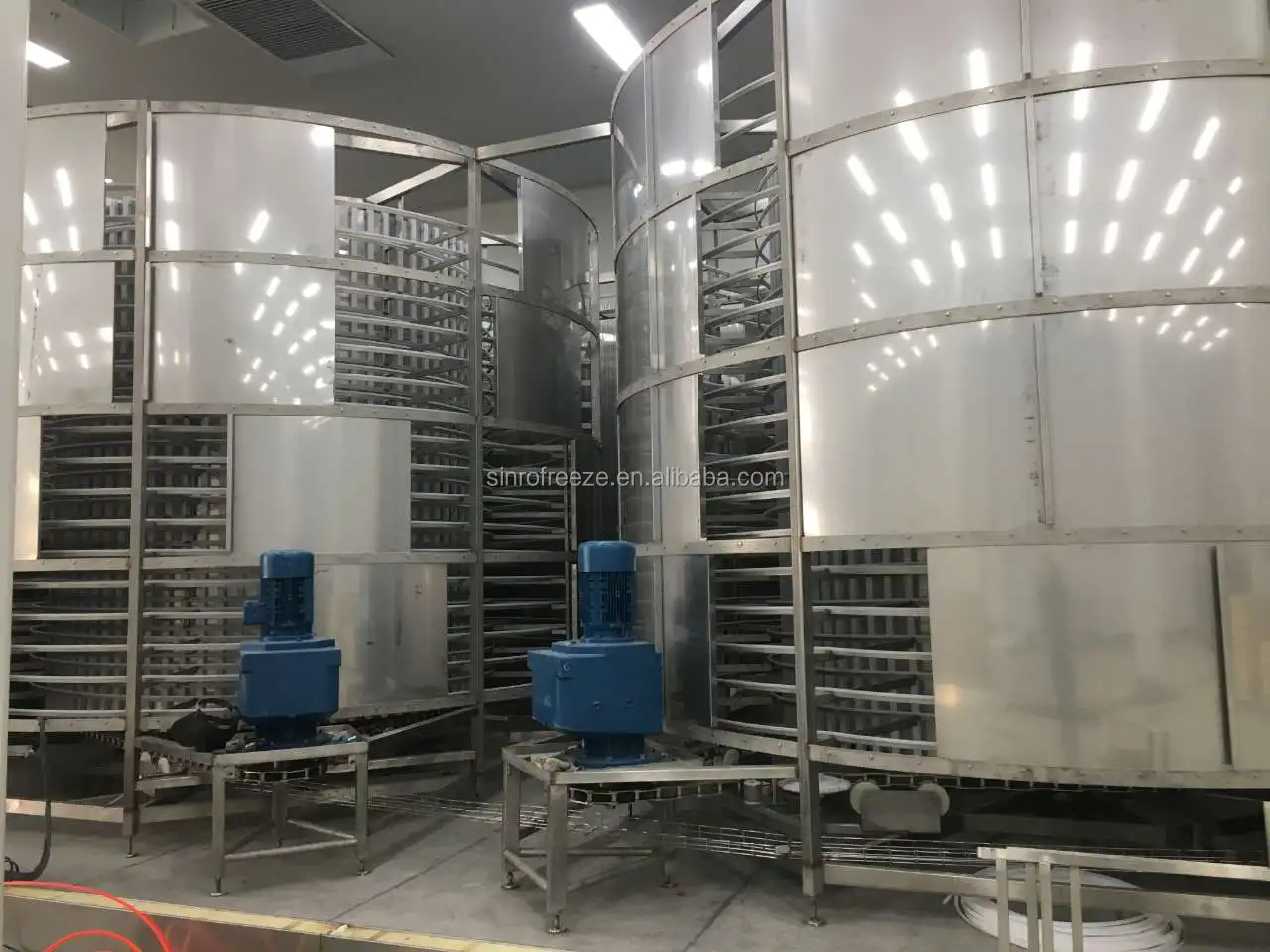

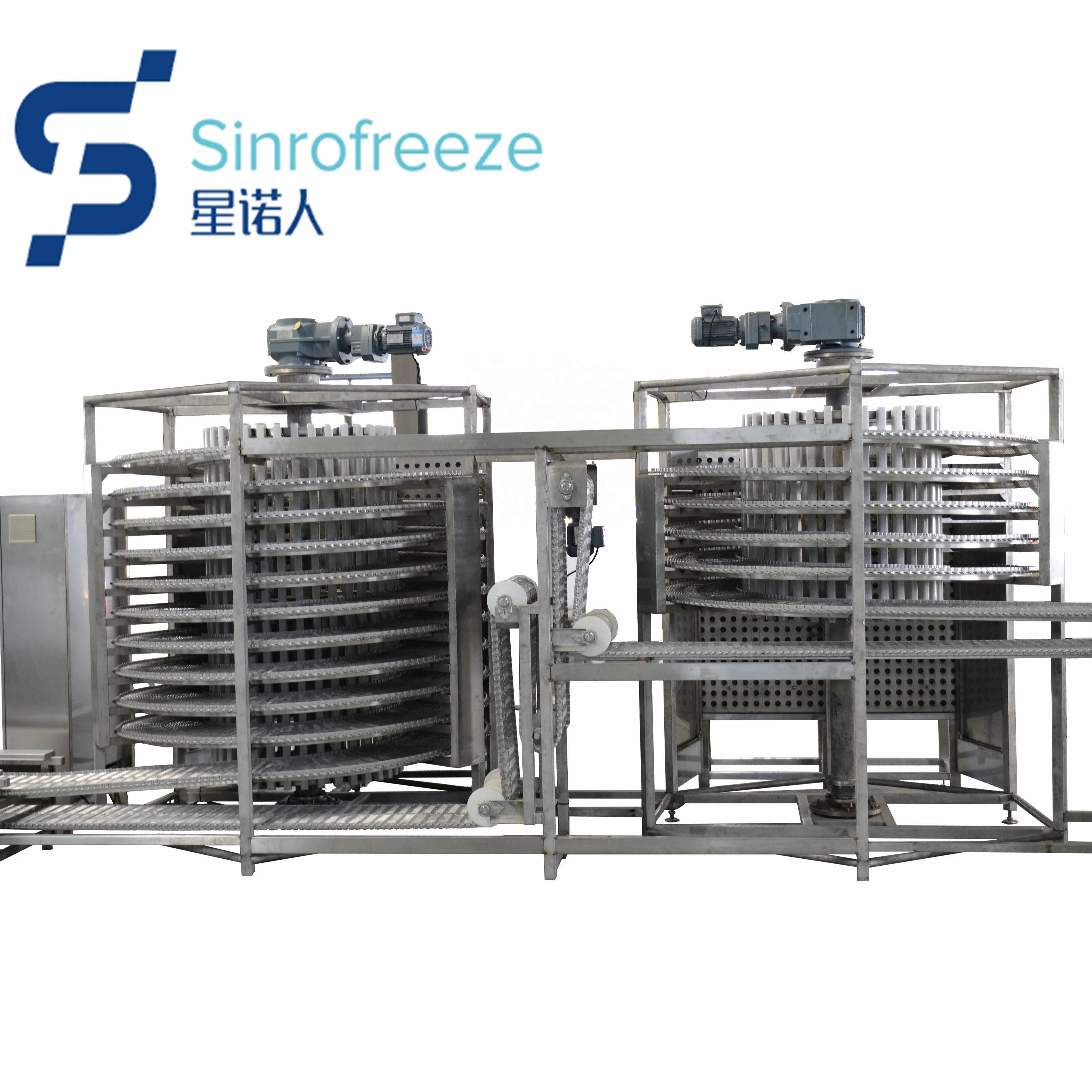

Detailed Images
Size Information
Technical specifications
Model
Freezing capacity
(kg/h)
Refrigeration capacity
(kw)
Motor power
(kw)
Refrigeramt
Overall dimension
L×W×H (mm)
SD-500
500
90
23.5
R404A/R717
10800×4300×3000
SD-750
750
135
30
R404A/R717
11200×4700×3000
SD-1000
1000
170
32
R404A/R717
12800×5300×3000
SD-1500
1500
240
38
R404A/R717
12800×5300×4000
SD-2000
2000
320
45
R404A/R717
14000×6000×4000
SD-2500
2500
380
52
R404A/R717
14600×6000×3920
SD-3000
3000
460
56
R404A/R717
14600×6000×4220
