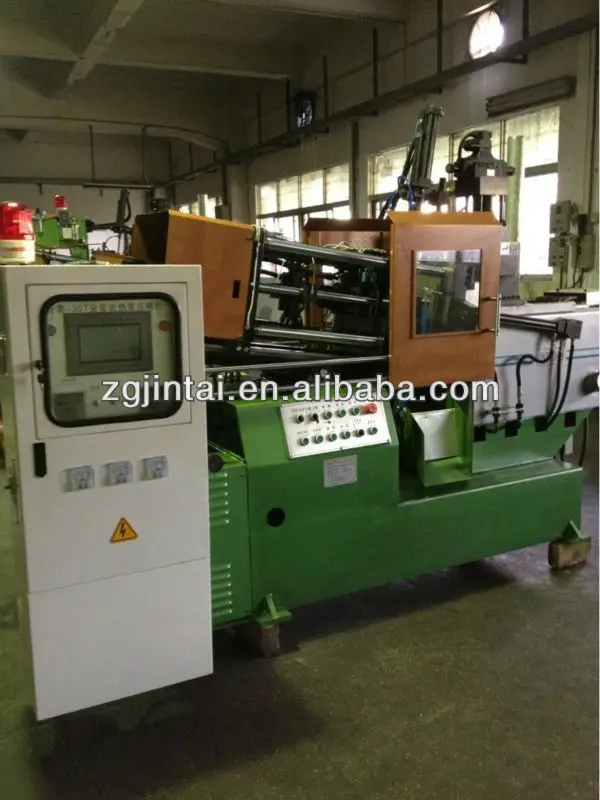

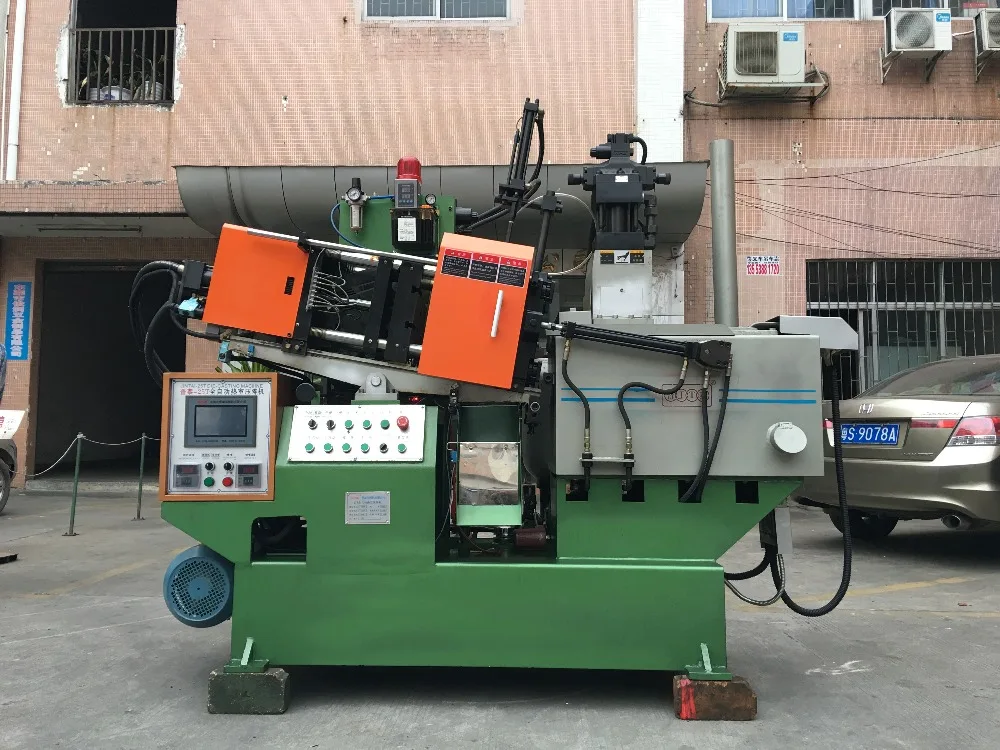

full automatic zipper head making machine

Unit

Specification

Item

Unit

Specification

Item

Clamping Force

KN

200

Volume of Crucible(Zinc)

KG

85

Diameter of Di-Cylinder

mm

55

Oil Pump Flow

L/min

36

Tie Bar Diameter

mm

40

Accumulator Volume

L

10

Opening Stroke

mm

130

Oil Tank Volume

L

180

Space between Tie Bars (H*W)

mm

230*230

Dry Cycle Time

s

3.5

Die Thickness (Min.~max.)

mm

120~220~330

Heating Power of Spray Nozzle

KW

1.2

Stroke of Injection Cylinder

mm

70

Heating Power for Material Melt

KW

9~12

Diameter of Injection Plunger

mm

35~38

Fuel Oil Use for Material Melt

KG/H

1.5

Injection Force

mm

25

Motor Power

KW

7.5

Diameter of Cylinder

mm

60

Hydraulic Pressure

Mpa

6~8

Effective Shot Weight

g

150~220

Overall Dimensions

mm

2500*1000*1900

Traverse Stroke

mm

220

Machine Weight

t

1.4
