high quality chipboard wood core raised access floor coated with HPL,PVC,ceramic for computer room,data center

Product Overview

Description

high quality chipboard wood core raised access floor coated with HPL,PVC for computer room,data center

Introduction & Advantage

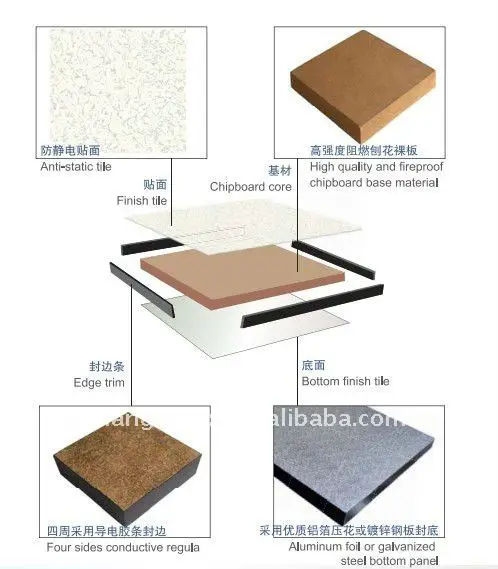

Imported high quality chipboard base material,be coated with HPL,or PVC ,or ceramic,four edge sealed with conductive regula, bottom is galvanized steel.



Details

1.High density particle board,PVC/ABS edge trim, sound proof

2.High dimensional precision, strong loading ability and shockproof

3.Adjustable height for pedestal , assembly agility, large wire, good exchangeability.

4.Outlet mating . Elegant appearance for paving wildly brand top tiles.

5.light weight ,high loading capacity ,excellent raised flooring in 21th

6.light weight ,convenient removing, saving

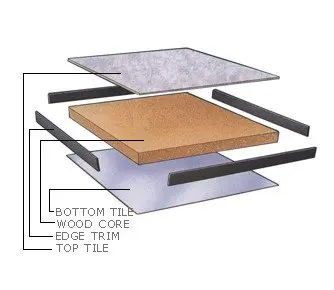

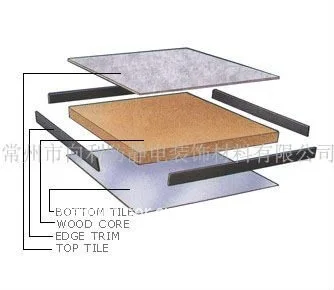

structure

1.panel- 30/38mm thickness particle board ,PVC/ABS corvered four edges,steel/aluminium on the bottom plate ,wildly brand top tiles could be carpet ,HPL PVC ,steel plate,aluminium foil or other tiles as you like

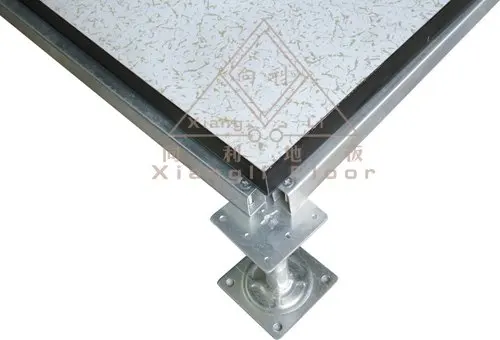

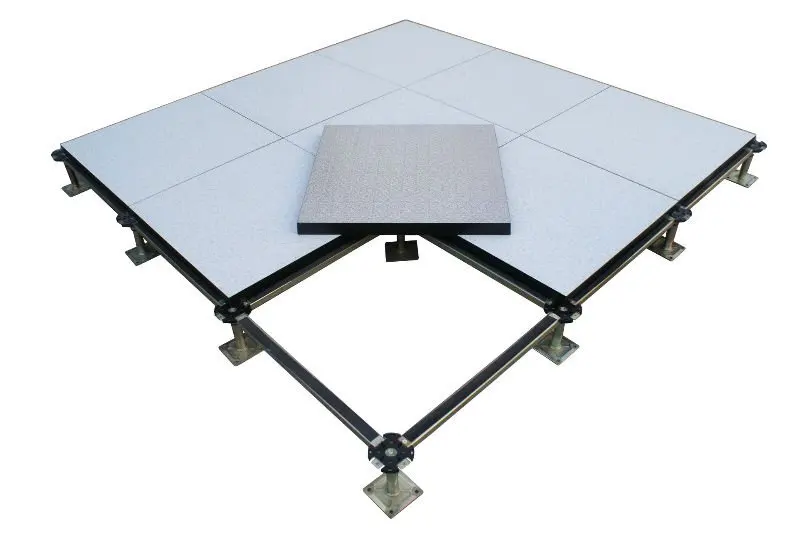

2.Accessories -die casting steel structure pedestal plastic gasket on top ,height could be 70mm ---1500mm , with or without square tube stringer steady connect the system

Application

Wide range of the application , all kinds of computerroom, network service engine room, control room, montoring cabin, top grade office

Type& Technology parameter

Type	International	Size(mm)	Fire Performance	Concentrated load			Impact load (N)	Ultimated load (N)	Uniform Load (N/m2)	Rolling load(N)
				LB	N	KG				10 times	100000 times
XL-2001	FS440	600x600x32	A	≥440	≥1960	≥200	≥295	≥5880	≥9272	1958	1566
XL-2002	FS662	600x600x40	A	≥662	≥2950	≥301	≥445	≥8850	≥1250	2946	2356
XL-2003	FS800	600x600x40	A	≥800	≥3350	≥363	≥536	≥11250	≥16100	3560	2670

Standard Pedestal SPEC:

FFH(mm)	tub diameter(mm)	adjustment +(mm)	adjustment – (mm)
600	25	20	10
700~900	32	20	10
1000~1500	45	20	10

Other height could be customized.

Standard Stringer SPEC: 570x21x32mm
