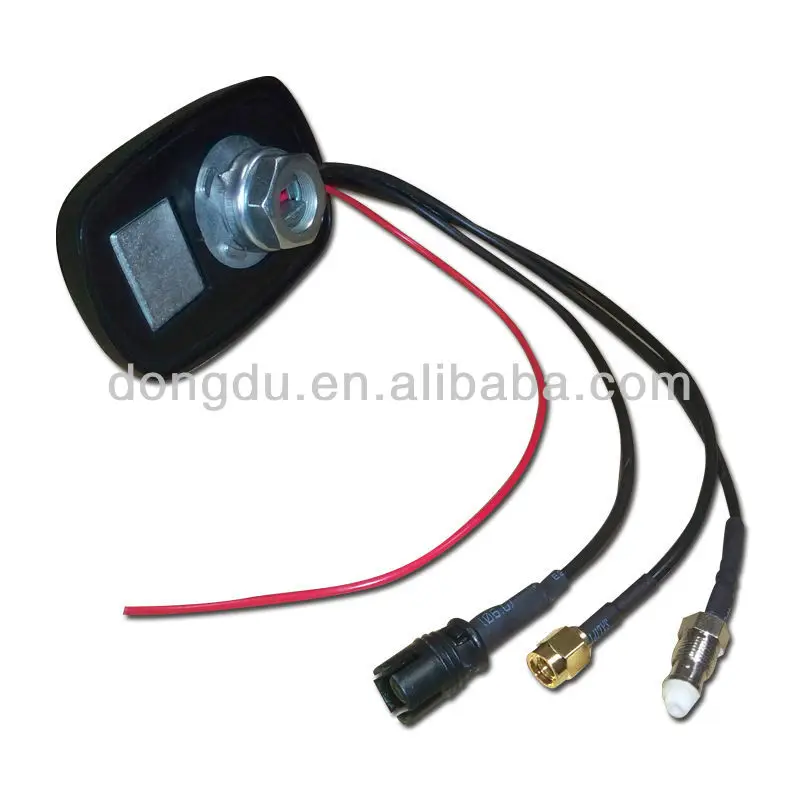

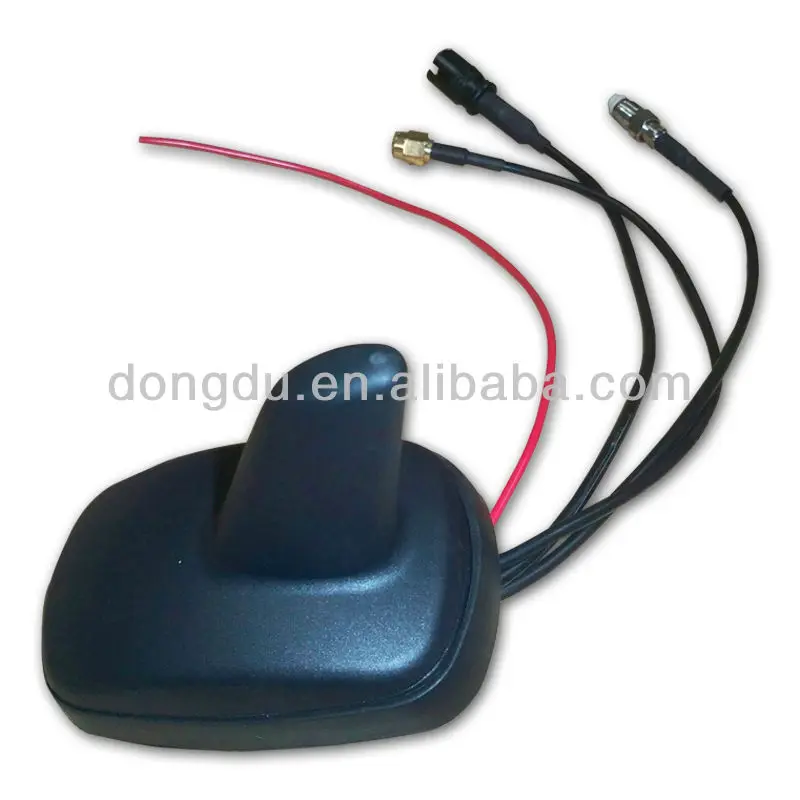

3 in 1 Car GPS.GSM.RADIO shark fin antenna

Product Overview

Description

Car GPS.GSM.AM/FM 3 in 1 Shark fin antenna

GPS:
Operating Voltage Range:3-5VDC
Operating Current Range:8-14mA
Frequency:1575.42+/-1.023MHZ
V. S. W. R: < 1.8:1
Gain: 27+/-3dBi
Output impedance: 50Ω
Noise quotiety:<1.5dB

Bandwidth: 45MHz@3dB
Antenna polarization:right

Cable: RG174/3M

Connector: SMA


GSM:
Frequency: 824-960MHz
                  1800MHz, 1900MHz
Gain:2dBi
V.S.W.R.:<2.0:1
Connector:SMA, SMB, GT5, BNC,TNC, MCX, FME
Output impedance:50Ω
Cable: 3m/RG174



RADIO:

Operating Frequency: AM: 530-1650KHz; FM:87-108MHz
Operating Voltage:12VDC
Operating Current:40-50mA
Amplifier Gain: AM:20+/-3dB
                        FM:20+/-3dBNoise quotiety:<7dB
V.S.W.R:<3.0:1
Output impedance:75Ω

Operating Temperature: -20°c˜+85°c

Storage Temperature: -40°c˜+90°c
