Antistatic Die Casting Aluminium Panel Raised Access Floor Can Be Coated with HPL or PVC

Product Overview

Description

Antistatic Die Casting Aluminium Panel Raised Access Floor Can Be Coated with HPL or PVC

Introduction & Advantage

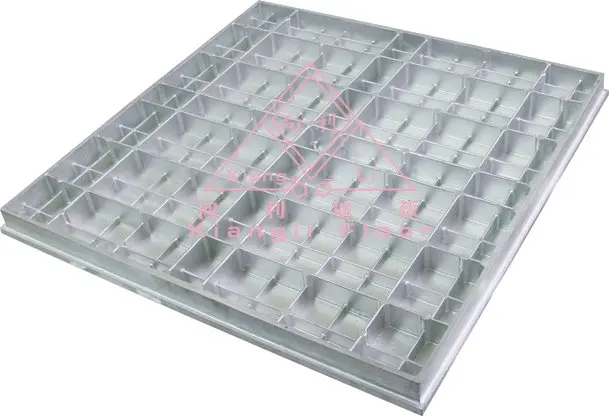

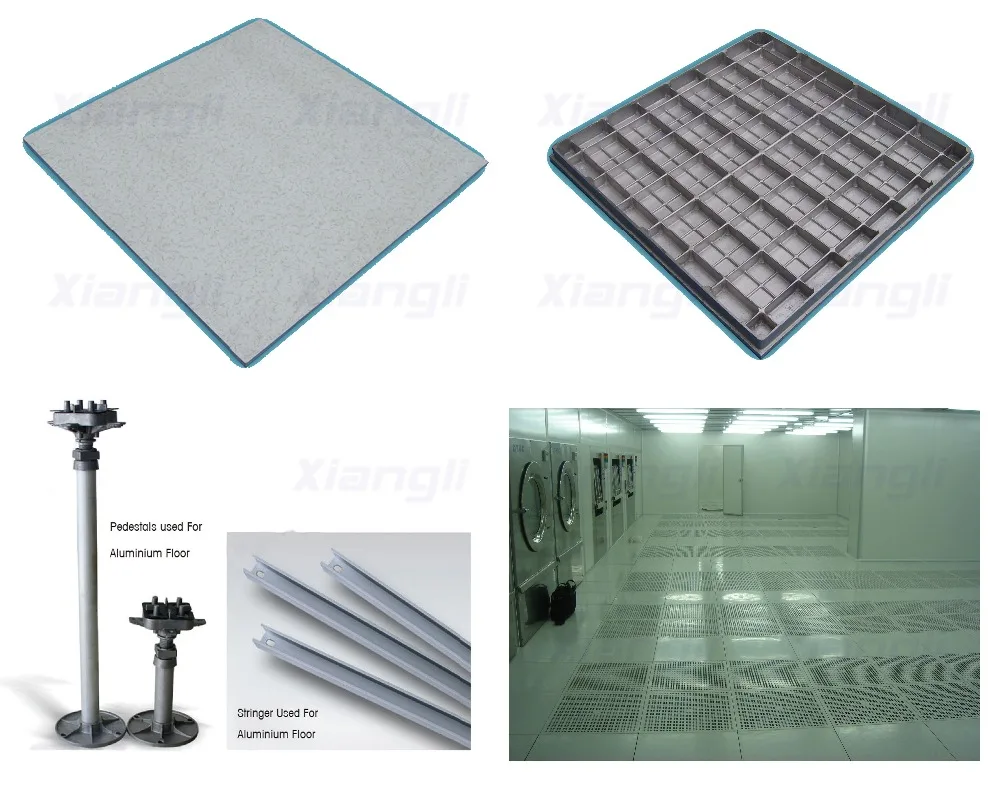

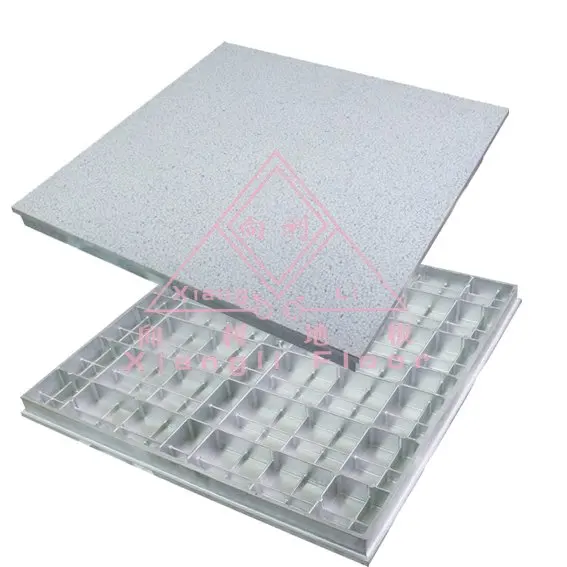

Prefer aluminum as base material , die casting by large oil press, imported strong glue paste PHL or PVC. Pedestal /stringer are pressured forming with steel ,lead screw could adjust height.

Characteristics

1.The best base material of the raised floor , 100% recycled

2.Full aluminium ,die casing ,top with HPL / PVC,excellent antistatic

3.light and high loading capacity High dimensional precision

4.Adjustable height for pedestal , assembly agility, large wire, good exchangeability.

5.convenient removing,long performance life.

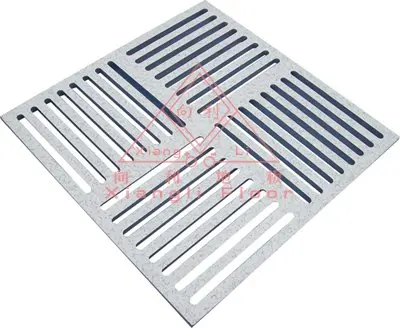

6.Air-flow panel suitable 15%--55%ventilation

Application

Wide range All manner of computer room, network service room monitor control center, electronic workshop, clean room, dustlessness chamber etc, and occasions which require on antistatic and air conditioning.

 Type& Technology parameter

Type	International	Size(mm)	Fire Performance	Concentrated load			Impact load (N)	Ultimated load (N)	Uniform Load (N/m2)	Rolling load(N)
				LB	N	KG				10 times	100000 times
XL-7001	FS1000	600x600x40	A	≥1000	≥4550	≥450	≥670	≥13350	≥23000	4450	3560
XL-7002	FS1250	600x600x40	A	≥1250	≥5560	≥567	≥780	≥16680	≥33000	5560	4450
XL-7003	FS1500	600x600x40	A	≥1500	≥6675	≥670	≥1005	≥19892	≥34500	6675	5340
XL-7004	FS2000	600x600x40	A	≥2000	≥8900	≥906	≥1340	≥26700	≥46000	8900	8000
