Textile three roller calender machine

Product Overview

Description

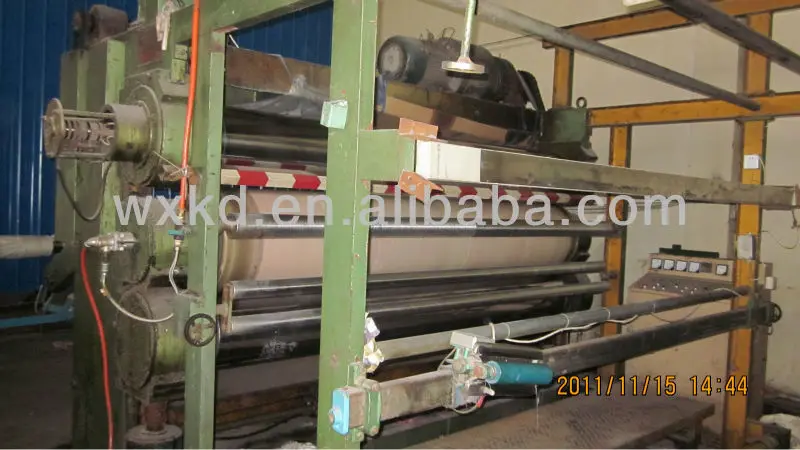

Textile three-roller calender machine KDY-180-360



Main technical parameter:



1.Machine width: 1800-3200 mm

2.Cloth speed: 5-40m/min

3.Max total power: 60T,80T,100T,120T

4.Pressure way: hydraulic(optional)

5.Heating roller work surface nominal diameter:350 mm(180)

6.Elastic roller work surface nominal diameter:560 mm(180)

7.Calender roller work surfaces nominal diameter:350 mm(180)

8.Driving mode:AC frequency conversion motor and planetary gear reducer,the drivign roller and draw-off roller drived by the double roller chain

9.Power:Total installed power 50.5 kw(main transfor motor 11kw,main electric heating power 30 kw,wool roller repair motor 4 kw,hydraulic motor 5.5 kw)

10.Roller surface temperature: According to the command control automaticallyduring normal temperature to 220 °c

11.Shape size(LxWxH):5100x3200x2800 mm

12.Machine weight: 12000 kg.
