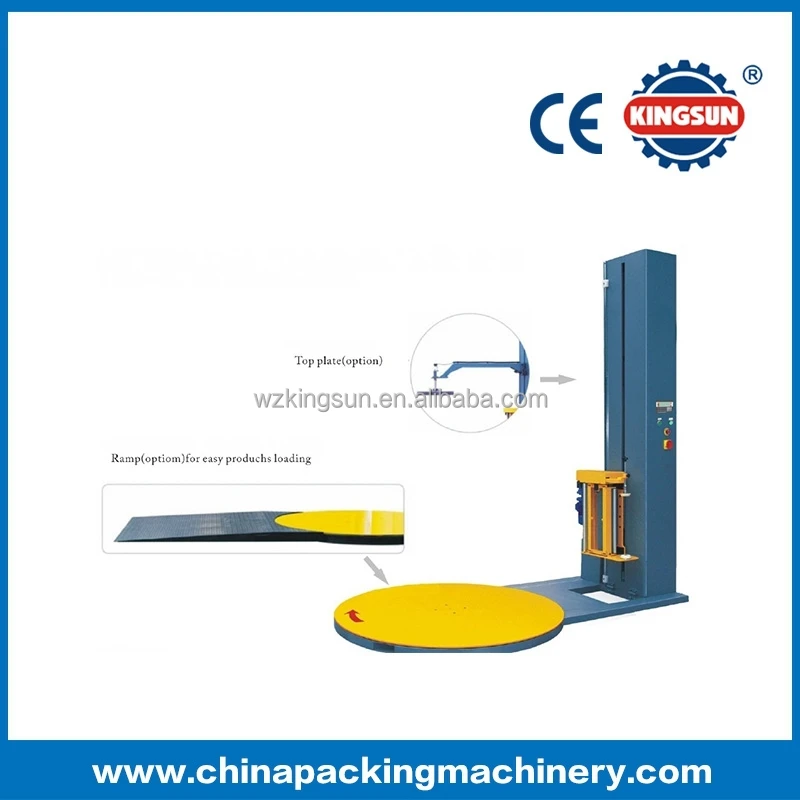

T1650CS Pallet Stretch Film Wrapper machine, pallet wrapping machine with CE

Product Overview

Description

T1650H Pallet Stretch Film Wrapper machine,  pallet wrapping machine with CE



T1650CS Pallet Stretch Film Wrapper machine,  pallet wrapping machine with CE are used to wrap stretch film around a loaded pallet. Film provides extra support while the products are being transported to protect them from tip, spill or from being damaged. Additionally, wrapped loads can easily be separated and identified. Stretch pallet wrapper is widely used in chemical industry electronic industry building materials home appliances papermaking foodstuff and drink etc.

Controls

OMRON PLC

Photo-eye pallet height sensor

0-9 separate top, bottom and up-down wrap count selectors

Photo-eye sensing delay

Reinforce wrap allow more wrap on same location

Film Tension Control adjustment on the panel

3-12 RPM variable carriage up-down speed

Cycle pause capability

Separate start, reset and emergncy stop buttons

Manual carriage up-down switch

Turntable jog button



Turntable

650mm Diameter Structural Steel Plate

85mm low profile turntable

Soft start, soft stop

Heavy duty chain drive



Film carriage

Powered pre-stretch system up to 200% to min film consumption (Pre-stretch ratio can be Specially made according your requirements.)

Carriage door opens for effortless roll change and thread film

Film delivery variable speed by separate DC Drive Motor

Film dancer-bar with variable speed output

Heavy duty double-chain carriage lift, calm and safety

Other

Hinged mast for easy handling

Rear Forklift transportable



Option

Ramp

Pneumatic top plate

Pneumatic film grabs and cut off system

Packing height: 2800mm

Turntable diameter: 1800mm, 2000mm

Turntable capacity: 2500kgs, 3000kgs

Machine color



 Technical Specification

Model	T1650F
Wrapping Size(L×W)(mm)	(500-1200) ×(500-1200)
Wrapping Height(mm)	L Type:(800-1800) / H Type:(800-2400)
Wrapping Efficiency(loads/hour)	20-40
Turntable Speed(rpm/min)	3 - 12
Turntable Diameter(mm)	Φ: 1650 / H: 85
Turntable Loading(max)(kg)	2000
Electrical Requirement	Single Phase 220V / 50HZ / 20A
Power(kw)	Turntable:0.75; Film Carriage:0.4; Steel Tower:0.37
Film Carriage	Pre-Stretch Type
Machine Weight(kg)	900
Machine Dimension(mm)	L Type:2545×1650×2280 / H Type: 3500×1800×980
