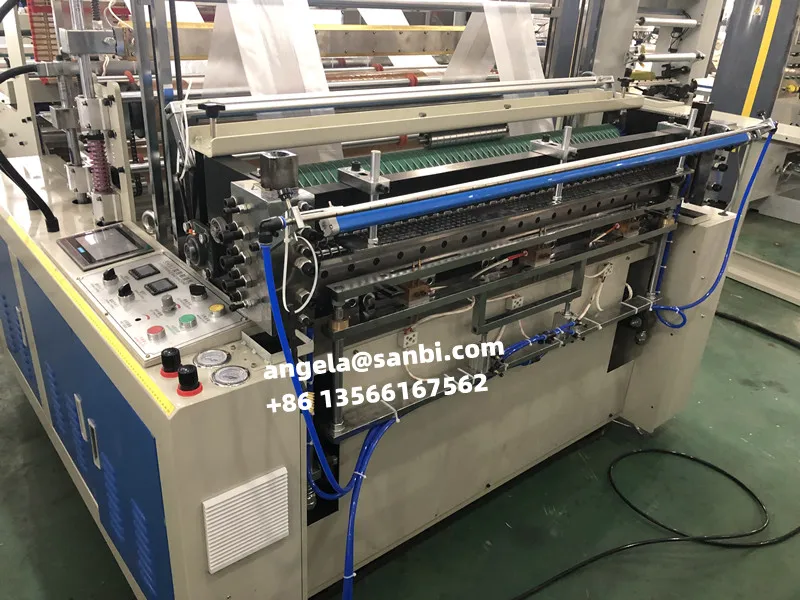

Automatic Plastic Shopping Bag Making Machine is used for non-printing or printing bag sealing and cuting .It equip with the step(servo) motor to drive.It equip with PLC to control the whole process such as sealing length ,speed and so on.It is a ideal equipment for T shirt bag or flat bag making.
Model | SHXJ-E1000 | SHXJ-E1200 | SHXJ-E1500 |
Max Width of Sealing & Cutting (mm) | 260 | 330 | 430 |
Max Length of Sealing & Cutting(mm) | 1000 | 1000 | 1000 |
Speed of Bag-making (pc/min) | 30-120*6 lines | 30-120*6 lines | 30-120*6 lines |
Number of Strip (pc) | 6 | 6 | 6 |
Power of Motor (kw) | 2.2 | 3 | 4 |
Servo motor and driver | include | include | include |
PLC with touch screen | Include | include | Include |
1m conveyor | Include | include | include |
Weight (kg) | 1300kgs | 1500kgs | 1800kgs |
Outline Dimension (L*W*H)mm | 4800*2000*1800 | 4800*2200*2000 | 4800*2500*2000 |

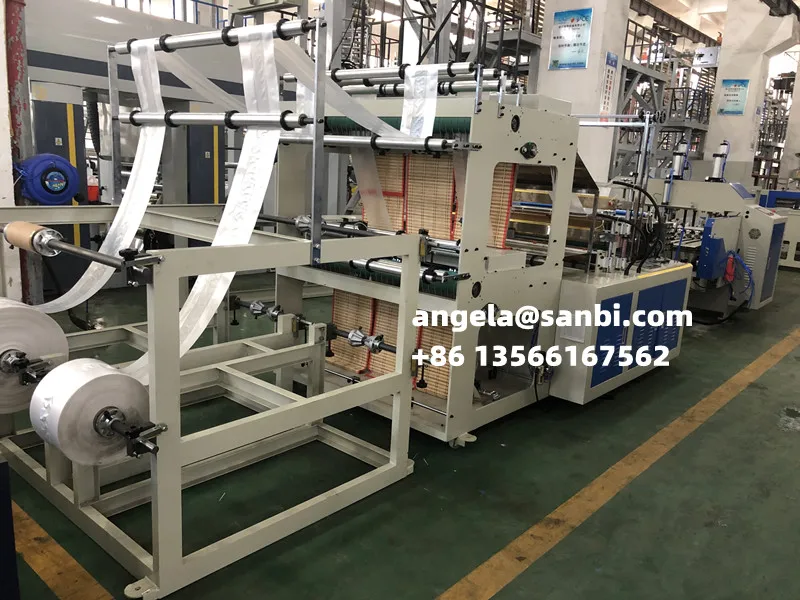

Unwinder 6 pc rollers
.
two pc unwinder motor
.

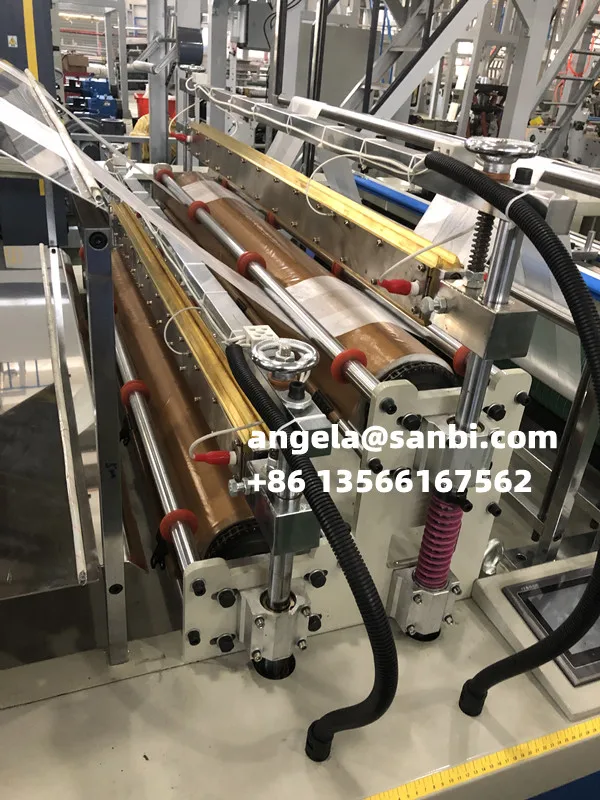

sealing knife with silicon cylinder
Cutting knife
.
Automatic punching knife
.

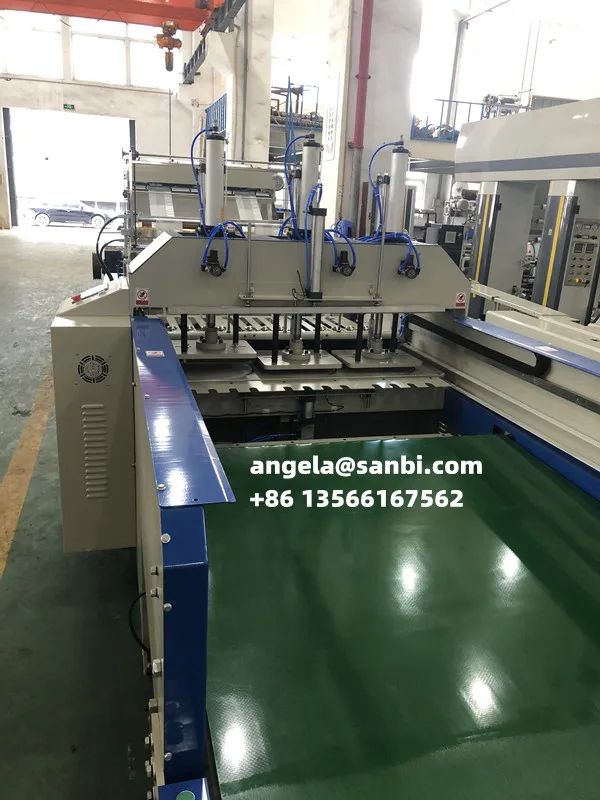

with conveyor transportation
Recommend Products

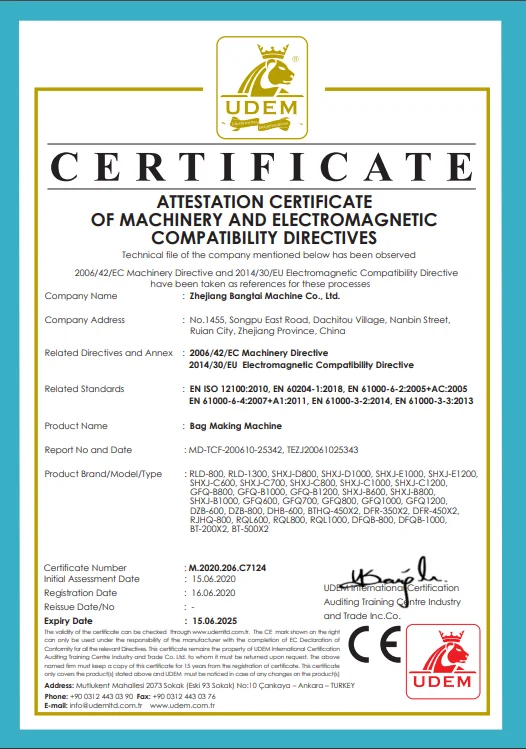

Certifications

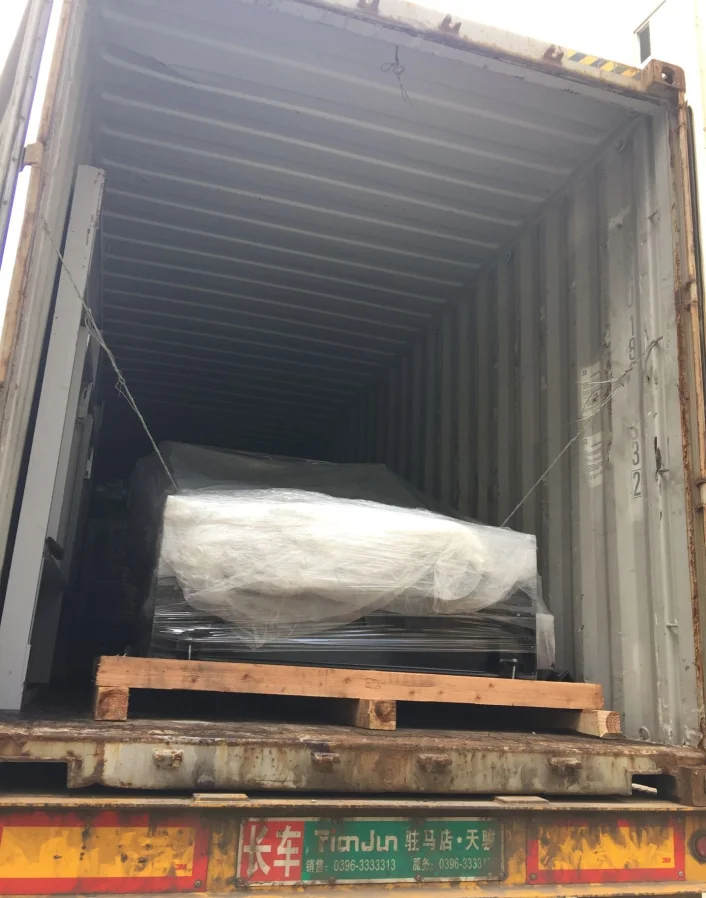

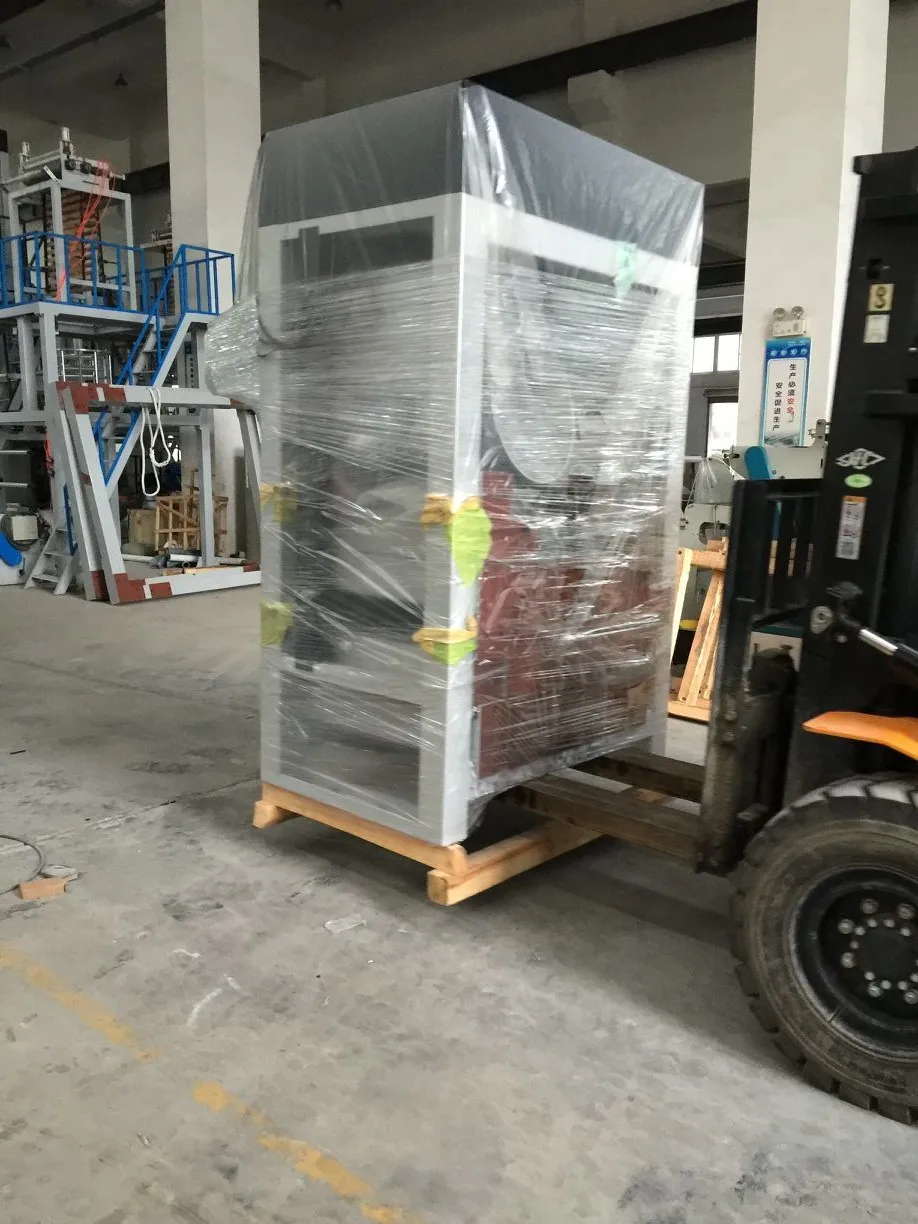

Packing & Delivery
