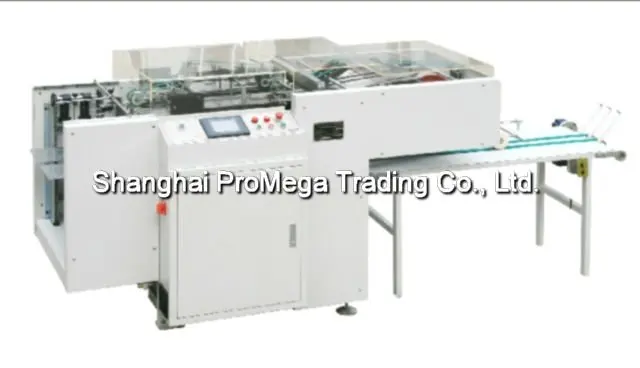

Automatic Punching Machine

Product Overview

Description

KEY FEATURES

Maximum punching thickness: 2mm(standard: 1.5mm)

Maximum punching sizes: 420x420mm

Minimux punching sizes:140x140mm

Adjustable speed up to 120 strokes/minute

Punching margin from the edge: adjustable as customers requirements

Full range of punching tooling available as per customers requirements

Two discharge options:high pile reception unit or a converyor

Paper thickness from 60gsm to 220gsm



TECHNICAL DATA	AP400
Max.paper size	420x420mm
Min.paper size	140x140mm
Max.paper thickness	2mm(standard:1.5mm)
Max.cycle speed	120strokes/min
Power supply	380v/3ph/50hz/3kw
Dimension	with high pile reception unit:2200*1000*1300mm/with converyor:2200*1600*1300mm
Net weight	720kgs
Air compressor	optional
Compressed air pressure	3-6bar
