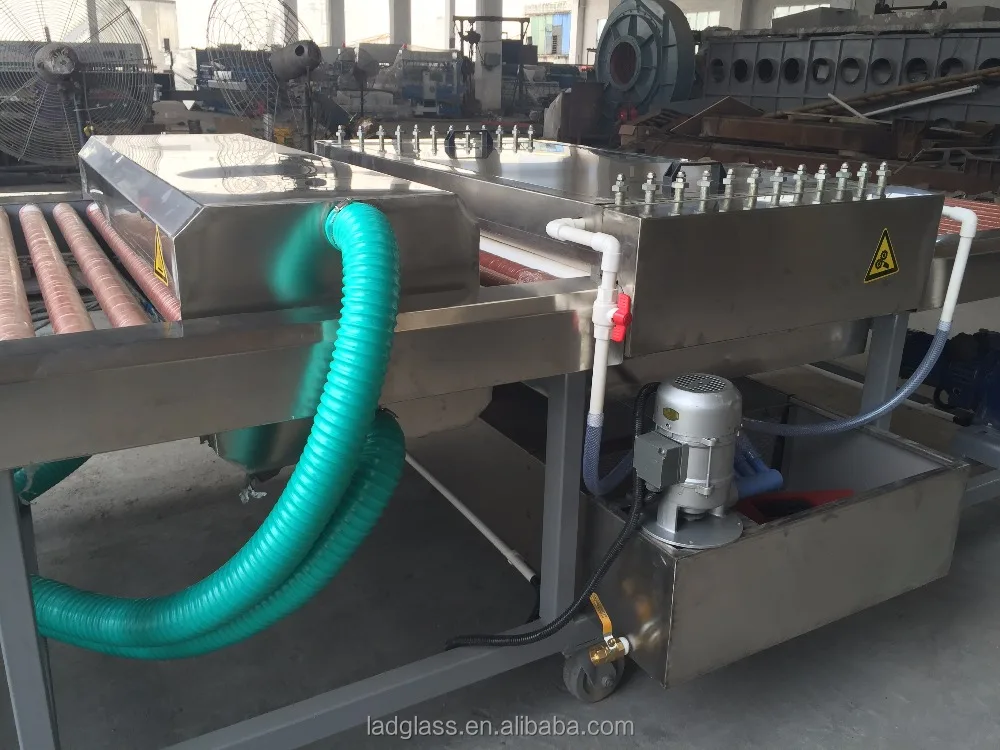

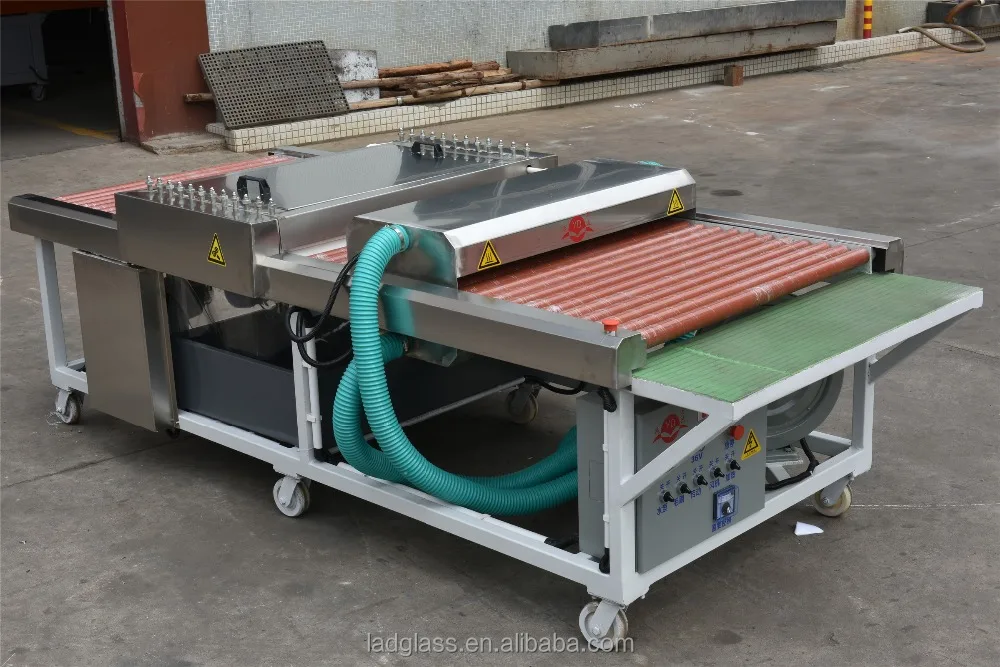

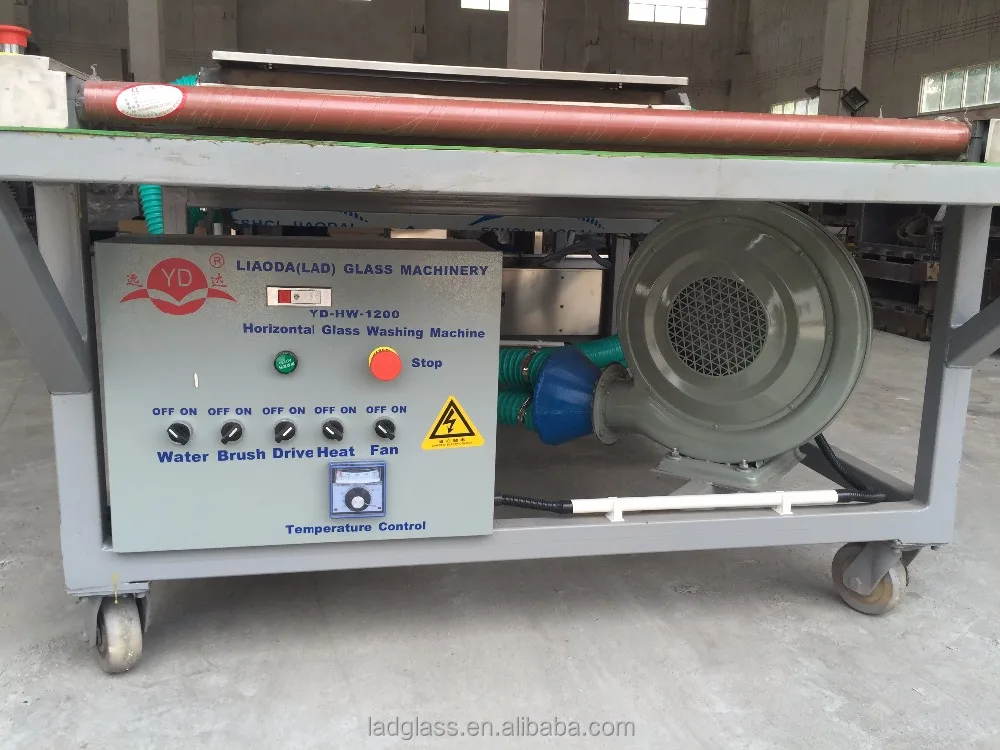

Fast Dry Horizontal Hot Air Dryer Glass Washing Machine

Share on (487263443):


Price:$4,000.00 - $4,400.00

Quantity:


Product Overview

Description


1.





Fast Dry Horizontal Hot Air Dryer Glass Washing









3.



  1. For middle size glass. Min glass size: 100x100mm,  Max.glass size:1500mm

  2. Conveying roll shafts are all rubber shafts, gear transmission, stepless speed regulator electric motor drive, speed adjustment 1~6m/min

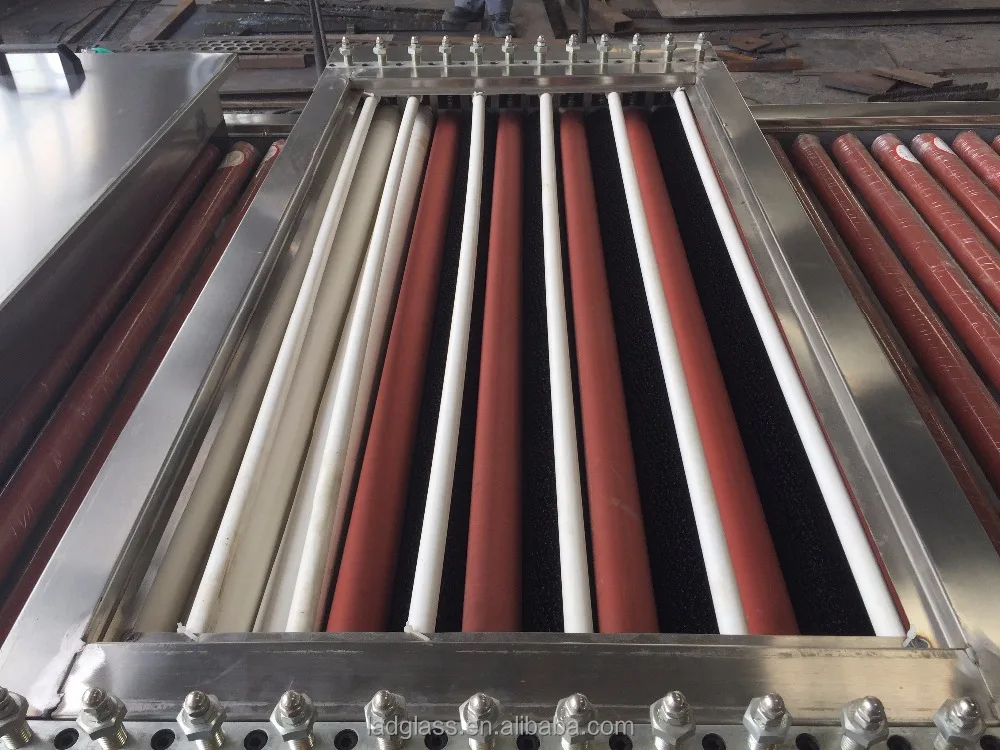

  3. There are three pairs (6pcs) of rotary brushes (up and down)

  4. Hot air dry with temperature of 40~60°C, one set of 750W air blower with insulation box.

  5. Using water pump as circulation pump, with 1 set of stainless steel water tanks, which can be pulled out to clean.

  6. All sparge pipes are plastic water pipes

  7. Electric control component are "Schneider" and "Chint" brand. Electric motor control circuit has overloading, default phase, short-circuit protection function to guarantee safe running of the machine

  8. Machine is with CE Certificate

  9. Machine size can be customized


2.

















































 Model Number



 YD-HW-1600



Max glasswidth(mm)



1100



Min glass(mm)



100x100mm



Glass thickness(mm)



3 ~ 19



Glass speed(m/min)



1~6



Compressed air consumption(It/min)



1



 Pressure(kg/cm)



 8



Power(kW)



12



Outer dimension(m)



3.5x1.4x1.1



Weight(kg)



700






Machine in workshop :

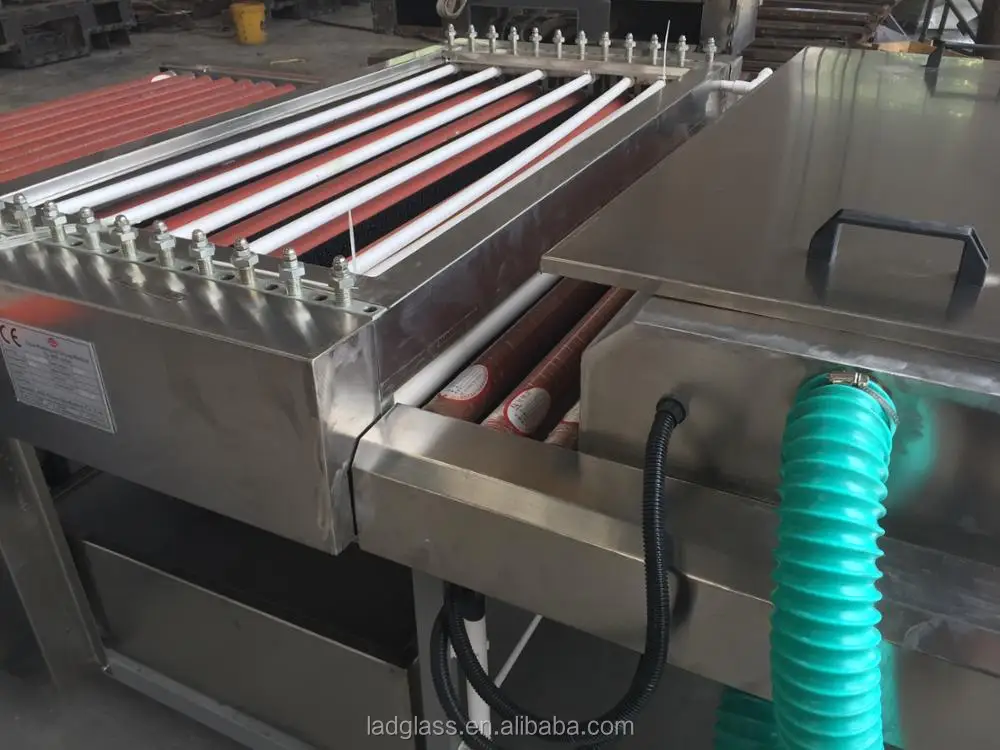

IMG_9549

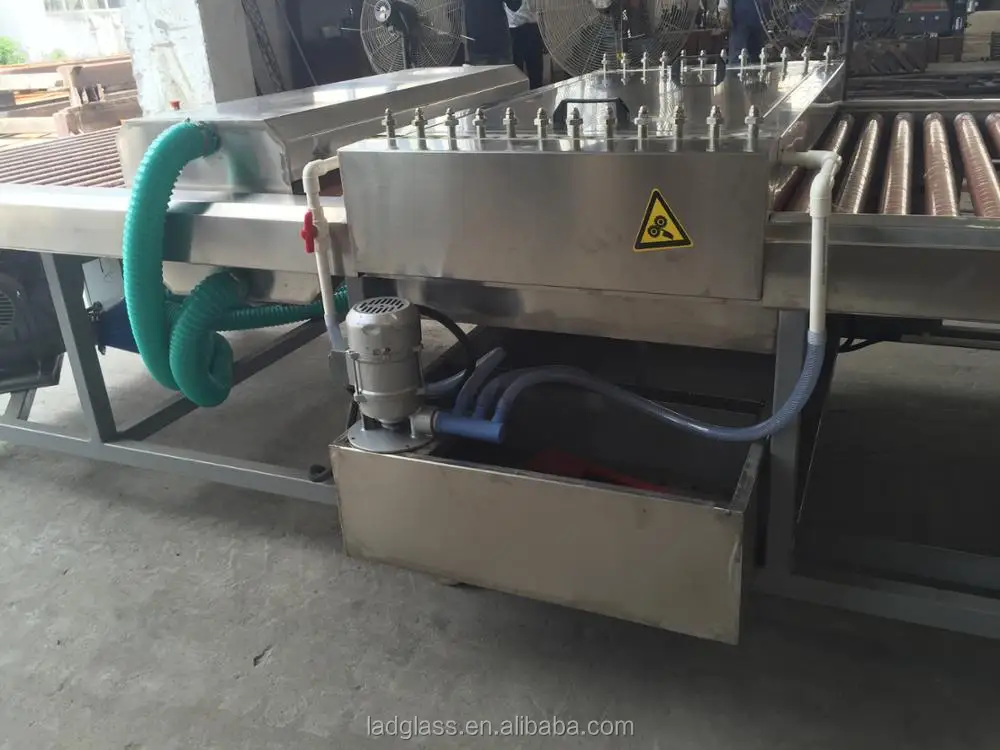

IMG_9555















Warranty and service:



  1.  1 year warranty for the machine

  2. Life time service available for parts and malfunctions

  3. 24 hour on line service

  4. Working video and installation video avaible

  5. Provide English operation manual





Payment term and shipping:



  1. By T/T, 30% deposit, balance paid before delivery

  2. Machine delivery after 30 days production.

  3. Machine loading in container or sending by  LCL cargo is permit

  4. Shipping agent will be offer if you required
