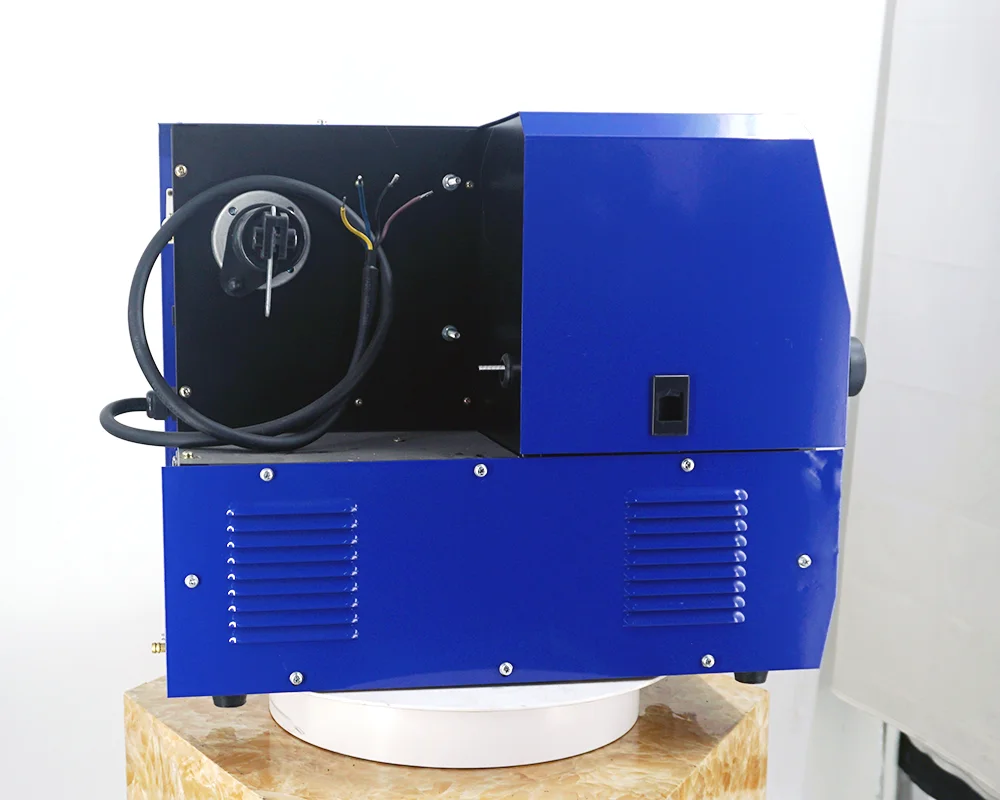

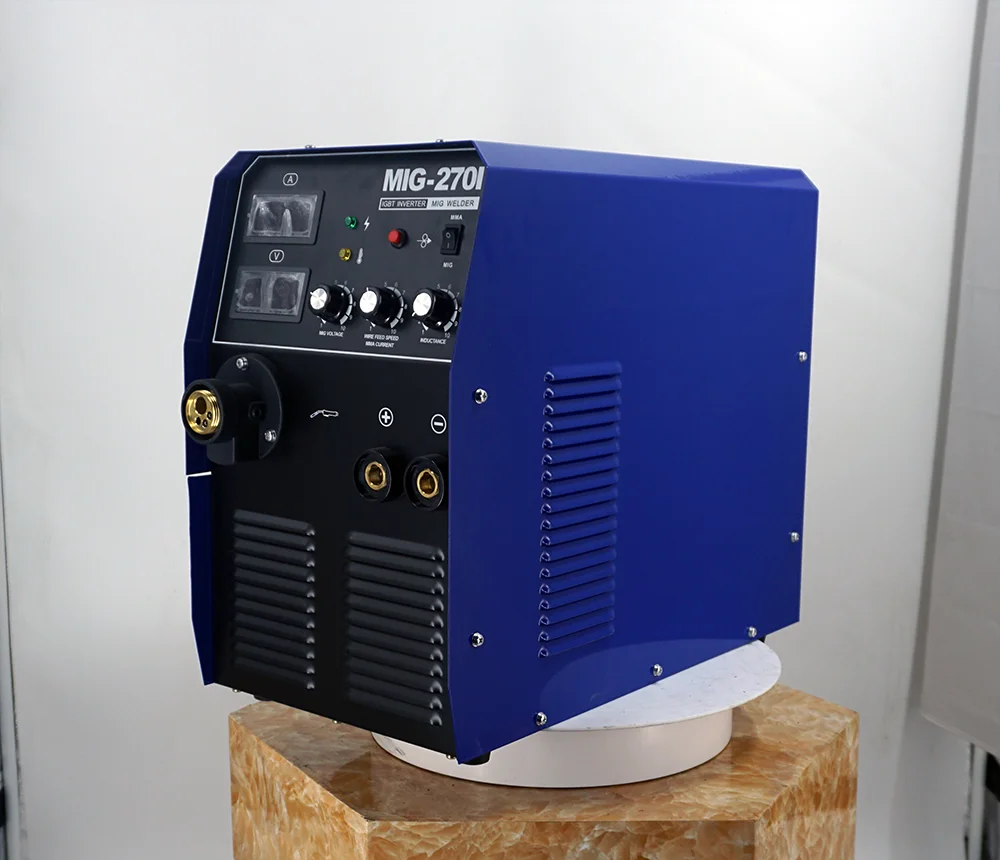

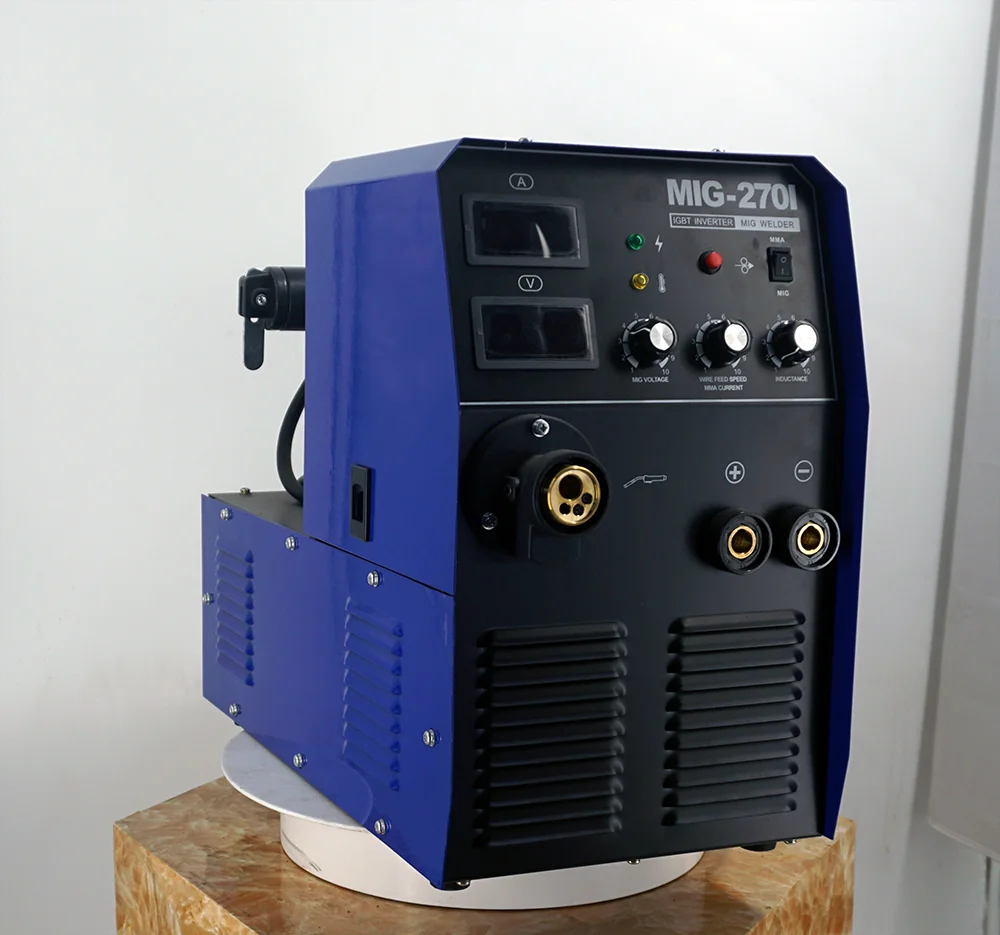

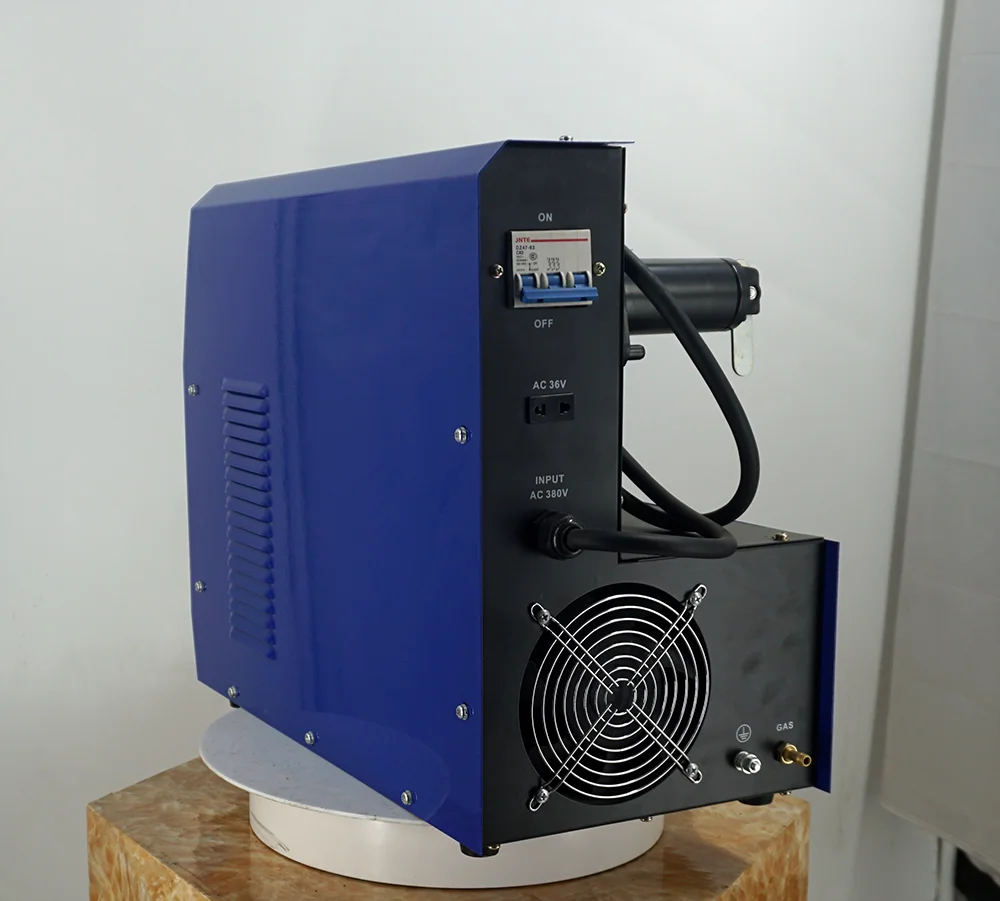

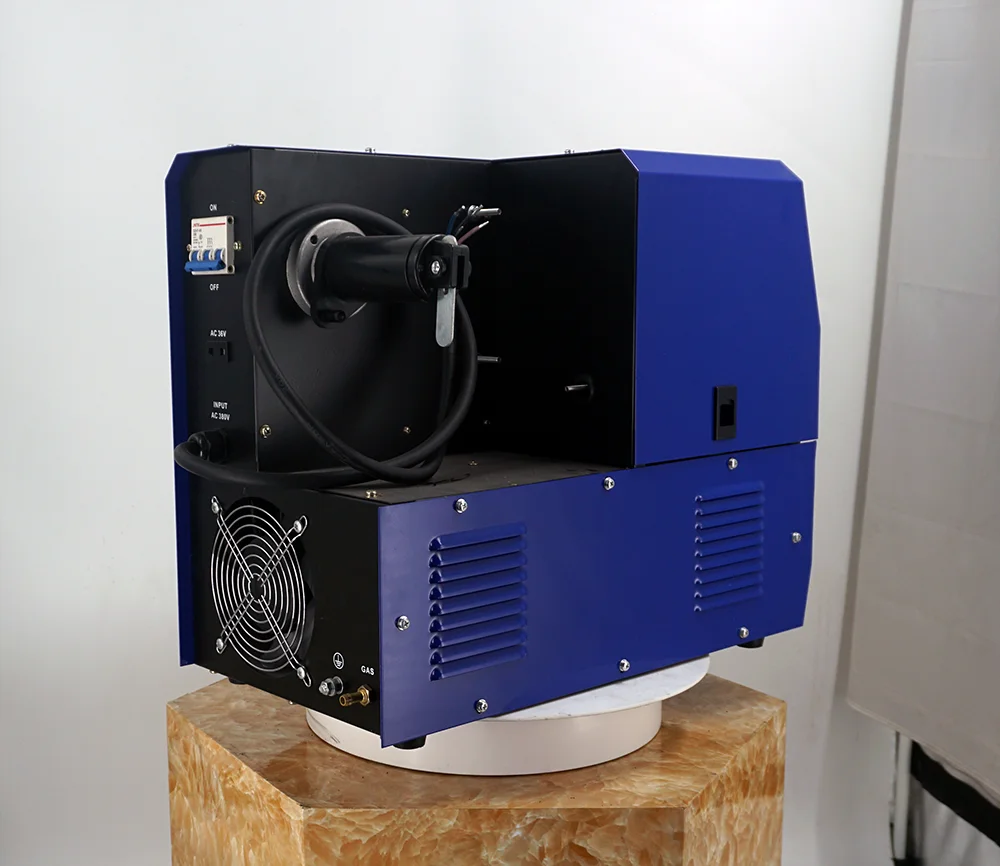

WIRE FEED WELDERS MIG250S 35 60% Rated Duty Cycle AC230V Rated Input Voltage 6.1KVA Max. Load Power Capacity

Product Overview

Description

FEATURES AND BENEFITS

* Small and light: with the mid-frequency transformer which is extremely smaller than the traditional welding power sources: weighting one fifth to one tenth as traditional welding power sources; only one third as big as the traditional welding power sources.

* Efficient and energy-saving: because inverter welders reduce the wasted power by using less copper and steel. Over one third power consumption will be saved because the efficiency is 80% while the power factor is as high as 0.93.
* Having step-less adjustment for welding current and voltage. Different requirement of different welding techinique will be reached.
* Stable welding with small spatter and outstanding welding performance.
* With the function of auto-compensation against power fluctuation.
* Design integrated; welding anywhere at any time;easy to operate.



TECHNICAL SPECIFICATIONS

Input Power (V):	AC220V±15%
Input Power Frequency (Hz):	50/60
Rated Output Voltage(V):	16.5~26.5
Rated Input Current(A):	51.5
Welding Amperage Range (A):	50~250
Duty Cycle (%):	60%
Power Factor (COSφ):	0.73
Efficiency (%):	80
Wire Feeder:	Built-in
Wire Feed Speed Range (m/min):	2.5~18
Insulation Grade:	F
Protection Grade:	IP21
Weld Thickness (mm):	0.8+
Net Weight (kg):	35
Dimensions (mm):	655*300*665





































QUALITY & INSPECTION

* Cooperate with good reputation suppliers

* QC check from spare parts to finished products

* Strict accelerated aging testing on every each machine before packaging



PACKAGE

* Standard export cartons with plastic foam normally

* Customized package also available per your requirements



PAYMENT TERMS

* T/T

* Confirmed irrevocable letter of credit (L/C) opened in our favor
