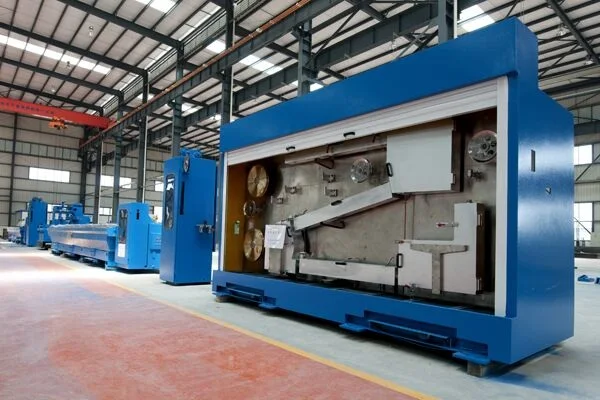

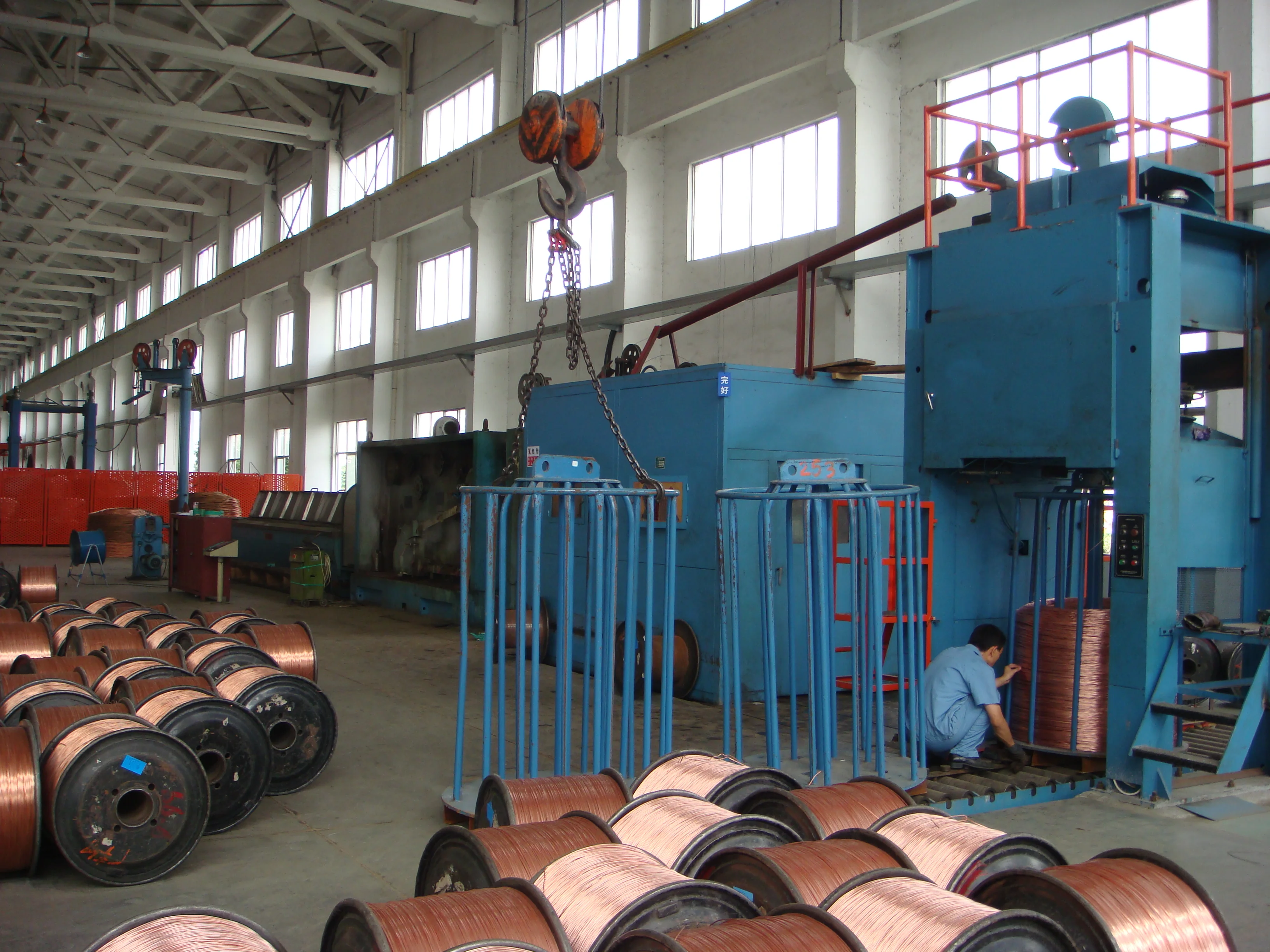

Copper Wire Drawing Machine, Rod Breakdown Machine
- Category: >>>
- Supplier: Sichuan 141 Machinery Factory
Share on (488038533):
Product Overview
Description
1.Product Information
|
|
|
LHD-450/13 |
LHD-450/9 |
|
Main Machine |
Inlet Wire dia. |
Φ8.0mm |
Φ8.0mm |
|
Out Wire dia. |
Φ1.3~4.0mm |
Φ2.5-4.0mm |
|
|
Max. Linear speed |
22m/s |
14m/s |
|
|
Max. Drawing Pass |
13 |
9 |
|
|
Finished capstan dia. |
Φ450mm |
Φ450mm |
|
|
Speed ratio between capstans |
1.41-1.18 |
1.41-1.18 |
|
|
Main motor |
280kW(DC) |
250kW(DC) |
|
|
Finish capstan motor |
75kW(DC) |
55kW(DC) |
|
|

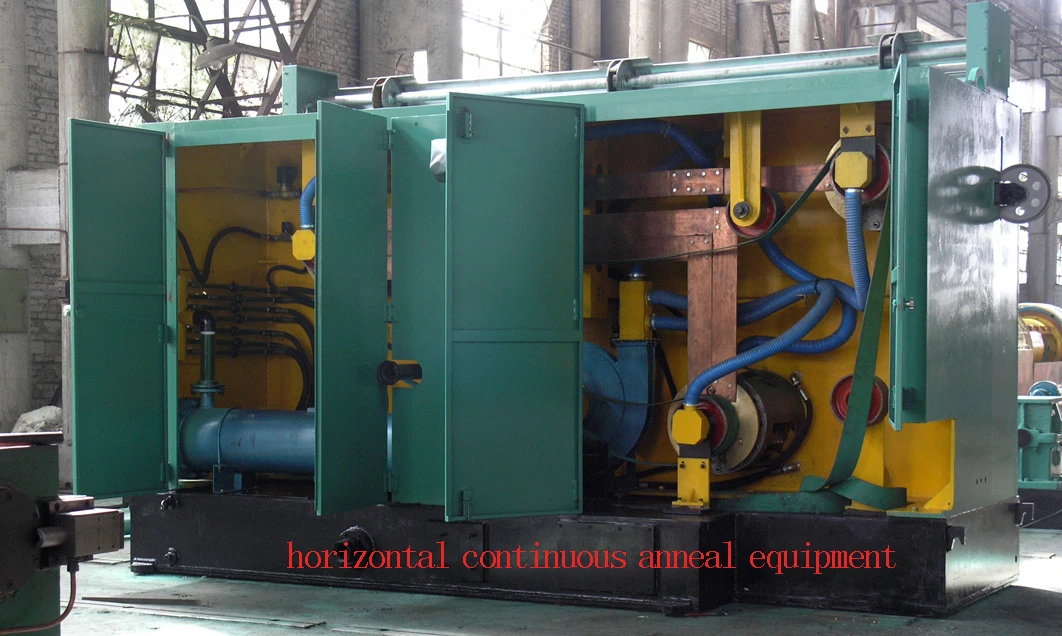

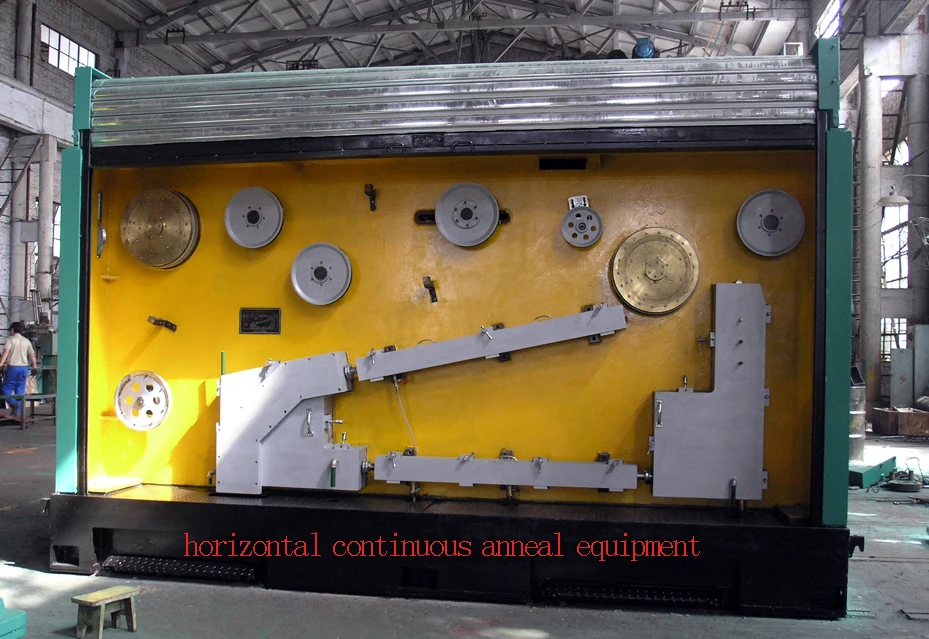

Continuous Annealer |
Annealing Wire dia. |
Φ1.2~4.0mm |
Φ1.2~4.0mm |
|
Max. annealing speed |
20m/s |
13.0m/s |
|
|
Max. annealing voltage |
60V(DC) |
60V(DC) |
|
|
Max. annealing current |
6000A(DC) |
6000A(DC) |
|
|
Cooling water consumption |
20m³/h |
20m³/h |
|
|
Air consumption |
18m³/h |
18m³/h |
|
|
Dual take-up |
Accumulating wheel length |
5.0m |
5.0m |
|
Max. take-up speed |
22m/s |
22m/s |
|
|
Max. traversing pitch |
6mm/r |
6mm/r |
|
|
Take-up motor power |
32kW×2(DC) |
32kW×2(DC) |
|
|
Take-up bobbins |
PND500-630(DIN46397) |
PND500-630(DIN46397) |
|
|
Drop down coiler |
Take up speed |
18m/s |
18m/s |
|
Take-up motor power |
18.5kW(AC) |
18.5kW(AC) |
|
|
Wire range |
Φ1.8~3.5mm |
Φ1.8~3.5mm |
|
|
Coiling wheel dia. |
Φ800 mm |
Φ800 mm |
|
|
Max. loading weight |
1500~1800kg |
1500~1800kg |
|
|
Others |
Total weight |
50000kg |
47000kg |
|
Overall dimension |
27500×4400×5000mm |
25000×4400×5000mm |
2. Design / Structure
1) Features
§ The box body is cast part in whole one that can make perfect outlook and lower noise and vibration.
§ All drawing blocks wheel which have equal diameter and are set in one row in certain degree. The special design can protect the wire against scratching and compressing.
§ The operation is very convenient because of the block wheels in one row and oil immersion lubrication method and horizontal annealer.
§ Dual-motor driving and rapid mould-changing system.
§ High load carrying capacity and low noise.
§ The copper wire drawing machine adopts dual take-up device and has the high automation.
2) Application
The copper wire drawing machine is mainly used to draw ø1.30-ø4.0mm copper wires from 8mm rod.
