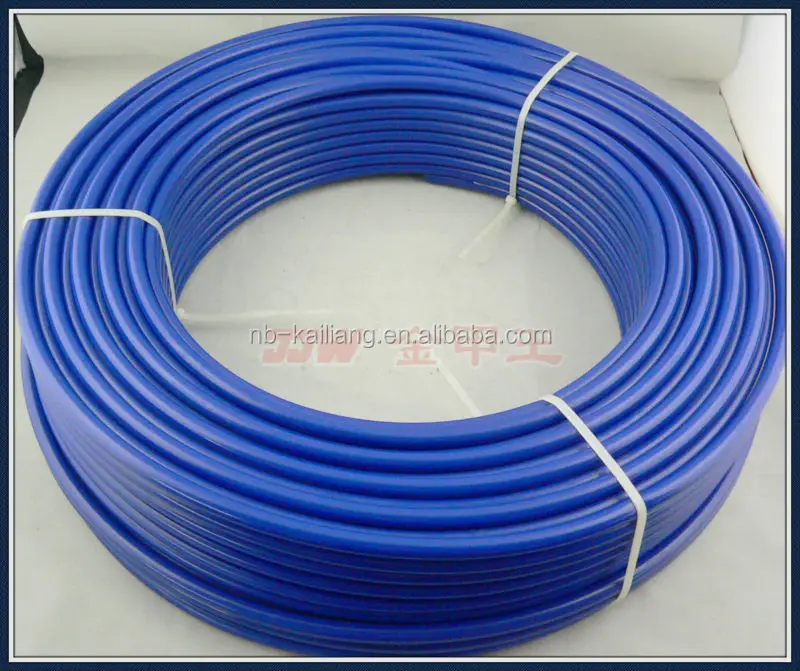

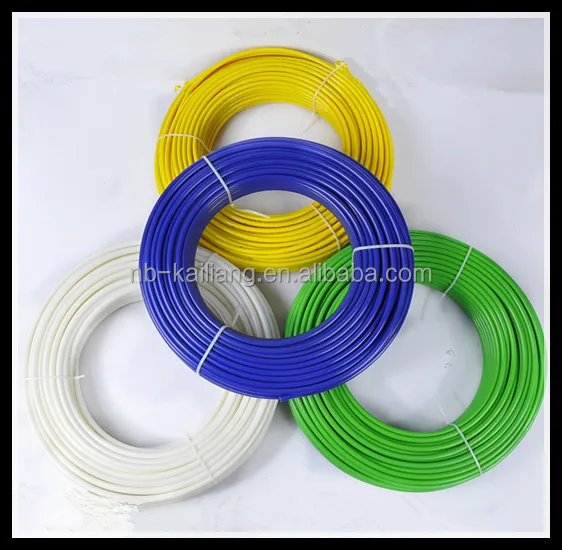

Factory SAE J844 polyamide tubing,tubing of nylon, PA hose
- Category: >>>
- Supplier: Ningbo Kailiang Automobile Parts Co. Ltd.
Share on (488273191):
Product Overview
Description
1. Good wear ability, smooth surface, low resistance, anti-rustiness and anti-scaling
2. Flexible, easy to be bended into all kinds of shapes , easy to install
3. High chemical and hydrolysis resistance, stable dimension,little penetration, can be used more than ten years.
4. High and low temperature resistance(-40°C~120°C),can transfer compressed air, water,oil, chemical liquid and so on.
5. It is widely used in Light trucks, car hydraulic brake system,power steering tube, forkliftsand and so on.
| Mode No. | Size(O.D×Wall) | O.D.(mm) | Thickness(mm) | Work pressure(Mpa) BurstPressure(Mpa) | |
| NT-1 | Φ3×0.5 | 3 | 0.5 | 3.0 | 4.5 |
| NT-2 | Φ4×0.75 | 4 | 0.75 | 3.1 | 5.5 |
| NT-3 | Φ4×1 | 4 | 1 | 4.5 | 6.8 |
| NT-4 | Φ5×1 | 5 | 1 | 3.4 | 6.5 |
| NT-5 | Φ6×1 | 6 | 1 | 3.2 | 6.3 |
| NT-6 | Φ8×1 | 8 | 1 | 2.6 | 5.7 |
| NT-7 | Φ10×1 | 10 | 1 | 2.7 | 4.5 |
| NT-8 | Φ10×1.25 | 10 | 1.25 | 2.8 | 5.6 |
| NT-9 | Φ12×1.5 | 12 | 1.5 | 3.2 | 5.7 |
| NT-10 | Φ14×1.5 | 14 | 1.5 | 2.2 | 5.6 |
| NT-11 | Φ15×1.5 | 15 | 1.5 | 2.0 | 5.4 |
| NT-12 | Φ16×2 | 16 | 2 | 2.8 | 5.4 |
| NT-13 | Φ18×1.5 | 18 | 1.5 | 2.3 | 3.6 |
| NT-14 | Φ23×2 | 23 | 2 | 2.1 | 3.3 |
| NT-15 | 3/16” | 4.72 | 0.75 | 3.3 | 6.3 |
| NT-16 | 5/16” | 7.9 | 1 | 2.5 | 5.6 |
| NT-17 | 1/4” | 6.35 | 1 | 2.7 | 5.3 |
| NT-18 | 3/8” | 9.5 | 1.5 | 2.8 | 6.1 |
| NT-19 | 1/2” | 12.7 | 1.5 | 3.0 | 5.5 |
| NT-20 | 5/8” | 15.8 | 1.5 | 2.7 | 5.0 |
