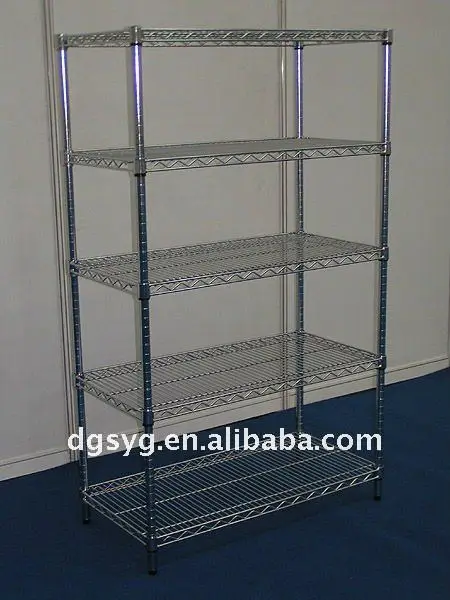

SMT Reel Trolley ESD Cart Wire Shelf For The Electronics Industry

Product Overview

Description

SMT Reel Trolley ESD Cart Wire Shelf For The Electronics Industry



1) Item No.:	YG-1848-T06
2) Article:	ESD Cart Wire Shelf
3) Dimensions (L x W x H):	460x1220x2200mm
4) Materials:	Carbon steel
5) Post dia:	25X1.2 mmt
6) Surface finish:	Chrome Plated
7) Loading weight:	250 kgs per shelf
8) Wheels	5in ESD
9) Salty and Spray Testing	24 Hourrs
10) Packing	1 Set / Brown Box

roduct features:  Heavy duty shelf structure with high quality Chrome finish

Freely adding on shelves and adjusting each shelf's height at will

Easy to assemble and dismantle, no tools required

Use for everywhere of your home warehouse, saving much space for your room

Many sizes of wire shelves are available

Available shelves wire diameter : 5.0/3.5/3.0mm  5.8/4.0/3.2mm   6.0/4.5/4.0mm

Customized dimensions is acceptable. For examples 5.7/4.3/3.4mm.

Available Posts as follows:

(  Dia.25.4x1.4mmt)  18"    24"  30"   32"   36"   54"  63"   66"  71"  74"  78" 86"  96"

Loading Capacity is 800LBS ( 250kgs ) perShelf

14"x24"    18"x24"  21"x24"   24"x24"  14"x30"  18"x30"  21"x30"  24"x30"  14"x36"   18"x36"   21"x36"  24"x36"  30"x36"   36"x36"  14"x42"   18"x42"   21"x42" 24"x42"   14"x48"   18"x48"  21"x48"   24"x48"  30"x48"  36"x48" 14"x54"  18"x54"  21"x54"  24"x54" 14"x60" 18"x60"  21"x60"   24"x60"  30"x60" 36"x60" 14"x72" 18"x72" 21"x72" 24"x72" 30"x72" 36"x72"

Available Surface Finish as follows:

1.Chrome  plated

2.Powder/epoxy coating

3.Zinc plated covered by powder coating

4.Stainless steel 201 5.Stainless steel 304







SMT Reel Trolley ESD Cart Wire Shelf SMT ESD Cart for reel trolley storage Shelf 1) Wire shelf made of carbon steel, stainless steel. The diameter of wire rod is according to the international criteria: Φ6.0mm, Φ4.5mm, Φ3.0mm. Or customized for the diameter of wire 2) The handles and posts are made of carbon steel, stainless steel. The tube diameter: Φ25.4mm, and thickness: 1.2mm.or customized for the diameter of the wire 3) Surface treatment: Chroming, stainless steel and Resin coating. Weight Capacity: 250kg/shelf 4) Salt spray test: ≥ 48 hours Product application: 5) Used widely in many places. The metal material is dust free, and can easily adjust the height. It is also equipped with ESD property. Standard Size is 457*907mm and 457*1215mm, hight can be any size!

Posts are made of carbon steel,stainless steel.The tube diameter: Φ25.4mm,and thickness:1.2mm. Surface treatment:Chroming,stainless steel and Resin coating. Salt spray test: ≥48 hours

Wire shelf made of carbon steel, stainless steel. The diameter of wire rod is according to the international criteria: Φ6.0mm, Φ4.5mm, Φ3.0mm. Or customized for the diameter of wire  Weight Capacity: 250kg/shelf

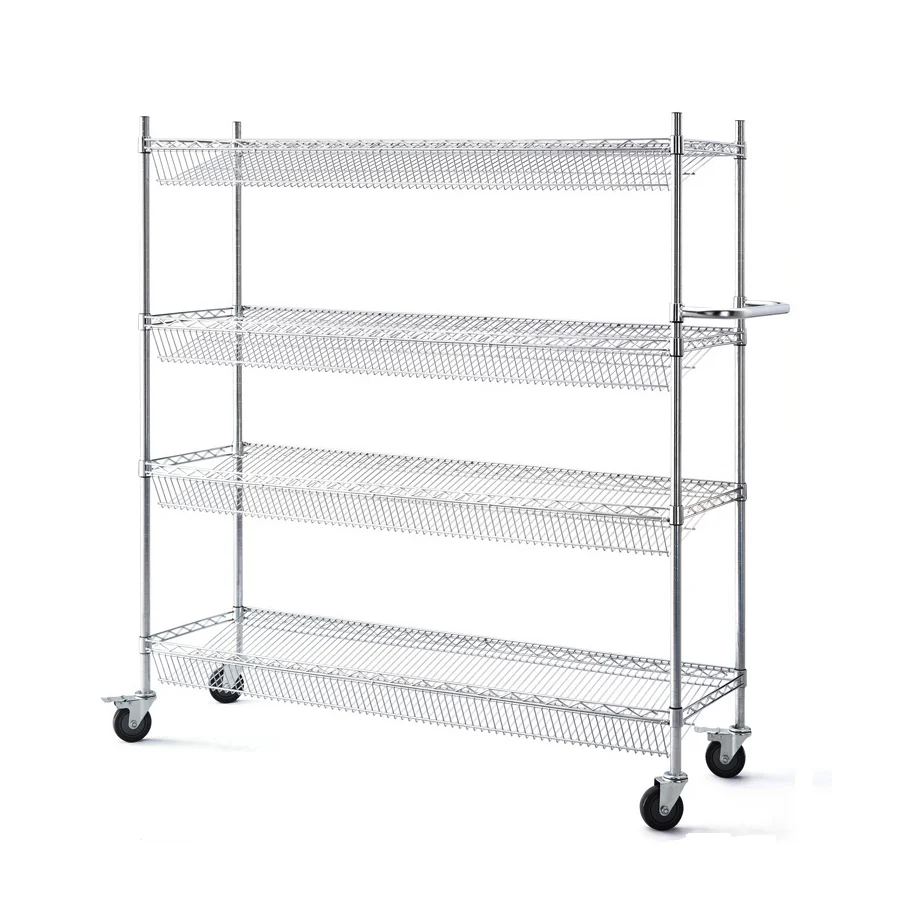

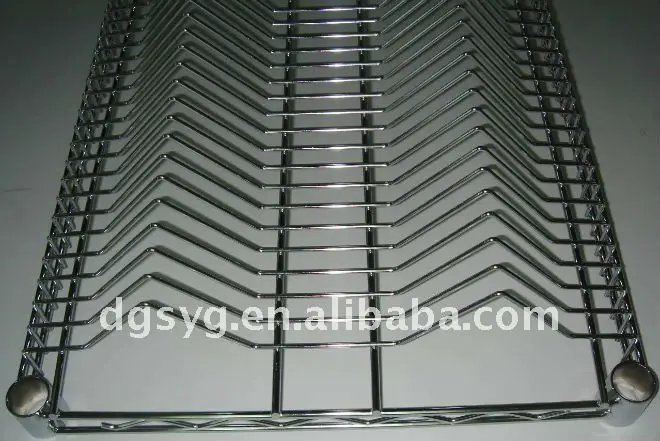

SMD Reel Shelves • Designed for surface mount component reels. • Can be used with standard SMD shelving. • Shelf Size 18" x 36". SMD Reel Shelves 7" Holds Up To 78 Reels

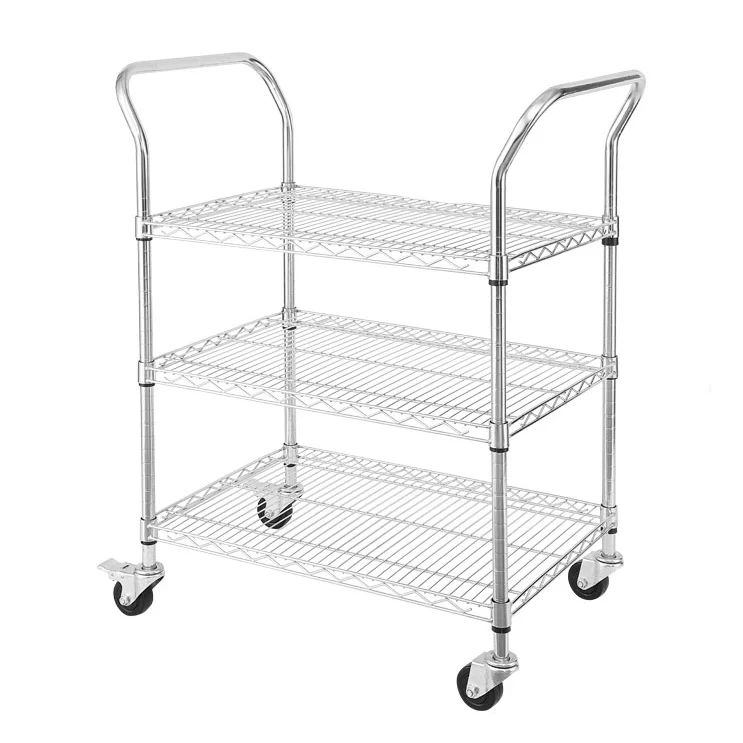

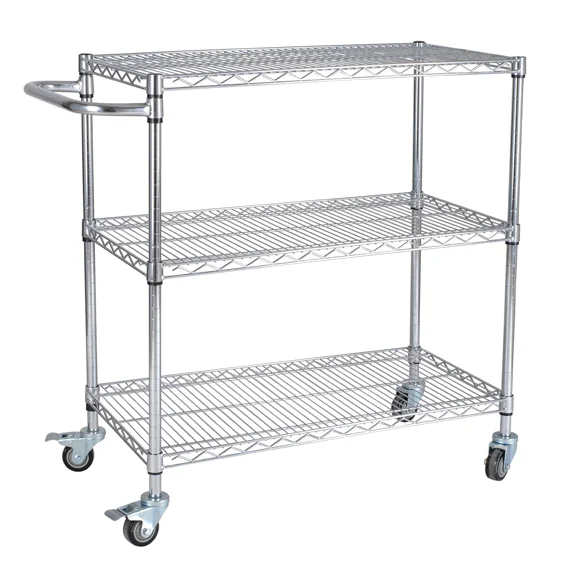

Chrome Wire Trolleys 3 Shelf • Durable,dependable transport solutions • Middle shelf can be raised or lowered • Wire shelf construction • Chrome finish

Reel Shelves Reel shelves are the most effective way to inventory and transport surface mount reels. Those shelves are interchangeable with the Adapta Plus wire shelf system to maximize and create mobile, stationary or Hi-density storage systems.

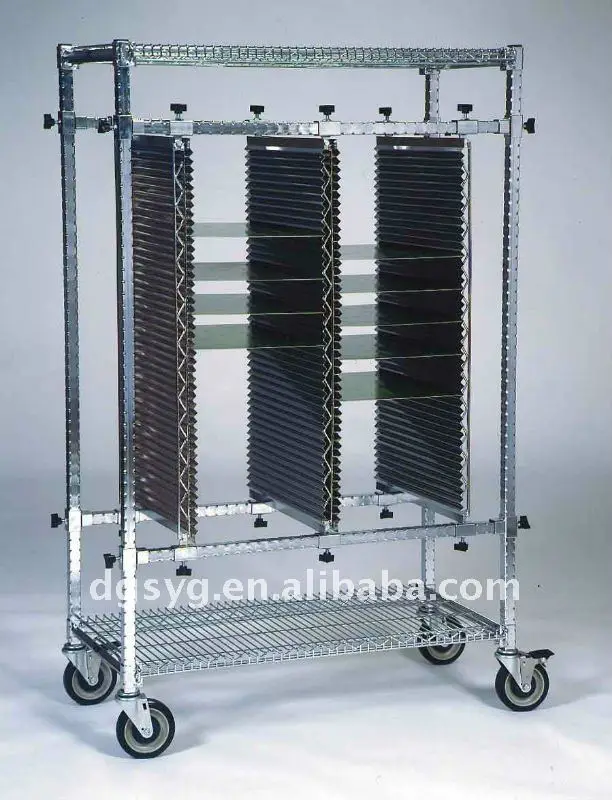

Board Carriers
For all phases of board manufacturing the Adapta Plus line with its Nickel Chrome components represents excellent ESD characteristics and solutions for all your Bouard Material Handling Applications.
