Product Overview
Description

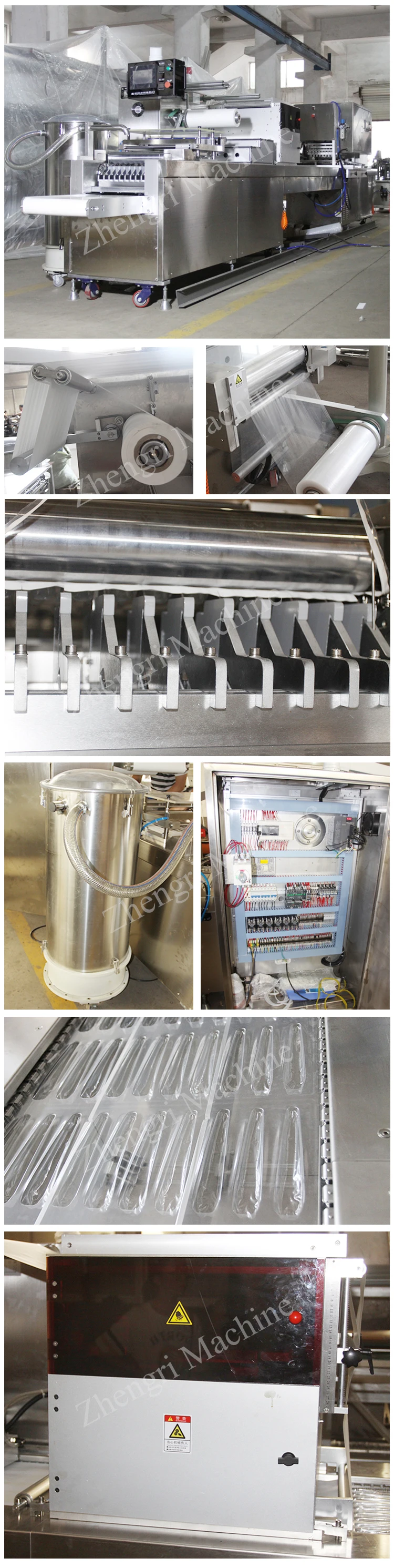

Zhengri Automatic Syringe Blister Packing Machine
Applications for syringe blister packing Machine:
This apparatus can be adopted to pack disposable medical products like syringe, Infusion set and
other medical consumable. It can also be used to any industry where need the paper-plastic or
plastic-plastic package
Composition of syringe blister packing Machine:

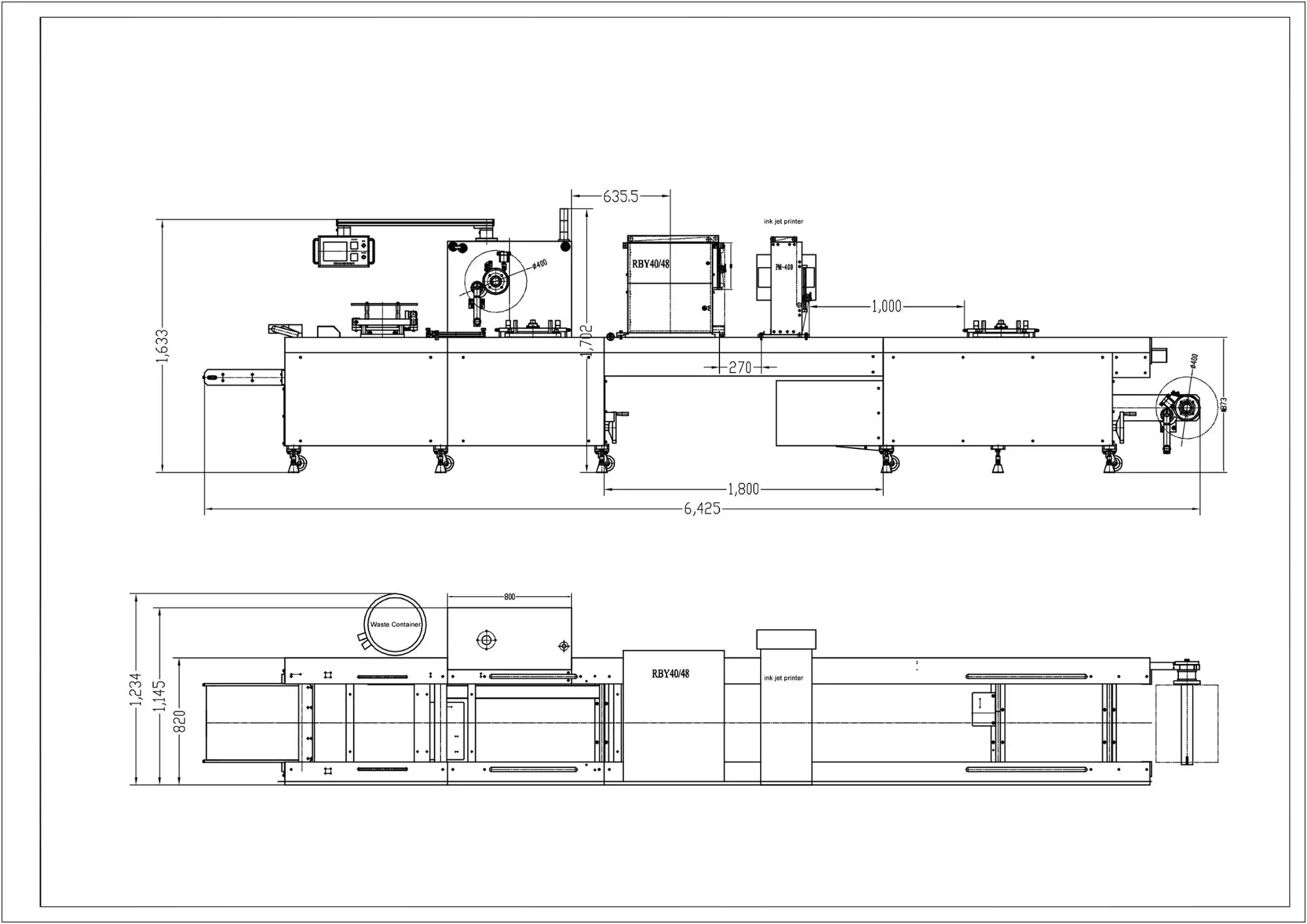

The apparatus is mainly composed of frame, drive mechanism, paper and plastic film decoiling
mechanism, plastic-forming mechanism, heating mechanism, print, colour mechanism, transverse-
cutting mechanism, lengthways-cutting mechanism, control system, etc.
Maximum Packing Width | 300mm, 400mm,460mm,480mm, 540mm | ||
Minimum Packing Width | 19 mm | Maximum Packing Length | 60 mm |
Working cycle | 4-6 s | Voltage | 3x380V+N+E/50HZ |
Air pressure | 0.6-0.8 Mpa | Air consumption | 700NL/MIN |
Power | 10 kw | Cooling Water | 80L/h (<25°) |
Pre-sales service:
1- Inquiry and consulting support
2- View our factory
After-sales service
1- Traning how to instal the machine, training how to use the machine
2- Engineers available to service machinery overseas.
3- 1 year free warranty( caused by quality problems),from the machine arrived at buyer's factory.
4- Lifetime maintenance and life time spare parts supply.
