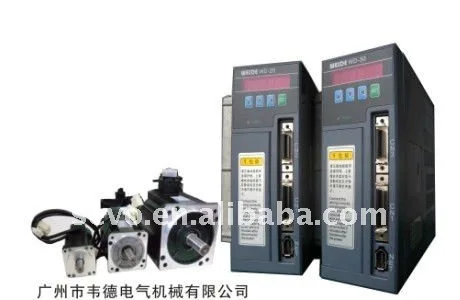

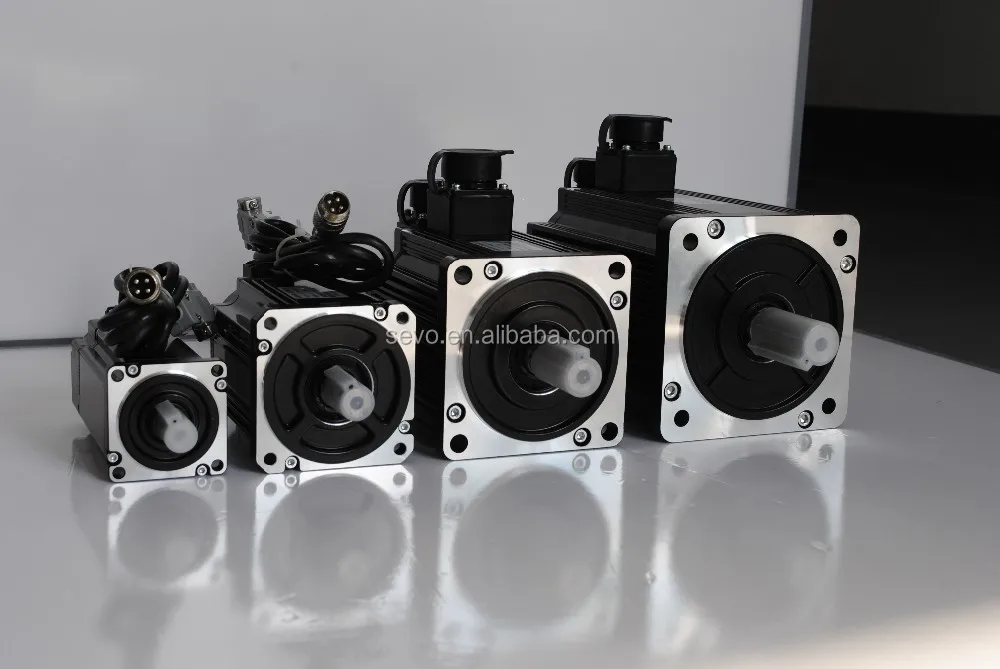

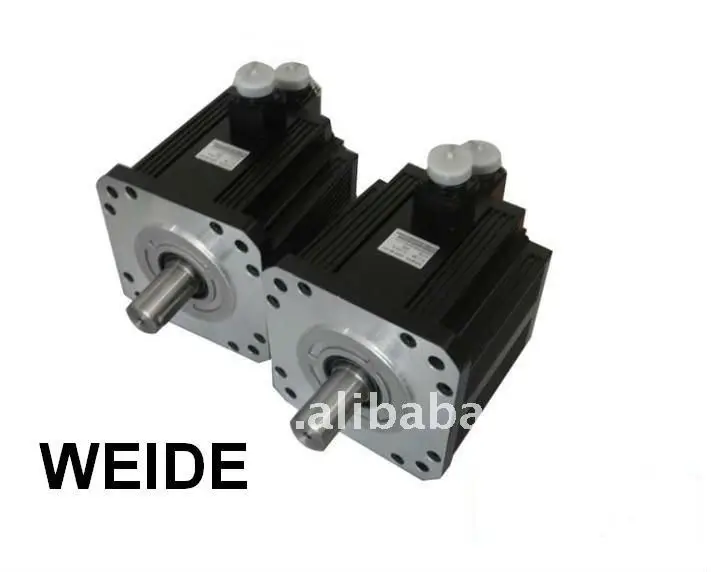

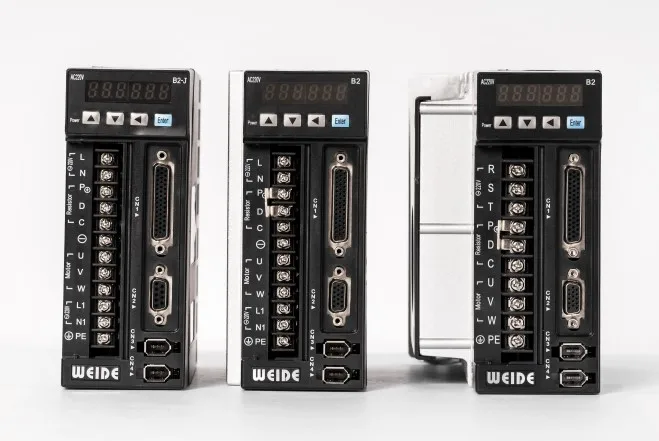

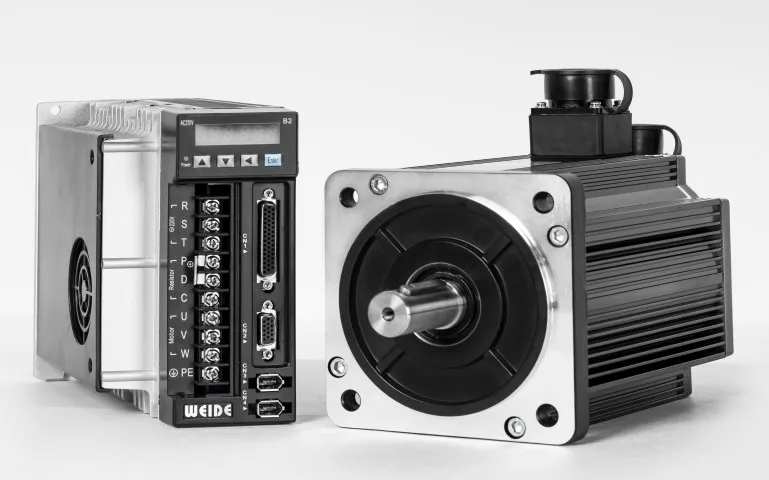

130mm 4Nm 2500rpm 1kw 130ST M04025L4 ac servo motor and WD30B ac servo driver for injection machine with 3m cables

Motor model

130ST-M04025

130ST-M05025

130ST-M06025

130ST-M07725

Rated power (KW)

1.0

1.3

1.5

2.0

Rated voltage      (V)

220

220

220

220

Rated current     (A)

4.0

5.0

6.0

7.5

Rated  speed  (rpm)

2500

2500

2500

2500

Holding torque(N.m)

4

5.0

6

7.7

Peak torque    (N.m)

12

15

18

22

Voltageconstant(V/1000r/min)

72

68

65

68

Torque coefficient     (N.m/A)

1.0

1.0

1.0

1.03

Rotor inertia (Kg.m2)

0.85×10^-3

1.06×10^-3

1.26×10^-3

1.53×10^-3

Phase Resistance(Ω)

2.76

1.84

1.21

1.01

Phase Inductance (mH)

6.42

4.9

3.87

2.94

Machinical time-constant  (ms)

2.32

2.66

3.26

3.80

Weight(Kg)

        7.7

8.2

8.9

10
