Product Overview
Description
Specification:

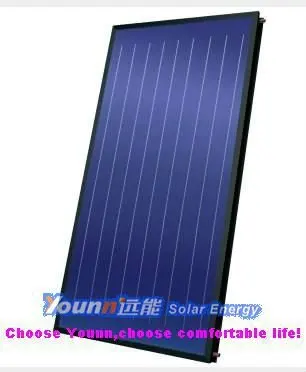

The red copper core board and black chromate coating of the M type solar flat plate collector display excellent spectral selectivity, thermal stability and high temperature resistance. It has a good performance below 300°C, and the black chromate coating has nice weather resistance and corrosion resistance.
Cu-Al composite,Anodic oxidation coating(Branch pipe:8pcs)1
Product Description | Unit | Product Specifications |
Model Collector |
| MZ-Y8TL-Z(Anodic oxidation) |
Product Size | mm | 2,000×1,000×80 |
Collector plate area | M2 | 1.96 |
Weight | Kg | 31kg |
Manufacture Standard |
| GB/T6424, EN12975, EN12976 |
Certification Body |
| CE, CTS(China) |
Collector Panels | Material | Aluminum, Copper TP2 Φ10, thickness: 0.5mm*8pcs |
Technics | Ultrasonic Welding | |
Test Pressure |
| 08Mpa |
Endothermic Body | Coating | Anodic oxidation coating |
Absorptivity | 97 % ± 2% | |
Emissivity | 14 % ± 2% | |
Special Solar Low Carbon wove Steel Glass | Thickness | 3.2mm |
Conductivity | ≥97% | |
Collector Insulation | materials | Fiberglas Cotton |
Thickness, Density | 45 mm, 35 kg/ m3 | |
Criterion | 6063T5 1.3 mm | |
Shell | materials | Aluminum Alloy |
Backplane | materials | 0.7mm Al-Zn plate |
Spool | Input/output | 3/4Copper Thread Coupling |
Ring | Materials | Silica |
Test Data | Transient Efficiency | a1=3.82 W/m2·K a2=0.008 W/m2·K |
Heat Loss Coefficient | 70% ± 2% | |
Maximal Temperature | 190 °C 900W/m2 | |
Packing |
| Paper |
Working Life | Year | 10 |
Price | YND | 990 |
