Product Overview

Description

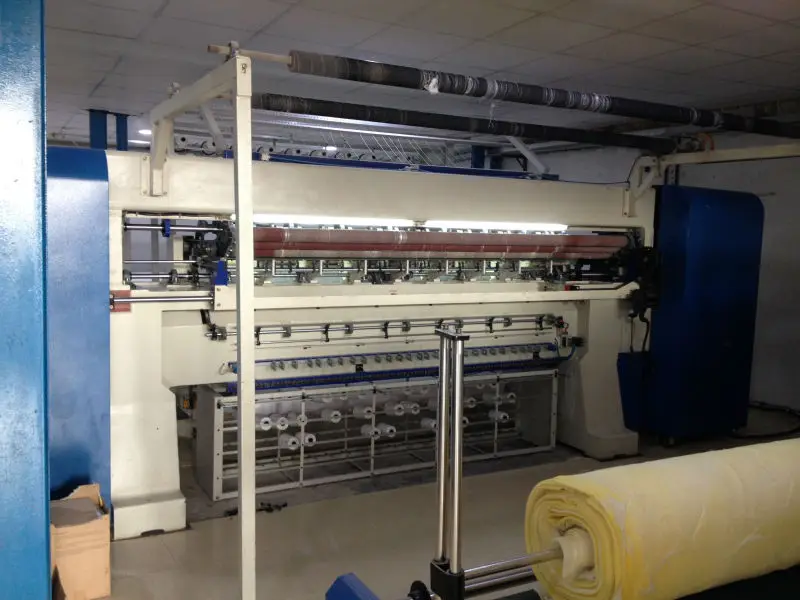

Computerized Machines For Quilting



SERIAL NO.: YXN-94-3C







 SPECIFICATION





Product Name	Chain stitch mattress quilting machine
Model	YXN-94-4C
Over size(L*W*H)	4800*1600*2000mm
Weight	4500kg
Max.quilting width	2485mm
Needle bar spacing	50.8, 76.2, 127(5")/76.2,76.2, 154.4(6")
Max.quilting thickness	80mm
Rotation speed	600-1200r/min
Output	45-180m/hour
Needle type	#21-24
Max.horizontal movement	410mm
Needle spacing	25.4mm
Stitch length	2-8mm
Power supply	380V/220V
Power	7KW

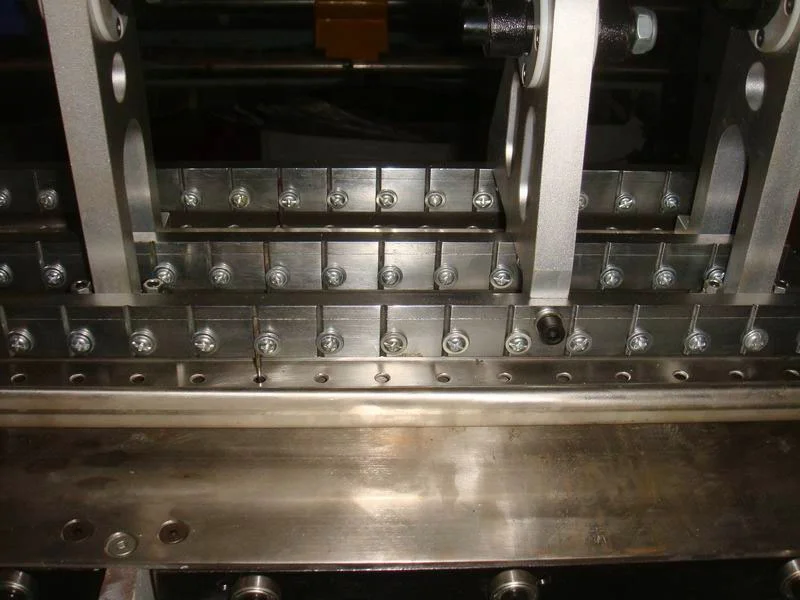

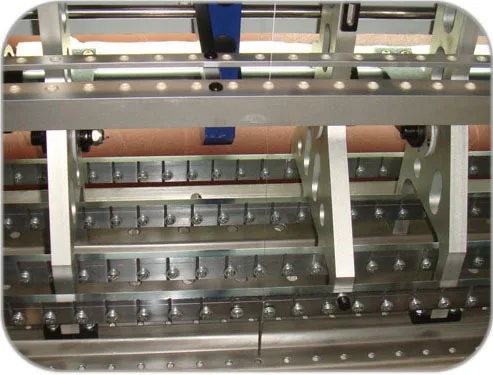

 NEEDLE BAR (From Germany)

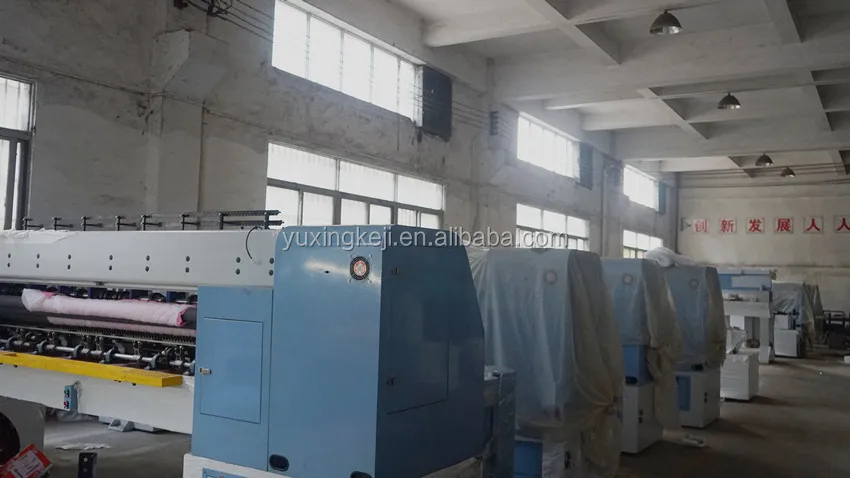

  PRODUCTION PLANT











 FUNCTION



  ♦ Adopt the advanced process design.multi needle efficiency.

  ♦ High rigidity machine body, full protecting equipment and steady running control system.

  ♦  Quilting continuous and jump&tack pattern.

  ♦  X,Y motors are driven by servo system, and principal axis takes frequency ports system.

  ♦  pattern compensation and equistitch.

  ♦ Test the working state of all sensors and computer in real time.



  ♦ Auto-stop when the bottom or upper thread breaks (by infrared).

  ♦ Auto faults tips for servo motor system and transducer, convenient to eliminate problem.

  ♦ 360°and limitless multi-span and independent patterns.

  ♦ Steady running, high speed, low noise, precise quilting.

  ♦ Capable of produce high speed intricate quilting using CE system developed by our technicians







   BACK VIEW











  PATTERN SHOW
