High vacuum fume cleaner

Product Overview

Description

High vacuum fume cleaner



Features



1.The high vacuum fume cleaner has a front connector, and can be connected to various professional suction

   connector, suction welding gun or breathing masks through a hose of Φ44 or Φ51mm,by connecting with hose

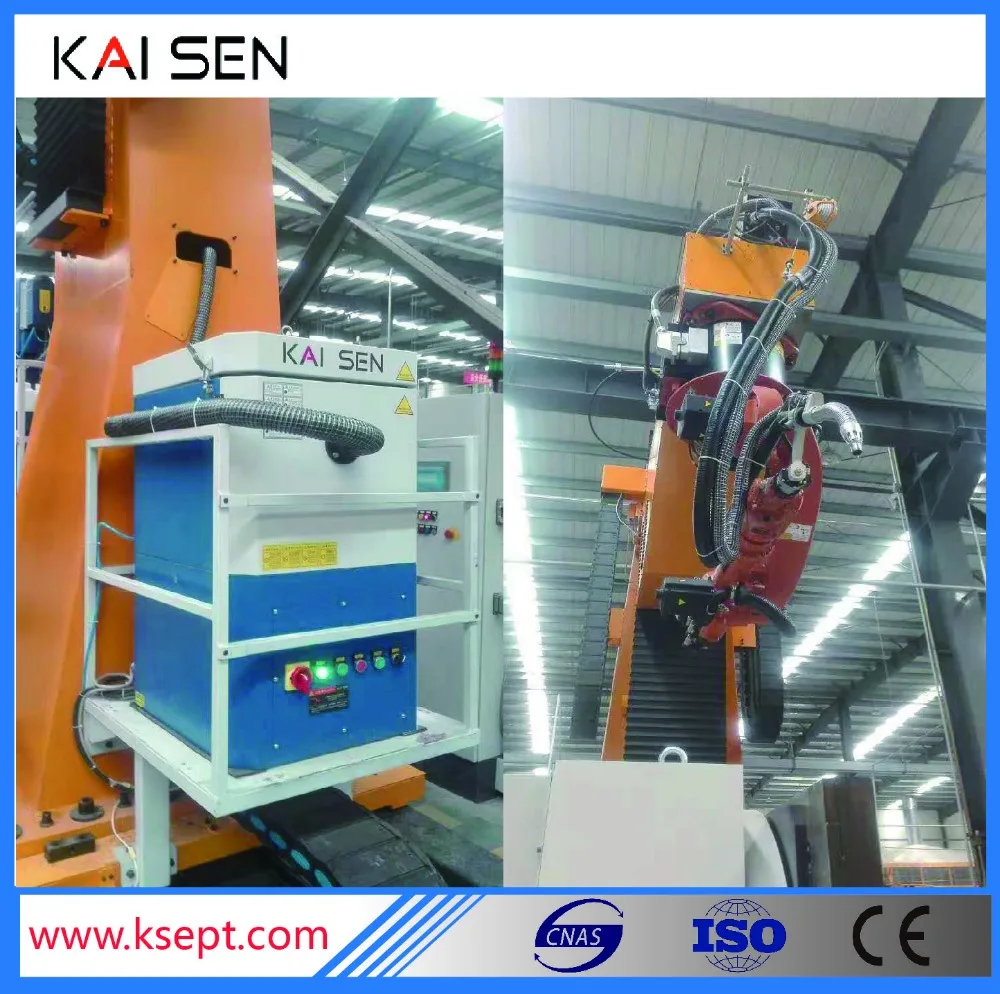

   of Φ44 or Φ51mm and professional nozzle,it also can be used in robot and welding machine’s fume

   purification.The nozzle is fixed on the welding gun and moves with the welding gun to absorb welding smoke

   simultaneously, also be used in the welding test and in the cleaning of the training sites.



2.The purifier can connect a variety of magnetic suction nozzle through the hose, or connect 1-2 pieces of high

    vacuum suction welding guns.

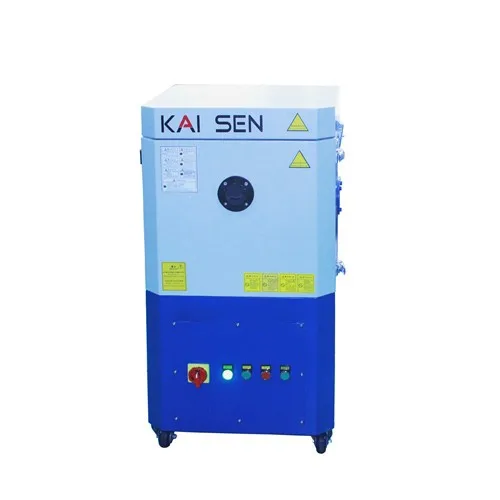

3. Mobile high vacuum fume & dust purifier is light  with powerful suction. The purifier is rational in

    design,which allows it to be moved freely. It contains three high vacuum turbine fan units.



4. On the control panel, there are Fan switch, Power switch, Power indicating light and Semi-automatic cleaning

    switch.



Parameters



Model	KSG-1.0A	KSG-1.5A	KSG-2.2A	KSG-3.3A
air flow	180  (m3/h)	195  (m3/h)	372  (m3/h)	675 (m3/h)
Motor Power	1.0   (kw)	1.5  (kw)	2.2  (kw)	3.3  (kw)
Voltage	220V/50 Hz	3x380V/50 Hz	3x380V/50 Hz	220V/50 Hz
Filtering area	8 (m2)	8 (m2)	8 (m2)	20(m2)
Surface Cleaning Methods	Change filter cartridge	Automatic Cleaning	Automatic Cleaning	Automatic Cleaning
Max Pressure	16000-25000 (Pa)	23000-29500 (Pa)	27000 (Pa)	16000-25000 (Pa)
Filtration Efficiency	>99.9%	>99.9%	>99.9%	>99.9%
Dusting interface	1 pc (φ44 mm)	1 pc (φ51 mm)	2 pcs (φ44 mm)	4 pcs (φ44 mm)
Noise	≤72 dB(A)	≤65 dB(A)	≤70 dB(A)	≤74 dB(A)
Demission	580×445×920 (mm)	550×650×1110 (mm)	600×695×1200 (mm)	650×820×1420 (mm)
Weight	60 ±3(kg)	107 ±5(kg)	156 ±5(kg)	205 ±10(kg)
