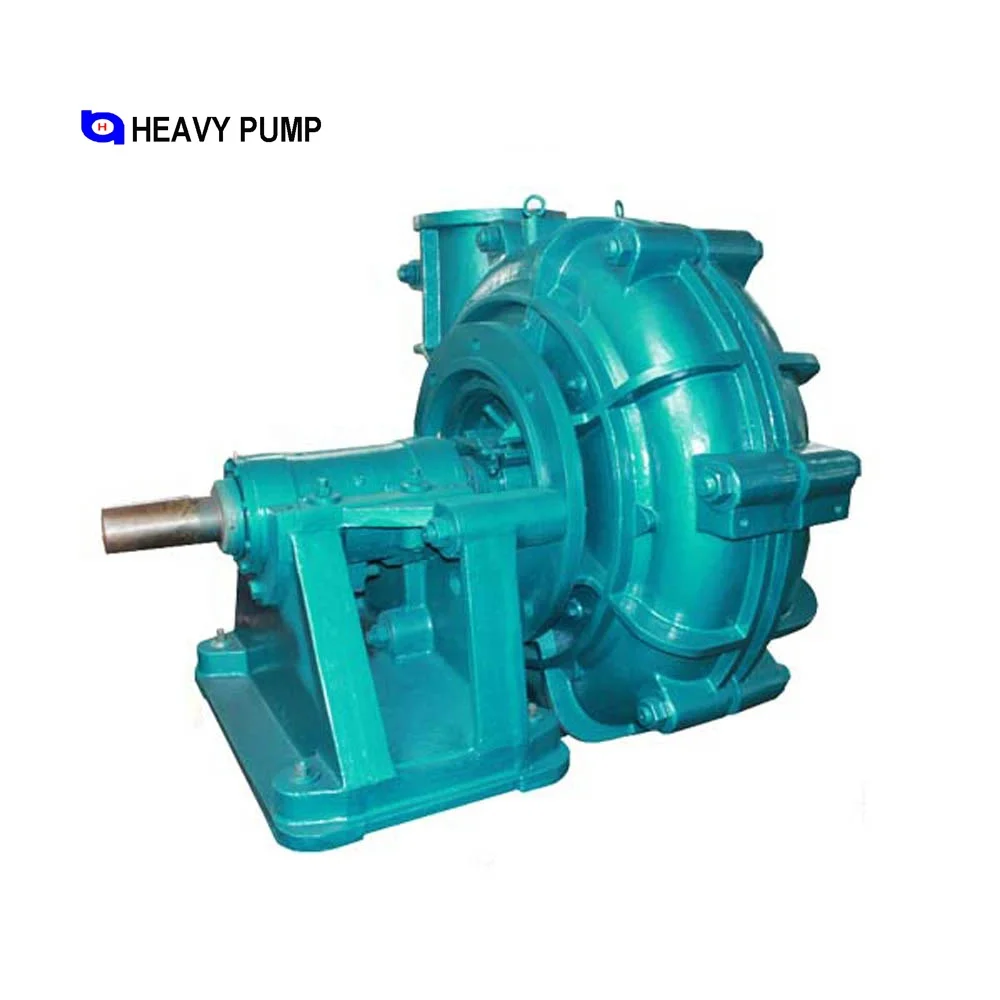

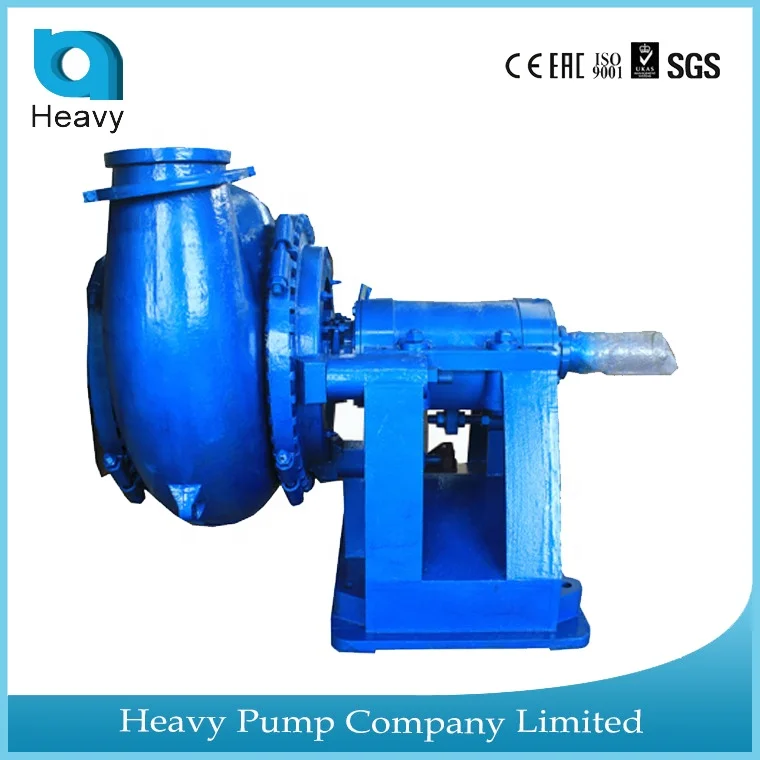

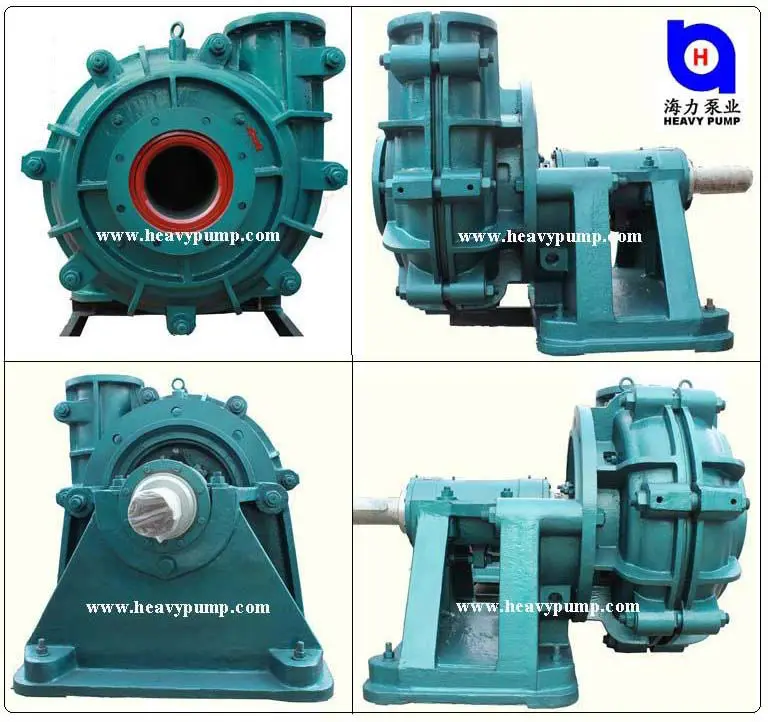

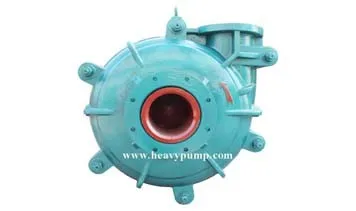

Heavy brand 75HS C electric small solid slurry pump

HP 75HS-C electric small solid slurry pump

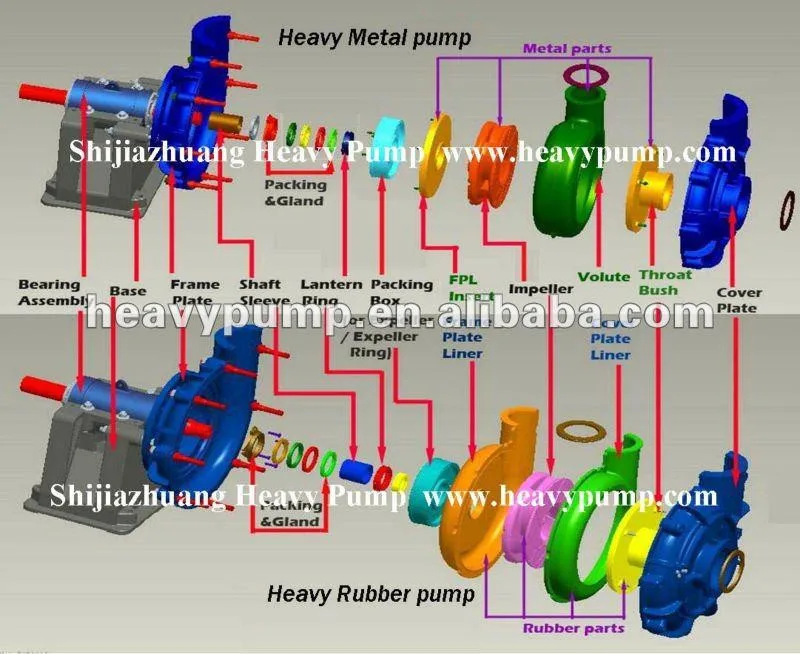

Slurry Pump Structure:

 ..................................................................................................................................................

The Features:

1. The wet parts for slurry pump are made of wear-resistant chromium alloy.

2. Slurry pump's bearing assembly use cylindrical structure,adjusting the space between impeller

andfront liner easily, they can be removed completely when being repaired. Bearing assembly use

grease lubrication.

3. The shaft seal could use the packing seal, expeller seal and mechanical seal.

4. The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any

eight positions to suit installations and applications.

5. There are the drive types, such as V belt drive, gear reducer drive, fluid coupling drive, frequency

conversion drive devices for the slurry pump.

6. Wide performance, good NPSH and high efficiency. The slurry pump can be installed in

multistage series to meet the delivery for long distance.

     Bearing assembly – a large diameter shaft with short overhang minimizes deflection and contributes to long  bearing life.

     Casing – Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure  capabilities and an extra measure of safety.

     Impeller – front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.Hard  metal and molded elastomer impellers are completely interchangeable.

    Throatbush – wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.

   One-piece frame – a very robust one-piece frame cradles the cartridge type bearing and shaft assembly. An  external impeller adjustment mechanism is provided below the bearing housing for easy adjustment of  impeller  clearance.

Packing:

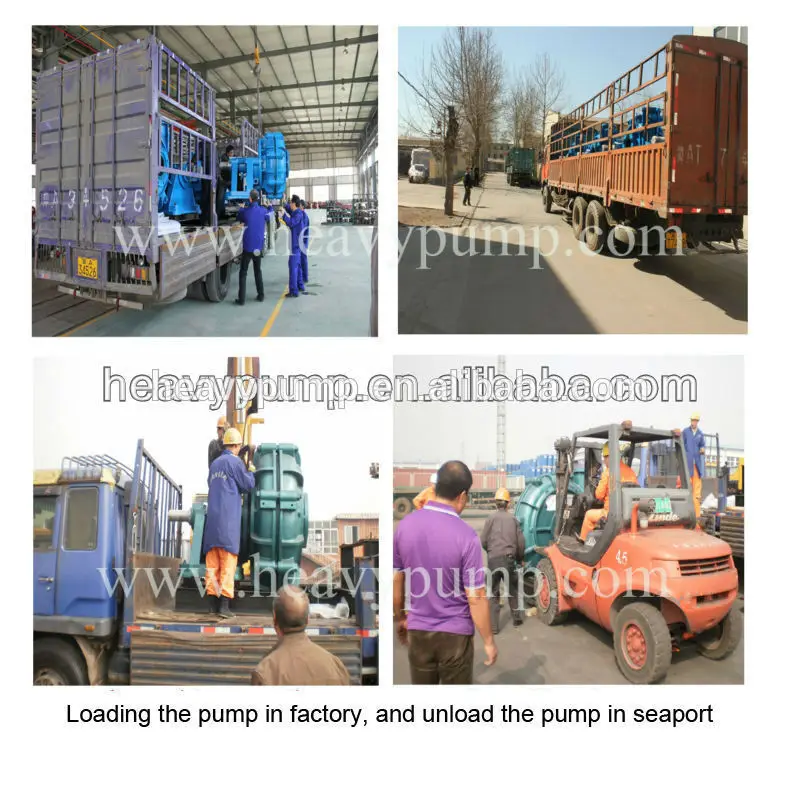

our slurry pumps and parts will be packed into a wooden or plywood case.

1.Our team is experienced in slurry pumps ,we are glad to help each client .

2.We trade client same no matter clients' order is 100US or 10000USD.

3.We can connect the pump with motor or diesel engine for clients, the pumpset is ready to use when clients receive them.

4.Our sales department online service time is 6:00 to 24:00

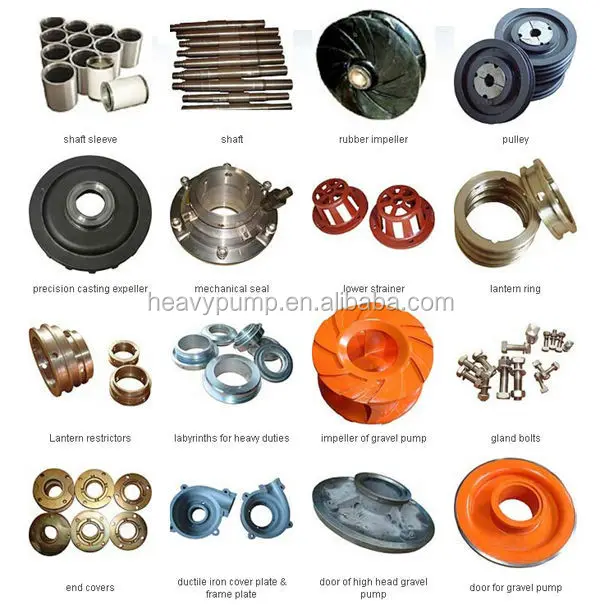

5.We make the slurry pump in very short delivery time because we have so many pump parts in stock, usually the pump delivery time is one week.please kindly check following slurry pump driving type and the slurry pump parts.

    Shijiazhuang Heavy Pump Company Limited has mature experiences for many years on research & manufacture and application of slurry pump.Meanwhile based on technology intruduction,the perfect product series has been developed which covers full rage for application.Among them,series MS,HHS,HS,LS has wider usage especially.

     Through the apply in the industry such as mentallurgy,mine,electric factory and chemical industry etc,it has been proved that these products have advantages of reasonable construction,reliable operation and long service life etc which are welcome in consumers.

If you have any questions and want to know more informations about our products ,please contact us.
