Product Overview

Description





Decsription:

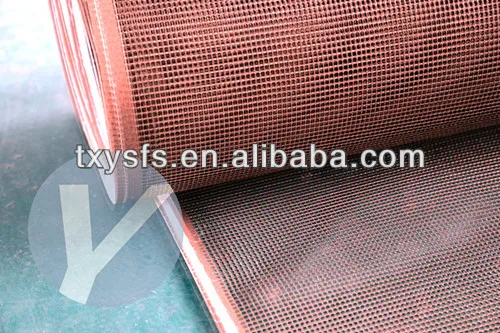

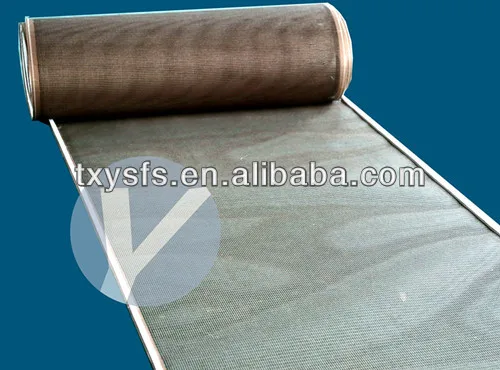

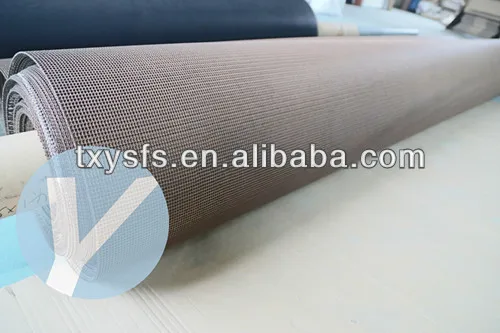

Youngsun has developed a full range of open mesh belting products specifically for textile dryers. Our open mesh Belts are widely used for drying of screen Printed and dyed textiles at higher speed and higher temperature. Mesh sizes of 4X4 mm and 2X2 mm provide a high percentage of open surface area, creating maximum airflow and sufficient operation with minimum heat loss. Width and length stability of the belts are retain over full range of operating temperature.

Properties:
-Outstanding temperature resistance (-170oC + 260oC)
-Low thermal mass
-Controlled porosity
-Superior non-stick surface,easy to clean
-Exceptional strength and dimensional stability
-Superior tracking

Applications:
-Drying machine for non-woven textile, textile printing, silk-prnting and dyeing machine.
-Shrinking machine for garment fabric, high-frequency and UV dryer.
-Conveyer belt for hot-air dryer, various of food baking, quick-frozen machines.
-Oiling machine for paper glazing and waxing, plant engineering.
-Seperating sheet for hardboard production etc.

To enhance the tracking and belt life, Youngsun offers various styles of edging:

Main Specifications:

Model	Mesh Size	Material	Thickness	Weight	Temp Resistance	Max Width	Tensile Strength
YS-6001	1x1mm	fiberglass	0.5mm	370g/m²	-70~320°C	4000mm	310/290N/cm
YS-6002	2x2mm	fiberglass	0.7mm	450g/m²	-70~320°C	4000mm	350/310N/cm
YS-6003	4x4mm	fiberglass	1.0mm	400g/m²	-70~320°C	4000mm	390/320N/cm
YS-6004	4x4mm	fiberglass	1.0mm	450g/m²	-70~320°C	4000mm	390/320N/cm
YS-6007	4x4mm	fiberglass     +kevlar	1.2mm	600g/m²	-70~320°C	4000mm	895/370N/cm
YS-6008	4x4mm	fiberglass	1.0mm	500g/m²	-70~320°C	4000mm	395/370N/cm
YS-6010	4x4mm	Kevlar	1.0mm	500g/m²	-70~320°C	4000mm	900/600N/cm
YS-6012	4x4mm	fiberglass	1.0mm	550g/m²	-70~320°C	4000mm	395/370N/cm
YS-6013	10x10mm	fiberglass	1.2mm	450g/m²	-70~320°C	4000mm	360/300N/cm
YS-6014	0.5x1mm	fiberglass	0.5mm	420g/m²	-70~320°C	4000mm	310/290N/cm
YS-6015	2x2.5mm	fiberglass	0.9mm	600g/m²	-70~320°C	3000mm	390/320N/cm

1 PC/CARTON

20PCS/PALLET

Color & Width & Length Made to customer's requirments

Youngsun fiberglass fabric impregnated with PTFE (polytetrafluoroethylene) dispersion and coated with high-temperature, pressure-sensitive silicone adhesive.

Properties:

Top side provide good characteristics of PTFE,such as electrical characteristics, heat resistance, chemical resistance, low friction coefficient and non-adhesiveness.

Flame resistance Make by insulating material.Can smoothly adhere, wind, band, and seal.
