Product Overview

Description

Asphalt batching plant Mobile(YQLB20/30/40)

The Asphalt batching plant mobile has these advantages:

1,  Asphalt batching plant mobile is centralized the storage material,weighing material,transporting material,auto drying,auto mixing, discharging the asphalt material, automatic controlling whole plant

2, Asphalt batching plant mobile can move from one construction site to another construction site.

3, Asphalt batching plant mobile is the easy operation, maintenance etc, Mobile asphalt batching plant can move very easily, and disassemble and assemble very easily and fast, also storage easily;

4, Asphalt batching plant mobile is the best model of asphalt mixing plant for the different place of  construction site, like: Normal Road, High way Road,bridge project etc.

5, when the Asphalt batching plant mobile need to be moved to another construction site, just put the mixer down on the truck, then trailer the whole plant to move another construction site, which reduce the heavy job, like disassembling, installing, testing, and save the time and cost.

Mobile asphalt batching plant is the best economic of asphalt mixing plant.



Mobil asphalt batching plant of main parameters

Type	Capacity	Aggregate	Burning material consumption		Scope
			Coal powder	Diesel
YQLB-20	18-20T	1T/batch	10-15kg/t	5-7.5kg/t	Asphalt mixed
YQLB-30	28-30T	1.5T/batch	10-15kg/t	5-7.5kg/t	Asphalt mixed
YQLB-40	38-40T	2T/batch	10-15kg/t	5-7.5kg/t	Asphalt mixed

Mobile asphalt batching plant of main technical features:

1, Mobile asphalt batching plant of controll system(Mitsubishi PLC):

    A.Mitsubishi PLC

    B.Omron Relay, Schneider Contactor

2, Mobile asphalt batching plant of Horizontal twin shaft mixer:

    A. Italy SICOMA Mixer

    B. Mady by Our company(HENGXING)

3, Mobile asphalt batching plant  of Moving system

    A. Front Bridge system

    B. Back Bridge system

Mobile asphalt batching plant of main specifications:

1, Batcher(capacity 7m3/hopper,3 hoppers): automatic weighing the aggregate,

2, Trough belt: transport the material to the mixer

3,Burning system: auto ignition

4, Drying system

5, Filter system

6, Asphalt weighing system:  American TRANSCELL weighing sensor

7, Powder weighing system:    American TRANSCELL weighing sensor

8, Horizontal Twin shaft mixer: JS500(SICOMA) or (HENGXING)

9, Mixing Tower: moving system

10, Pneumatic system

11, Control system: Mitsubishi PLC



As following pictures:

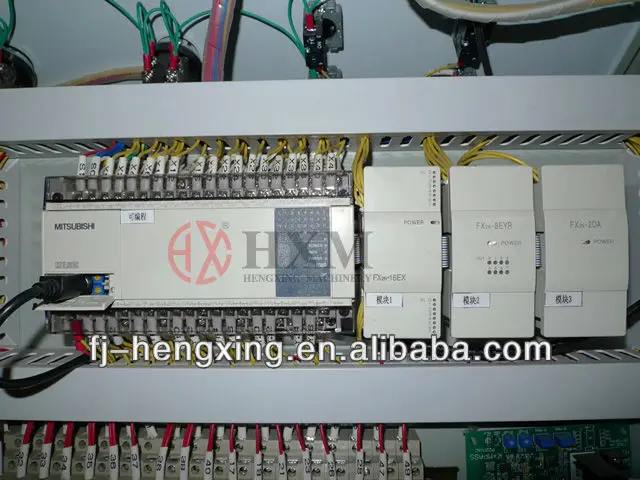

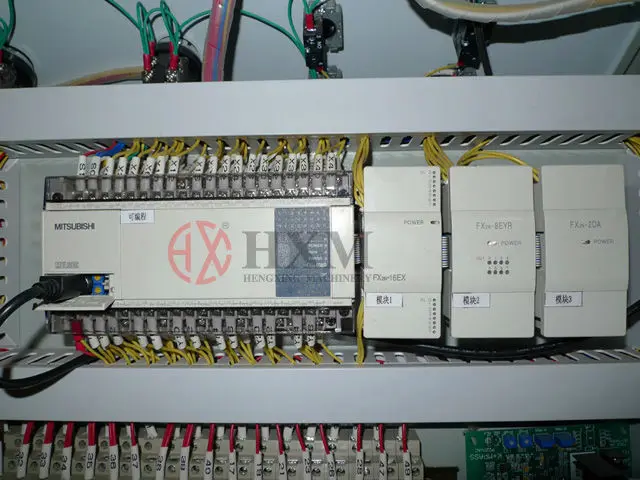

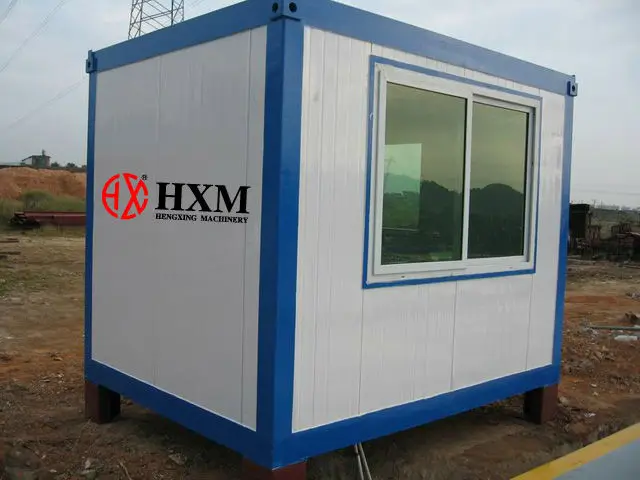

1, Mobile asphalt batching plant of controll system(Mitsubishi PLC)



 2, Mobile asphalt batching plant of Horizontal twin shaft mixer

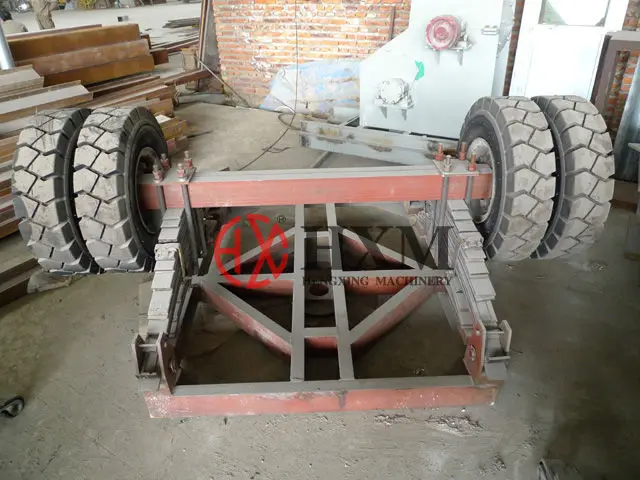

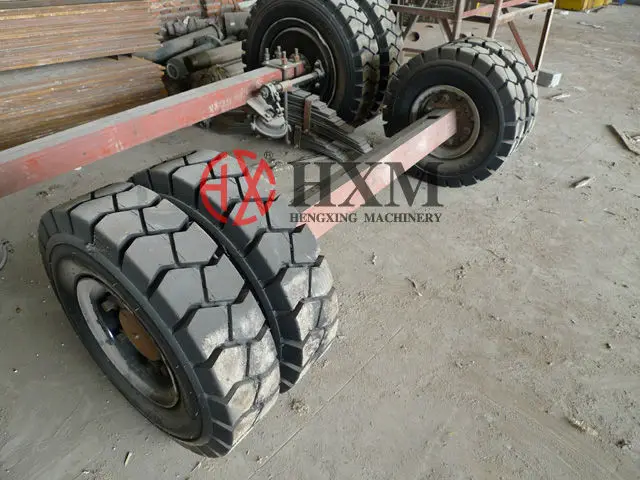

 3, Mobile asphalt batching plant of Moving system

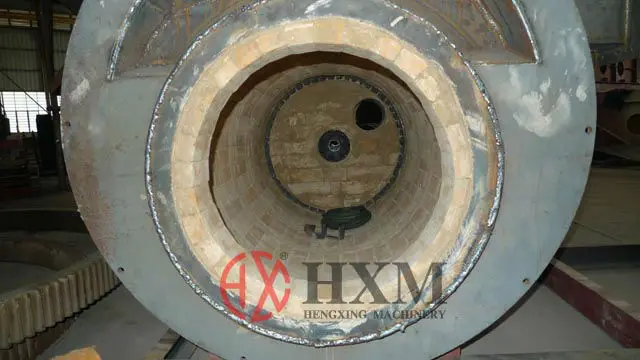

 4.Mobile asphalt batching plant of burning system inside

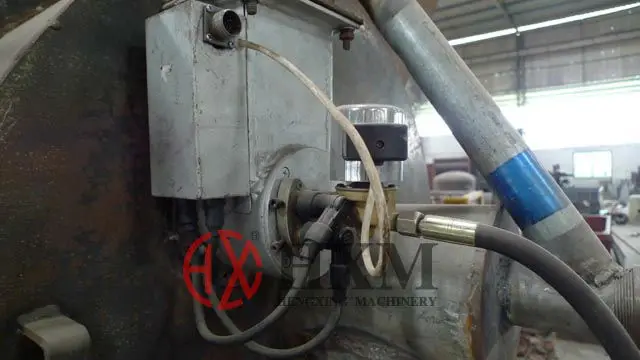

5, Mobile asphalt batching plant of ignition system

This Mobile asphalt batching plant(YQLB20/30/40) is the best seller in the world.It has auto weighing system,auto mixing system. The Mobile asphalt batching plant can move to the different

site for the working very easily.  In the world, you can find this Mobile asphalt batching plant
