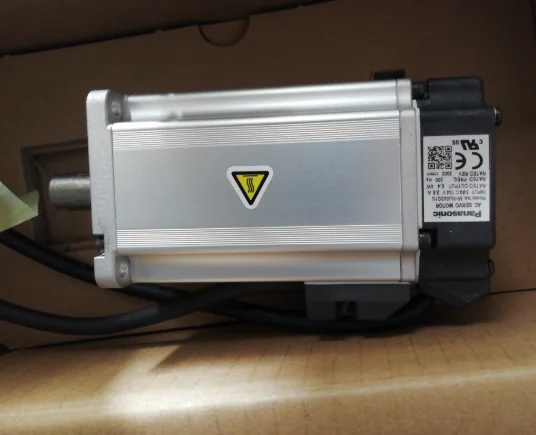

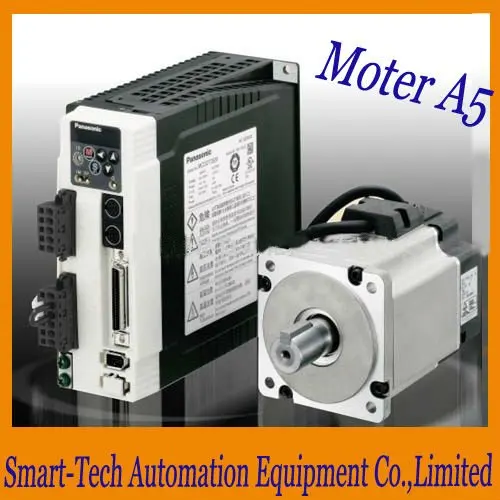

200W MOTER MHMD042G1U/MBDHT2510 for PANASONIC

Product Overview

Description



1, implementation industry is the fastest speed of response frequency 2.0KHzThrough the exclusive development of the new LSI improve the operation speed, at the same time with high response based on torque feedforward control function. With the fastest speed and location response, is a fast device. In addition the response delay of low, and the vibration is reduced to a minimum. Using a unique signal processing technology, development of new 20bit 1040000 pulse encoder; through the use of motor rotor 10 polarization, magnetic analysis technology in new design, reduce the pulse width, the industry to achieve the smallest low alveolar, and by improving the speed stability and the rotation position of the motor to reduce the torque change, thus greatly enhances the positioning stability; instruction input output feedback are realized by 4Mpps high-speed counterpart, including standard corresponding to the closed loop, can achieve high resolution and high speed operation.

2, equipped with the industry's fastest, installation is very simple and high performance real-time automatic gain adjustment function;After installation, after several operations to facilitate the work can be finished automatically adjust; want to adjust the response, only need to change 1 Parameters of what is convenient for work can be carried out simple adjustments, such as the use of installation support software gain adjustment model, may be more appropriate adjustment, equipped with servo feed on unstable state, can be automatically reduce the gain automatic vibration suppression function, the device can be reduced damage probability. There will be suitable for the vertical axis, friction ( belt ) of various body model. Only choice model and rigid, can be optimally adjusted.

3, Panasonic servo motor A5 series has the industry 's 4 most notch filter, frequency setting is 50 ~ 5000Hz, all could be concentration adjustment. ( 2 of which can be used together with automatic setting ); equipped with automatic setting of the system vibration filter: vibration filter according to the command input to remove the natural frequency of vibration, and can greatly reduce the stop when the shaft to swing, the number from the previous filter machine in the 2 to 4, the applied frequency also expanded by 1 to 200Hz. The realization of the motor is substantially lightweight, compact: namely the development of small motors, large motor new working method, and design a new movement, the successful implementation of the motor is miniaturized, 1KW more large motor weight than the previous loss was 10 ~ 25% ( 1-6KG ).

4, Panasonic servo motor MSME type motor ( 750W ) the maximum speed of 6000r / min. And with the A4 series Panasonic servo motor used interchangeably.
