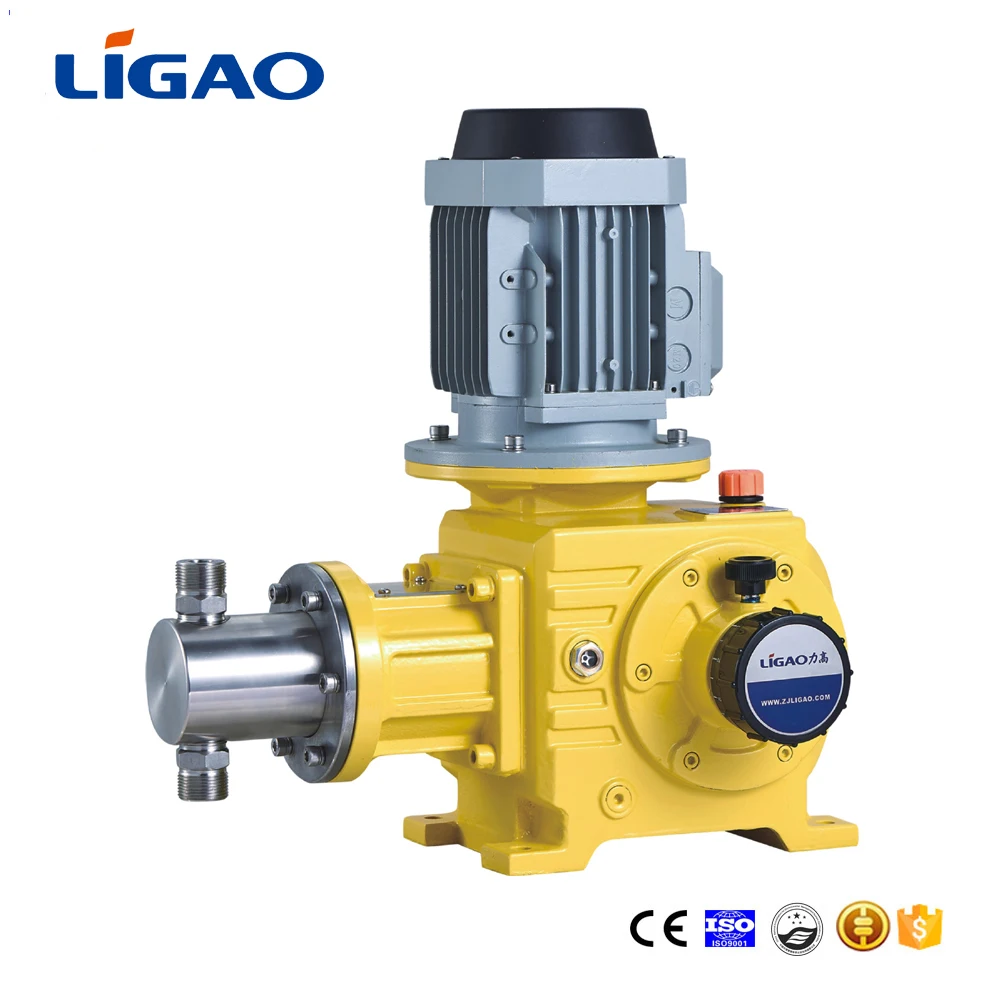

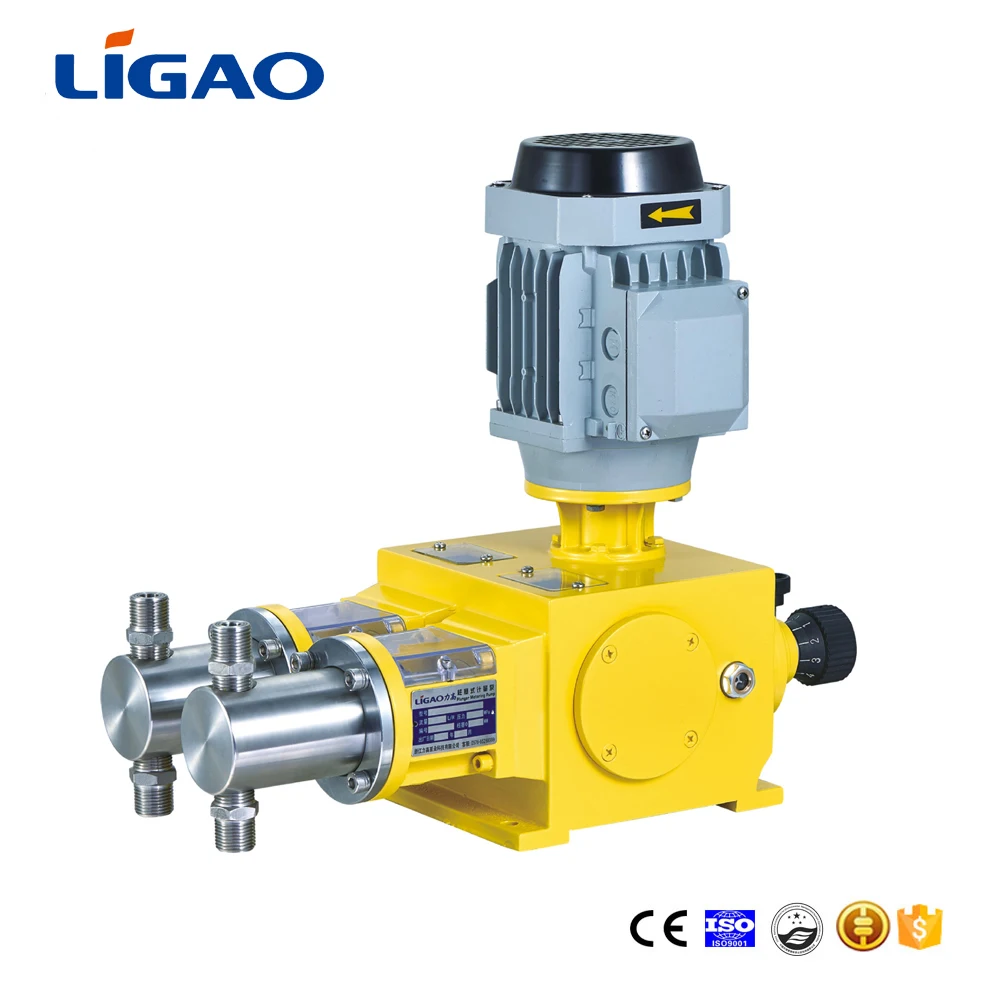

Stainless Steel Plunger high Pressure dosing pump

Product Overview

Description

Model	Flow                 l/h	Pressure Mpa	Plunger diameter mm	Stroke mm	Pump Speed min	Motor Power KW	Inlet and outlet diameter	Connection Method
2J-X 5/40	5	40	6	20	96	0.37	DN6	6*12 Nozzle sleeve welding
2J-X 8/32	8	32	8
2J-X 16/20	16	20	10
2J-X 25/14	25	14	12				DN8	8*14 Nozzle sleeve welding
2J-X 40/5.4	40	5.4	16
2J-X 60/3.5	60	3.5	20
2J-X 100/2.2	100	2.2	25				DN10	10*16 Nozzle sleeve welding
2J-X 130/1.7	130	1.7	28
2J-X 160/1.3	160	1.3	32
2J-X 200/1.0	200	1.0	35
2J-X 250/0.8	250	0.8	38
2J-X 300/0.6	300	0.6	42
