Ruizhou CNC Reinforcing Footwear Cutting Machine leather bag cutting machine CNC leather cutters

Product Overview

Description

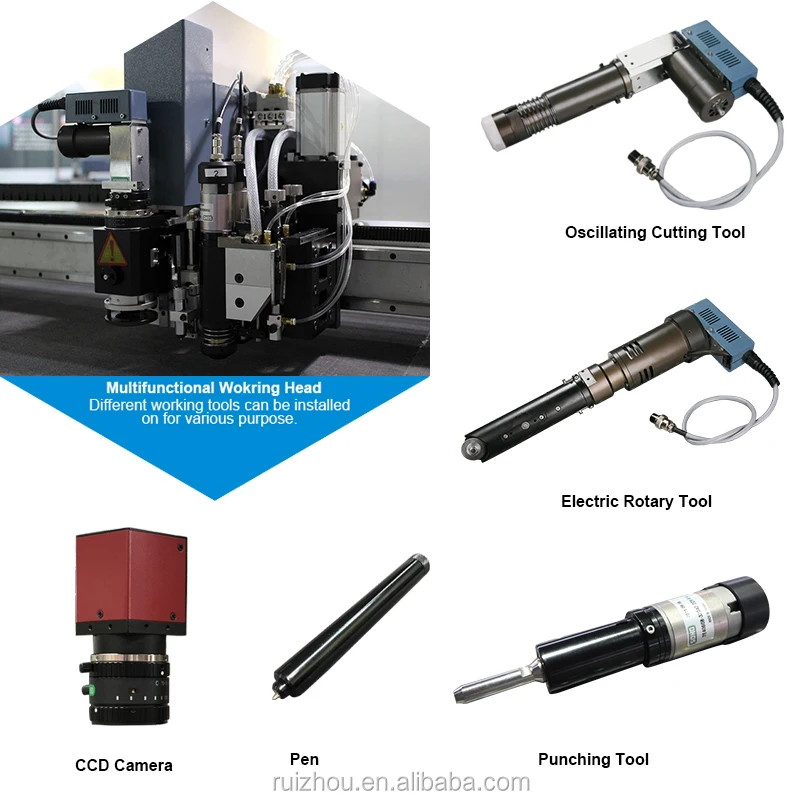

Ruizhou CNC Reinforcing Footwear Leather Cutter has three tools on the head, Oscillating cutting tool, plotting pen, punch.



We have specially developped a big power cutting head and thicker tool for harder materials such as midsoles.





And drag knife is also optional for pattern-making.

The tool height and cutting angle adjustment through quick adjust on control panel.

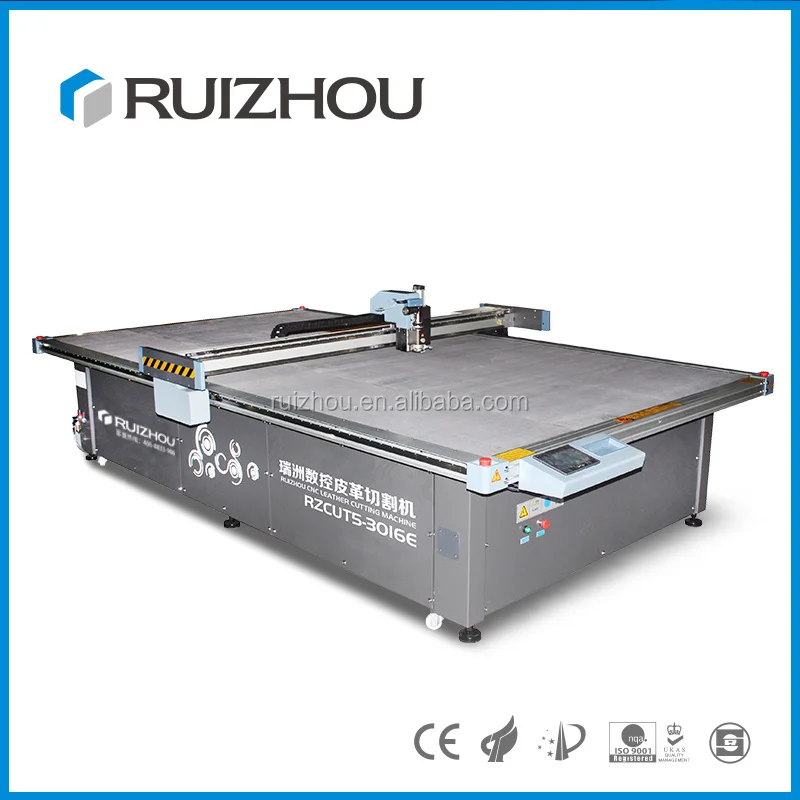

Ruizhou RZCUT-3016S
Configuration	Oscillating knife, pen, punch, servo motor
Function	Ruizhou CNC Reinforcing Footwear Leather Cutter is used in footwear/ luggage & suitcase/ straps/ apparel/ other small leather goods factory. Ruizhou CNC Reinforcing Footwear Leather Cutter can cut and punch 6mm soft materials.
Max speed	1200 mm/s
Acceleration	0.05m/s2
Maximum Cutting Thickness	6 mm
Control Line and Driver	Servo
safe distance	0.1 mm~1mm
Vacuum	12.5 kw
Data Form	Language of HP-GL and GP-GL
Voltage	380±10% 50Hz
Data Port	Parallel Port
Cutting Materials	Natural Leather, Artificial Leather, Synthetic Materials, Cardboard

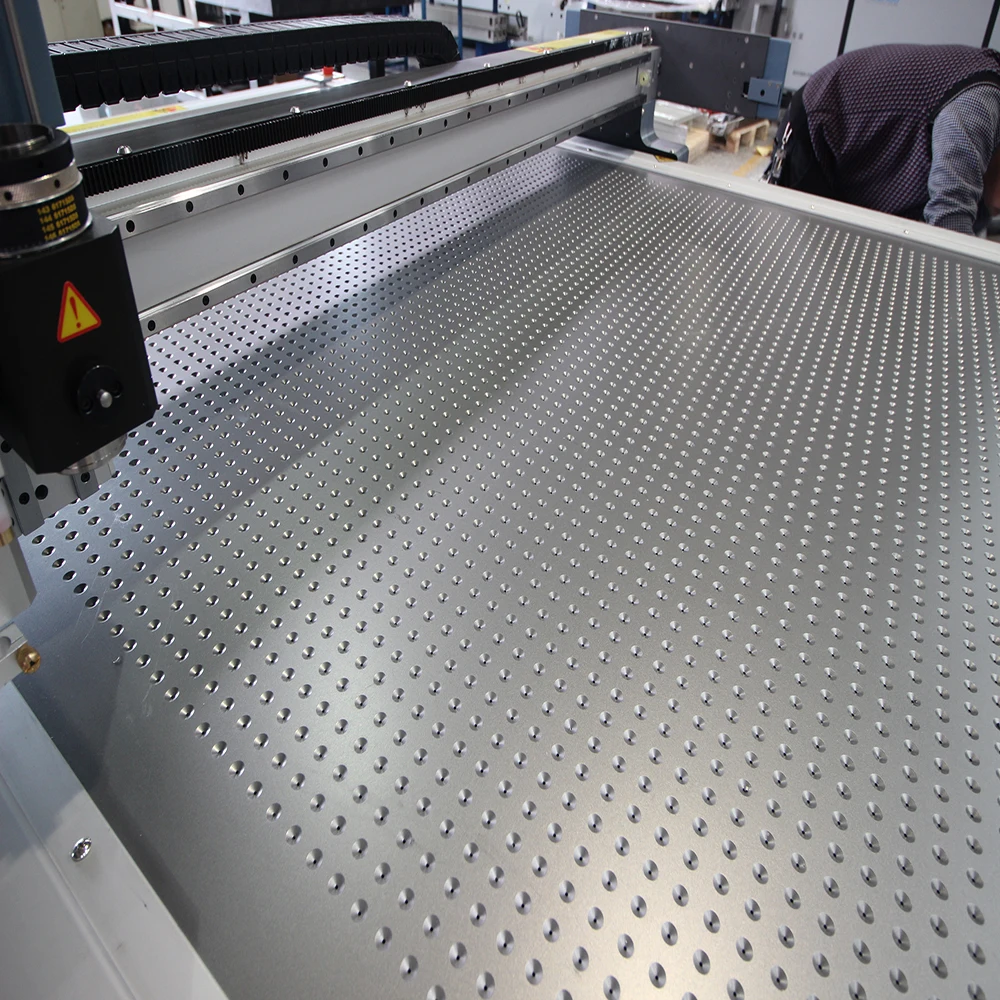

Vacuum Plate	Vacuum based on Cells



Cutting Effects:
