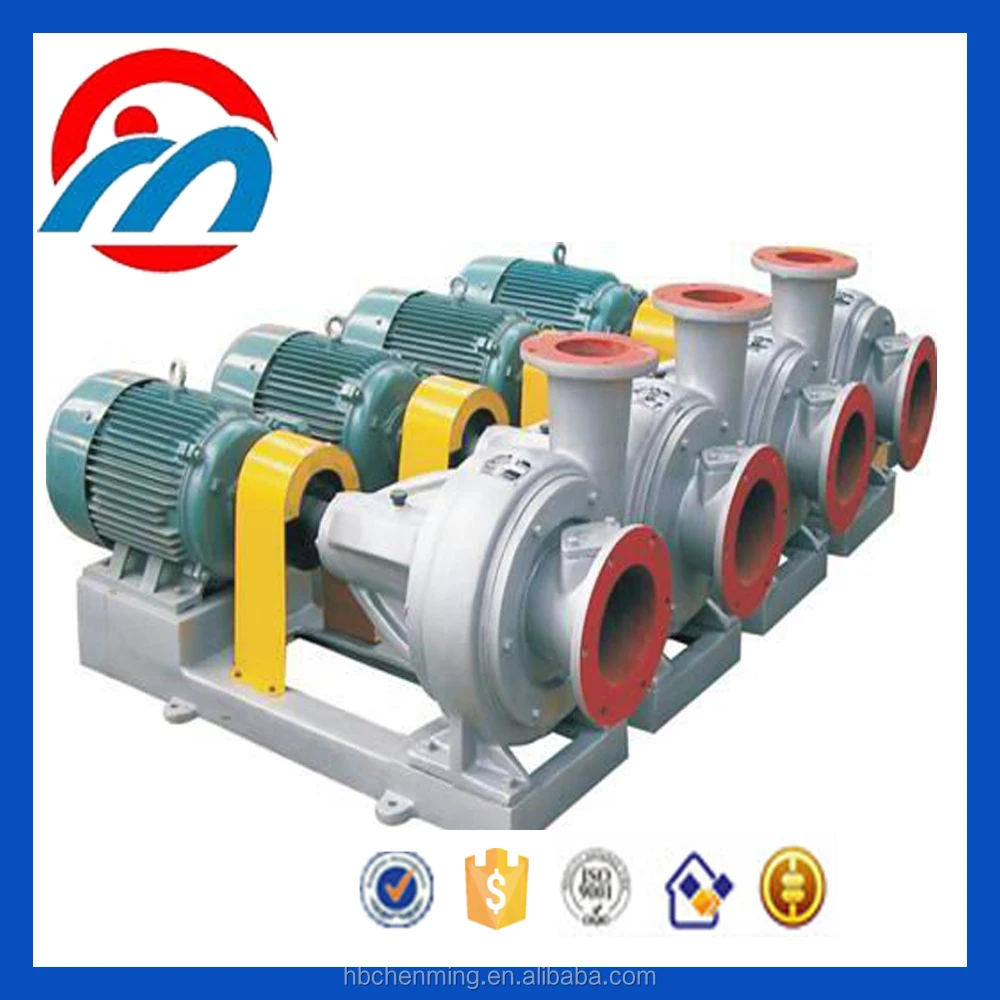

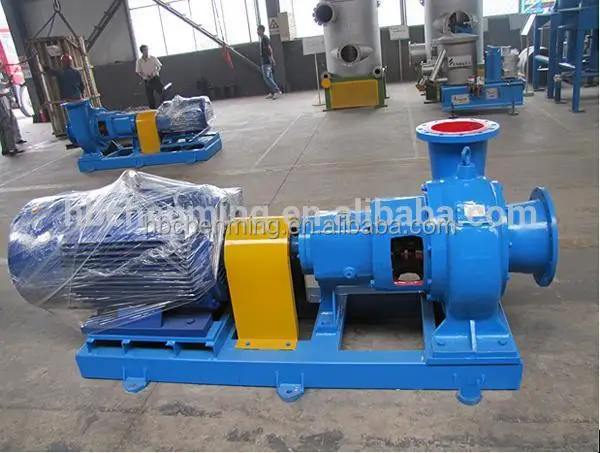

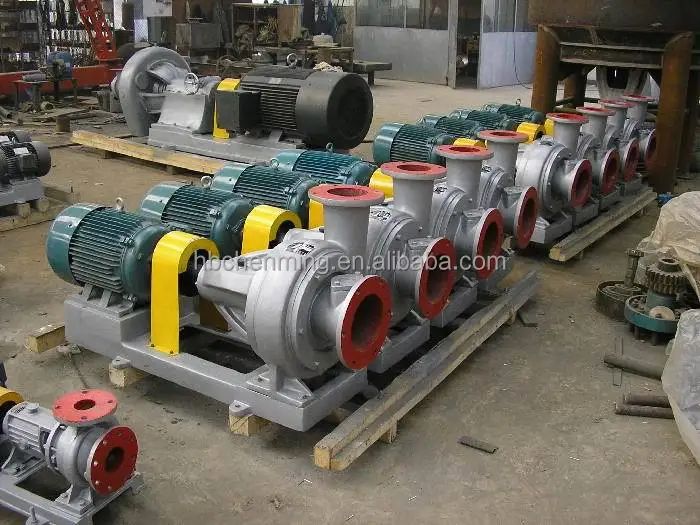

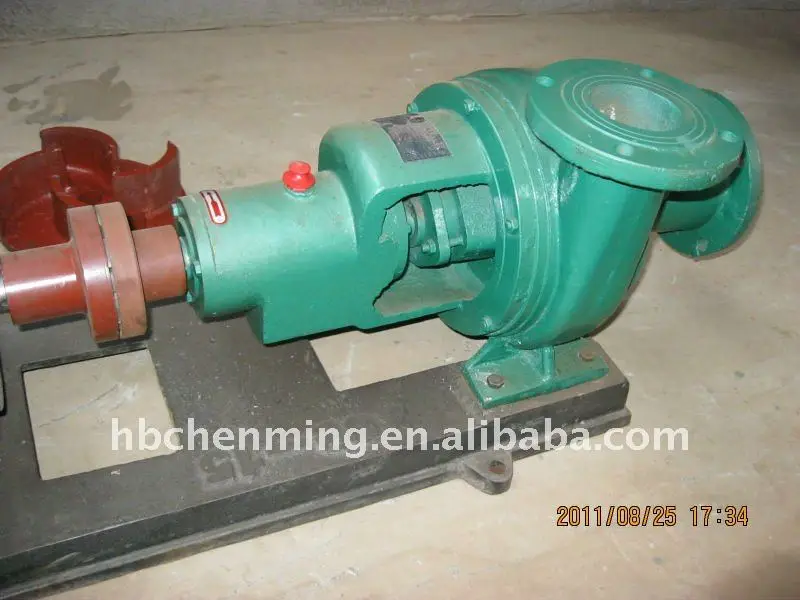

LXL High quality high efficiency sugar syrup pump with flexible semi open impeller
- Category: >>>
- Supplier: Hebei Chenming Pump Co. Ltd.
Share on (491828324):
Product Overview
Description
LXL High quality high efficiency sugar syrup pump with flexible semi open impeller
Product Description
Application:
Mainly used in metallurgy, coal, electric power, the papermaking, sugar, food, light industry, chemical, environmental protection and other fields.
Conveying solid particles medium (such as pulp, syrup, ash, starch, industrial wastewater), etc
Features
- High efficiency and energy saving. The efficiency is 3-10% higher than the conventional pulp pump on average, energy saving and consumption reducing up to 15-30%
- Cavitation performance, long life. Actual service life is 2-3 times higher than ordinary pulp pump
- High concentrations, no plug. Transportation of pulp concentration of up to 6%
- Reasonable structure, easy maintenance. Maintenance without dismantling piping, just move the motor backwards, you can carry out the disassembly and repair of the pump.
Application fields
1 Paper industry
Used for transporting pulp with the concentration below 6%.
The cycle of transmission media, promotions and pressure that is used in alkali recovery process.
2 Sugar industries
Delivering syrup for concentration below 4%, viscosity below 150mm2 / s
3 Urban sewage industries
It is widely used in sewage treatment process for the cycle of transmission media, upgrading and pressure.
Parameter
- Outlet diameter (mm): 80-150
- Capacity (m3/h): 32-460
- Head (mm): 5-50
| Model | Capacity | Head | Speed | Power | Model | Capacity | Head | Speed | Power |
| (m3/h) | (m) | (r/min) | (kw) | (m3/h) | (m) | (r/min) | (kw) | ||
| 80LXLZ50-6 | 50 | 6 | 1420 | 2.2 | 100LXLZ110-20 | 110 | 20 | 1460 | 11 |
| 80LXLZ60-12 | 60 | 12 | 1440 | 4 | 100LXLZ80-20 | 80 | 20 | 1440 | 7.5 |
| 80LXLZ65-15 | 65 | 15 | 1440 | 5.5 | 100LXLZ80-25 | 80 | 25 | 1460 | 11 |
| 80LXLZ50-20 | 50 | 20 | 1440 | 5.5 | 100LXLZ70-30 | 70 | 30 | 1460 | 11 |
| 80LXLZ55-25 | 55 | 25 | 1440 | 7.5 | 100LXLZ80-35 | 80 | 35 | 1470 | 15 |
| 80LXLZ60-35 | 60 | 35 | 1460 | 11 | 100LXLZ90-40 | 90 | 40 | 970 | 18.5 |
| 80LXLZ70-40 | 70 | 40 | 1460 | 15 | 100LXLZ150-60 | 150 | 16 | 1470 | 15 |
| 80LXLZ80-45 | 80 | 45 | 1460 | 18.5 | 100LXLZ160-30 | 160 | 30 | 1470 | 22 |
| 100LXLZ60-18 | 90 | 18 | 1440 | 7.5 | 100LXLZ180-35 | 180 | 35 | 1470 | 30 |
| 100LXLZ200-40 | 200 | 40 | 1480 | 37 | 150LXLZ400-35 | 400 | 35 | 1480 | 55 |
| 100LXLZ100-22 | 100 | 22 | 970 | 11 | 150LXLZ300-15 | 300 | 15 | 970 | 18.5 |
| 100LXLZ130-45 | 130 | 45 | 1470 | 30 | 150LXLZ280-12 | 280 | 12 | 970 | 15 |
| 100LXLZ140-50 | 140 | 50 | 1480 | 37 | 150LXLZ430-32 | 430 | 32 | 1480 | 55 |
| 100LXLZ200-55 | 200 | 55 | 1480 | 55 | 150LXLZ400-27 | 400 | 27 | 1480 | 45 |
| 125LXLZ130-38 | 130 | 38 | 1470 | 22 | 150LXLZ340-25 | 340 | 25 | 1480 | 37 |
| 125LXLZ120-32 | 120 | 32 | 1470 | 18.5 | 150LXLZ370-14 | 370 | 14 | 970 | 22 |
| 125LXLZ90-17 | 90 | 17 | 970 | 7.5 | 150LXLZ350-12 | 350 | 12 | 970 | 18.5 |
| 150LXLZ160-15 | 160 | 15 | 970 | 11 | 150LXLZ570-32 | 570 | 32 | 1480 | 75 |
| 150LXLZ200-25 | 200 | 25 | 1470 | 22 | 150LXLZ500-25 | 500 | 25 | 1480 | 55 |
| 150LXLZ220-30 | 220 | 30 | 1470 | 30 | 150LXLZ130-5 | 130 | 5 | 970 | 3 |
| 150LXLZ200-20 | 200 | 20 | 1470 | 18.5 | 200LXLZ250-5 | 250 | 5 | 970 | 5.5 |
| 150LXLZ300-25 | 300 | 25 | 1470 | 30 | 200LXLZ400-6 | 400 | 6 | 970 | 11 |
| 150LXLZ200-14 | 200 | 14 | 970 | 11 | 200LXLZ600-14 | 600 | 14 | 1480 | 37 |
| 150LXLZ240-14 | 240 | 14 | 970 | 15 | 200LXLZ460-37 | 460 | 37 | 1480 | 75 |
| 150LXLZ210-16 | 210 | 16 | 970 | 15 | 200LXLZ500-43 | 500 | 43 | 1480 | 90 |
| 150LXLZ260-16 | 260 | 16 | 970 | 18.5 | 200LXLZ500-10 | 500 | 10 | 970 | 22 |
| 150LXLZ300-30 | 300 | 30 | 1480 | 37 | 200LXLZ500-25 | 800 | 25 | 1480 | 90 |
| 150LXLZ370-30 | 370 | 30 | 1480 | 45 | 150LXLZ320-30 | 320 | 35 | 1480 | 45 |
Packaging & Shipping
MOQ | 1 Set |
OEM | OK |
Price | 100~10000USD/Set |
Port | Xingang |
Payment | L/C,T/T,Western Union |
Supply Ability | 200 Sets/Week |
Packaging | Packed in wooden cases or according to customer's requirements |
Delivery Time | 10~15 working days or according to the order quantity |
Shipping | Sea, rail or air transport |
Our Services
- Any inquires will be replied within 8 working hours.
- Professional centrifugal pump manufacturer, welcome to visit our website (on-line store) and factory.
- Customized design is available, OEM and ODM are welcomed.
- High quality, reasonable & competitive price.
- Fast lead time, 5-25days for bulk pump production.
- Payment: we usual accept payment by T/T, L/C and western union.
- We have strong cooperation with forwarder, you also can chose your own shipping forwarder.
- After-sale service: all centrifugal pumps will have been strictly quality checked in house before packing.
- All centrifugal pumps will be well packed as request before shipping.
Company Information
Hebei Chen Ming Pump Co., Ltd. is located in Hebei Province, Hebei, specializing in the development, production,sales and service pumps.
Hebei Chen Ming Pump Co., Ltd. has an excellent design team and a highly efficient management team. We have strict internal management system and experienced technical staff. In addition, we have set up, including the R & D department, production department, sales department, service department, including several departments.
We always adhere to the "innovation, reputation and quality" spirit. Also, our company has won the trust and praise. We look forward to a win-win basis, from home and abroad to find a good partner, create brilliant future.
FAQ
Q1. What is your product range?
Centrifugal pump, slurry pump, gravel pump, clean water pump, sewage pump, chemical pump, single stage
pump, double suction pump, industry pump, oil pump, paper pulp pump, mud pump, self-priming pump, pipe
water pump, boiler water pump, etc.
Q2. Are you a manufacturer?
Yes, we have been in manufacturing and marketing industry centrifugal pump over 20 years.
Q3. What information should I let you know if I want to get a quotation?
Pump capacity, pump head, medium, medium temperature, pump material, quantity, if possible, please also
provide the pump model you are using now, price will be calculated as per the pump model, if not, we will
recommend relevant product for reference.
Q4. Do you impact the finished product?
Yes, each batch of production and finished product will be quality checked strictly before delivering.
Q5. How do you ship the finished product?
By sea.
By plane.
