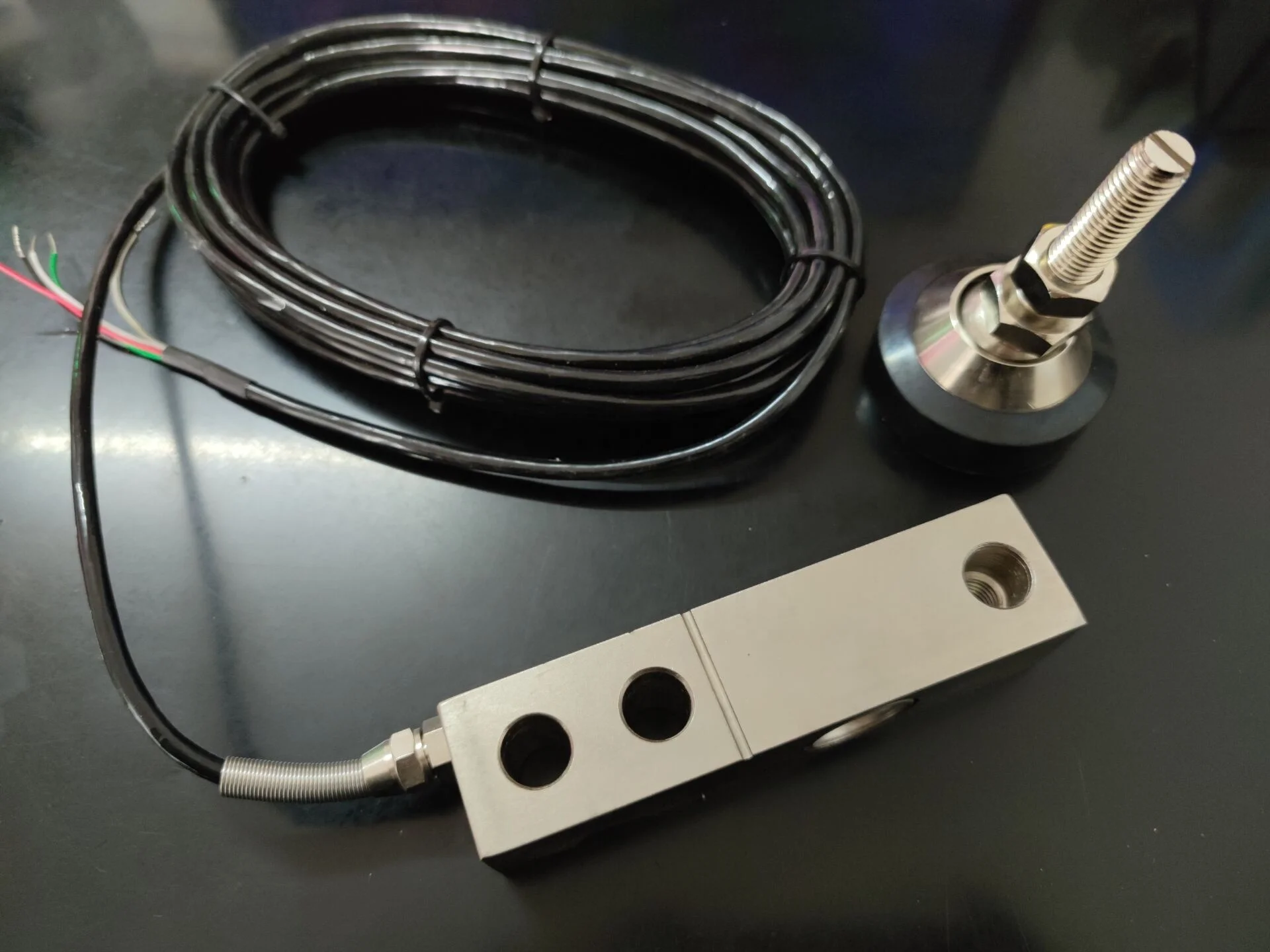

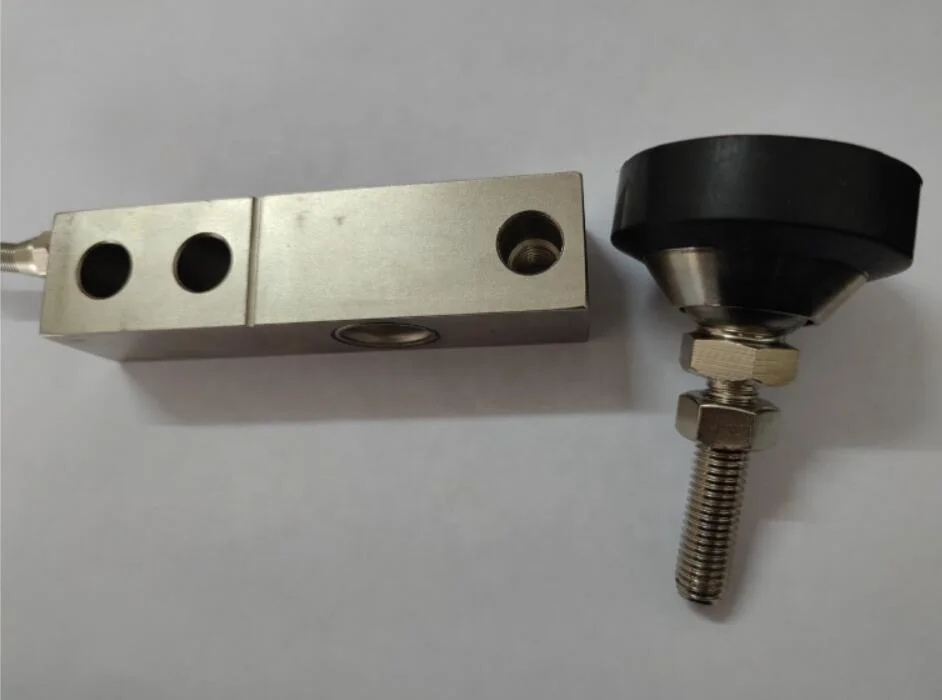

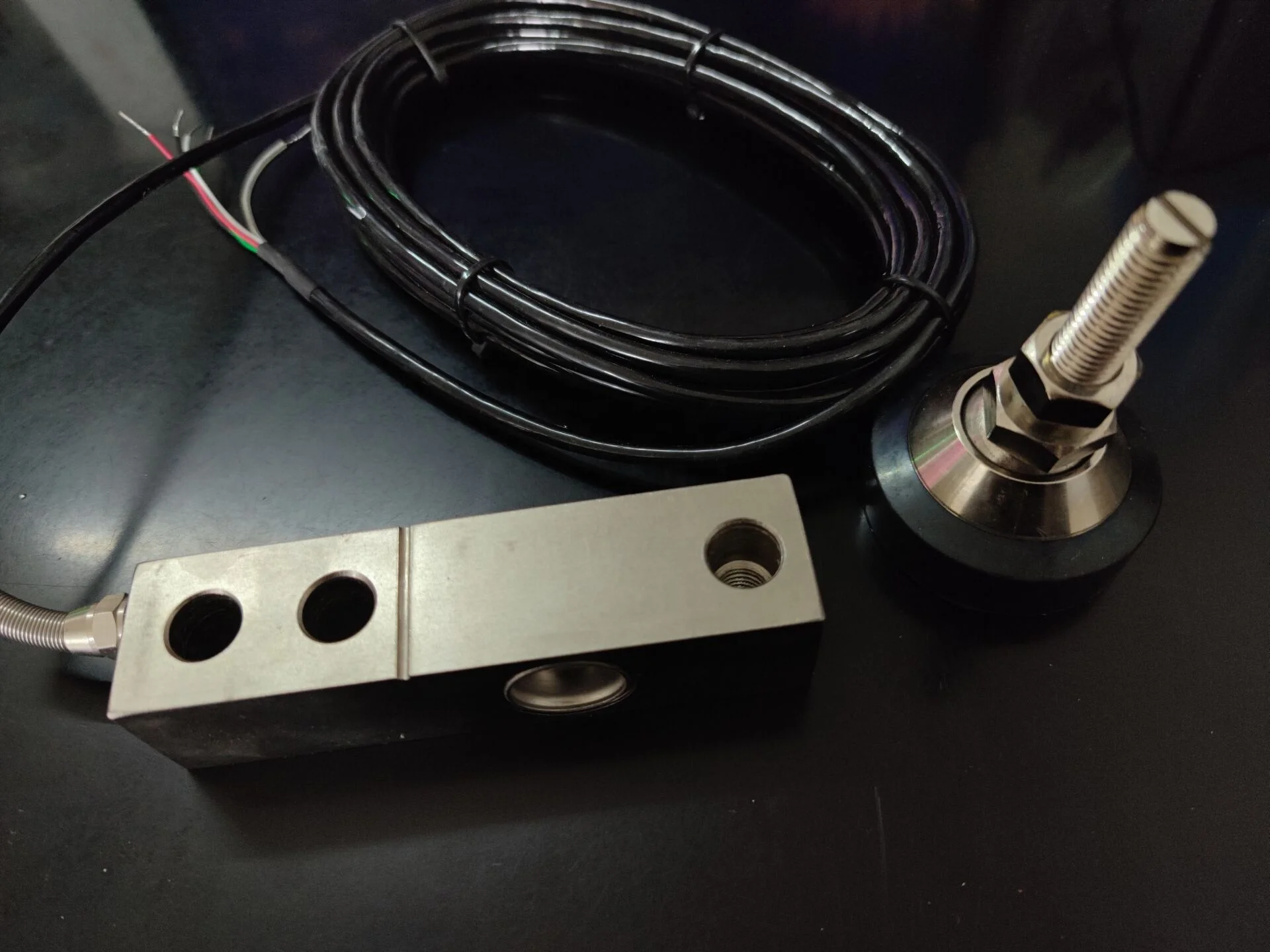

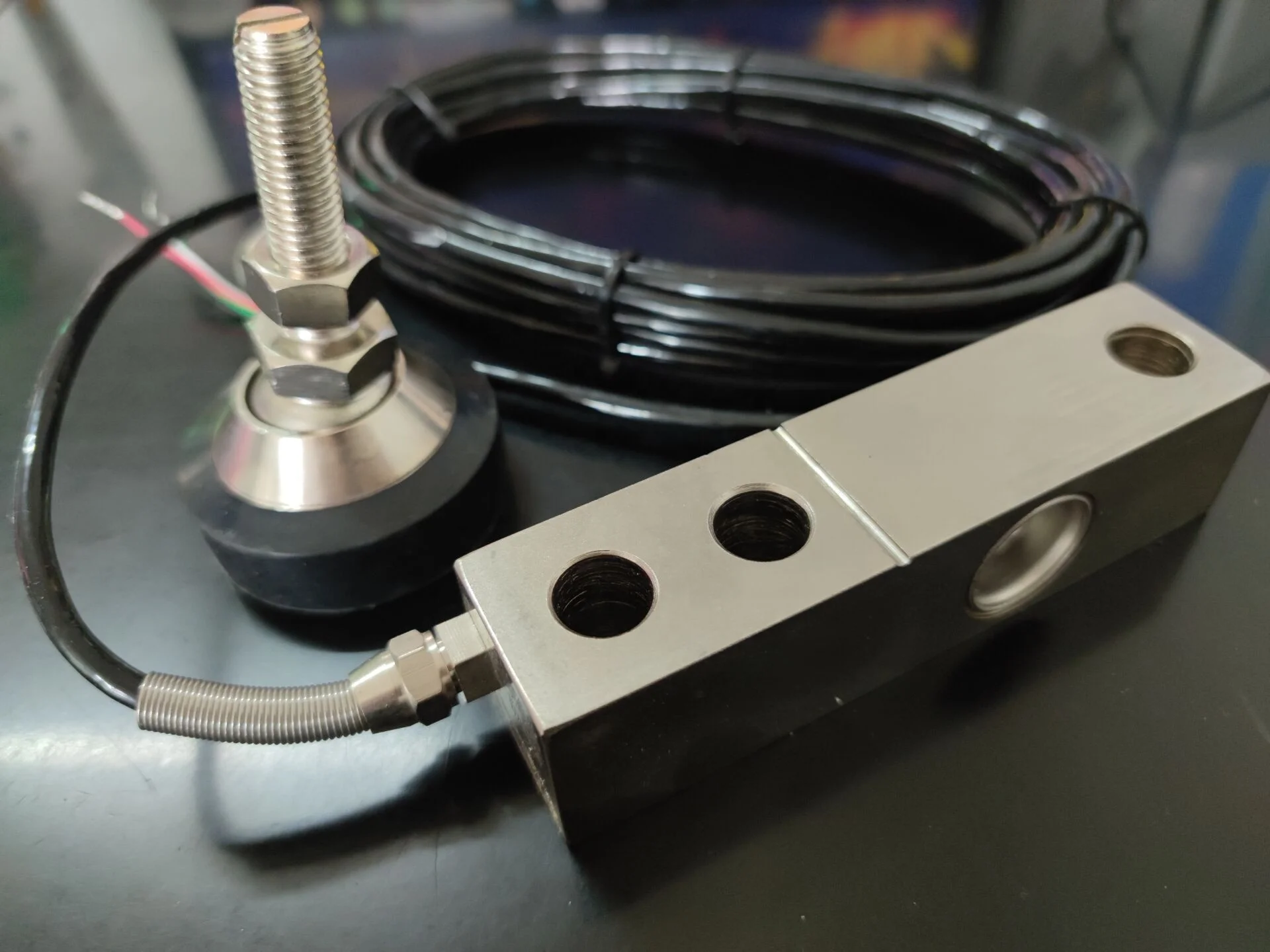

Hot selling single shear beam floor scale weighing sensor

Product Overview

Description

QH-22 load cells are available in the capacities from 0.5t to 5t.

Alloy steel & stainless steel construction with single shear beam type.

Sealed welding ,waterproof, anti-corrosion and suitable for all kinds of environment.

Integral structure and easy installation.

Suitable for electronic platform scale, truck scale, floor scale,hopper scale and other electronic weighing device.

Capacity :0.5t to 5t

Defend grade:  IP67 & IP68

High accuracy.
Alloy steel & stainless steel single shear beam

Low profile and nice exterior







Specifications:
Capacity	t	0.5,1,2,5
Safe overload	%FS	150
Ultimate overload	%FS	200
Rated output	mV/V	3.0 ± 0.003
Excitation voltage	Vdc	9 ~ 12
Combined error	%FS	± 0.03	±0.02
Zero unbalance	%FS	± 1
Non-linearity	%FS	± 0.03	± 0.02
Hysteresis	%FS	± 0.03	± 0.02
Repeatability	%FS	± 0.02	± 0.01
Creep	%FS/30min	± 0.03	± 0.02
Input resistance	Ω	350 ± 5
Output resistance	Ω	350 ± 3
Insulation resistance	M Ω	≥ 5000 @ 50 Vdc
Operating temperature range	℃	-20 ~ +55
Compensated temperature range	℃	-10 ~ +40
Temperature coefficient of SPAN	%FS/10℃	± 0.025	± 0.017
Temperature coefficient of ZERO	%FS/10℃	± 0.03	± 0.03







Excitation+ red     Excitation- black   Signal+ green   Signal- white
Four-core shielded cable with polyethylene.
Cable diameter :φ5mm
Cable length:3 m



The cable length could be chose by customer’s application.









All products can be shipped by International Express including EMS,UPS,FedEx,DHL and TNT as you required. By plane or by ship is available, too. The detailed can be discussed with our sales.We will choose the safe and cheapest way for you to reduce your cost.

All products will be well packed in hard paper box properly and security. Packing list will be enclosed inside the box. Please take care of this when you unpack the package.











1. OEM/ODM Services:

Our company provides OEM/ODM service and Customized products service.

With know-how technique and mass production capability, we are able to provide the specified sensing solution according to customer's application.

What's your requirement?

2. Quality Quarantee

We quarantee product quality for one-year starting from the date of delivery.
