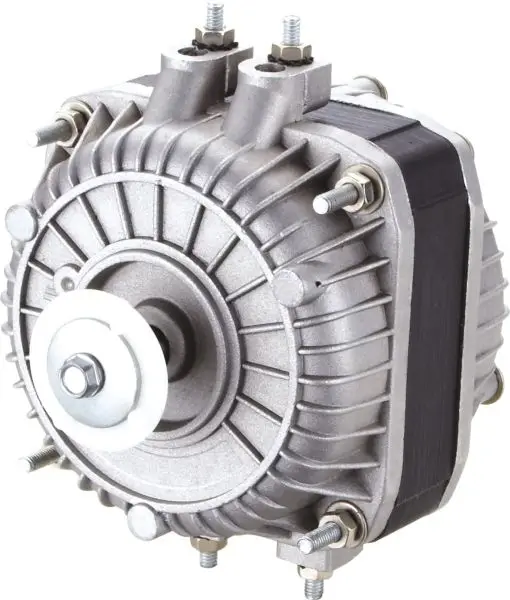

KIRON 5w to 34w shaded pole motor

Product Overview

Description

1. Company Profile.



     Hangzhou Kiron Motor Co.,Ltd is located in Jianqiao Town as an ancient town with more than 1000-year history, on the north side of the Qiangtang River,Jianggan District, Hangzhou City,Zhejiang Province, Close to Hangzhou Xiaoshan International Airport and Shanghai-Hangzhou-Ningbo Expressway, with veryconvenient transportation.



     At present, Our enterprise mainly produces Centrifugal fan and blower, external rotor axial fan,ventilation fan, Duct fan, shaded pole motor, external rotor fan motor,aluminum die casting parts, stator and rotor, Developing moulds and so on.



    KIRON will take the enterprise spirit as the essential element of the growth, procactively carry out the innovation, sincerely provide the service for new&old customers, and strive for the sustainable development of the enterprise.



 2 Specifcation

(1)Overview: YZF  series motors are shaded pole motors with singlephrase and four shaded poles, and running at the rated voltage of 220-240V, 50/60HZ or 110-120V, 60HZ. They are widely used in radiators, evaporators and other refrigration equipments.

(2)Output power:  5W to 34W, which can be adjusted according to the stack length.

(3)Insulation class: E, B, F, our usaual is B class

(4)protection class: IP42,  IP44

(5) over temperature protection:  Motors of output power below 10W have impedance protection, and motors of output power above 10W have thermal protector whose cut-off temperature is 135^oC±5^oC.

(6)optimum temperature: B class is -40^oC to +60^oC.

(7)Bearing: oil or ball bearing, our usual is oil bearing

(8) life time:  more than 20000 hours.

(9) Certificate: CE, CCC,ISO

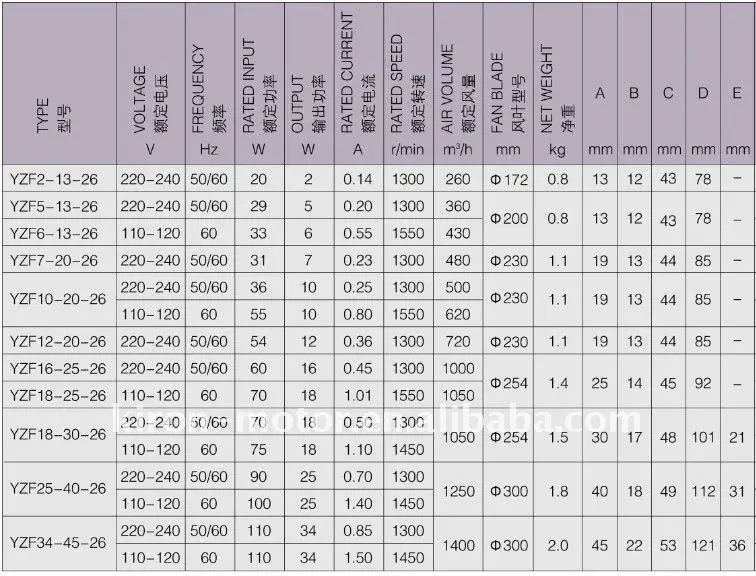

 (10) Illustration of  Model

       YZF5-D-13-26

1.YZF: Shaded pole motor

 2. 5: Rated output power, 5W

3: 13: lamination core thickness

4:  26: spaces between two screws

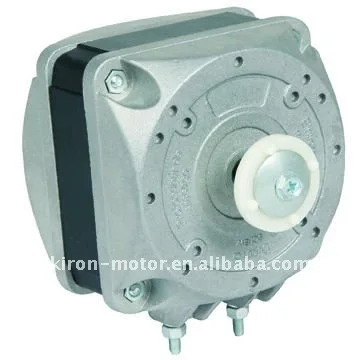

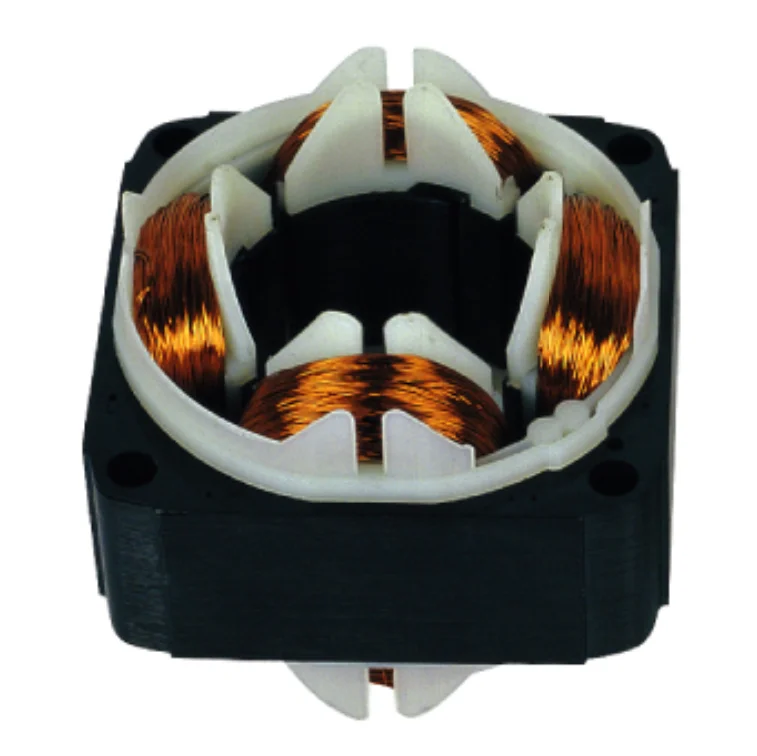

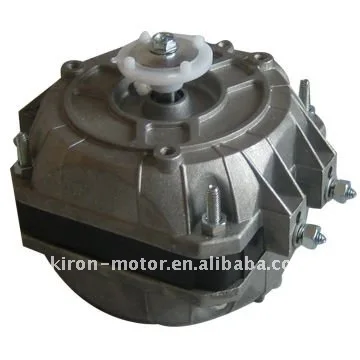

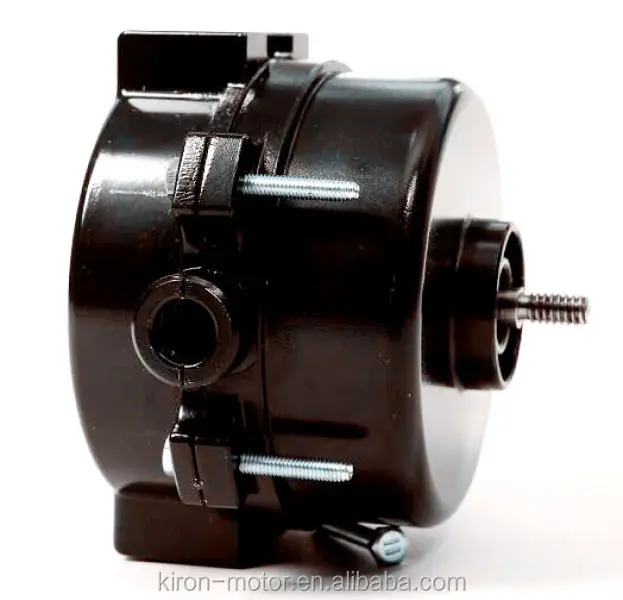

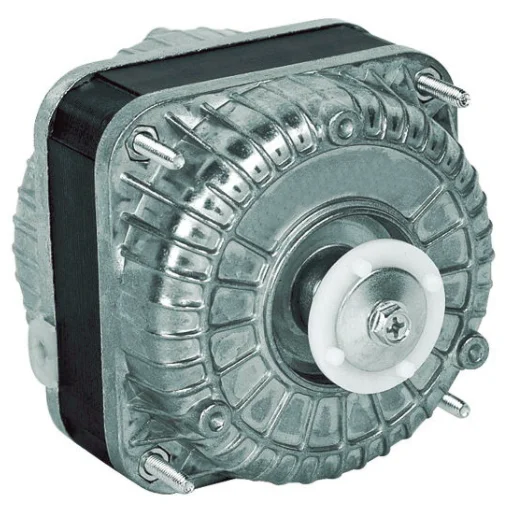

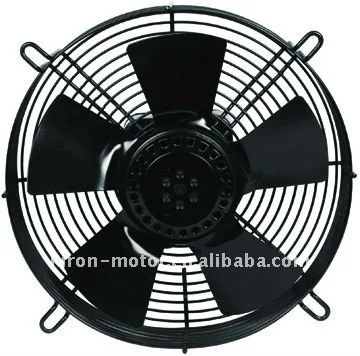

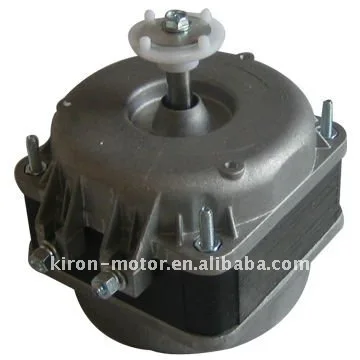

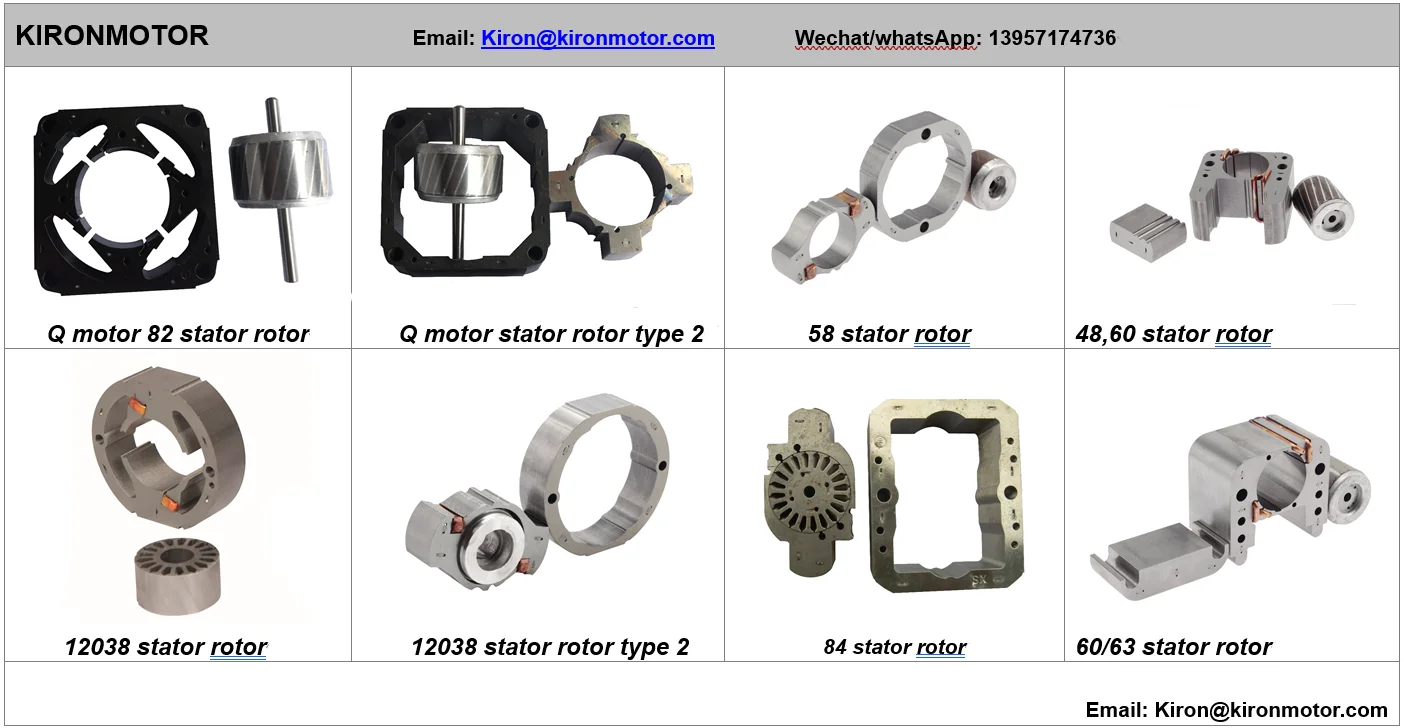

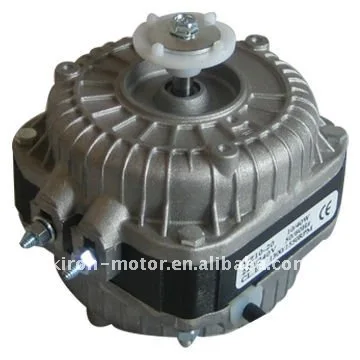

3. Products Display











4. Factory Production Display
