Anti static ESD SMT PCB Trolley for Electrolic Factory

Product Overview

Description

Product Description

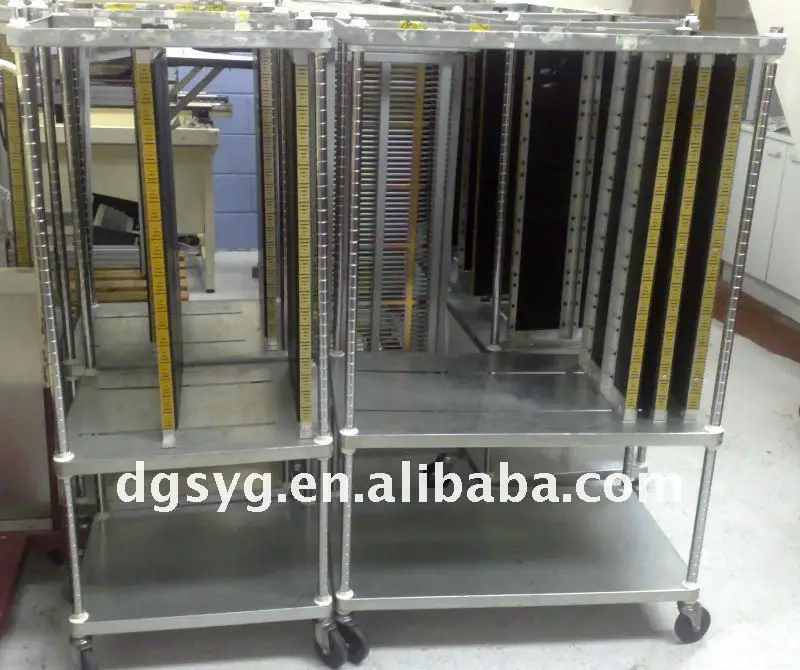

PCB STORAGE CART,PCB TROLLEY

• Provides safety and convenience
• Durable mobile unit
• Adjustable panels with horizontal slides features 15mm spacing for high density loading
• Ideal for transporting work process and storing large quantities of PCB
• Stainless steel panel allow for airflow and conductivity, and have slides that accept boards up to 3mm thick

SMT ESD Magazine Rack
The magazine rack is designed for PCBs manufacture,

• Products: SMT Magazine Rack, PCB carrier, PCB trolley, PCB Rack
• Specifications:
• 1) Surface resistance: 104~106Ω
  2) Overall Size: 355*315*580mm.
  3) 50pcs of PCB plates can be stored.
  4) Sizes of PCBs to be accommodated: 350*(80-250)mm
  5) Side guide slot: depth 3.5mm, width 8mm, pitch 10mm
  6) The top and bottom boards are made of plastic stationary type.
  7) Adjustable through screws
• customization is available.

• Products: SMT Magazine Rack, PCB Racks, PCB Carrier
• Specification: 1) Surface resistance: 104~106Ω
  2) Exterior Size: 355*320*563mm.
  3) pcb accommodation: 50pcs
  4) Sizes of PCBs to be accommodated: 350*(50-250)mm
  5) Side guide slot: depth 3.5mm, width 5mm, pitch 10mm
  6) The top and bottom boards are made of metal.
  7) Gear track allow easy operation
• Customization is available.

• Product: SMT Magazine Rack, PCB Rack, PCB Carrier, esd circulation rack
• 1) Surface resistance: 104~106Ω

       2) Common type and heat-resistance type      are available.

• 3) Overall Size: 535*530*570mm.
  4) 50pcs of PCB plates can be stored.
  5) Sizes of PCBs to be accommodated:535*(50-460)mm
  6) Side guide slot: depth 3.5mm, width 5mm, pitch 10mm
  7) The top and bottom boards are made of metal.
  8) Gear track allow easy operation.
• customization is available

• Material: Stainless Steel PS + antistatic
• Tank Plate: Plastic
• Specification:
• TR-C0301A: 850*600*1300MM with 460mm*10000MM tank plate
• TR-C0301B: 850*500*1300MM with 350*1000MM tank plate
• TR-C0301C: 850*630*1300MM with 530*1000MM tank plate
• 200-600 films can be deposited PCB board
• Deep Groove: 4 mm, Width: 5 mm, from the trough: 5.5 mm
• Surface Resistivity: ≤ 106 Ω
• Can be customized according to customer requirements and system installation cushioning devices
