STEKI 2019 NAB10, печатная машина, пневматический тормоз вала, альтернативные стеарны

Product Overview

Description

STEKI 2019 NAB10 printing machine air shaft brake alternative stearns



1.Technology & material from Taiwan
2.Manufacture with 30 years' experience
3.Warranty--1 year
4.OEM available



NAB SERIES

1.Small, lightweight, wide adjustable range of torque

It can adjust torque in wide range according to air pressure adjustment.

2.Reliability

It won't produce electric spark.

3.Mostly suitable to quite frequent sliding movement

It can be used in high frequency, high load, and sliding movement.

4.Stop peacefully and simply

It can stop without hinder according to air pressure adjustment.

5.Long life, easily maintain

It can be used longer due to good heat dissipation and thick friction plate.

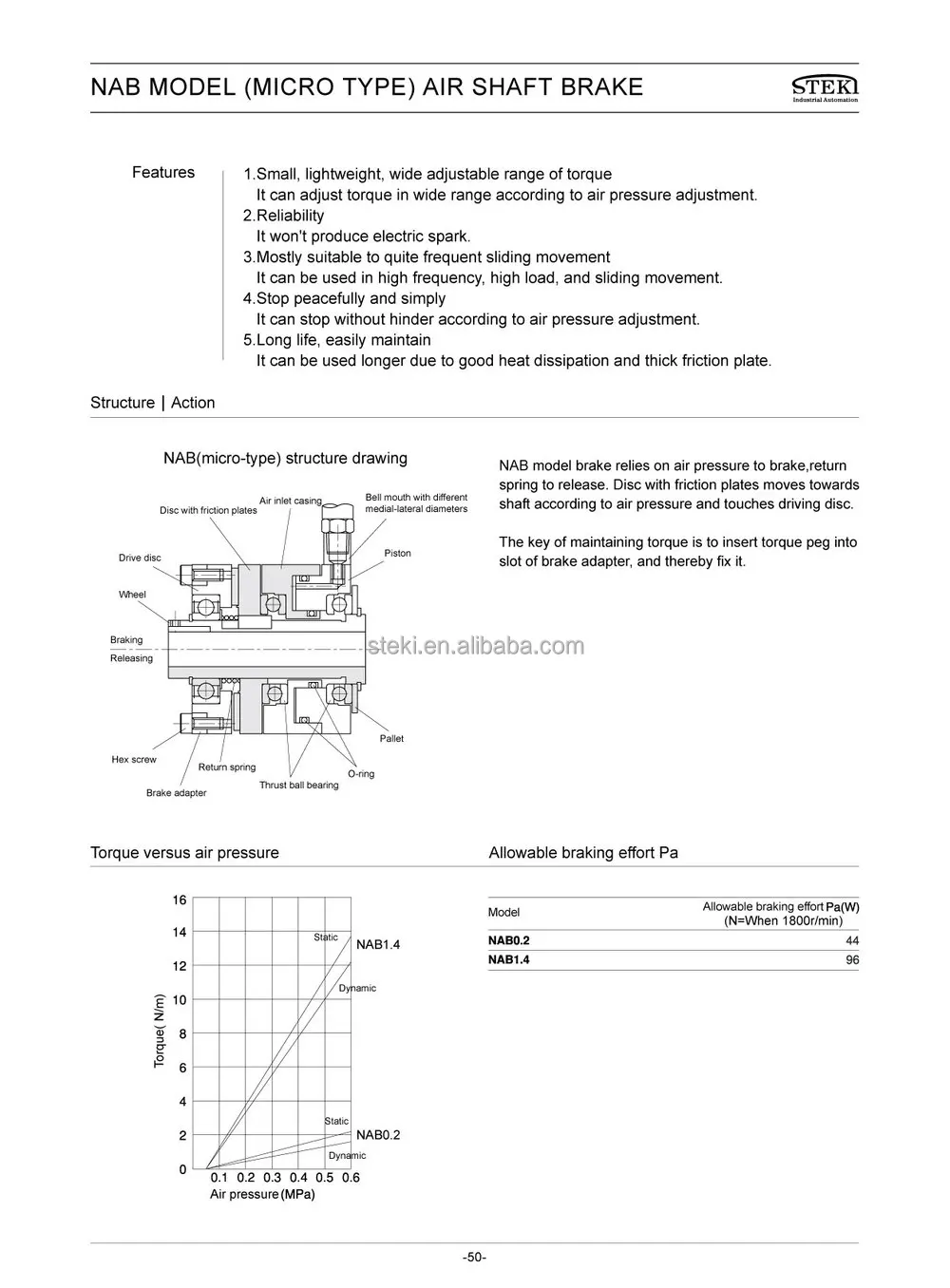

WORKING THEORY:NAB model brake relies on air pressure to brake, return spring to release. Disc with friction plates moves towards shaft according to air pressure and touches driving disc.

The key of maintaining torque is to insert torque peg into slot of brake adapter, and thereby fix it.
