Product Overview

Description

The MSRC4777 and MSRC4778 product line is a reliable and cost-effective replacement for all models (with or without encryption)of the IBM4777 (MSRC4777) Magnetic Stripe Reader / Encoder (MSR/ MSRE) and the IBM4778 (MSRC4778) PIN Pad.

MSRC4777 MSRE and MSRE4778 PIN Pad can be directly applied to an IBM financial work station ( PC ), work with the IBM LANDP and CT financial system without any change of hardware and software.

 MSRC4777 performs reliable and accurate, has a beautiful and firm cover of zinc alloy. MSRC4778 PIN Pad has an optional function of sound promote.



Specifications:

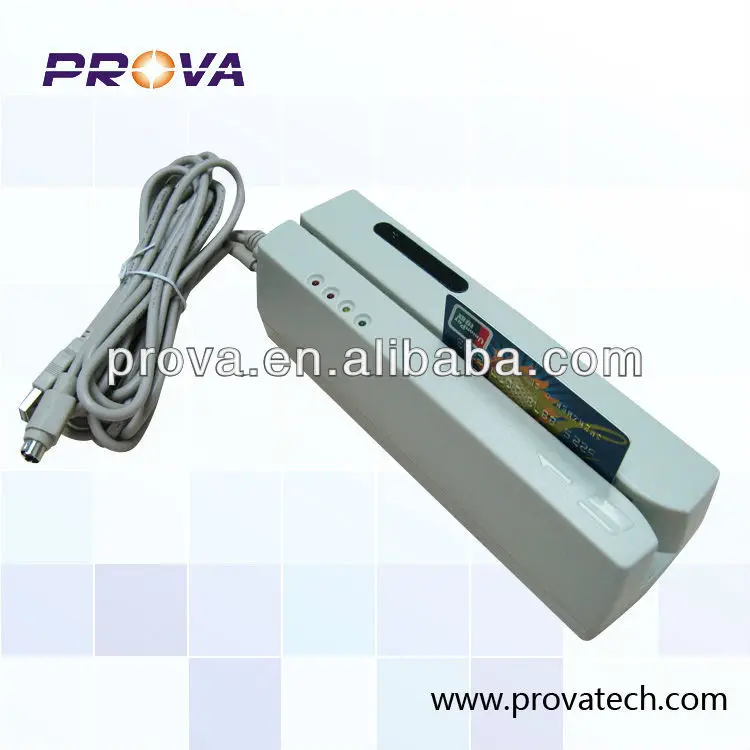

1. MSRC4777 Mag-stripe Reader/Encoder (IBM4777)

Ø  They can connect to the PS/2 mouse port or the serial ( RS232) port of  PC, easy to use.

Ø  Produced with advanced technologies and designs, ensured its reliability.

Ø  Adopted multi-CPU system and intelligent encode/decode technology, guarantee the quality of encoding and the sensitivity of decoding, solved the compatibility of magnetic cards.

Ø  High reliability and close precision of encoding synchronizer, long endurance of Fe-Si-Al read/write heads, guarantee the high success rate of access and long lives of the equipments.



2. MSRC4778 PIN Keypad (IBM 4778)



Ø  Designed special shield and beeper for financial system, 3 optional modules can be appended:

Ø  Sound Prompt Module: Especially suitable for bullet-proof window room

Ø  DES Encryption Module: Encrypt your information on the card, more safe on financial transactions.

Ø  LCD Module: Display"*"as you type, in case the errors from keypad tremble or linking.

Mainly for financial electronic industry. Price is negotiable.

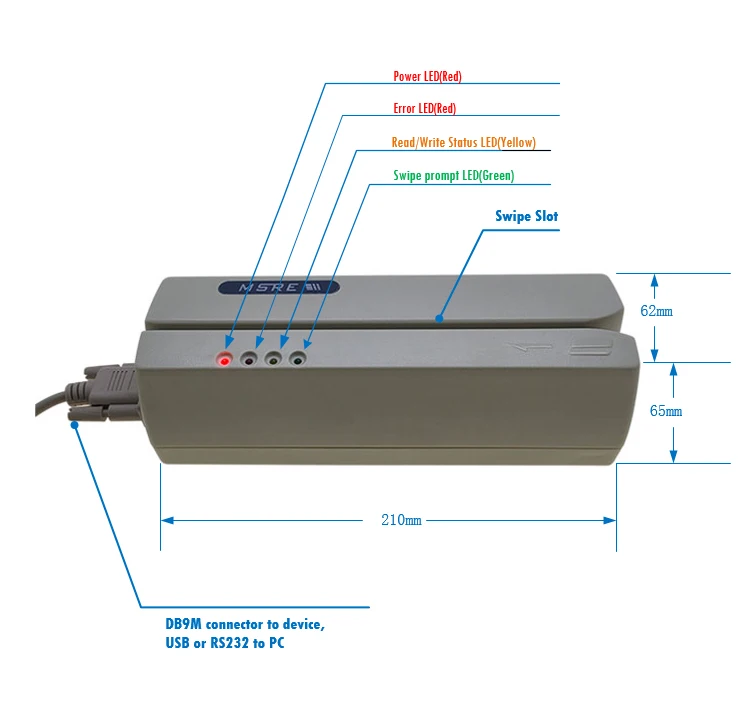

MSRC4777 Specifications

Working environment	045, humidity 20%90RH, no condensation
Power	DC5V, 300mA
Cubage	215mm×64mm×65mm
Weight	700g
Interface	PS/2 or RS232,accommodate-self
Data Standard	ISO/IBM
Pull speed	10cm/s100cm/s
Magnetic head life	500,000 times



MSRC4778 Specifications



Working environment	045, humidity 20%90RH, no condensation
Power	DC5V, 300mA
Cubage	148mm×108mm×85mm
Weight	300g
Interface	PS/2 or RS232,accommodate-self
Life of key button	1,000,000 times
LCD display	2*16 characters, with letter or figure
Pad layout	12 keys, 0-9 figure key, Enter key,Clear Key

...
