Price:$31,000.00 - $32,000.00

Quantity:


Product Overview

Description



What we can provide?
Provide melting furnace of superior performance and outstanding durability for your melting workshop. Various models are available to meet special requirements about investment casters, specialty foundries and the precious metals industry. The heavy steel shell furnaces are designed to provide furnaces with maximum rigidity and strength for capacities up to 30MT.


Classic design




Parameters
Unite
Datas
rated capacity
t
5
max capacity
t
6
highest temperature
ºC
1800
transformer capacity
KVA
3150
Power factor
 0.9
0.9
rated power
KW
3000
rated input current
A
912*2
rated input voltage
V
950
IF voltage
V
1900
startup success rate
%
100
rated working frequency
KHZ
0.5-1
working noise
db
≤75
melting rate
T/h
5
power consumption
KW.h/T
520
water consumption
T/h
50


Remark
The parameters can be customized according to your country's grid parameters. More details, please contact us.

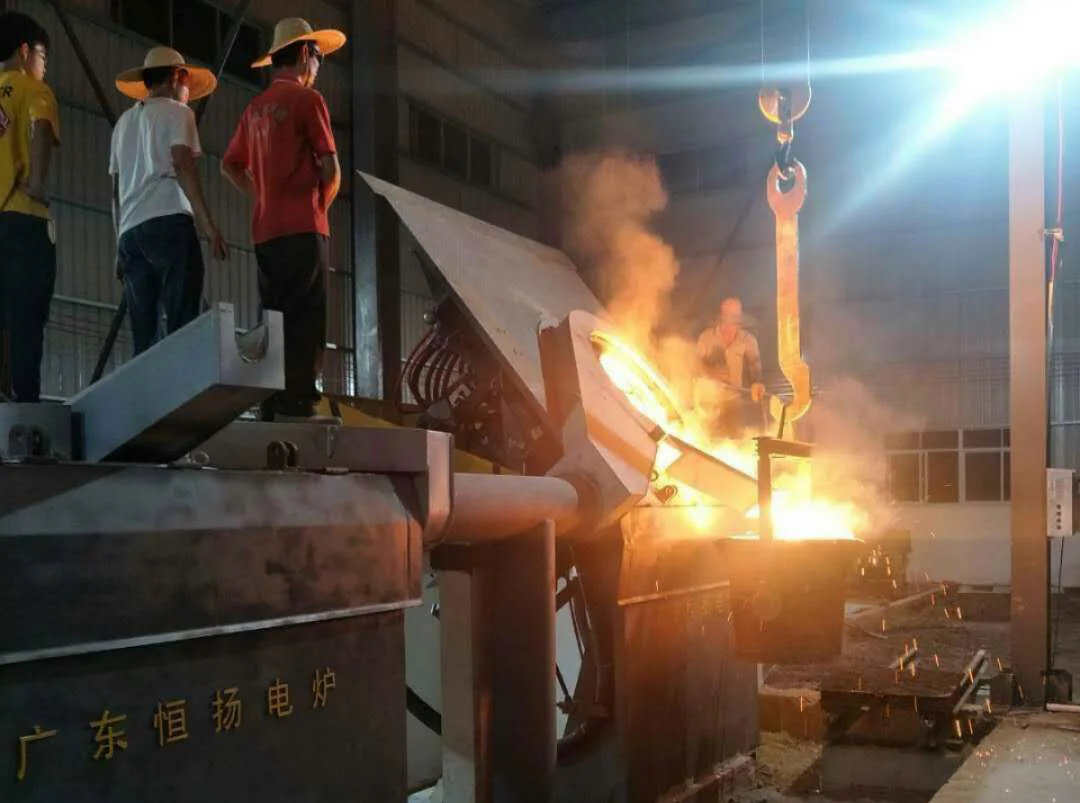

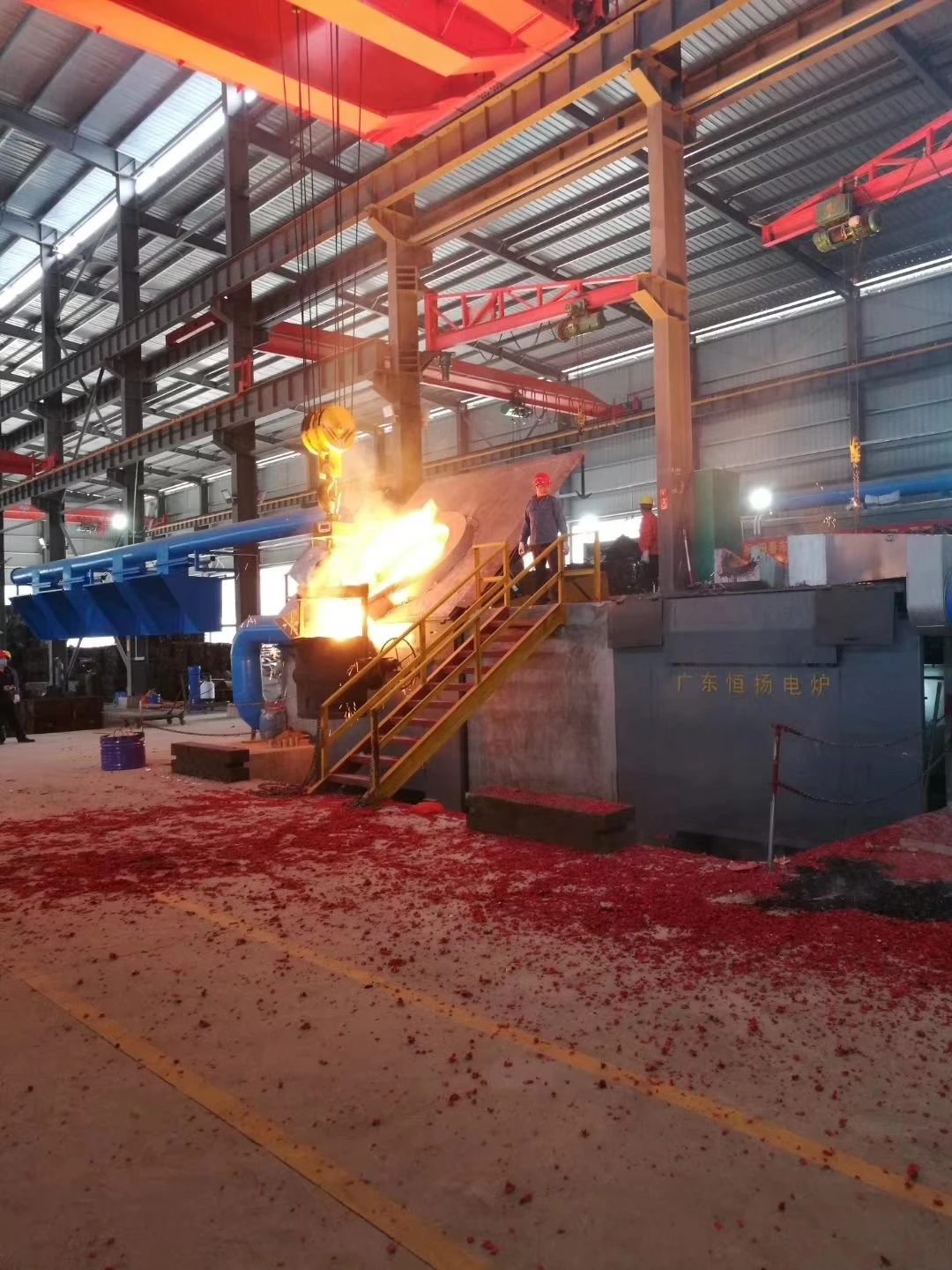

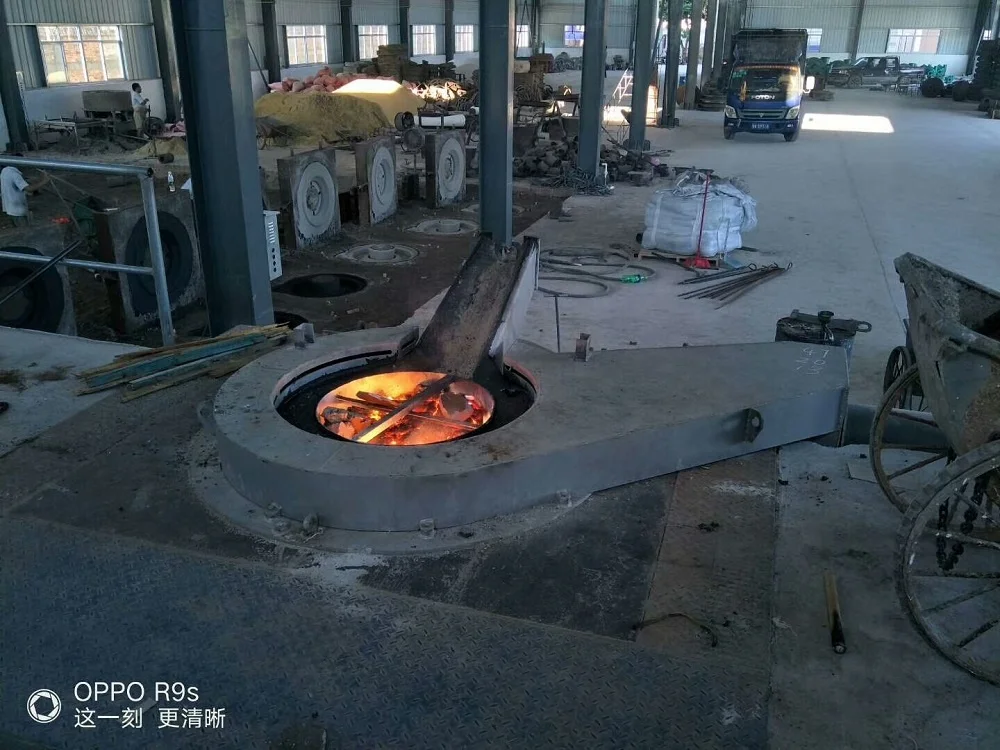

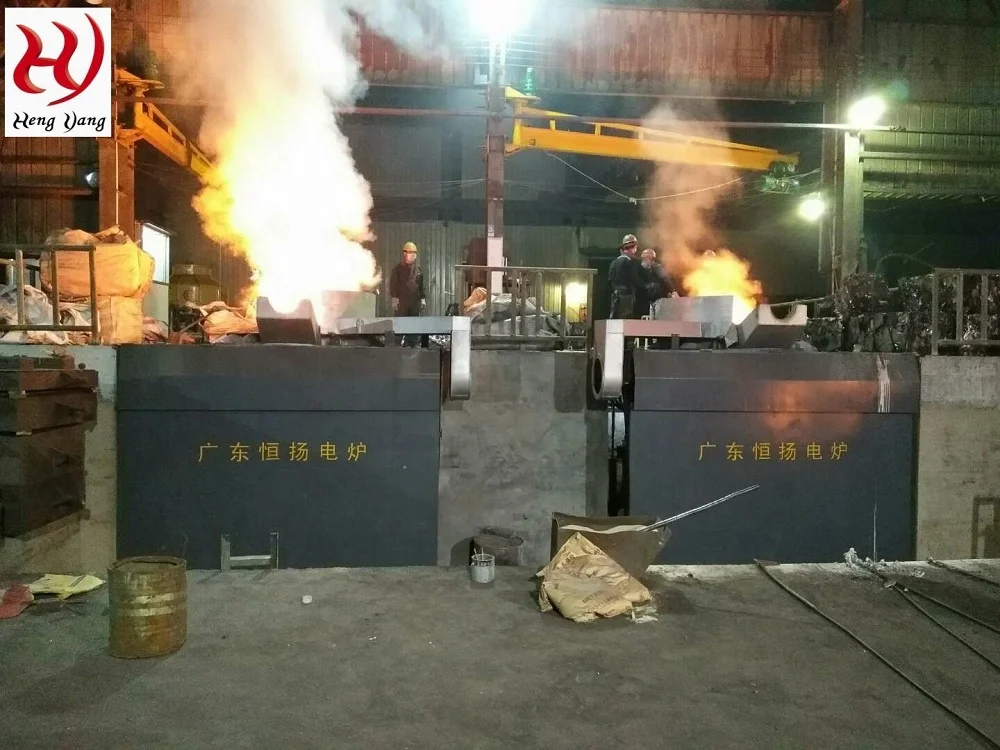

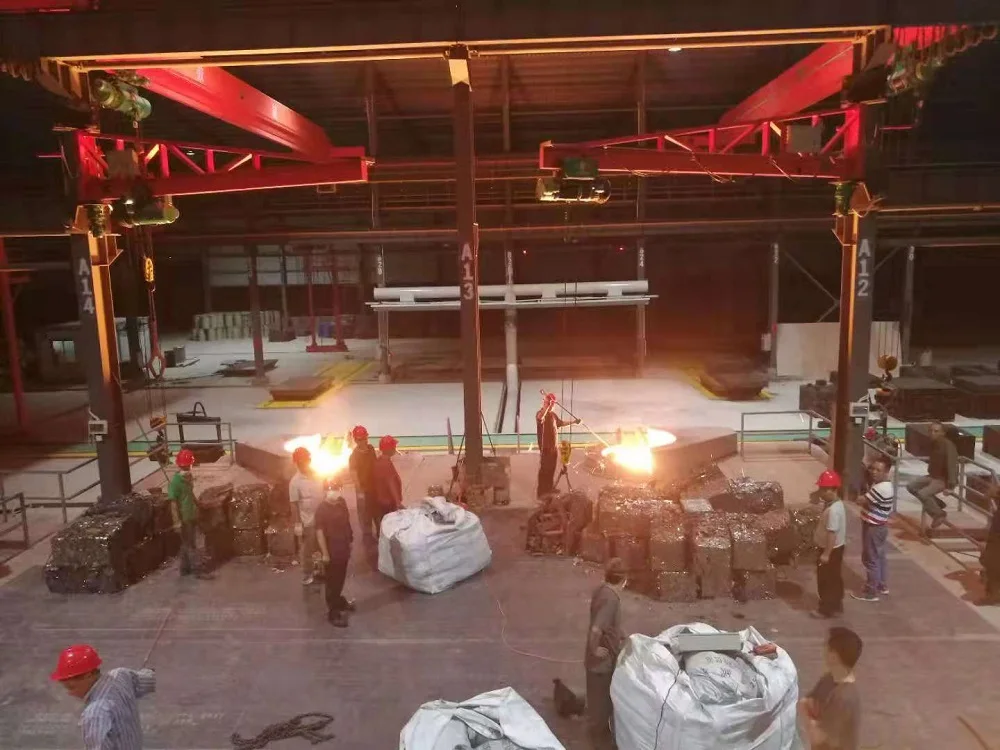

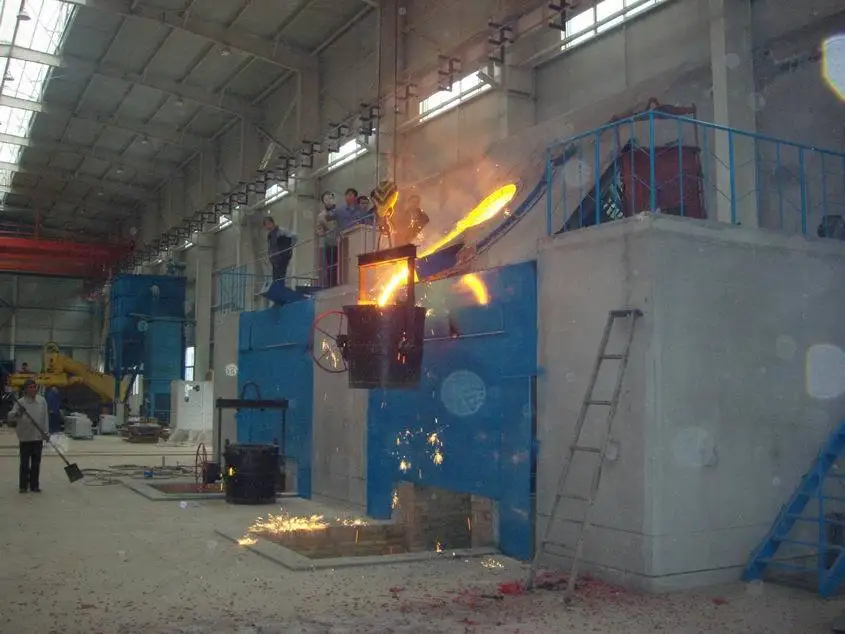

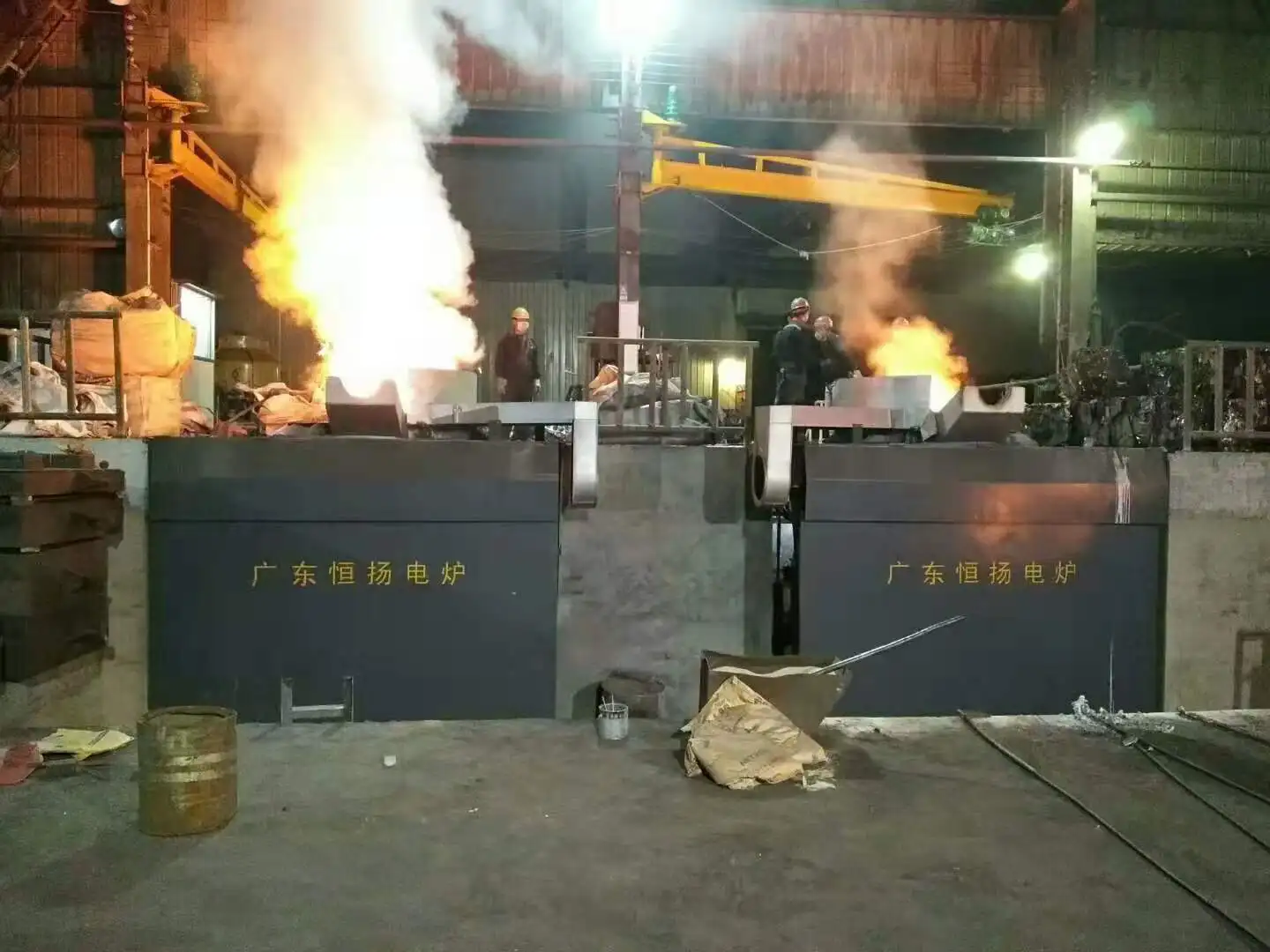

OPERATIONAL CASES










WHOLE SET DISPLAY

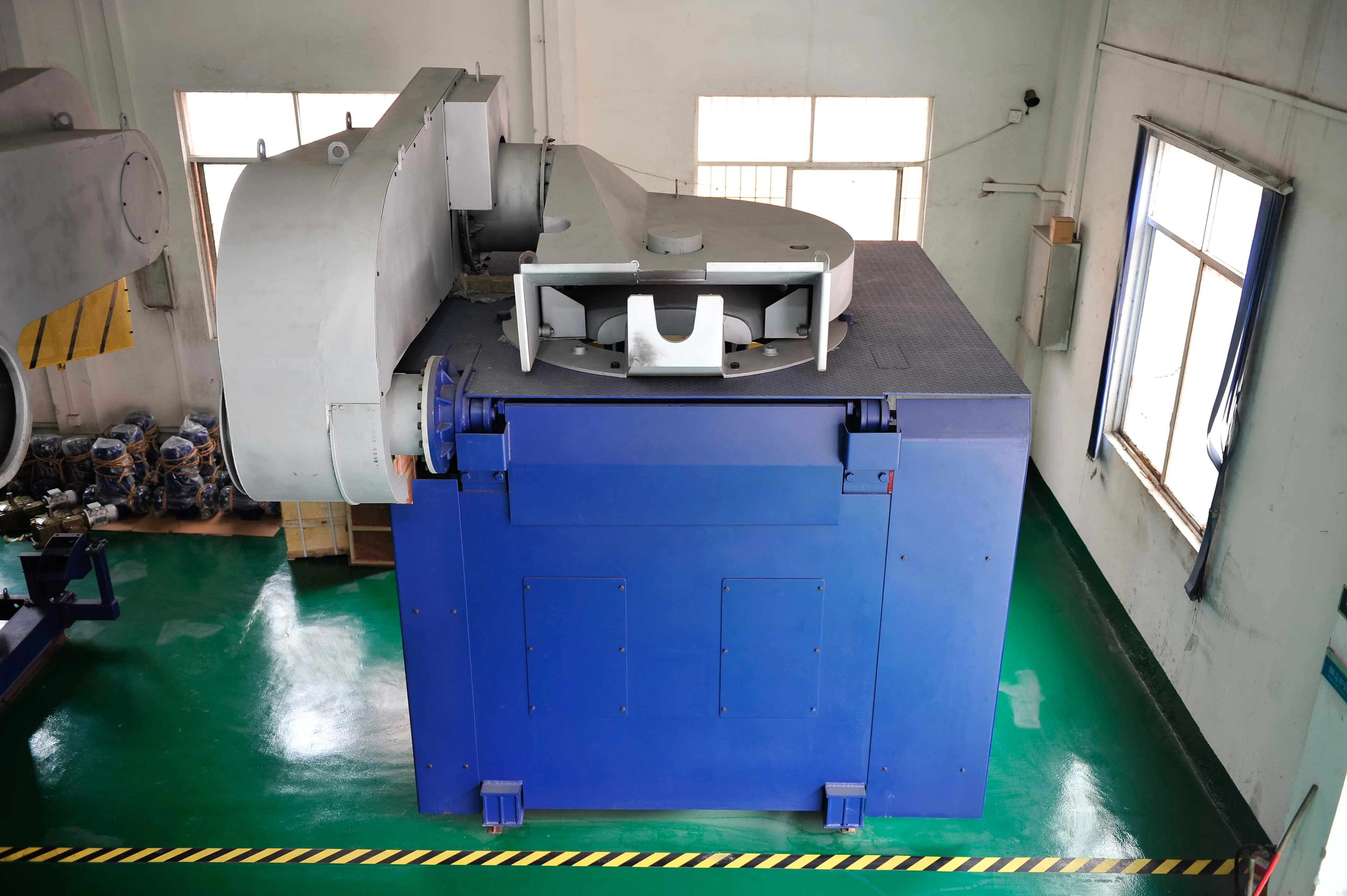

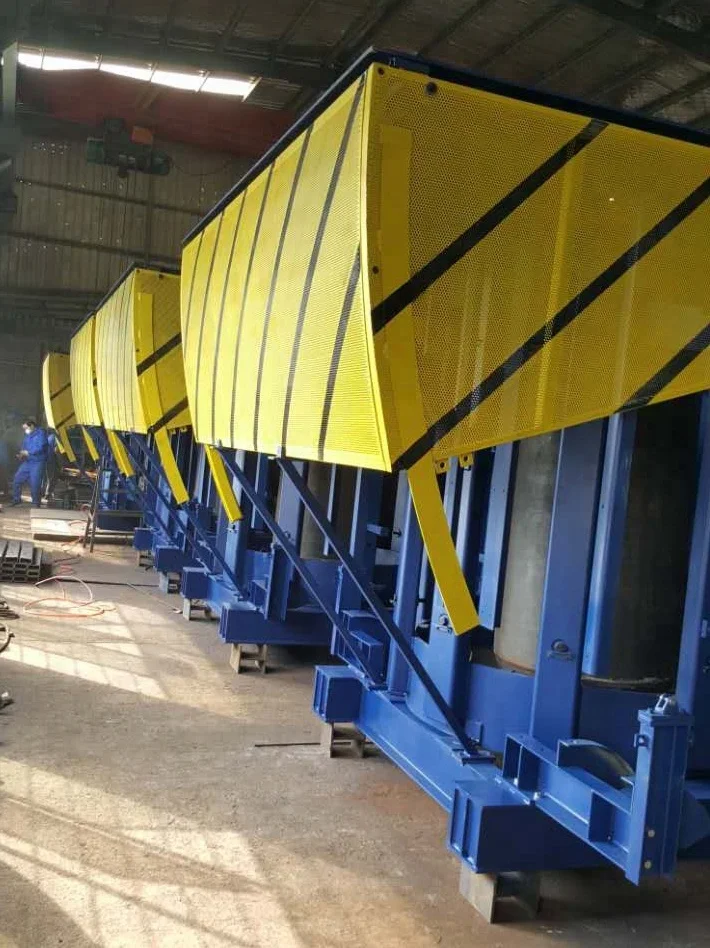

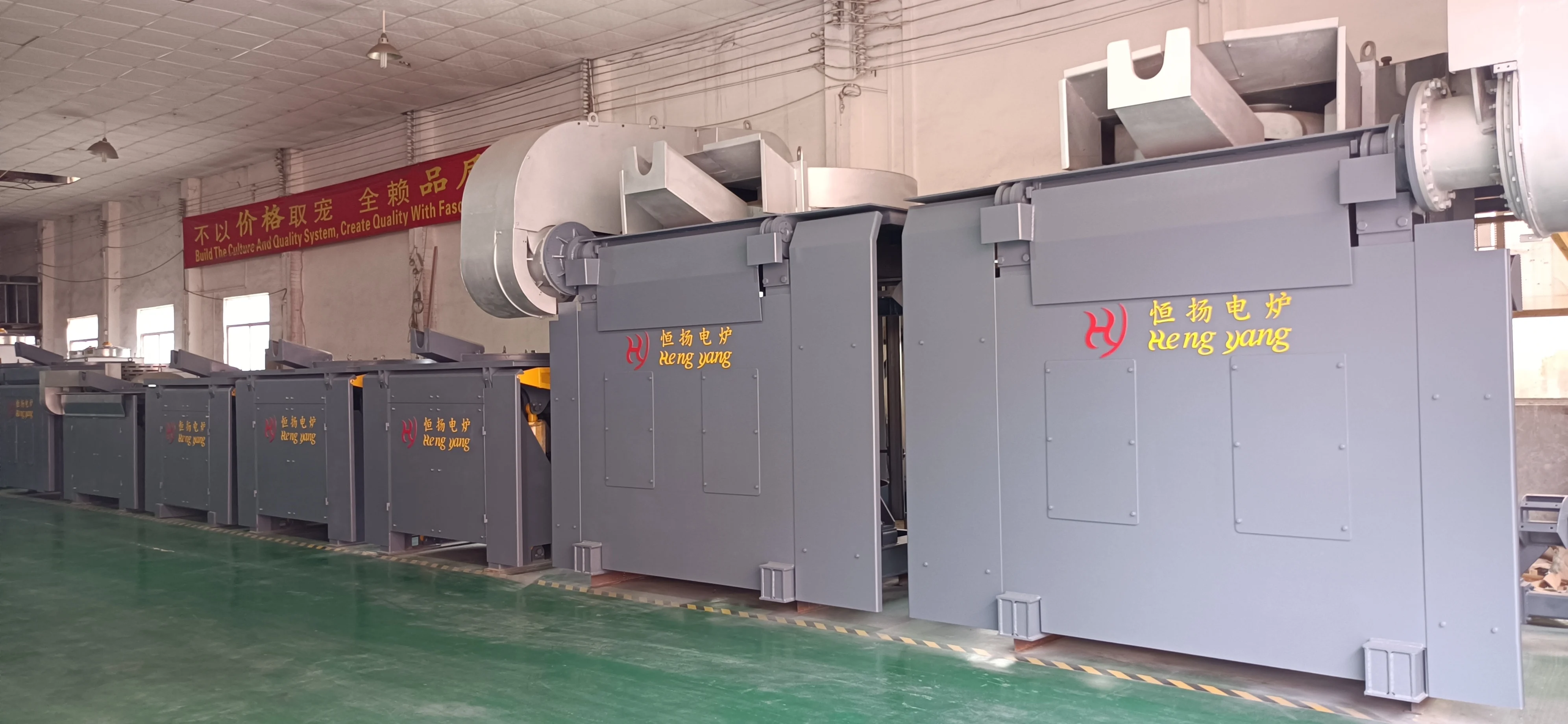

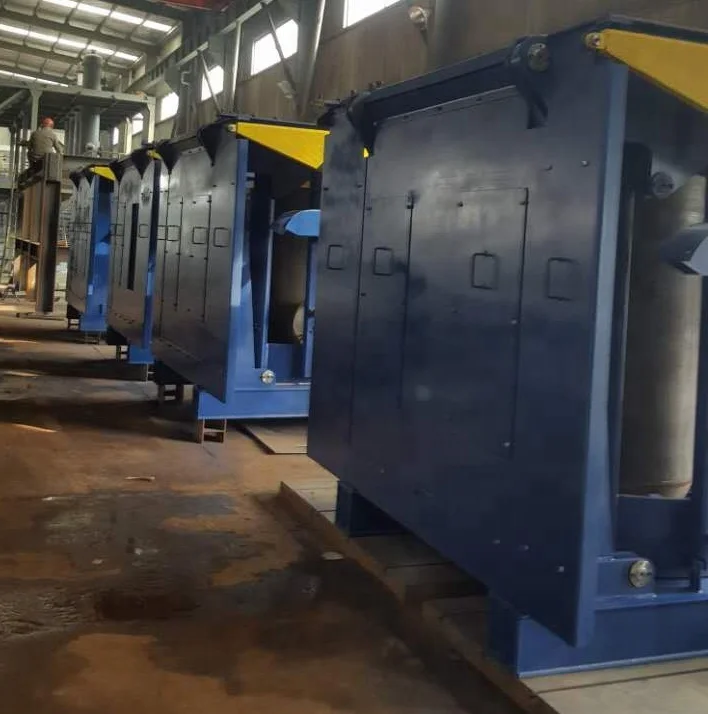

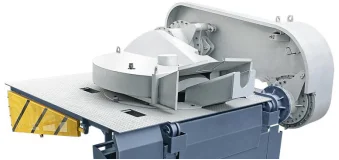

NO1 Steel shell furnace







Special features

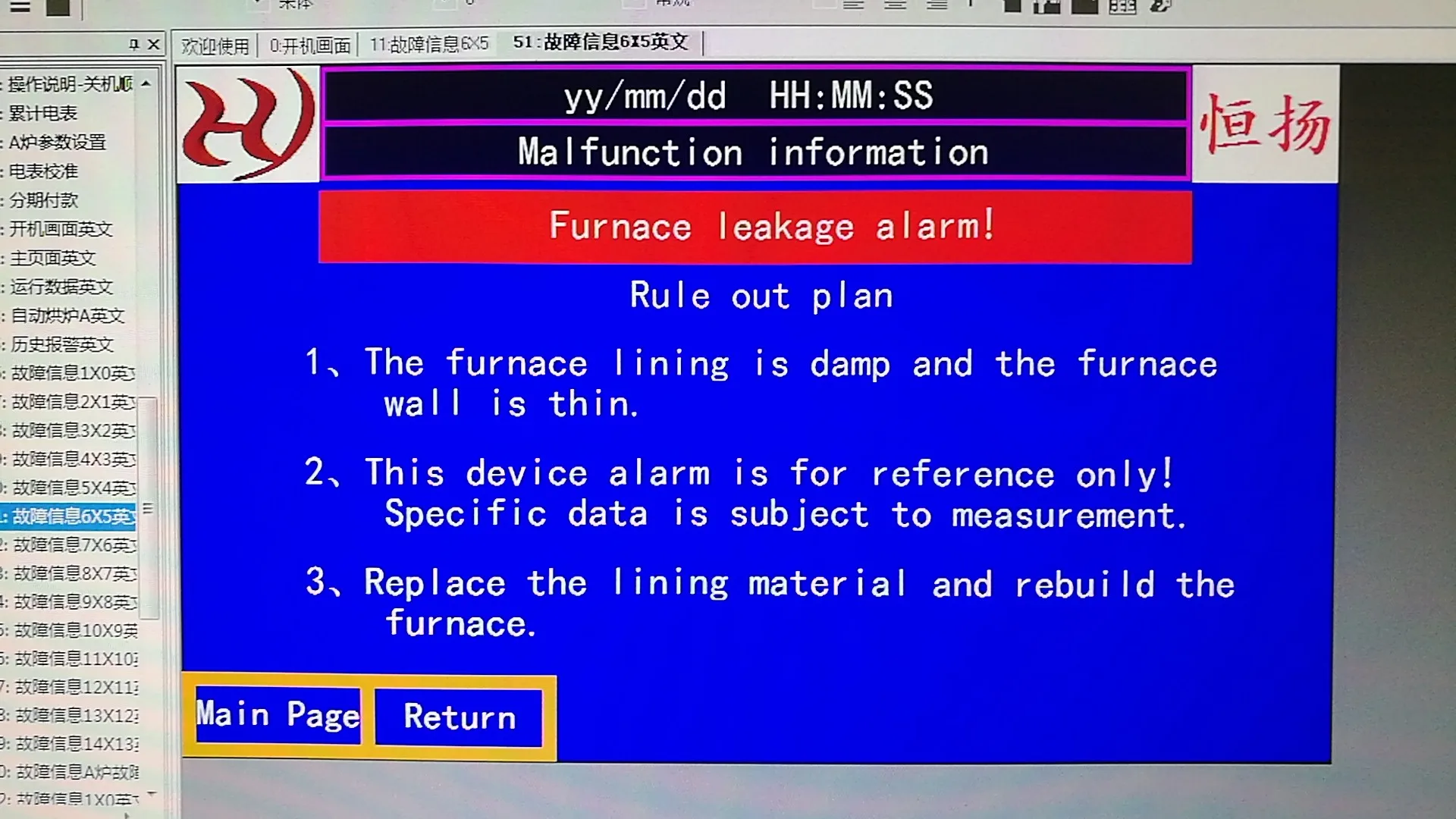

1. Furnace-leaking alarm to improve the safety. Hengyang company has special dual furnace-leak alarm function, dual combined detection using differential current method and DC injection method. When the furnace lining becomes thin and needs to be replaced, the detection system will give an alarm to remind the user to replace the furnace lining in time to prevent the furnace from being worn.

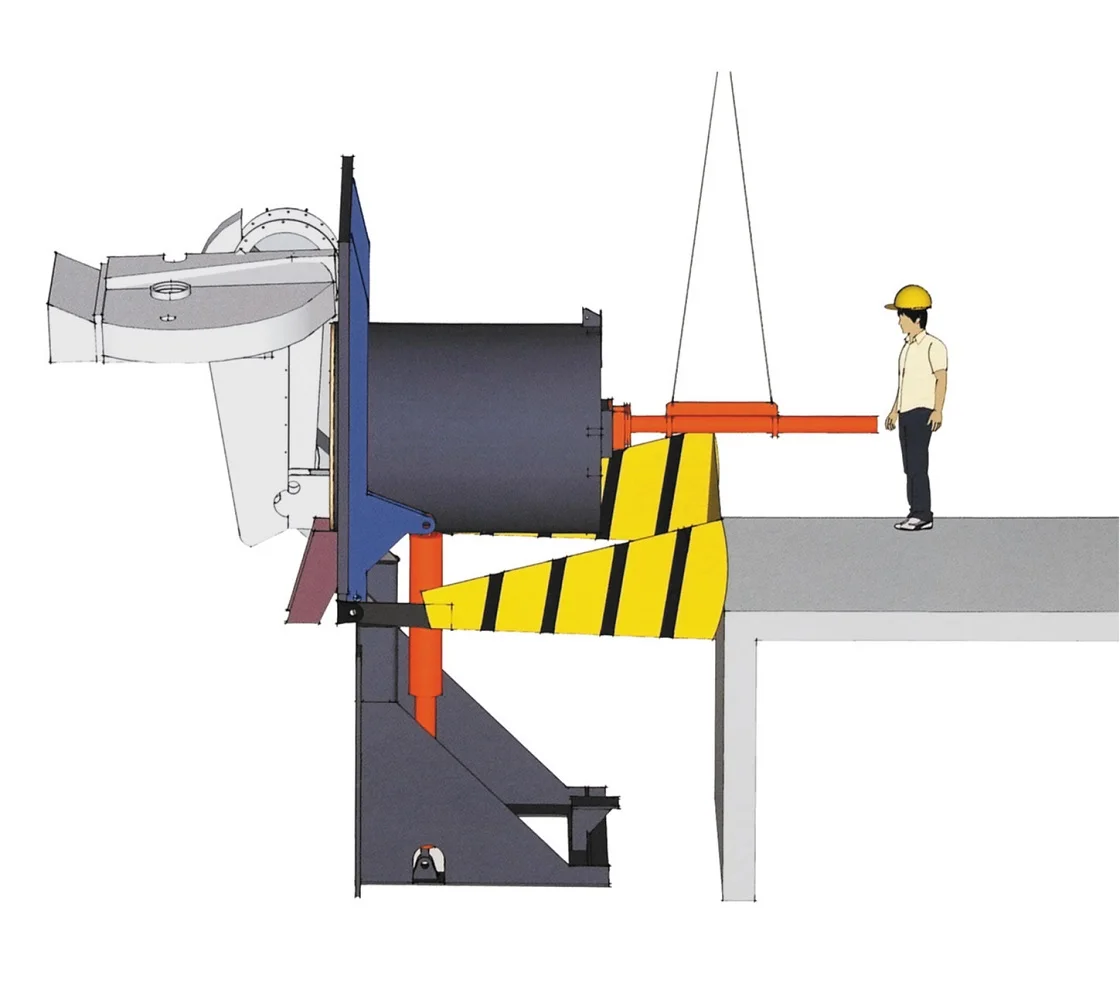

2. Lining push-out system to save your time of changing lining.The cylinder will lifted by a crane, and its flange will be put directly in the connecting rail. Then the lining can be roll out by starting the hydraulic pump station. A set of lining out device can be used for several furnaces.
3. Dust collector to reduce air pollution. The dust hood (ring) absorbs the dust and exhaust gas generated during melting process through air and reduce the exhausted gas emission, to meet the environmental requirements. Two type of collector for choosing.

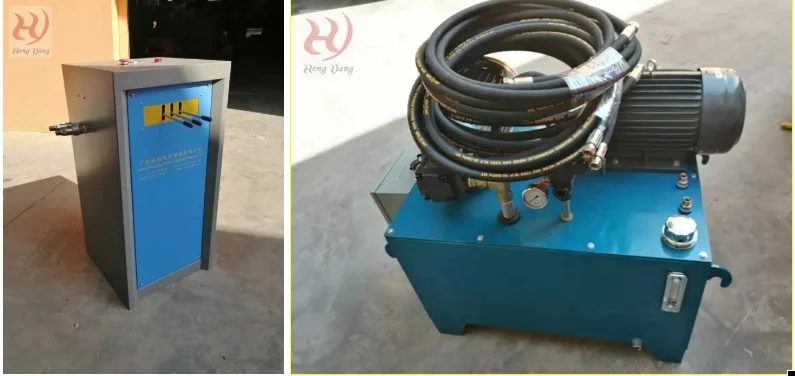

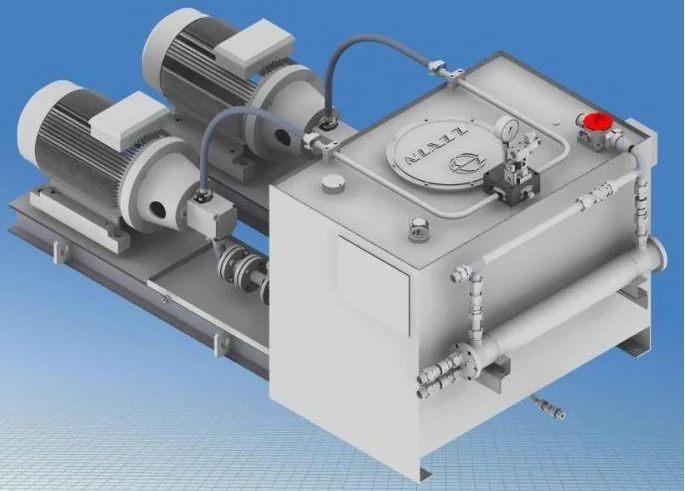

No2 hydraulic tilting system






Special features
This system includes a hydraulic pump station and a hydraulic control valve table.
1. It adopts a double-pump structure, one for use and one for standby, so wearing parts can be repaired without stopping the furnace.
2. Equipped with an oil temperature and oil level gauge, it can detect system changes and failures in time.
3.The constant pressure gear pump is selected to make the system have the advantages of energy saving, durability and low heat generation.

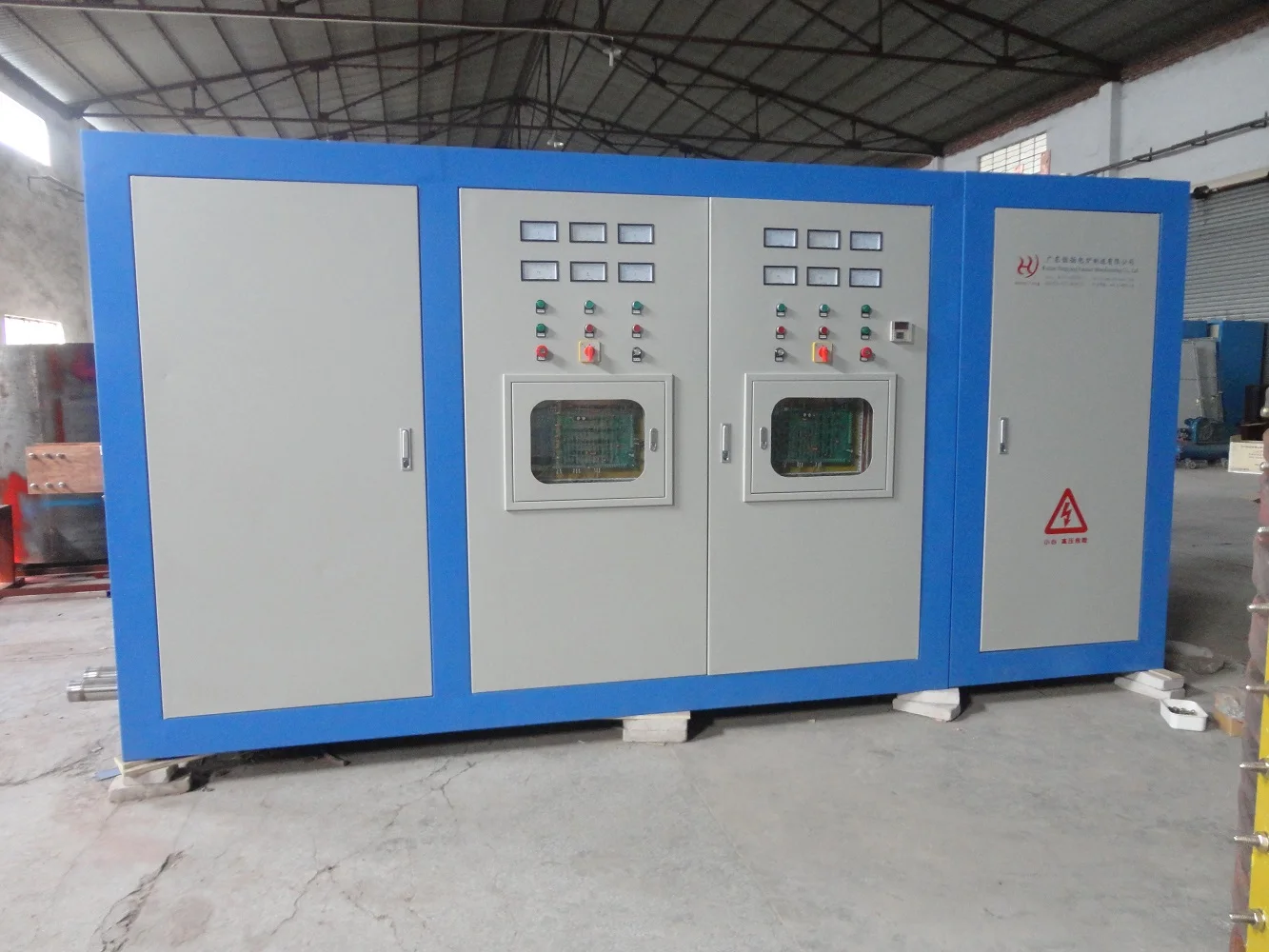

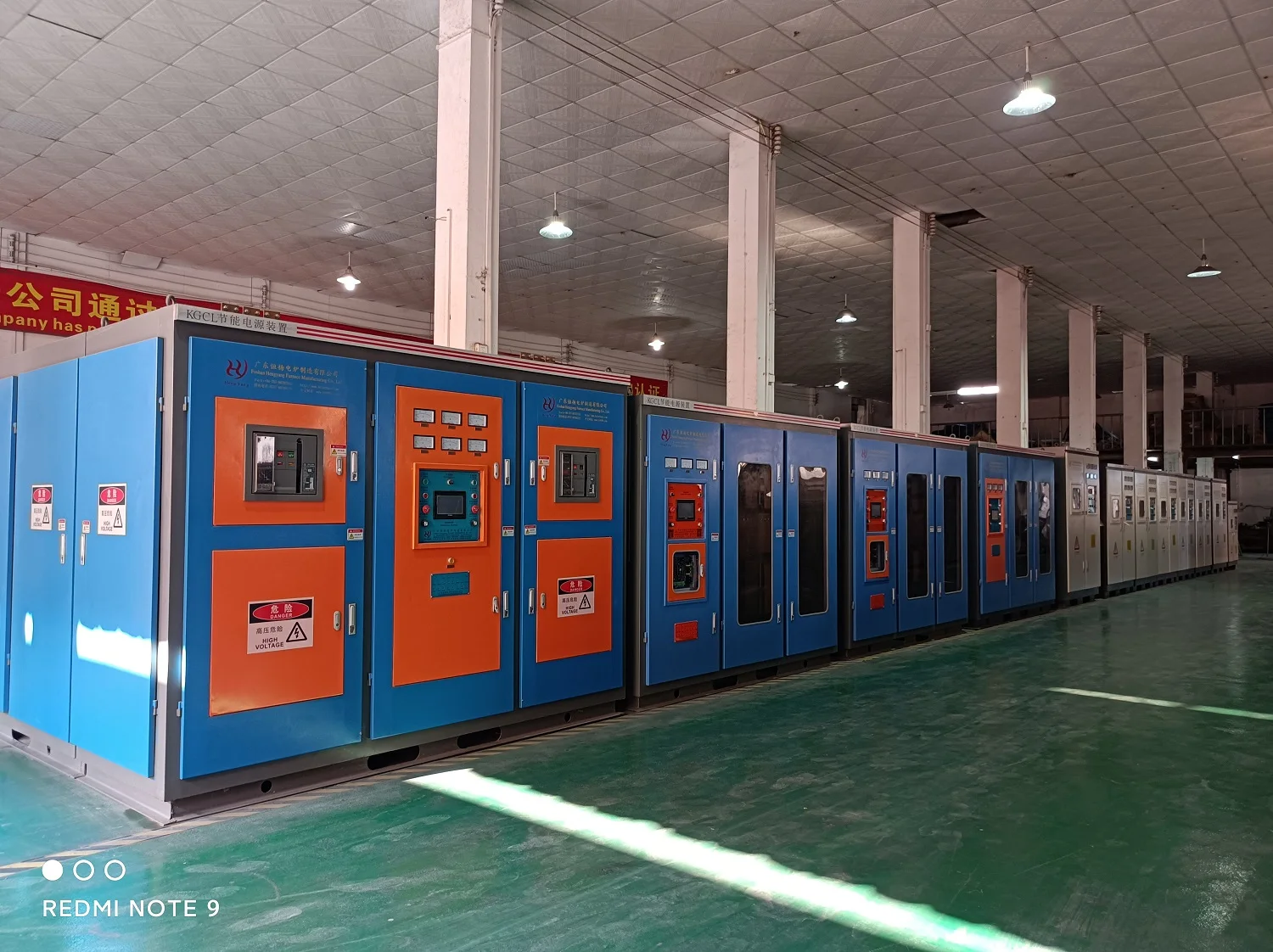

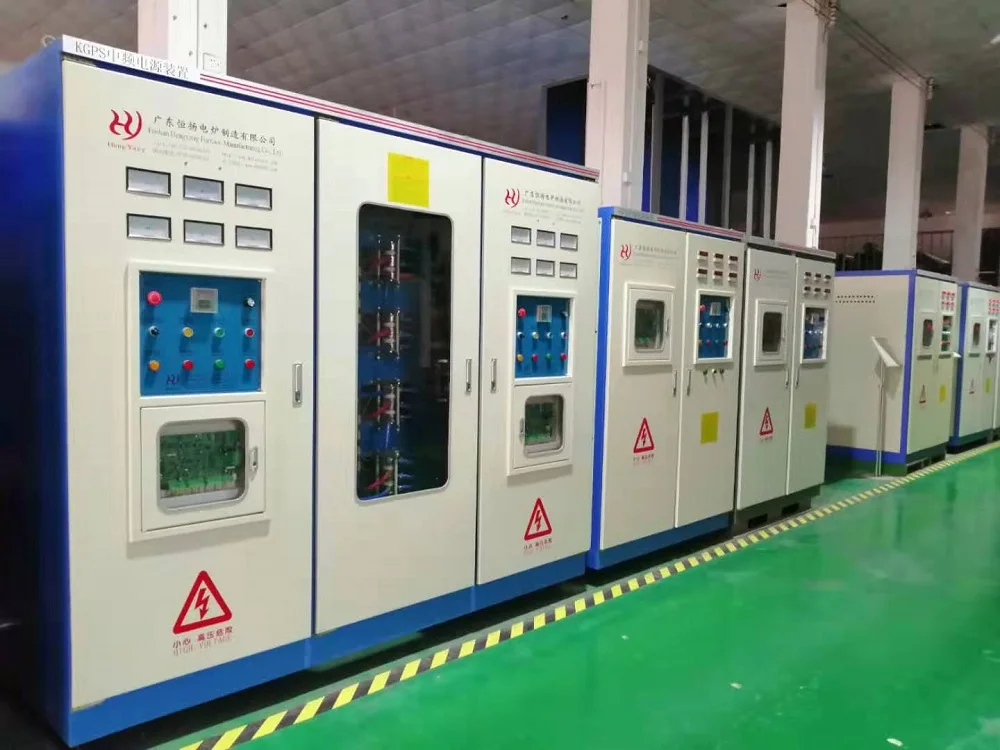

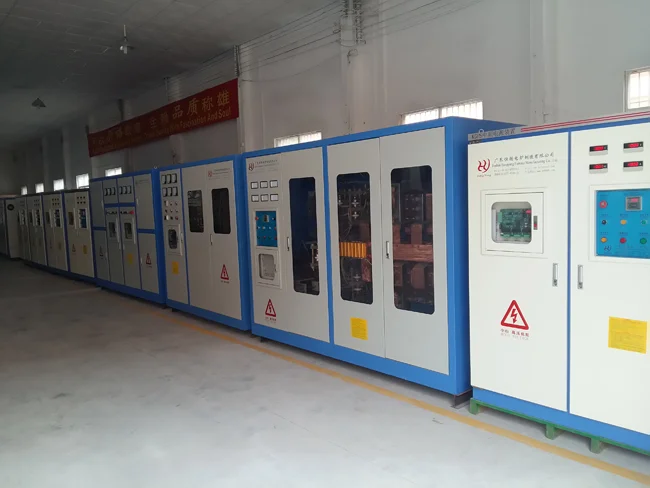

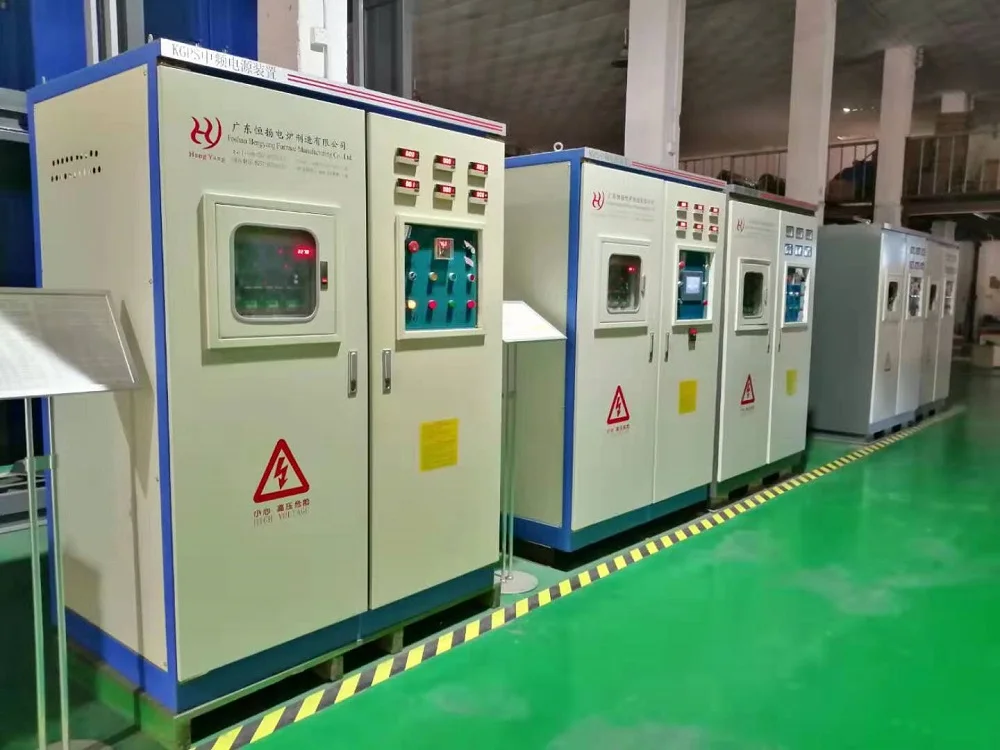

NO3 Power Supply Cabinet






Power supply cabinet

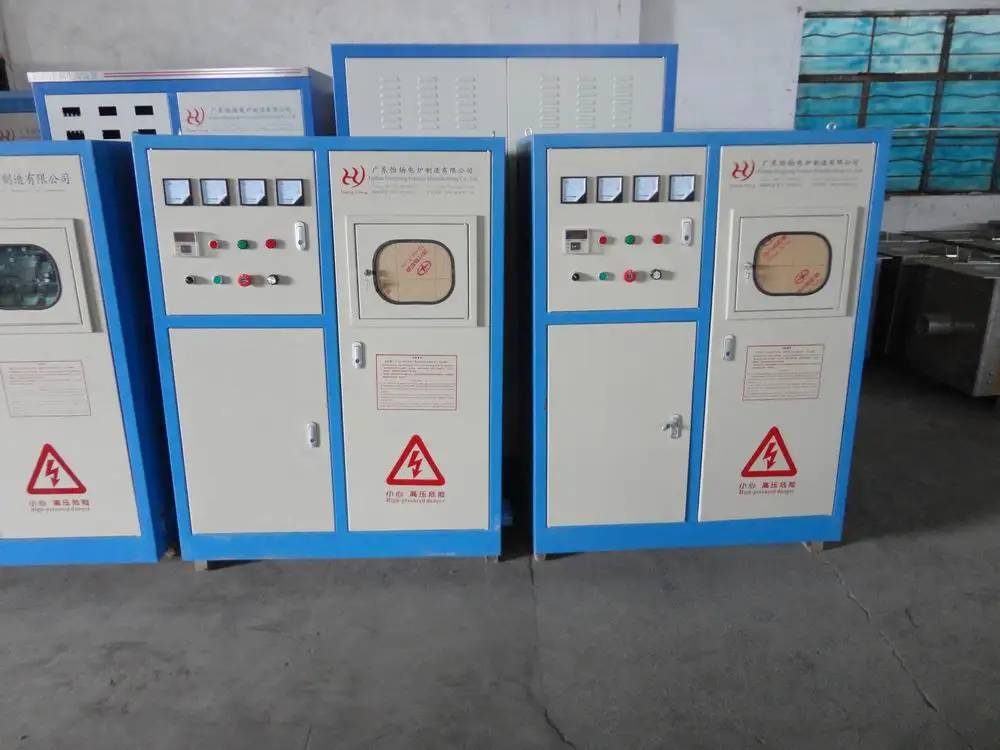

KGPS parallel electric cabinet existed at the beginning of the factory in 1999, it have advantages of mature technology, stable performance, simple operation and convenient maintenance. It is still a hot sale type now. Recommended for customers who are new to the metal casting industry.
KGCL series electric cabinet is a newly developed electric cabinet in 2012, which is electrical energy-saving , without harmonics. One electric cabinet can run two or three furnaces at the same time, which can continuously supply metal solution, which is suitable for continuous casting industry. Recommended for customers who have high power requirements and urgently need to increase production and plan to establish a fully automatic production line.











COMPANY PROFILE




Company introduction
-------------------------------
Foshan Hengyang Furnace Manufacturing Co., Ltd is one of the leading manufacturer of medium frequecy induction
furnace in China. Its headquarter is located in Foshan city, Guangdong province, China, where is only 20km away
from Guangzhou Baiyun International airport, so it is very convenient for you to visit. It has sub-factory located in
Cairo, Egypt, and have after-sale office in Zimbabwe and Russia. Up to new, more than thousands sets of melting
Turnkey project is our commitment. We promise not only to provide high quality and reliable equipment, but also to
and heating equipment have been exported to more than 70 countries.
online service to give direct solutions to your actual production problems.
offer perfect after-sale service. There is a group of experienced after-sale team of 20 personnel, offering 24 hours
