IBEST M8 2mm NPN PNP DC 5V 12V 24V Waterproof Metal Detector Inductive Inductance Approach Proximity Limit Switch Sensor

Product Overview

Description

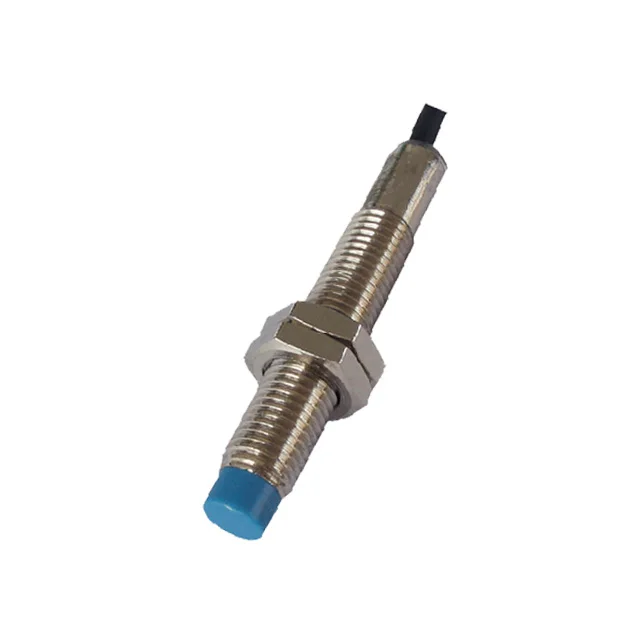

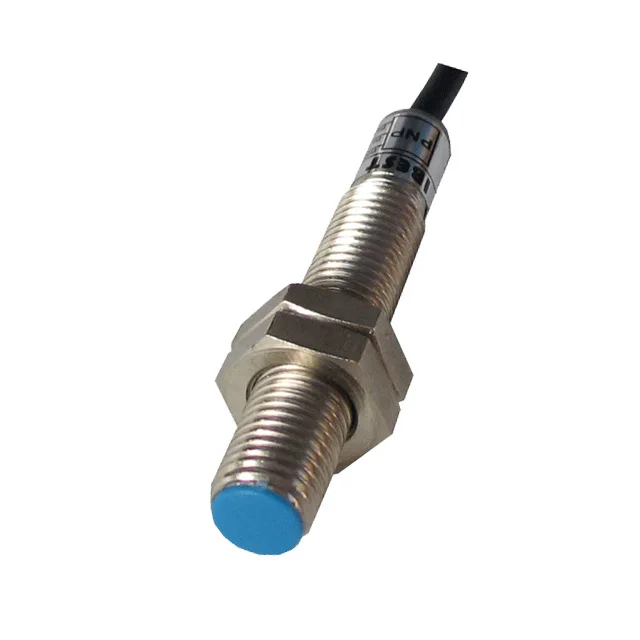

IBEST M8 Inductive Proximity Sensor Switch

NPN Or PNP NO Or NC Output 3 Wires



1.Features:
*     Style: cylinder shape, diameter: 8mm cylinder shape.

*     Sensoength=4
*     NPN or PNP, NO or NC output.
*     Connection mode: 3 wires (or with 3 pin connector)

*     DC 10-30V supply. (DC5V can be special ordered)
*     Mounting distance: shielded (1mm), unshielded(2mm).
*     With LED operation indicate lamp, easily identifiable .
*     Brass nickle plated, proof of oil, water acid, alkaline.
*     Standard sensing object: metal objects.
*     Protection rate: IP67, water resistant.
*     Over-load protection, short circuit protected, and Againest Polarity reversal.

*     Various other shapes: M5/M6/M8/M18/M30, square types and pancake types.
*     Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc .

*     Reliable quality to replace famous brands, with CE approval.



2. Ordering Code:

Model and Type	Output type	Mounting distance	Cureent output	Power supply	Connector model	Buy
IPS-8NO1B	NPN NO	1mm,shielded	≤200mA	DC 10-30V	3 Wire
IPS-8NC1B	NPN NC	1mm,shielded	≤200mA	DC 10-30V	3 Wire
IPS-8NO2B	NPN NO	2mm,unsheilded	≤200mA	DC 10-30V	3 Wire
IPS-8NC2B	NPN NC	2mm,unshielded	≤200mA	DC 10-30V	3 Wire

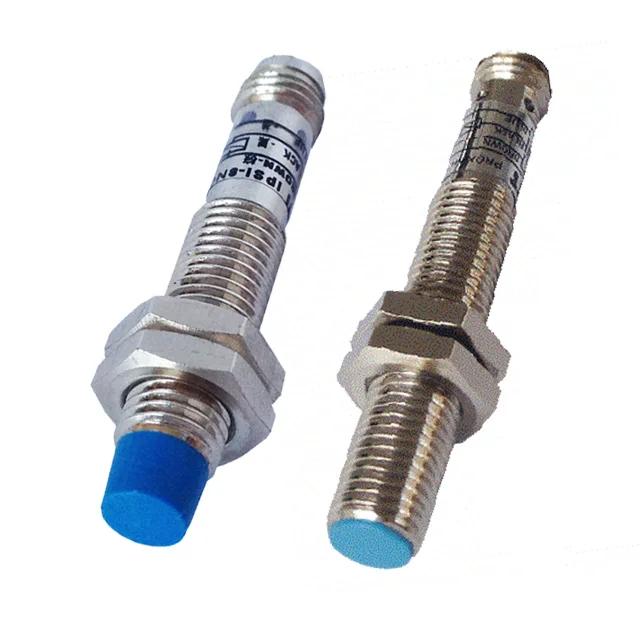

IPSI/L-8NO1B	NPN NO	1mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-8NC1B	NPN NC	1mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-8NO2B	NPN NO	2mm,unshielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-8NC2B	NPN NC	2mm,unshielded	≤200mA	DC 10-30V	Plug-in connector
IPS-8PO1B	PNP NO	1mm,shielded	≤200mA	DC 10-30V	3 Wire
IPS-8PC1B	PNP NC	1mm,shielded	≤200mA	DC 10-30V	3 Wire
IPS-8PO2B	PNP NO	2mm,unshielded	≤200mA	DC 10-30V	3 Wire
IPS-8PC2B	PNP NC	2mm,unshielded	≤200mA	DC 10-30V	3 Wire
IPSI/L-8PO1B	PNP NO	1mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-8PC1B	PNP NC	1mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-8PO2B	PNP NO	2mm,unshielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-8PC2B	PNP NC	2mm,unshielded	≤200mA	DC 10-30V	Plug-in connector
IPS-8DO1B	DC 2 Wire NO	1mm,shielded	≤200mA	DC 10-30V	2 Wire
IPS-8DC1B	DC 2 Wire NC	1mm,shielded	≤200mA	DC 10-30V	2 Wire
IPS-8DO2B	DC 2 Wire NO	2mm,unshielded	≤200mA	DC 10-30V	2 Wire
IPS-8DC2B	DC 2 Wire NC	2mm,unshielded	≤200mA	DC 10-30V	2 Wire
IPSI/L-8DO1B	DC 2 Wire NO	1mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-8DC1B	DC 2 Wire NC	1mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-8DO2B	DC 2 Wire NO	2mm,unshielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-8DC2AB	DC 2 Wire NC	2mm,unshielded	≤200mA	DC 10-30V	Plug-in connector



3.Technical specification

Property project	Specific parameter
Mounting distance	shielded (1mm)/unshielded(2mm)
Sensing distance	shielded(0-0.8mm)/unshielded(0-1.8mm)
Power supply	DC 10-30V (or DC5V special order)
Frequency	≤1KHz
Current output	≤100mA
Ambient temperture	-15°C-65°C
Protection	over-current/against polarity reversal
IP rating	IP67

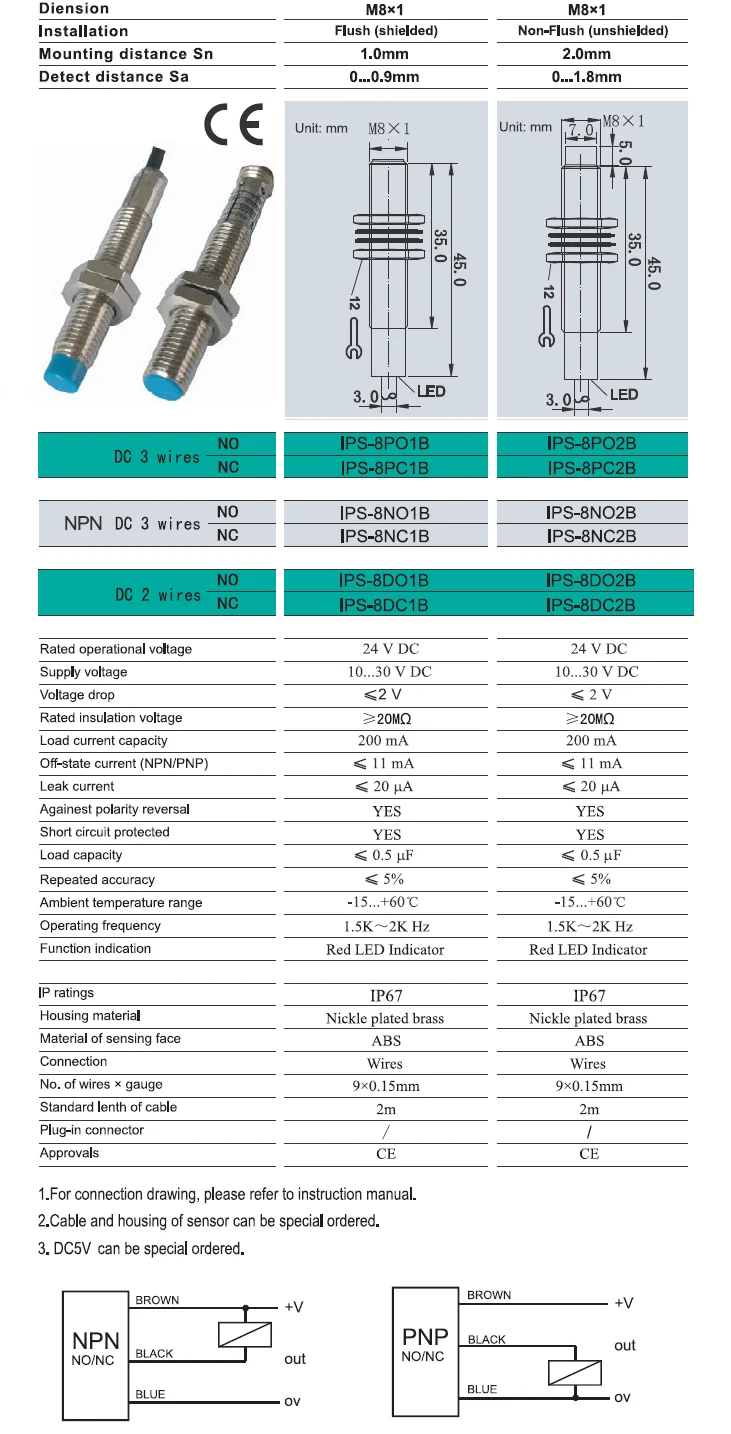

4.Dimension & Specifications & Connection drawing:
