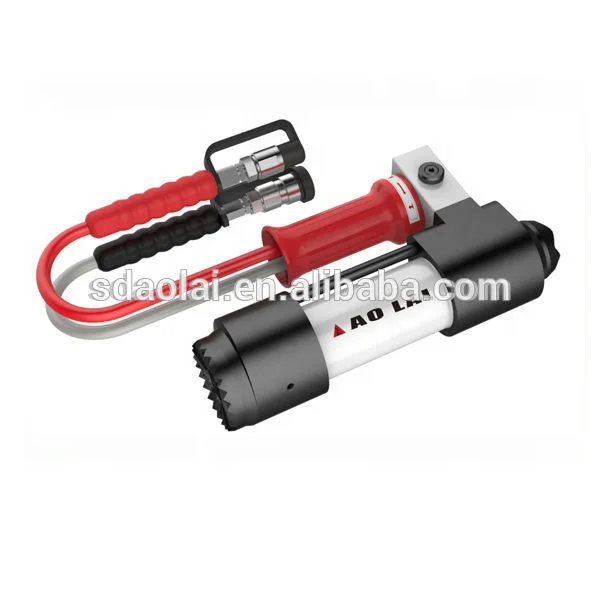

CE Hydraulic Car lifting Rams Hydraulic Ram Jack

Product Overview

Description

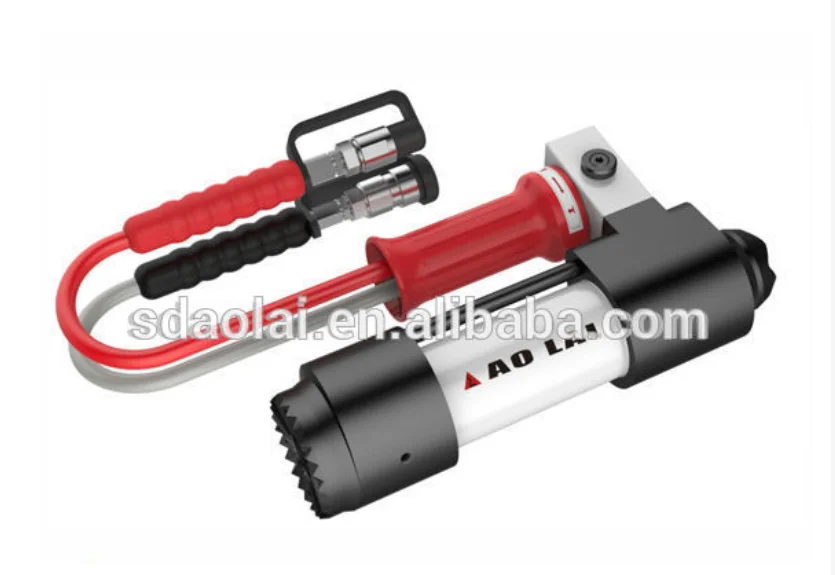

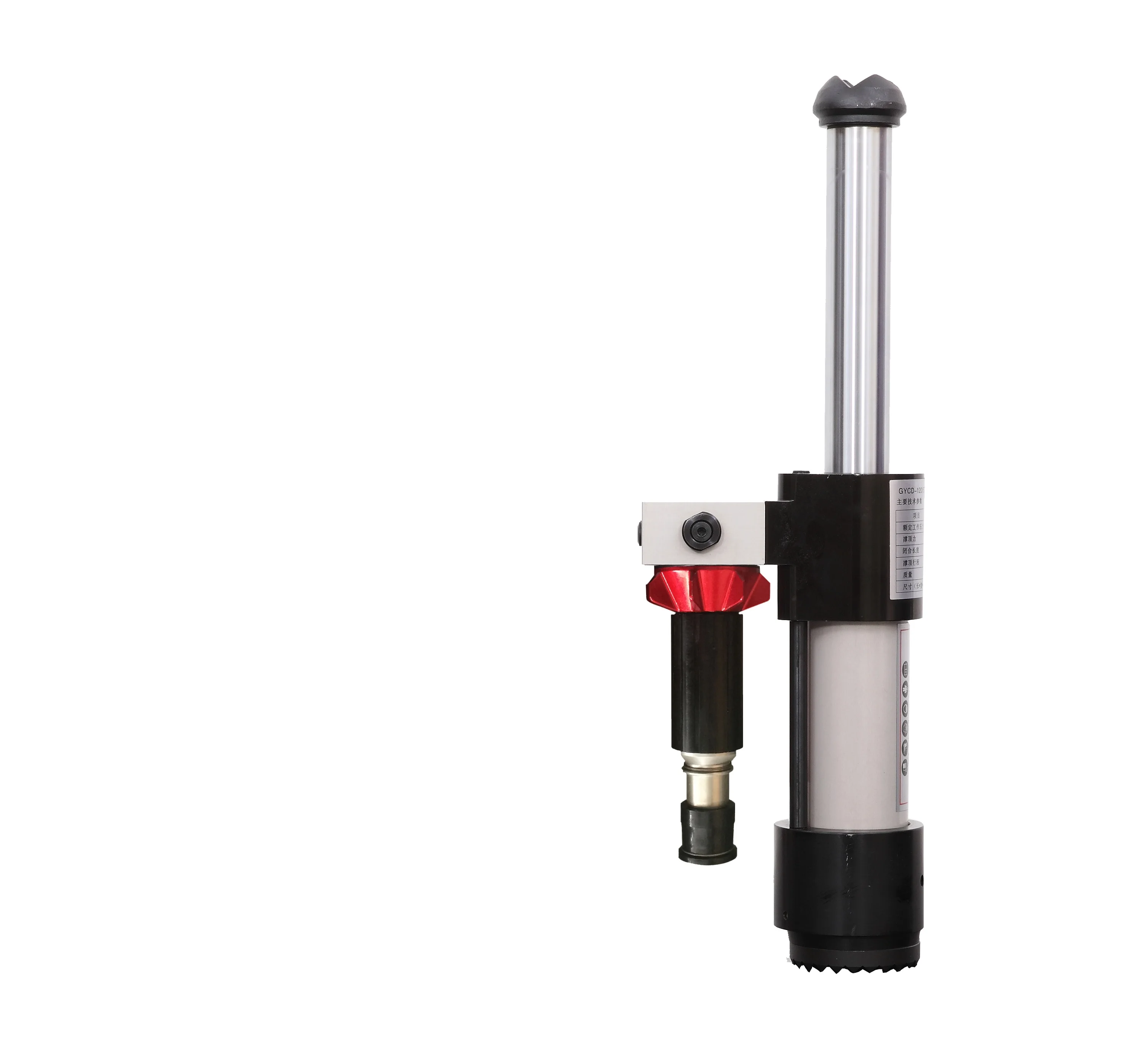

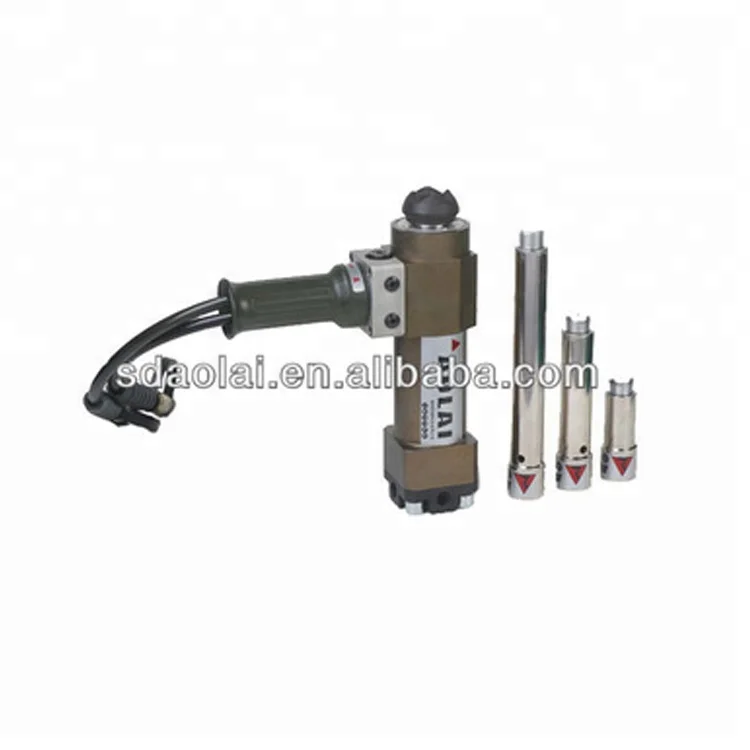

CE Hydraulic Car lifting Rams Hydraulic Ram Jack





GYCD-63-110/525-A



a- Trade Terms

FOB Price/unit	Trade Terms	Port of Loading	MOQ	Certificate

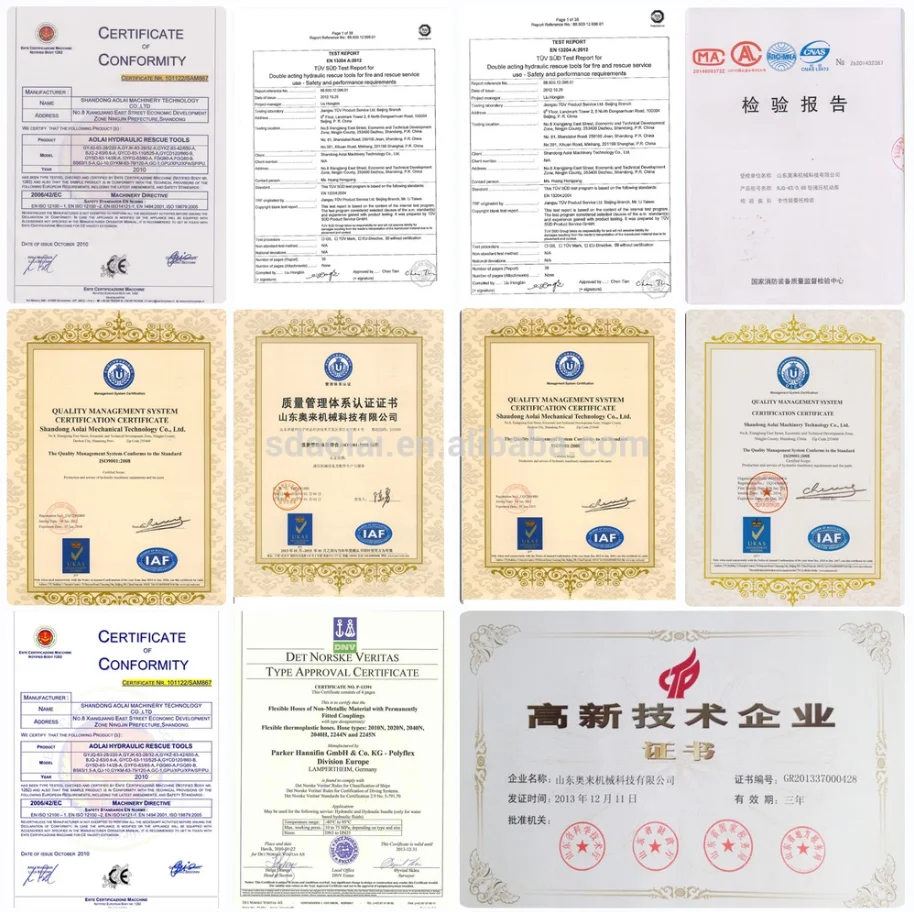

0~3,184 USD	TT/West Union LC: no less than $100,000 Western Union Paypal	Sea Port: Qingdao/Tianjin Air Port: Beijing/Qingdao DHL/TNT/Fedex: Jinan	1 unit	ISO9001-2008 CE EN13204 China Top Security Certificate





b- Product Description:

This single hydraulic plunger supports high rescue jacking force, light weight.

Providing the biggest jacking force of 110KN. Enough for vehicles rescue and general relief.











c- Scope of Application:

1.Highway, railway accident, disaster relief and rescue shipwreck

2.Buildings and disaster relief

3.Moving obstacles, hold top objects, create rescue channels and maintain certain space stable.













d- Product Features

Cylinder uses high strength and lightweight alloy manufactured,elaborate design of both antiskid tooth to make sure when under stress won't fall off.

Bi-directional hydraulic lock work with automatic reset valve protecting handlers from the normal and emergency.

Short time in top-up obstacle which will accelerate the rescue process















e- Specification

Parameter for Hydraulic Ram
Model	GYCD-63-110/525-A
Rated Working Pressure	63Mpa
Max. Supporting Force	120 KN
Steady Ram Length	≤350 mm
Supporting Distance	180 mm
Length of Extension Bars I/II/III	100/175/275 mm
Supporting Scope	350-1080mm
Mass	≤10 kg
Dimensions L*W*H	350*260*90 mm
