Sell CE Candle Making Machinery

Product Overview

Description

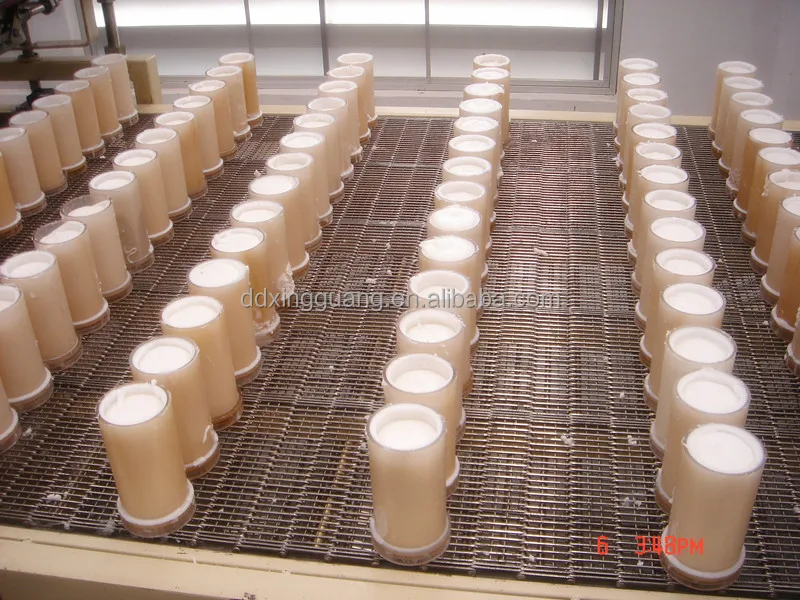

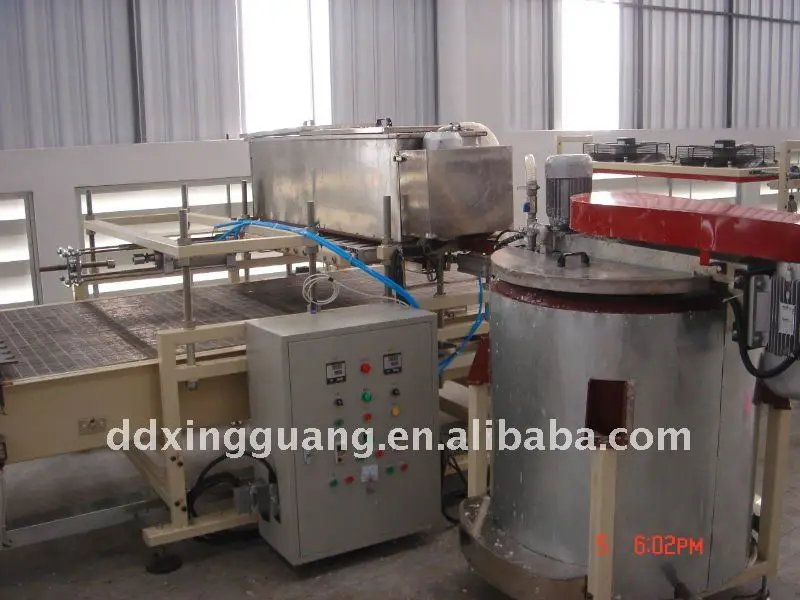

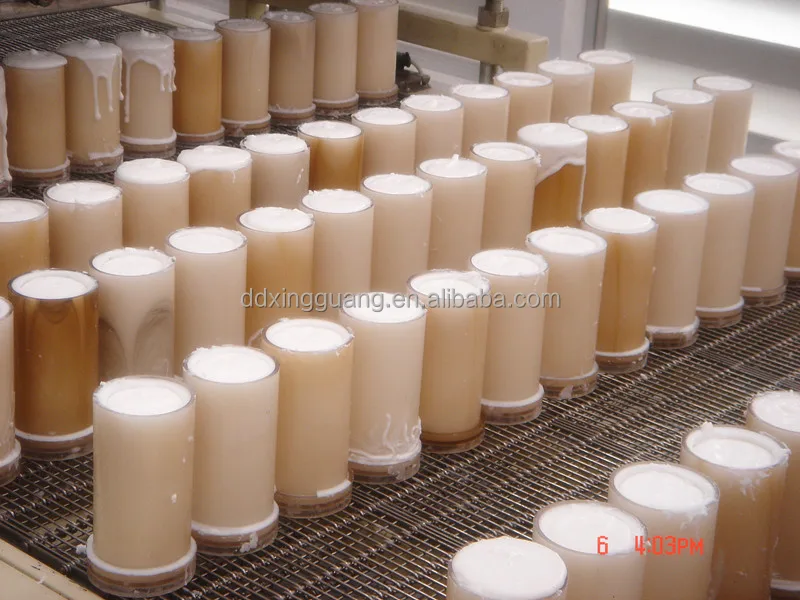

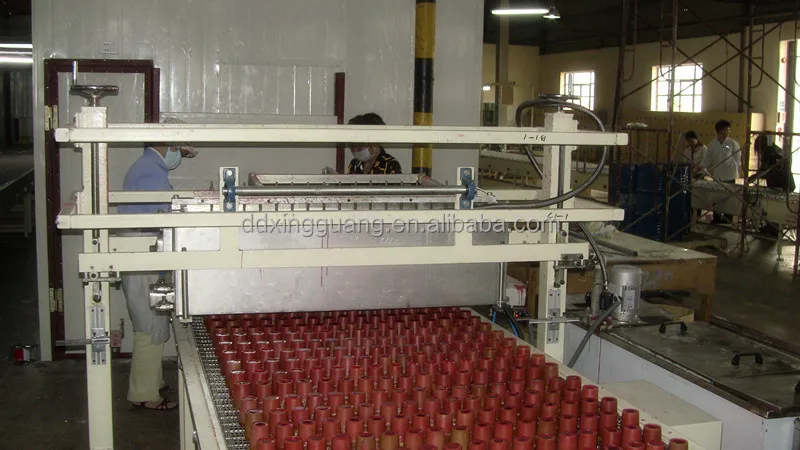

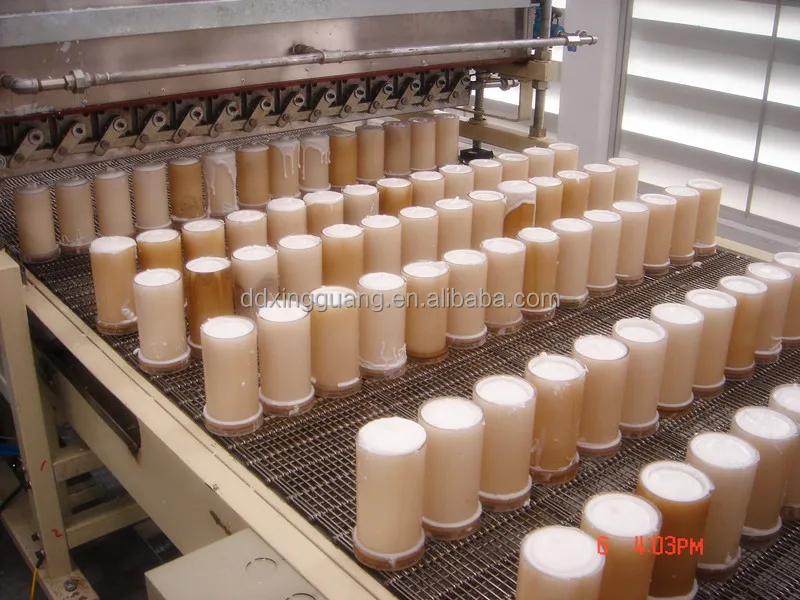

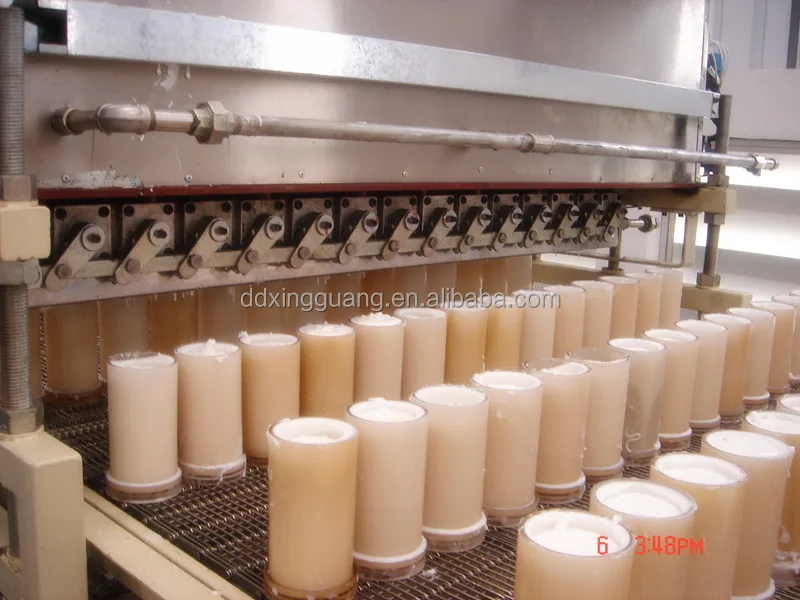

Candle Making Machinery is specialized equipment in candles making. It is operated manually for placing the containers and automatically filling the candle.



•  Model type:XGCECMM
• 1100mm net belt width (the number of nozzles×nozzles distance×the nozzles diameter): 24pcs × 49mm × 2mm
• Filling container height (max): 250mm
• Machine length: 12m, 16m, 20m, 24m, 28m, 32m, 36m, 40m, 48m;
• The length and width of the net belt can be customized, as well as the output.
• Net belt transmission power: 0.75-1.1KW
• Supply voltage: 380V
• Wax box electric heating tube power: 1.5KW×2 (when one filler)
• Wax pump electrical motor power: 0.15KW (when one filler)
• Wax pump flow: 50L/Min (when one  filler)
• wax trough electric heating tube power: 1.5KW×2 (when 1 filler)
• Dimensions(L×W×H): Net belt length + 800×1350×1860mm
